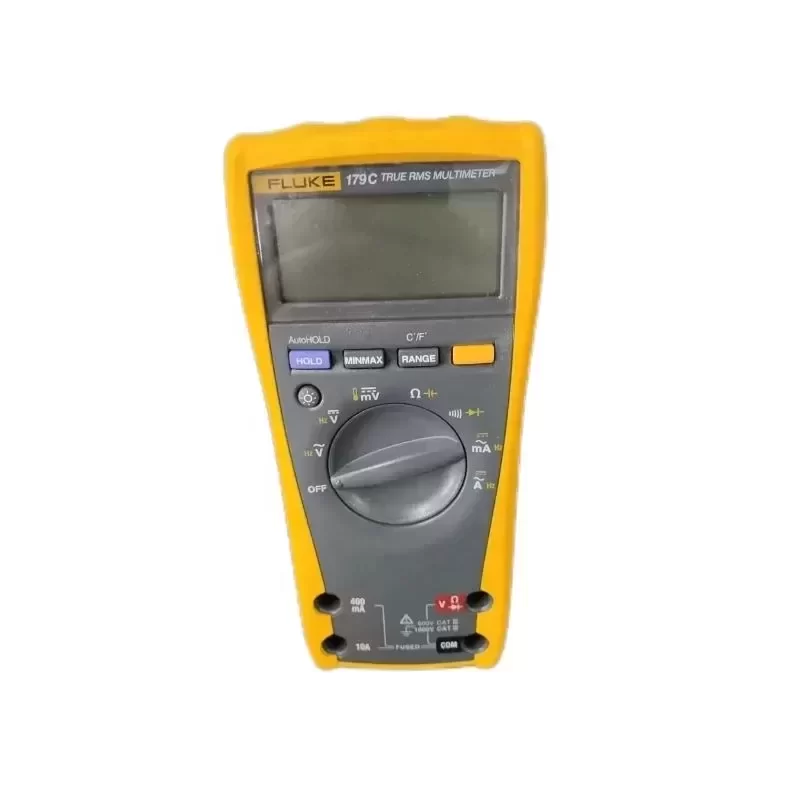

Fluke 179 179C Digital Multimeter 6000 Count DMM with Backlight Temperature Measurement

Description

The Fluke 179 True-RMS Digital Multimeter is an industry-standard diagnostic tool engineered for precision electrical troubleshooting and maintenance. Designed to deliver accurate measurements in non-linear loads, this 6000-count DMM integrates advanced functionality including True-RMS AC voltage and current measurement, capacitance, frequency, and a built-in thermometer for comprehensive thermal diagnostics. Built with Fluke’s Original Engineering standards, the 179 model ensures maximum reliability in harsh industrial environments.

Technical Specifications:
Measurement Type: True-RMS AC/DC
Display Resolution: 6000 counts with analog bar graph (33 segments)
DC Voltage Range: 0.1 mV to 1000 V
DC Voltage Basic Accuracy: ±0.09% + 2
AC Voltage Range: 0.1 mV to 1000 V
DC/AC Current Range: 0.01 mA to 10 A (20 A overload for 30 seconds max)
Resistance Range: 0.1 Ω to 50 MΩ
Capacitance Range: 1 nF to 10,000 µF
Frequency Range: 0.01 Hz to 100 kHz
Temperature Measurement Range: -40°C to +400°C
Safety Rating: Overvoltage Category EN 61010-1 to 1000 V CAT III, 600 V CAT IV
Display Features: LED Backlight, Min/Max/Average recording
Power Supply: 9V Alkaline battery (NEDA 1604A / IEC 6LR61)
Battery Life: Approximately 200 hours (without backlight)
Operating Temperature: -10°C to +50°C
Dimensions: 4.3 cm x 9.0 cm x 18.5 cm
Weight: 420 g
Certifications: CSA, TÜV, VDE, UL listed

Industrial Application:
The Fluke 179 is specifically deployed in heavy-duty plant maintenance, HVAC/R diagnostics, and automated manufacturing facilities. Its True-RMS capability is critical for accurately measuring distorted AC signals found in variable speed motor drives and solid-state controls. The integrated temperature measurement eliminates the need for a separate thermometer, streamlining workflow during thermal profiling of switchgear, transformers, and industrial motors.

Procurement and Lifecycle Value:
Ensuring Technical Compatibility with a vast array of standard test leads and current clamps, this DMM integrates seamlessly into existing technician toolkits. We maintain optimized Lead Time protocols to ensure rapid deployment for critical facility operations, minimizing downtime and maximizing diagnostic efficiency.

Key Attributes
Measuring Current Range: 10A
Measuring Voltage Range: 1000 V
Parameters Measured: DC Current, AC Voltage, Temperature (K)
Place of Origin: China
Model Number: 179C
Brand Name: Fluke
Dimensions: 1.7 x 3.5 x 7.3" (43 x 90 x 185 mm)
Feature: Waterproof
Low Battery Indicator: Yes
Max. AC Current: 10 A
Max. AC Voltage: 1000 V
Max. DC Current: 10 A
Max. DC Voltage: 1000 V
Measuring Capacitance Range: 10,000 uF
Measuring Inductance Range: 0-9999
Measuring Resistance Range: 50 MΩ
Operating Temperature: 14 to 122°F (-10 to 50°C)
Voltage DC/AC: 1000 V
Accuracy: ±(1.0% + 3)
Current DC/AC: 10 A
Resistance Maximum: 50 MΩ
Capacitance Maximum: 10,000 uF
Temperature Range: -40 to 752°F (-40 to 400°C)
Operating Temperature: 14 to 122°F (-10 to 50°C)
Size: 1.7 x 3.5 x 7.3" (43 x 90 x 185 mm)

Packaging and Delivery
Selling Units: Single item
Single package size: 30X18X15 cm
Single gross weight: 1.000 kg
