Description

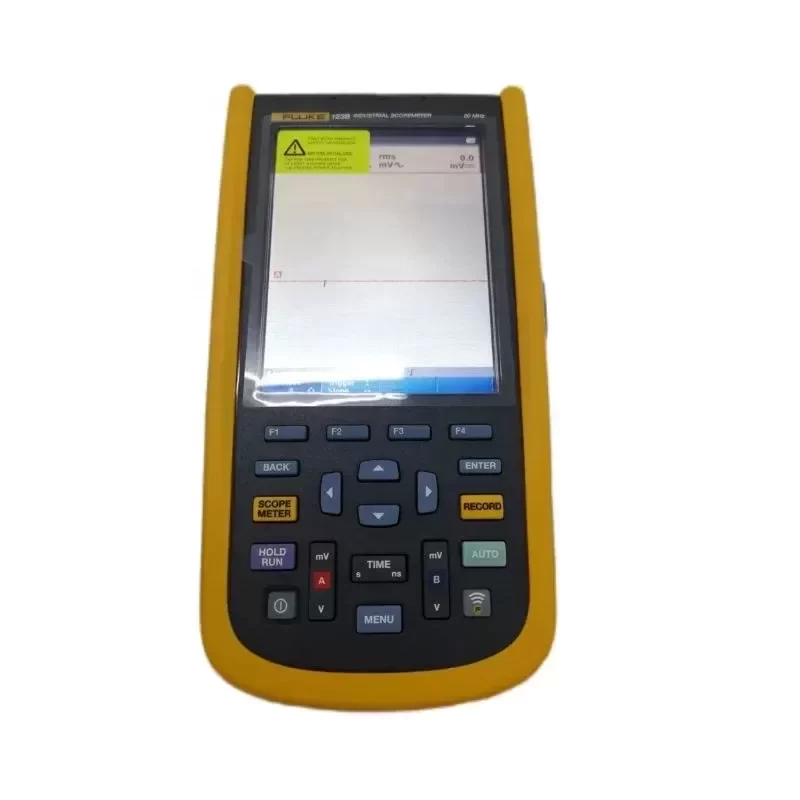

The Fluke 125B is a dual-input industrial ScopeMeter designed for comprehensive electromechanical troubleshooting. Combining a 40 MHz oscilloscope, a 5000-count digital multimeter, and a high-speed recorder in a single ruggedized chassis, this diagnostic tool is engineered for harsh field environments. It features Connect-and-View triggering for hands-off operation and IntellaSet technology to automatically adjust numerical readouts based on the measured signal. The inclusion of an AC current clamp expands its utility for direct power, energy, and harmonic measurements, making it a critical asset for plant maintenance.
Technical Specifications
Brand: Fluke
Model: 125B
Equipment Type: Industrial Hand-Held Oscilloscope / ScopeMeter
Bandwidth: 40 MHz
Sample Rate: 40 MS/s
Input Channels: 2 (Dual-input oscilloscope and multimeter)
Display: 5.7-inch color TFT active matrix
Safety Category: CAT IV 600 V / CAT III 750 V
Ingress Protection: IP51 (Dust and drip-proof)
Operating Temperature: 0 °C to +50 °C
Storage Temperature: -20 °C to +60 °C
Power Source: Rechargeable Li-ion battery pack
Battery Life: 7 hours continuous operation
Weight: 1.4 kg

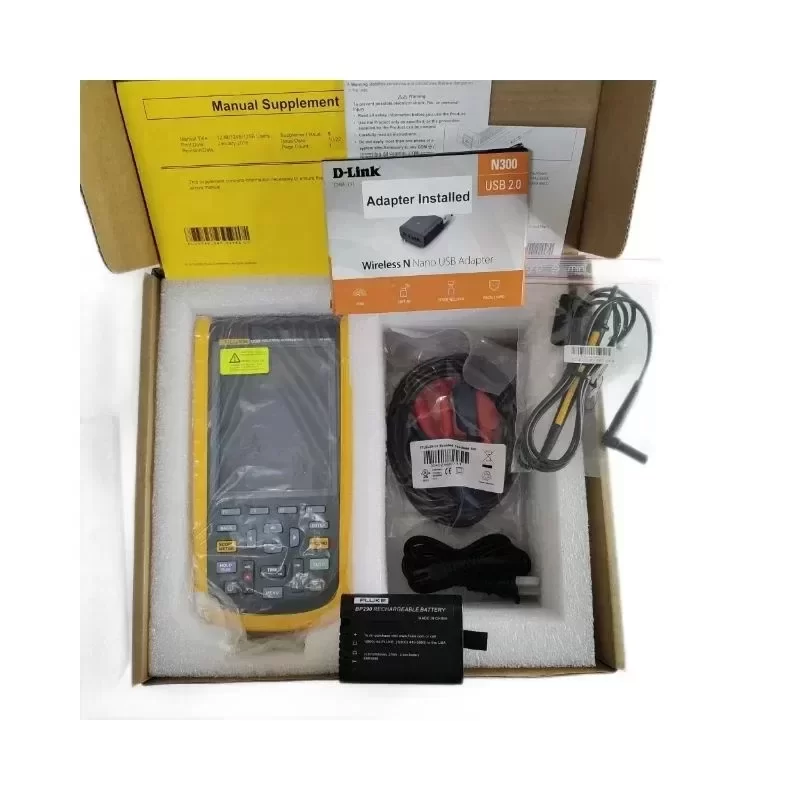

Included Accessory: AC Current Clamp (for power and harmonics)
Communication Interface: Optically isolated USB / WiFi (with optional adapter)
Recording: TrendPlot paperless recorder mode
Industrial Application
The Fluke 125B is specifically deployed in industrial automation environments for diagnosing variable frequency drives (VFDs), motor control centers, and power distribution networks. By utilizing the integrated BusHealth mode, technicians can verify the electrical signal quality of industrial buses (such as Profibus, Foundation Fieldbus, or Modbus) against established standards. The included AC clamp allows for immediate power quality analysis, identifying harmonic distortion, voltage sags, and transient anomalies that cause intermittent machine failures and logic controller resets.
Procurement and Lifecycle Value
Sourced through Original Engineering channels, the Fluke 125B ensures exact Technical Compatibility with existing Fluke diagnostic software architectures, including FlukeView for Windows. Standard Lead Time applies for this factory-calibrated instrument, guaranteeing immediate deployment readiness for critical plant maintenance and minimizing costly production downtime.
Key Attributes
Type: ScopeMeter
Place of origin: China
Size: 26 x 14 x 6cm
Model number: 125B
Brand name: Fluke
Customized support: OEM, ODM
Warranty: 1 years
Frequency Response - DC Coupled: DC to 40 MHz (-3 dB)
Rise Time, Excluding Probes, Test Leads: <8.75 ns
Sensitivity: 5 mV to 200 V/div
Analog Bandwidth Limiter: 10 kHz
Display Modes: A, -A, B, -B
Scope Modes: Normal, single, roll
Screen Update: Free run, on trigger
RPM Maximum reading: 50 kRPM
Packaging and Delivery
Selling Units: Single item
Single package size: 46X35X27 cm
Single gross weight: 4.000 kg
