$4.00

SKU: 868842132850 Brand:

Description

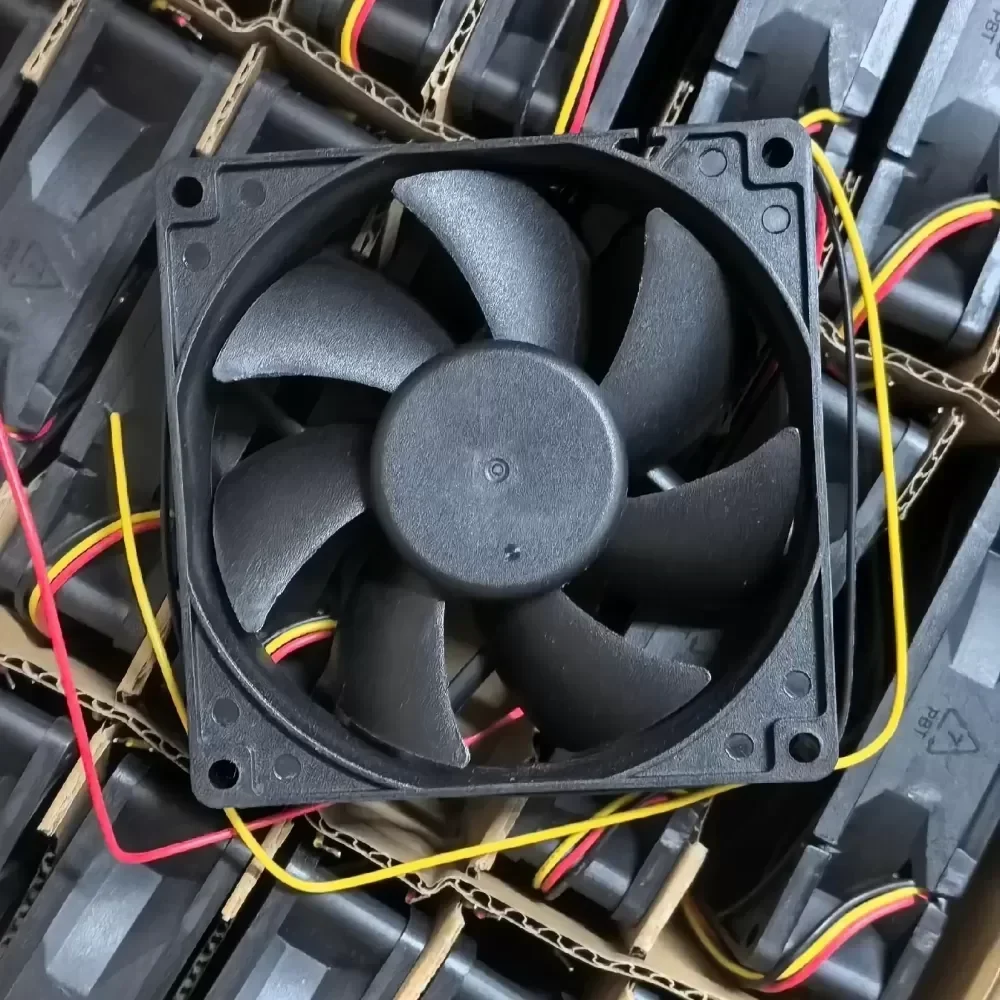

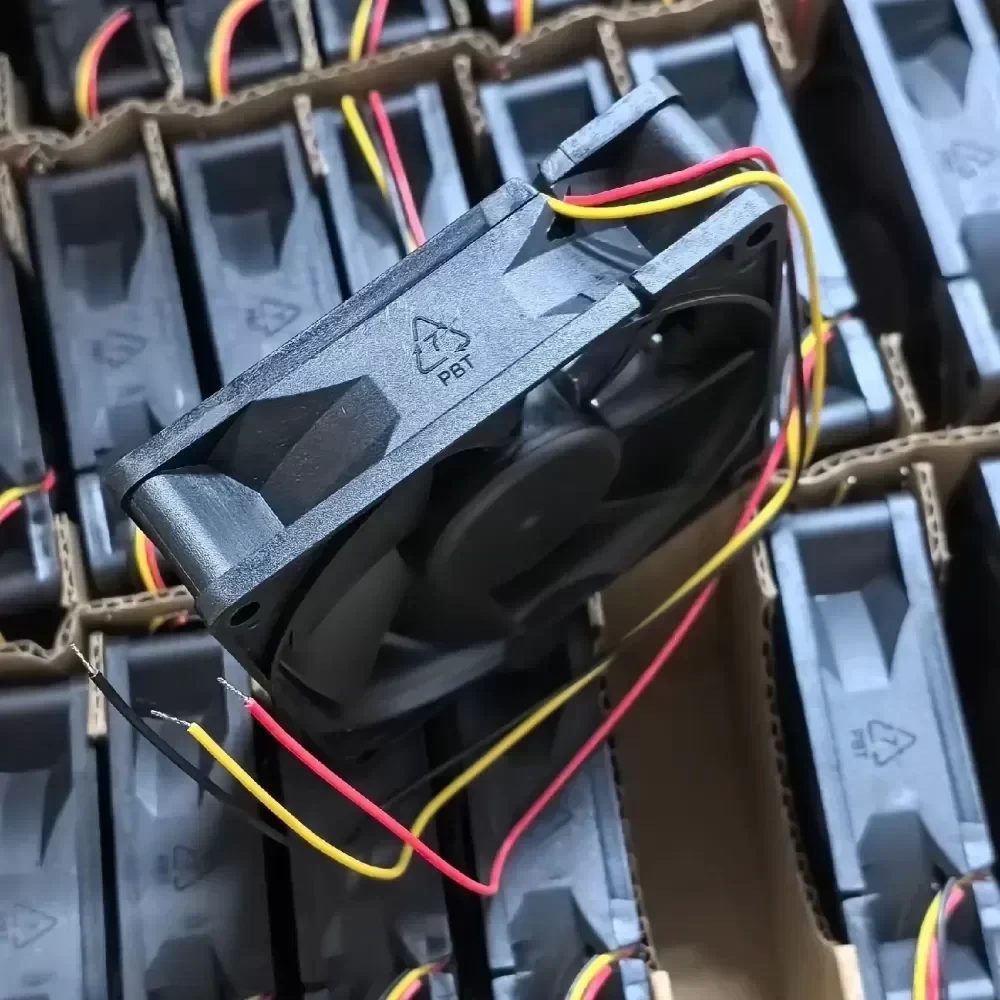

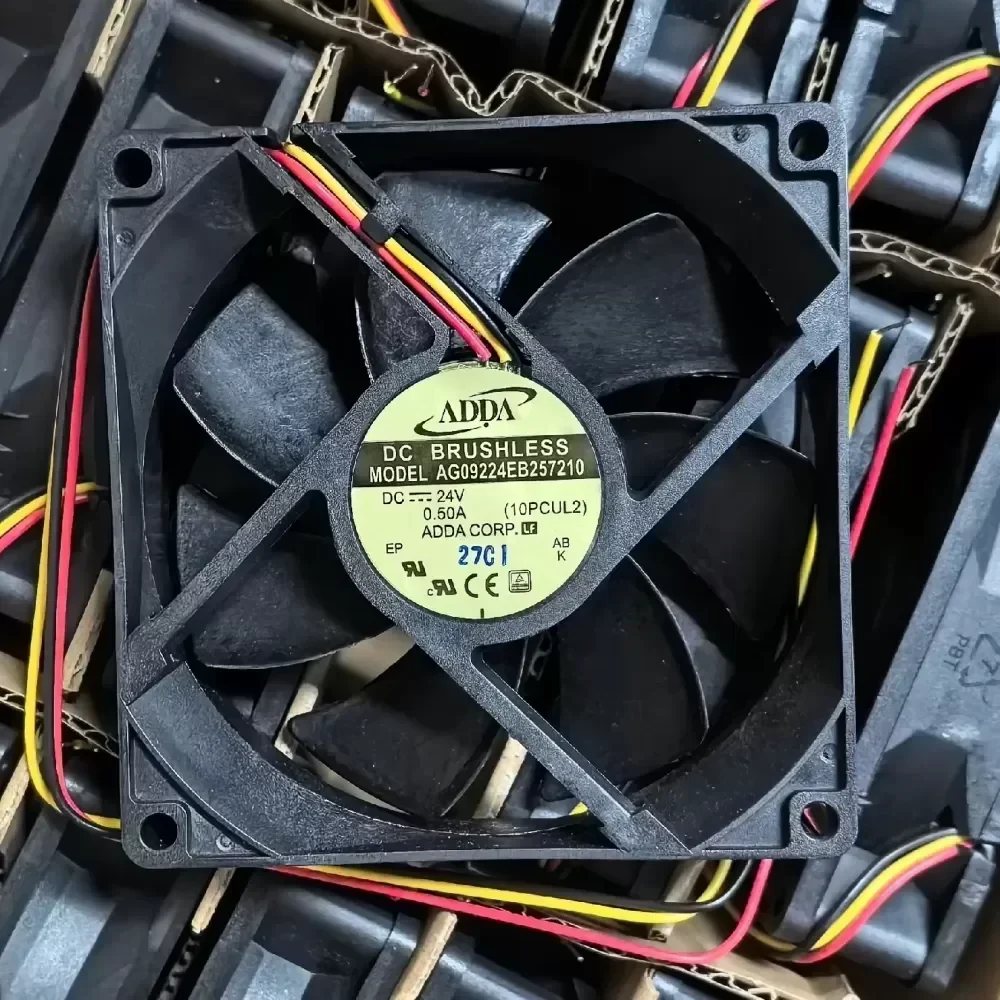

The ADDA AG09224EB257210 is a high-performance 24V DC axial cooling fan engineered specifically for heavy-duty industrial applications, including inverter welding machines and power supply systems. Designed with Original Engineering standards, this 92mm component ensures optimal thermal management in continuous-duty cycles, preventing thermal throttling and component degradation in high-stress electrical environments.

Technical Specifications
Manufacturer: ADDA
Model Number: AG09224EB257210
Fan Type: DC Axial Cooling Fan
Dimensions: 92 x 92 x 25 mm (Ø 92mm)
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.20 A ± 10%
Power Consumption: 4.8 W
Rotational Speed: 3200 RPM ± 10%
Maximum Airflow: 55.0 CFM (1.55 m³/min)
Acoustic Noise Level: 38.0 dB(A)
Bearing System: Precision Dual Ball Bearing
Frame Material: Thermoplastic PBT (UL94V-0)
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -10°C to +70°C
Weight: 95 g
Termination: Bare Wire Leads

Industrial Application and Technical Compatibility
The AG09224EB257210 is purpose-built for high-frequency inverter welding machines, where rapid heat dissipation from IGBT modules and transformers is critical. The precision dual ball bearing system guarantees an extended operational lifespan even in environments with high airborne particulate matter, metallic dust, and elevated ambient temperatures. Its Technical Compatibility extends seamlessly to industrial motor drives, telecom enclosures, and automated control cabinets requiring reliable 24V active cooling to maintain operational integrity.

Procurement and Lifecycle Value
Sourcing this exact OEM component ensures immediate integration without the need for mounting modifications or electrical parameter adjustments. We maintain strict inventory controls to provide a minimized Lead Time for critical maintenance operations, ensuring your production lines remain operational with authentic, factory-tested replacement parts.

AG09224EB257210 New ADDA welding machine

AG09224EB257210 New ADDA welding machine

AG09224EB257210 New ADDA welding machine

AG09224EB257210 New ADDA welding machine

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
