Description

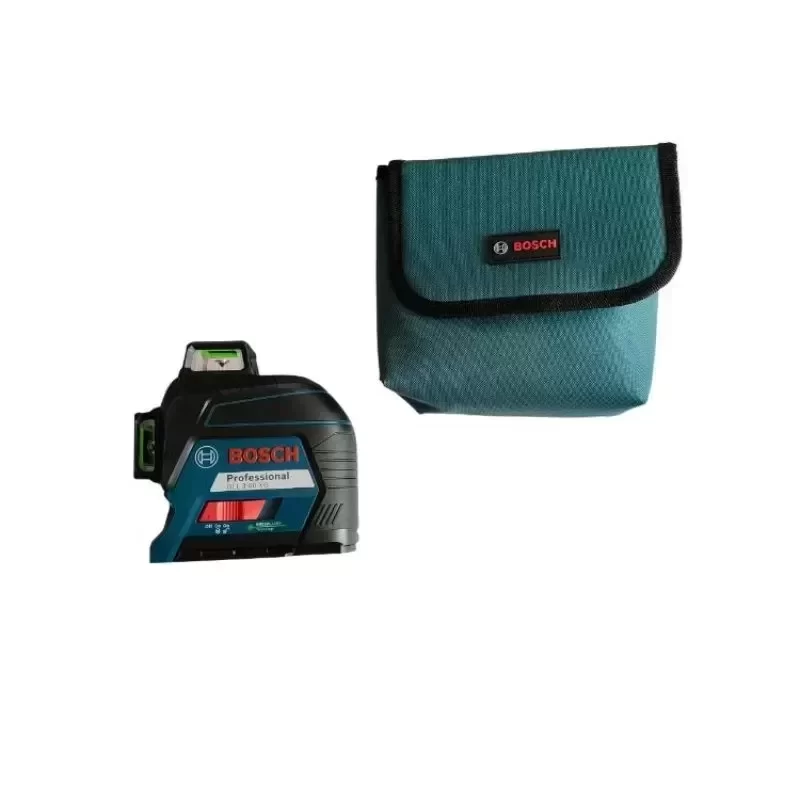

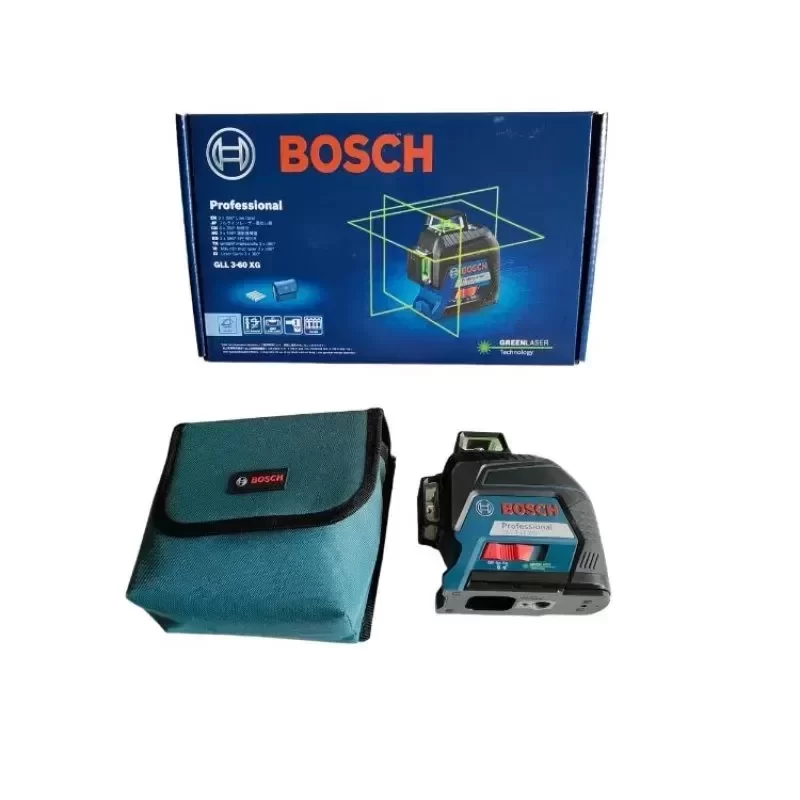

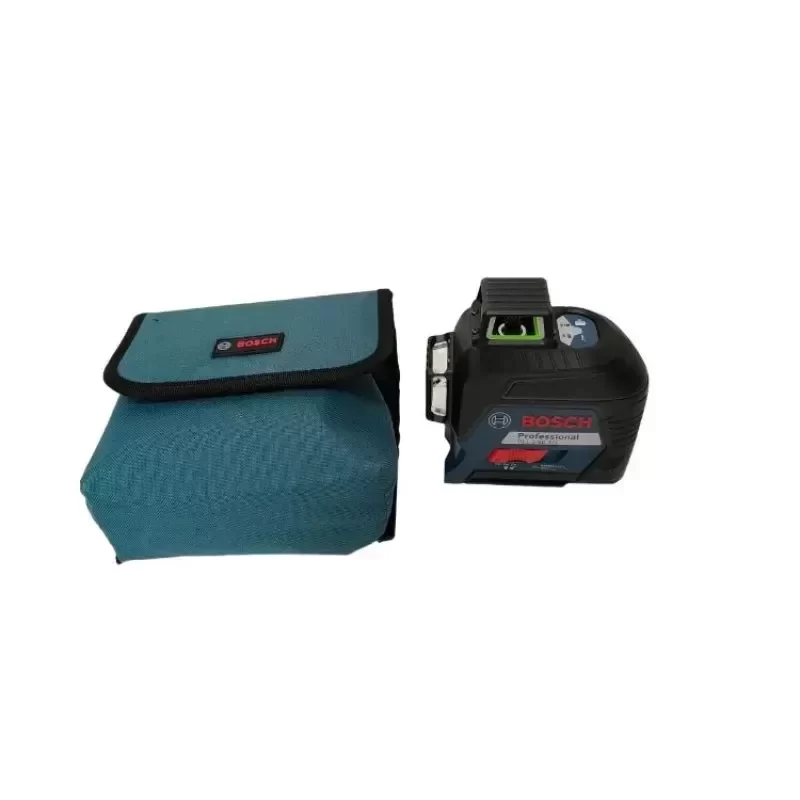

The Bosch GLL 3-60XG Professional is an industrial-grade, 3 x 360° green beam line laser engineered for multi-plane leveling, precision alignment, and 90° squaring across large commercial and industrial sites. Powered by direct-emitting green laser diodes, the system produces crisp optical planes that offer up to four times greater visibility than standard red wavelength systems under ambient light. The unit incorporates a magnetically damped pendulum self-leveling system with a positive lock mechanism that protects internal optomechanics during transport and enables slope-grade projection when manually overridden.
TECHNICAL SPECIFICATIONS
Manufacturer: Bosch Professional
Model Designation: GLL 3-60XG
Laser Diode Type: Direct Green Diode (500 – 540 nm, < 1 mW)
Laser Classification: Class 2 (IEC 60825-1)
Number of Laser Planes: 3 x 360° (1 Horizontal, 2 Vertical Orthogonal Planes)
Operating Range without Receiver: Up to 30 m
Operating Range with Receiver (LR7 / LR6): Up to 60 m (120 m diameter)
Leveling Accuracy: ±0.2 mm/m (±0.3 mm/m total working envelope tolerance)
Self-Leveling Range: ±4°
Leveling Response Time: < 4 s
Ingress Protection: IP54 (Dust and Splash Water Resistant)

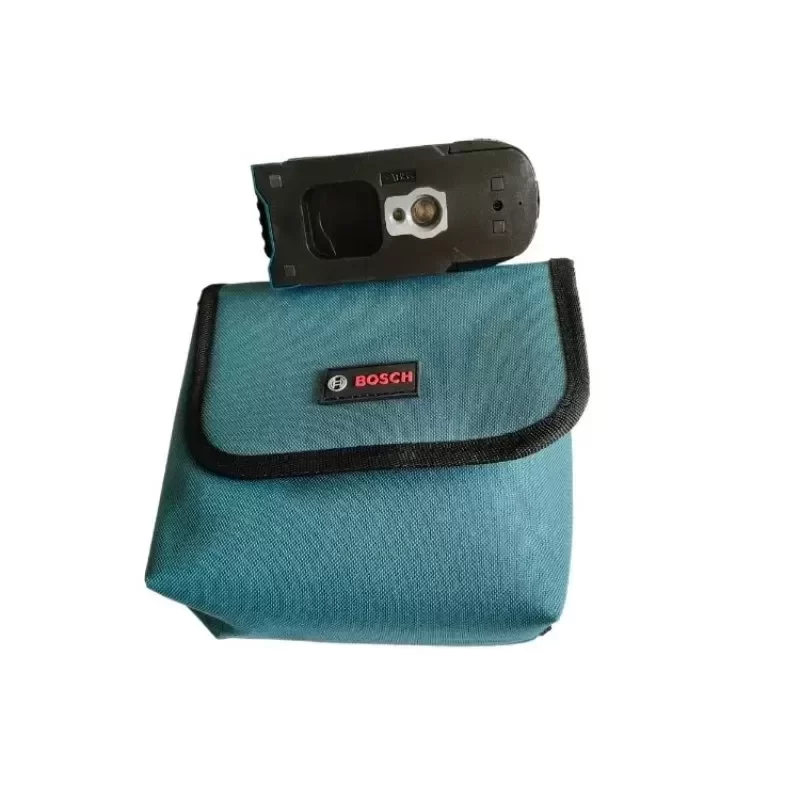

Tripod Thread Interface: 1/4-20 UNC and 5/8-11 UNC dual direct mount
Operating Temperature: -10 °C to +40 °C
Storage Temperature: -20 °C to +70 °C
Power Supply: 4 x 1.5 V LR6 (AA) Alkaline or dedicated auxiliary battery packs
Operational Runtime: Up to 4 hours in full 3-plane continuous projection
Dimensions: 149 mm x 84 mm x 142 mm
Weight: 0.82 kg
INDUSTRIAL APPLICATION SCENARIOS
The GLL 3-60XG is designed for Mechanical, Electrical, and Plumbing (MEP) installations, industrial structural partitioning, conveyor datum leveling, and ceiling rail alignment. The simultaneous projection of three independent 360° laser lines allows operators to execute point-to-point transfer, right-angle squaring, and parallel positioning simultaneously across an entire room without relocating the instrument, preventing compounding setup errors and optimizing labor efficiency.
ENGINEERING AND PROCUREMENT DATA
Original Engineering: Manufactured to strict Bosch Professional optomechanical tolerances, featuring factory-calibrated prism housing and high-impact reinforced overmolding for rigorous jobsite reliability.
Technical Compatibility: Seamless integration with Bosch BM 1 positioning mounts, LR 6 / LR 7 line laser receivers, BT 150 / BT 300 tripods, and all standard industrial optical mounts via dual 1/4 inch and 5/8 inch threading.
Lead Time: Typical dispatch within 2 to 5 business days for standard commercial procurement. Bulk project quantities and express freight dispatch available upon request.
Key Attributes
Accuracy: +/-1/16in@20ft
Place of origin: Malaysia
Customized support: OEM, ODM
Warranty: 1 years
Model number: GLL3-60 XG
Laser diode: 500-540 nm, <10 mW
Receiver working range: Up to 60 m
Accuracy: ± 0.3 mm/m
Dust and water splash protection: IP 54
Laser line color: Green
Power supply: 1.5 V LR6 (AA) x 4
Compatible laser receiver: LR 7
Packaging and Delivery
Selling Units: Single item
Single package size: 37X23X15 cm
Single gross weight: 1.500 kg
