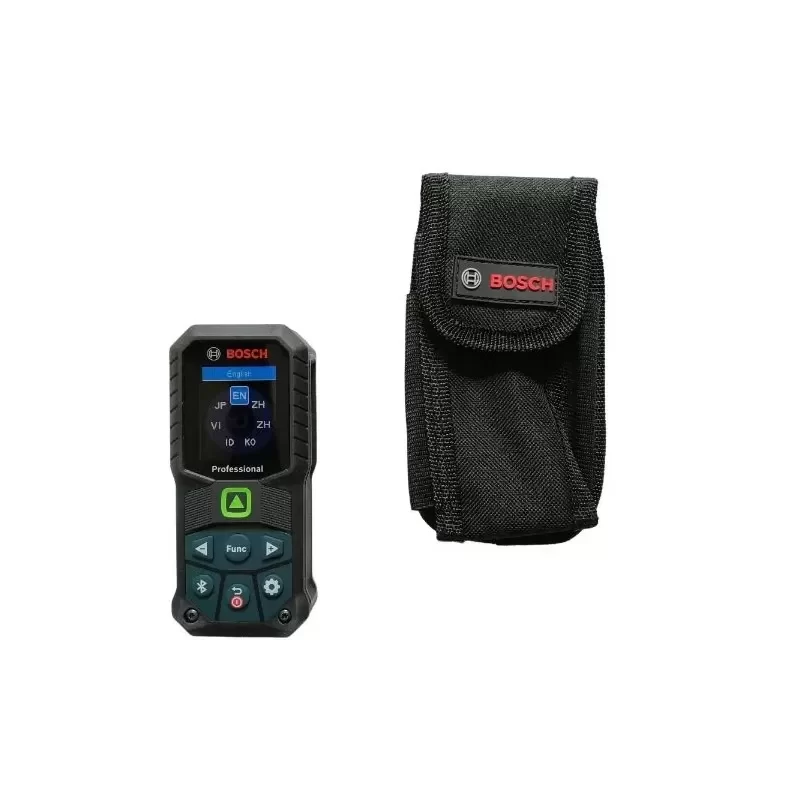

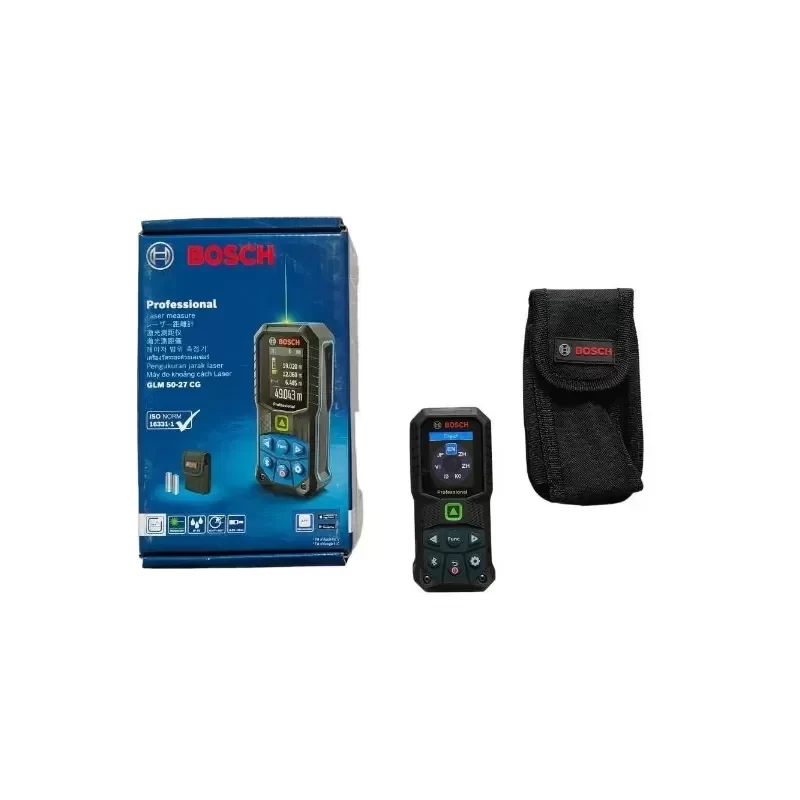

Bosch GLM50-27CG Green Laser Distance Meter GLM50-23G Professional Measuring Meter

Description

Bosch GLM 50-27 CG / GLM 50-23 G Professional Laser Measure
Manufacturer: Bosch Professional
Series: GLM (Green Laser Measure)
Technology: Green Beam Laser Technology

Technical Specifications:
Laser Diode: 515 nm, < 1 mW
Laser Class: 2
Measurement Range: 0.05 – 50.00 m
Measurement Accuracy: ± 1.5 mm (plus use-dependent deviation)
Incline Measurement Range: 0 – 360° (4 x 90°)
Incline Measurement Accuracy: ± 0.2°
Measurement Time (Typical): < 0.5 s
Measurement Time (Maximum): 4 s
Power Supply: 2 x 1.5 V LR6 (AA) or Li-Ion Battery Pack (Optional Accessory)
Automatic Deactivation: 5 minutes
Memory Capacity (Values): 30
Tripod Thread: 1/4 inch
Data Transfer: Bluetooth™ 4.2 Low Energy

Physical and Environmental Attributes:
Protection Rating: IP65 (Dust-tight and protected against water jets)
Drop Resistance: Up to 1.5 meters on hard concrete
Weight (Approximate): 0.2 kg
Dimensions: 119 x 53 x 29 mm
Operating Temperature: -10 °C to +45 °C
Storage Temperature: -20 °C to +70 °C

Engineering and Functional Logic:
The GLM 50-27 CG utilizes high-visibility green laser technology, providing up to four times better visibility compared to standard red lasers, which is critical for high-ambient light industrial environments. The device features a vibration feedback mechanism to confirm successful measurements in high-noise construction zones. The integrated 360° tilt sensor allows for indirect height measurements and rapid leveling applications.

Industrial Application and Technical Compatibility:
This unit is engineered for heavy-duty site conditions where precision and durability are non-negotiable. It is optimized for MEP (Mechanical, Electrical, Plumbing) contractors and structural engineers requiring rapid documentation. Through Bluetooth™ connectivity, the device ensures seamless integration with the Bosch MeasureOn app, facilitating digital floor plan creation and real-time data synchronization. Original Engineering ensures long-term calibration stability and compliance with ISO 16331-1 standards. Lead Time for this professional-grade measuring tool is subject to regional distribution availability.

Key Attributes
Magnification: 10x
Type: Other
Place of origin: China
Ingress Protection: IP54
Material: Plastic
Size: 12* 6 * 4cm
Weight: 0.3
Model number: GLM50-27CG
Brand name: Bosch
Customized support: OEM, ODM
Warranty: 1 years
Measuring range, up to: 50 m
Laser colour: Green
Measurement accuracy, typical: ± 1.5 mm
Laser diode: 515 nm, < 1 mW
Units of measurement: M/cm/mm/ft/inch/ft-inch
Dust and splash protection: IP 65
Measurement time, typical: < 0.5 s

Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X11 cm
Single gross weight: 0.600 kg
