$54.29

SKU: 682808419219 Brand: ,

Description

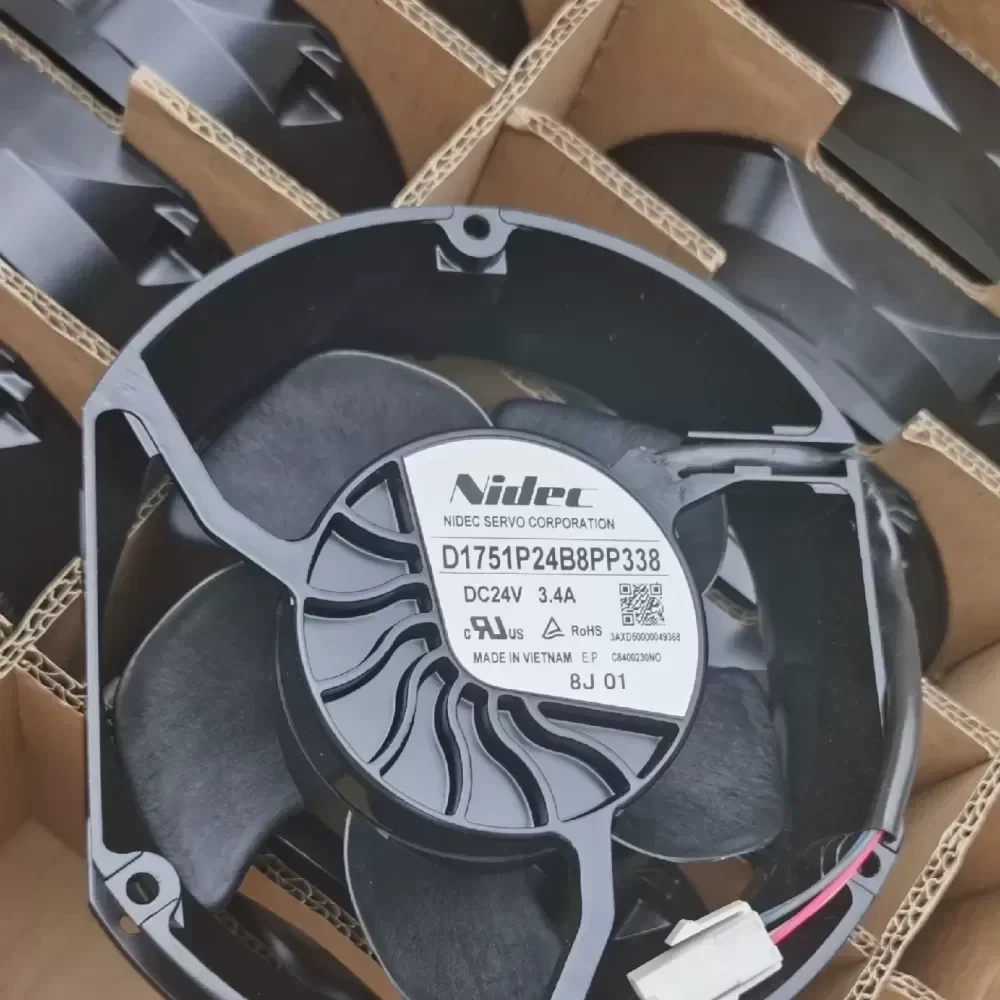

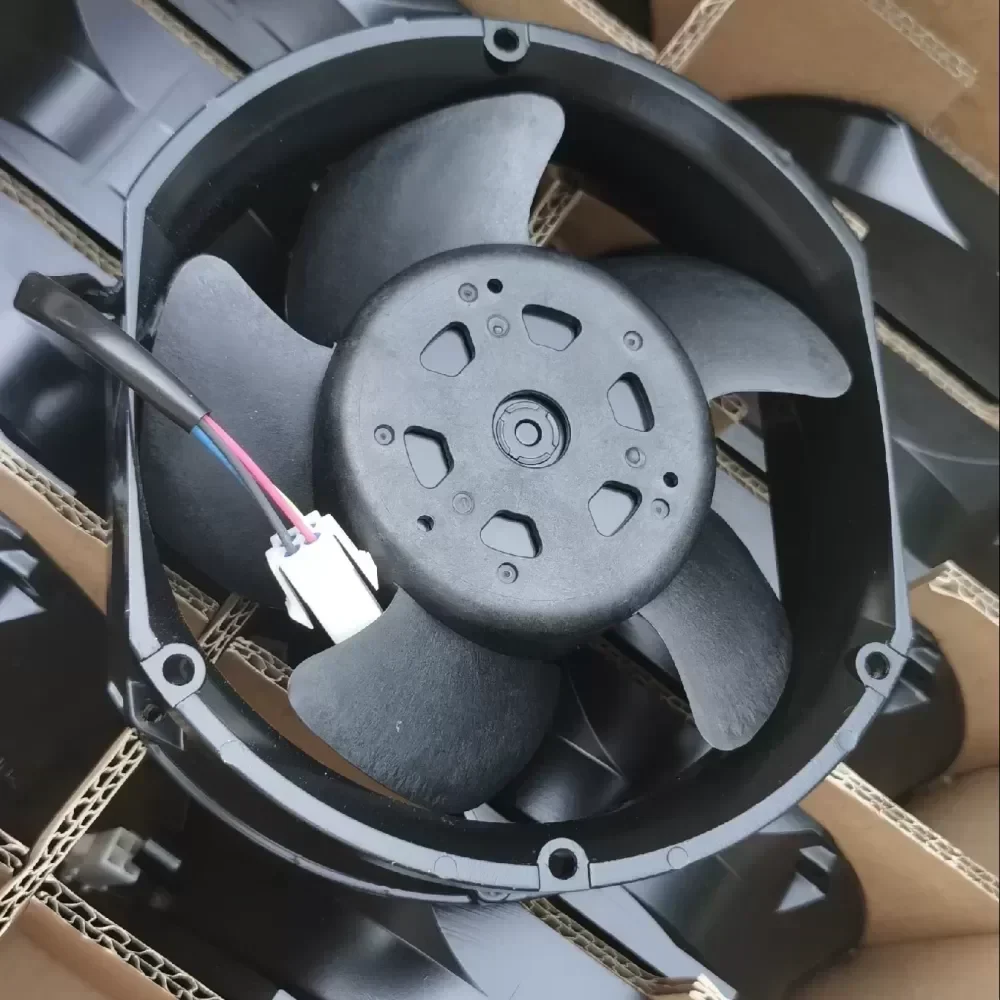

The Nidec D1751P24B8PP-388 is a high-performance industrial axial cooling fan engineered specifically for heavy-duty thermal management within ABB frequency converters and high-power inverter systems. This unit is part of the D1751P series, known for delivering high static pressure and extreme airflow velocity required for critical power electronics cooling.

Technical Specifications:
Manufacturer: Nidec Corporation
Model Number: D1751P24B8PP-388
ABB Part Reference: Compatible with specific ACS series inverter modules
Frame Size: 172mm x 150mm x 51mm
Bearing Type: Dual Precision Ball Bearings
Nominal Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 3.4A
Input Power: 81.6W
Rated Speed: 6000 RPM
Maximum Airflow: 420 CFM (11.9 m³/min)
Static Pressure: 1.15 in H2O (286 Pa)
Noise Level: 72 dB(A)
Termination: 3-Wire / 4-Wire lead configuration (Application dependent)
Weight: 820g

Material and Environmental Ratings:
Housing Material: Die-cast Aluminum
Impeller Material: Reinforced Thermoplastic (UL 94V-0 rated)
Operating Temperature: -10°C to +70°C
Storage Temperature: -40°C to +75°C
Ingress Protection: IP55 / IP68 variants available
Insulation Resistance: 10M Ohm min. at 500V DC
Certifications: UL, CSA, TUV, CE, RoHS Compliant

Industrial Application and Compatibility:
This model is primarily utilized as a primary cooling component in ABB ACS800 and ACS880 series inverters. Its high-torque motor design allows it to overcome the internal resistance of densely packed heat sinks and filter mats. In high-demand environments, the D1751P24B8PP-388 ensures the power modules remain within safe operating temperature margins, preventing thermal throttling and extending the lifecycle of the DC bus capacitors.

Technical Compatibility and Installation:
The unit features Original Engineering specifications to match the factory-installed fan curves required by the inverter control logic. It supports PWM speed control or frequency-based monitoring to provide real-time feedback to the system controller. When replacing fans in critical infrastructure, using the authentic Nidec model ensures zero-latency integration and maintains the original manufacturer warranty standards.

Logistics and Quality Assurance:
Condition: New Original Authentic
Lead Time: Immediate dispatch available for standard inventory
Testing: 100% factory tested for vibration and rotational balance

D1751P24B8PP388 New Nidec fan

D1751P24B8PP388 New Nidec fan

D1751P24B8PP388 New Nidec fan

D1751P24B8PP388 New Nidec fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
