$97.14

SKU: 897456813433 Brand:

Description

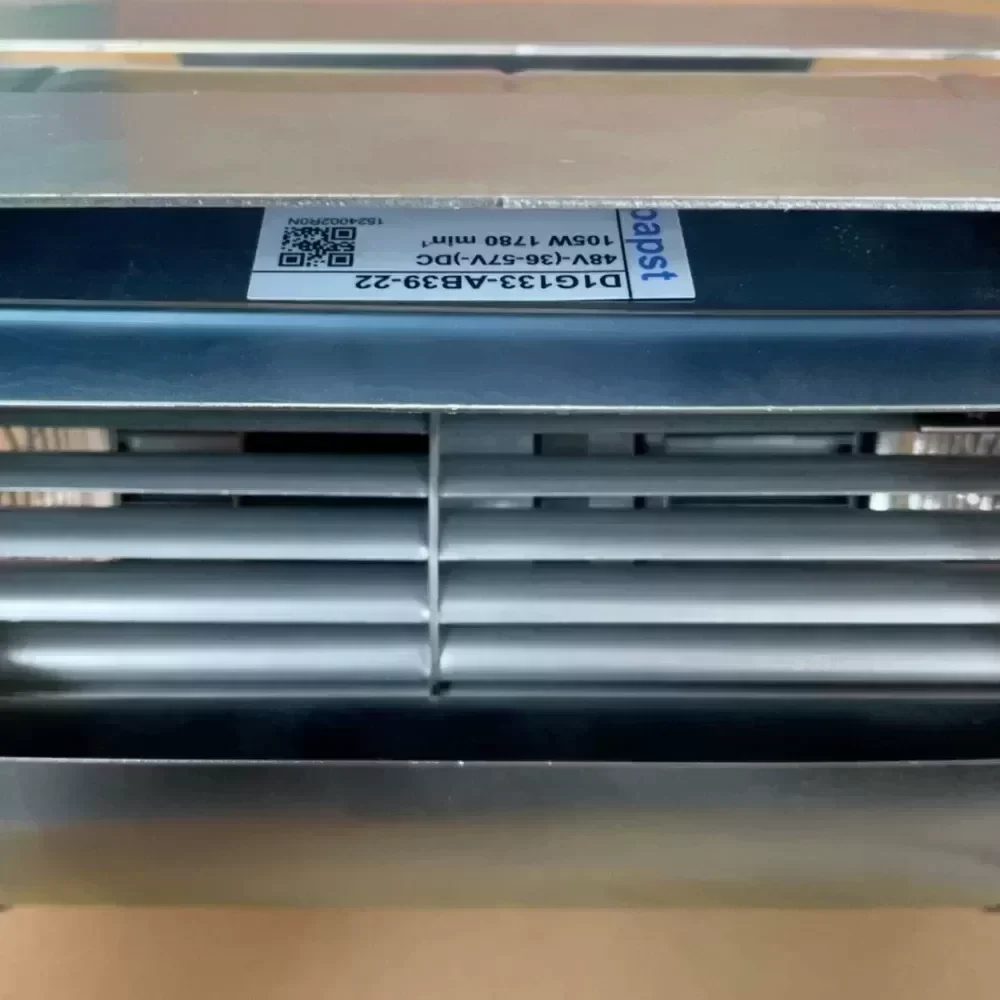

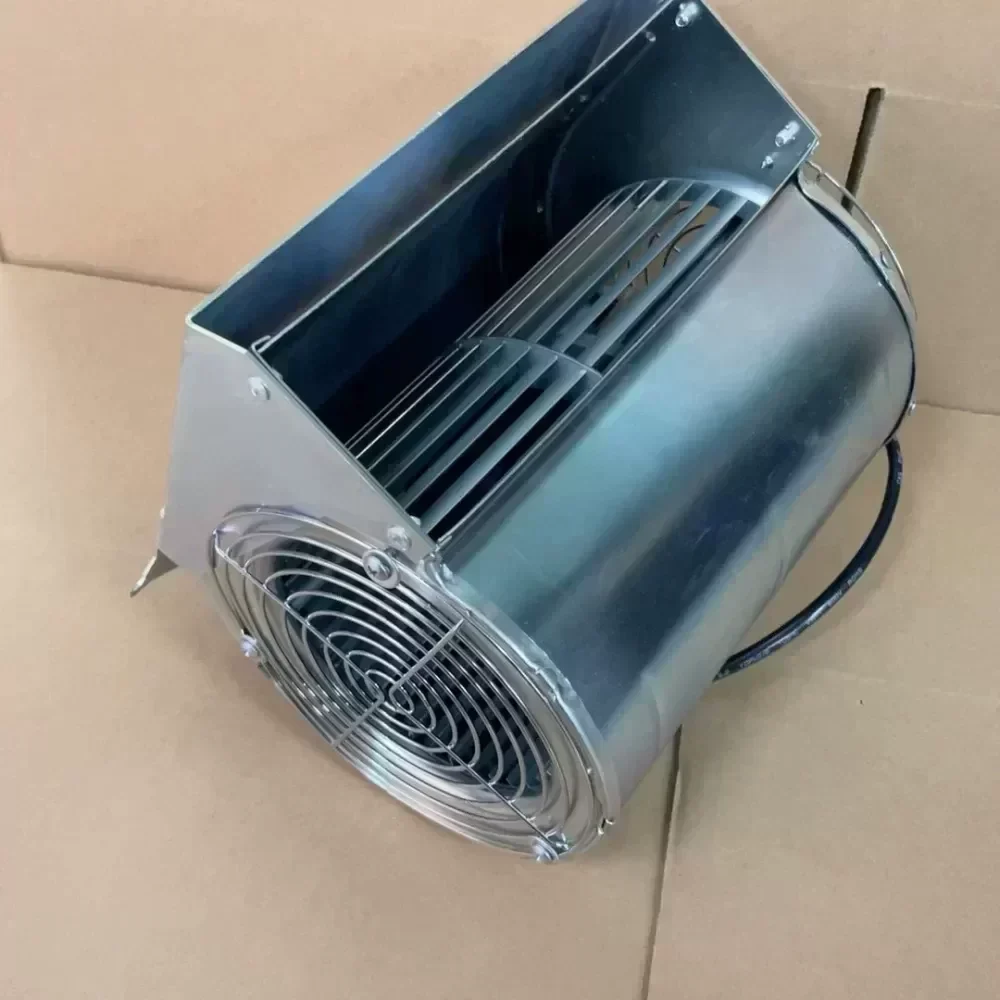

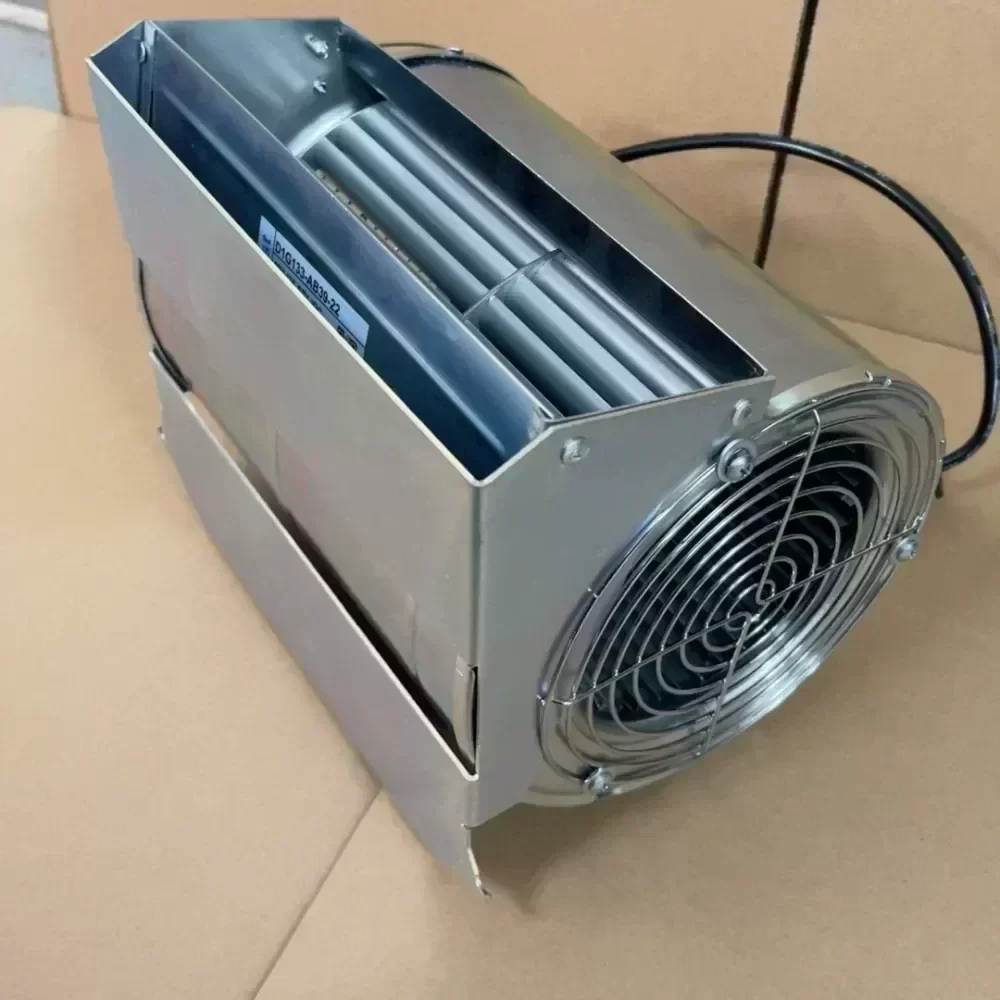

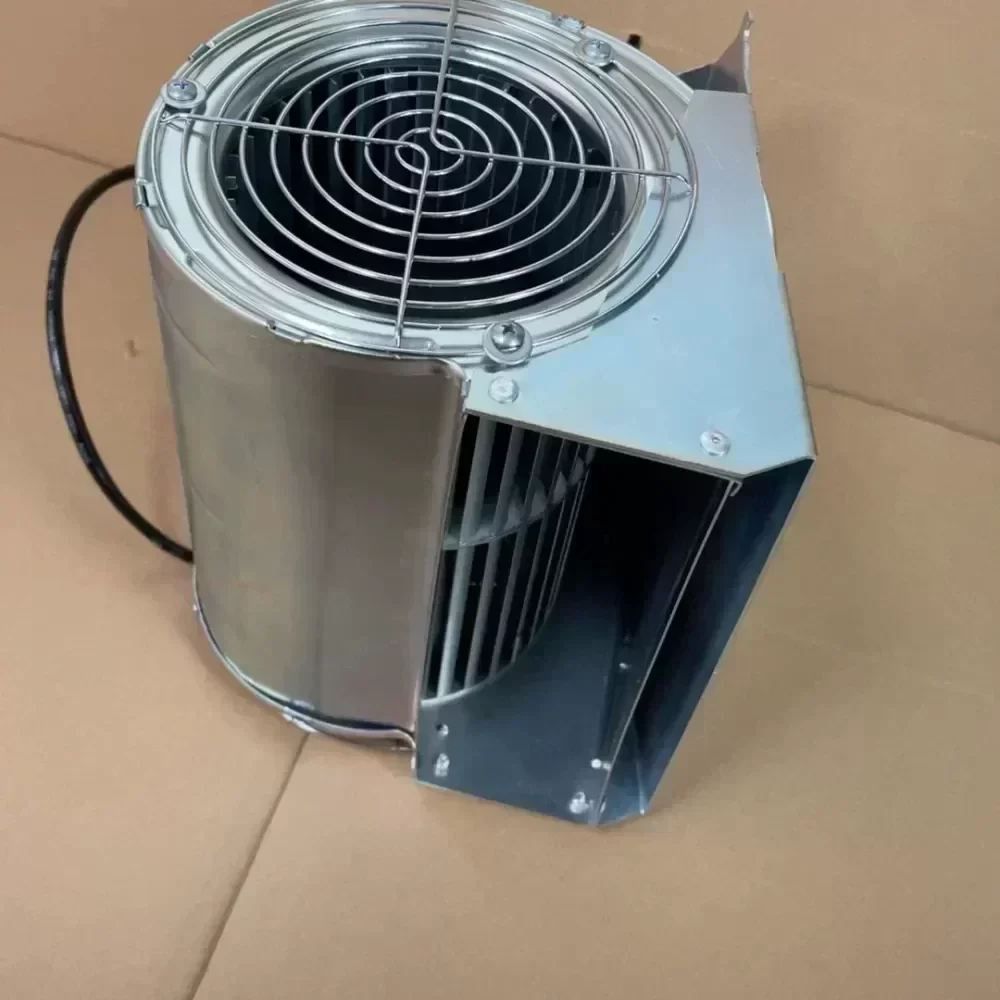

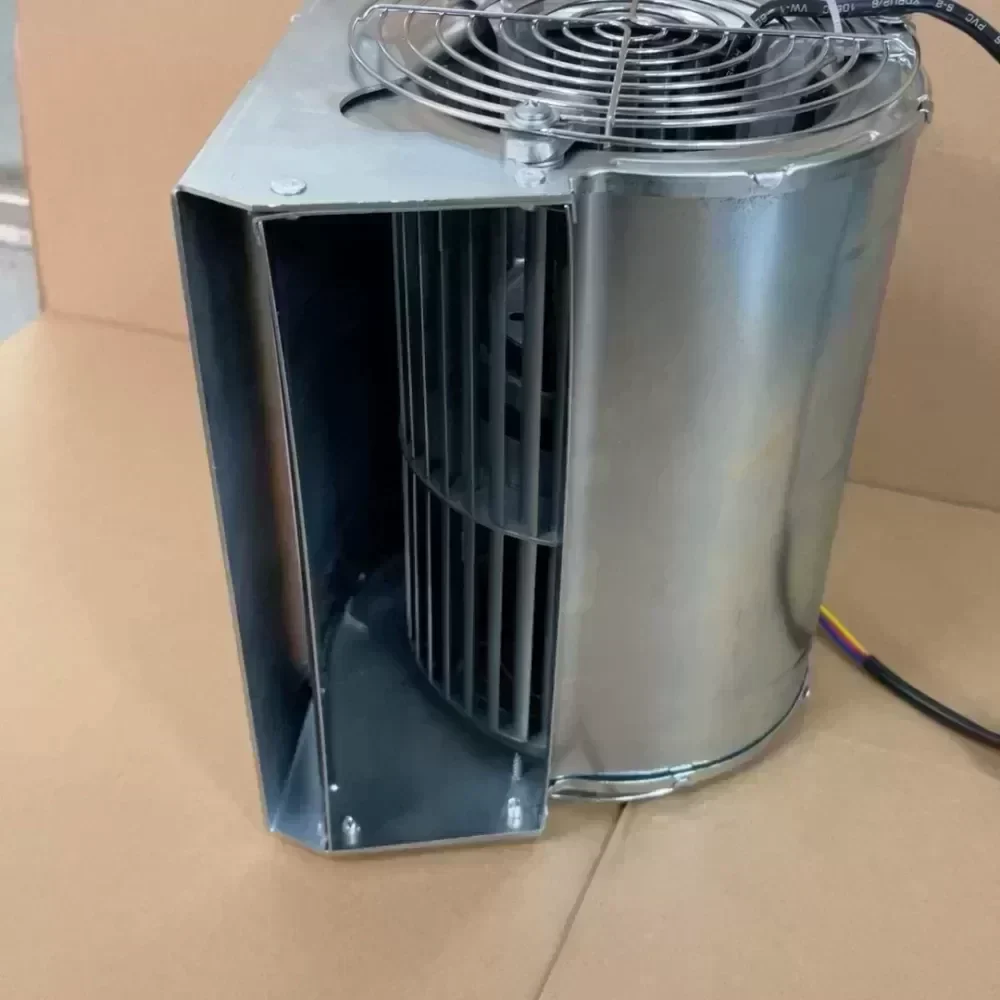

The ebm-papst D1G133-AB39-22 is an industrial-grade, electronically commutated (EC) dual-inlet centrifugal blower engineered for precision thermal management and high-static-pressure air displacement. Featuring integrated commutation electronics and forward-curved impeller geometry, this unit delivers high aerodynamic efficiency and low acoustic emissions in demanding industrial environments.

TECHNICAL SPECIFICATIONS
Manufacturer: ebm-papst
Model Code: D1G133-AB39-22
Motor Type: Brushless EC DC Motor (M1G Series)
Nominal Voltage: 48 VDC
Operating Voltage Range: 36 VDC to 57 VDC
Nominal Power Input: 105 W
Nominal Speed: 1780 min⁻¹
Impeller Diameter: Ø 133 mm
Airflow Volume: Up to 650 m³/h
Direction of Rotation: Clockwise (viewed toward rotor)
Bearing System: Dual precision maintenance-free ball bearings
Housing Material: Die-cast aluminum and galvanized sheet steel
Impeller Material: Galvanized sheet steel, forward curved
Motor Protection: Reverse polarity and locked-rotor protection
Speed Control: 0-10 VDC / PWM input control with tachometer output
Insulation Class: Class B
Ingress Protection: IP20 / IP42
Operating Temperature Range: -25 °C to +60 °C
Weight: Approximately 2.8 kg
Country of Origin: Germany
Certifications: CE, UL, CSA, VDE compliant

ENGINEERING PROFILE & SYSTEM ARCHITECTURE
The integrated electronics of the D1G133 series decouple operating performance from grid frequency fluctuations, providing precise closed-loop speed regulation across varying load profiles. The dual-inlet scroll design optimizes intake dynamics, enabling high air flow rates against restrictive backpressures typically found in dense heat-exchange matrices and ducted HVAC assemblies.

CRITICAL APPLICATION & TECHNICAL COMPATIBILITY
This blower is tailored for high-density cooling requirements where volumetric efficiency and thermal stability are critical:
– Telecom base transceiver stations (BTS) and outdoor power enclosures
– Industrial automation control cabinets and frequency converter cooling
– High-performance server racks and industrial computing infrastructure
– Process ventilation, fume extraction, and cleanroom air filtration units

Ensure Technical Compatibility with standard 48 VDC bus architectures and industrial PWM/analog speed control interfaces.

SUPPLY STATUS & AVAILABILITY
Condition: Surplus stock, genuine factory unit with Original Engineering build standard. Unused, tested, and fully functional.
Lead Time: Immediate dispatch available for regional and global distribution.

D1G133-AB39-22 ebmpapst 48V fan

D1G133-AB39-22 ebmpapst 48V fan

D1G133-AB39-22 ebmpapst 48V fan

D1G133-AB39-22 ebmpapst 48V fan

D1G133-AB39-22 ebmpapst 48V fan

D1G133-AB39-22 ebmpapst 48V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
