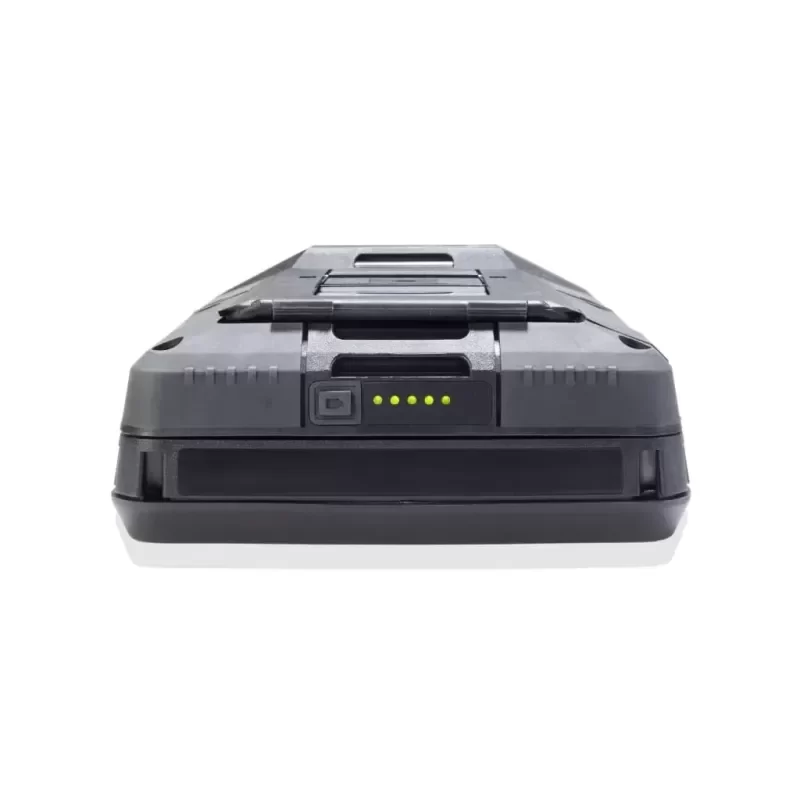

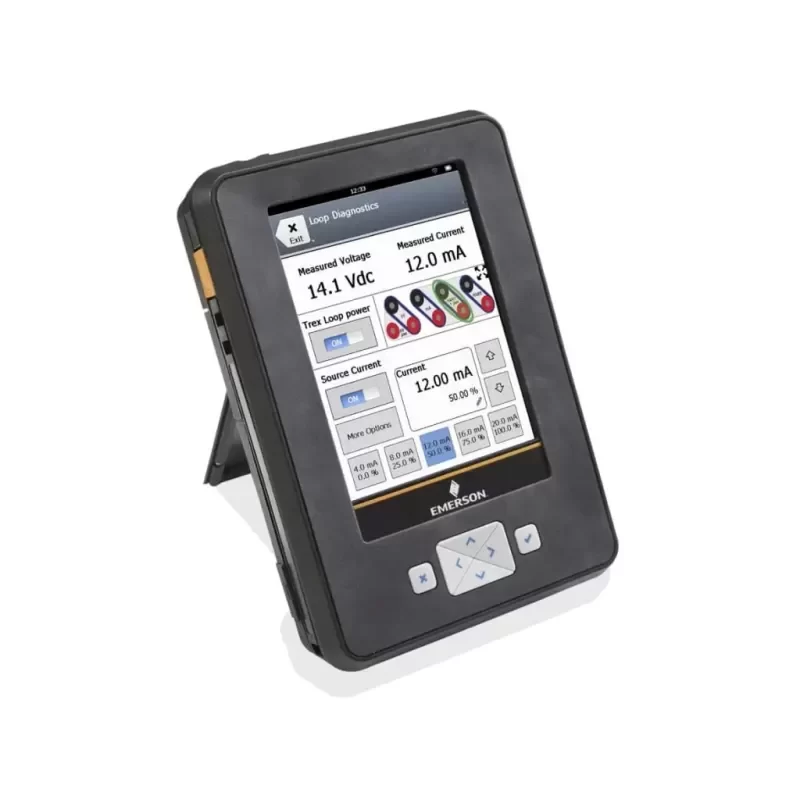

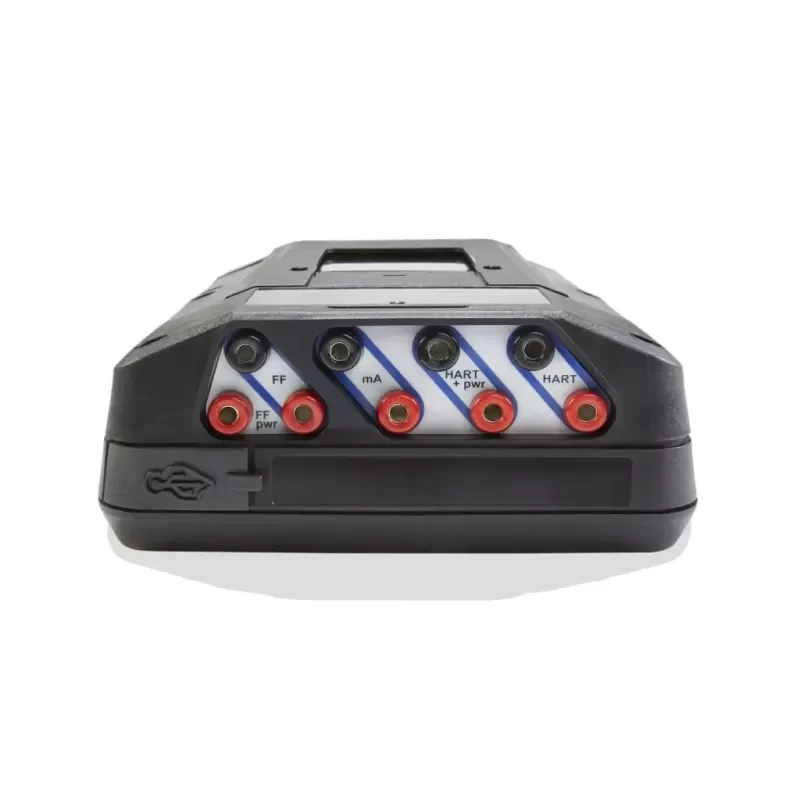

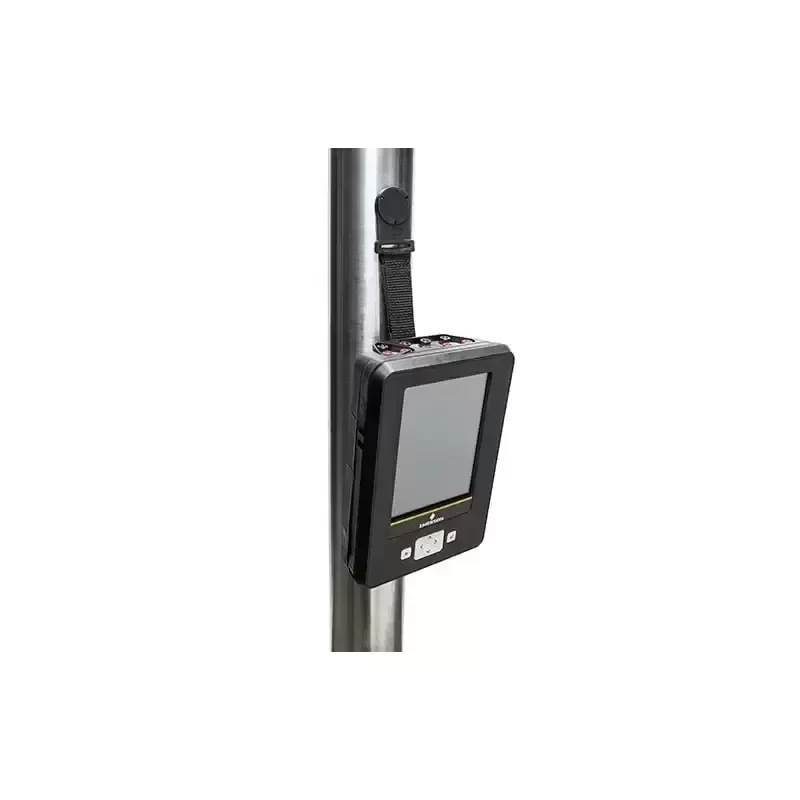

Emerson AMS Trex Communicator HART TREXCHPNAWS1 Electronic Power Device

Description

Emerson AMS Trex Device Communicator TREXCHPNAWS1 is a highly robust, enterprise-ready diagnostic tool designed to streamline field operations and device maintenance. Engineered for harsh industrial environments, this electronic power device enables technicians to configure, isolate, and troubleshoot HART-enabled field devices directly at the measurement point, eliminating the need to bring equipment back to the shop.

Model Reverse-Engineering (TREXCHPNAWS1):
TREX: AMS Trex Base Unit
C: Device Communicator Communication Module
H: HART Application Software Included
P: Rechargeable Lithium-Ion Power Module
N: General Purpose (No Hazardous Area Certifications)
A: Wireless Capability (Wi-Fi / Bluetooth)
W: Standard Support Option
S: Standard Carrying Case Included
1: Standard Configuration

Technical Specifications:
Processor: 800 MHz ARM Cortex A8
Display: 5.7-inch color VGA resistive touchscreen
Internal Memory: 2 GB NAND flash and 32 GB extended flash
Communication Protocol: HART
Power Supply: Rechargeable Li-Ion Power Module
Operating Temperature: -20°C to 55°C
Enclosure Rating: IP54
Drop Survivability: 1 meter onto concrete
Weight: 1.33 kg
Connectivity: USB, Wi-Fi, Bluetooth, NFC

Industrial Application:
The TREXCHPNAWS1 is purpose-built for continuous process facilities such as chemical plants, refineries, and power generation stations. Its unique capability to power loop devices directly from the communicator allows technicians to perform loop checks and configuration prior to host system installation, drastically reducing commissioning time.

Procurement and Lifecycle Value:
Maintaining Original Engineering standards ensures seamless Technical Compatibility with existing Emerson and third-party HART instrumentation. We provide accurate Lead Time estimates to keep your turnaround and maintenance schedules on track, ensuring maximum uptime and operational reliability.

Key Attributes
Place of origin: Germany
Customized support: OEM, ODM
Brand name: Emerson
Warranty: 1 years
Model number: TREXCHPNAWS1S
Product name: Emerson
Model: TREXCHPNAWS1S
Applications: HART application
Power Module Type: Rechargeable li-ion power module
Microprocessor: 800 MHz ARM Cortex A8/NXP
Wi-Fi: 802.11 b/g/n Range up to 9.84' (33 m)
RAM: 512 MB DDR3 SDRAM
Dimensions: 13.97 x 19.685 cm
Weight: 1330g
Power: Electronic

Packaging and Delivery
Selling Units: Single item
Single package size: 45X28X15 cm
Single gross weight: 2.600 kg
