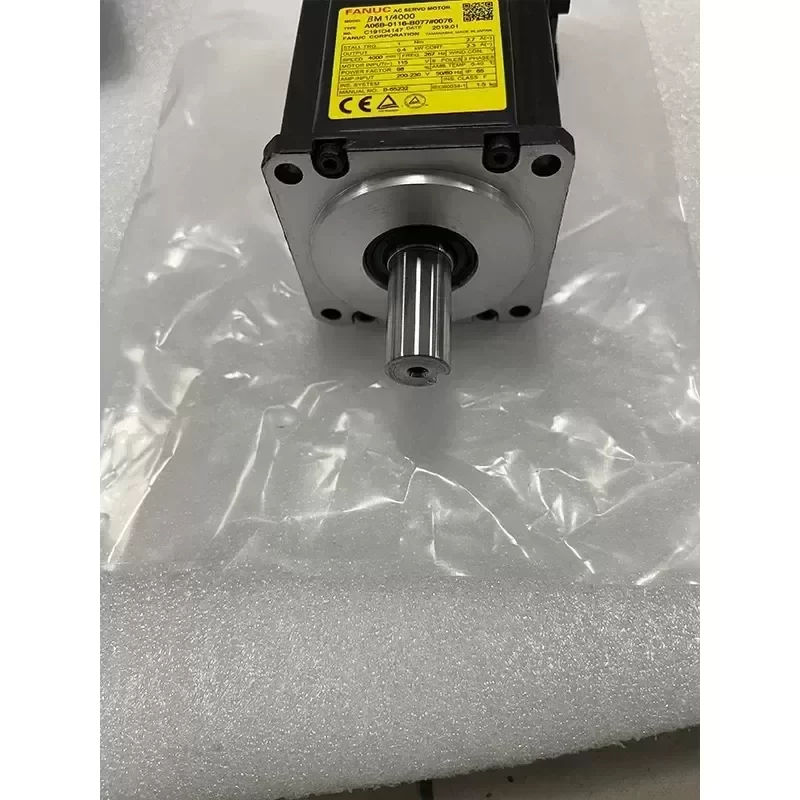

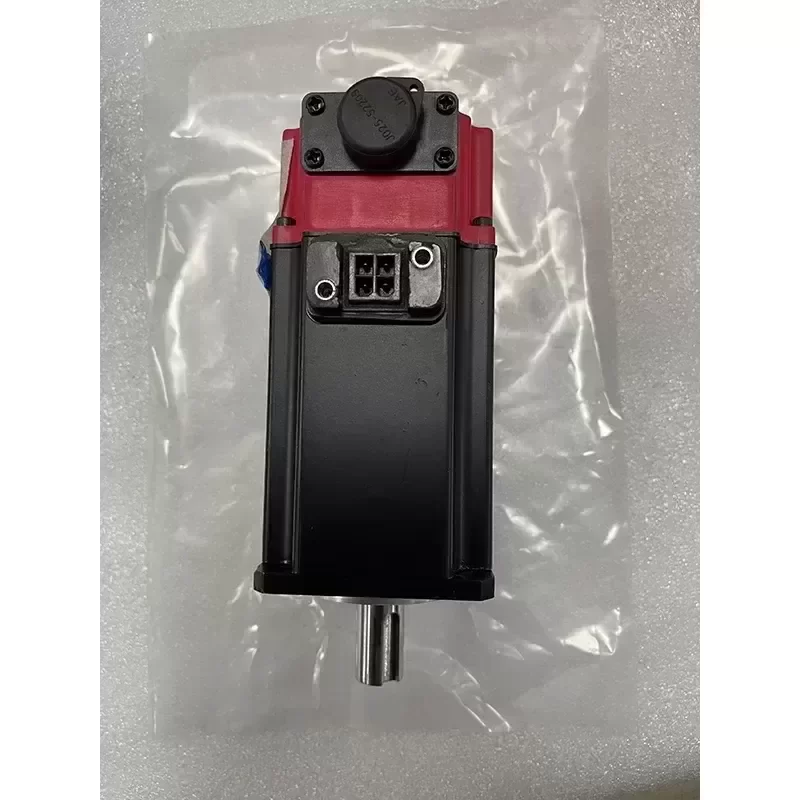

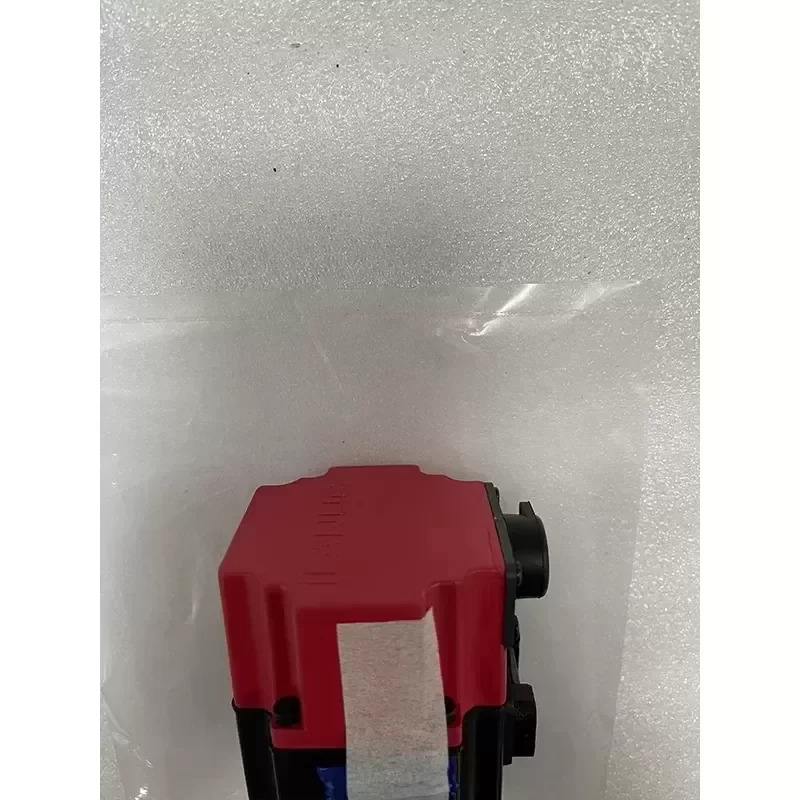

FANUC A06B-0116-B077#0076 AC Servo Motor

Description

The FANUC A06B-0116-B077#0076 is a high-performance AC Servo Motor from the Alpha i series, specifically the Model Alpha iS 2/3000. This unit is engineered for precision motion control in high-speed CNC machining environments, offering superior torque-to-inertia ratios for rapid acceleration and deceleration cycles.

CORE TECHNICAL PARAMETERS
Manufacturer: FANUC
Model Series: Alpha iS Series (αiS)
Model Number: A06B-0116-B077#0076
Motor Type: Permanent Magnet Synchronous AC Servo Motor
Rated Output: 0.5 kW
Stall Torque: 2.0 Nm
Rated Speed: 3000 RPM
Maximum Speed: 4000 RPM
Number of Poles: 8
Insulation Class: Class F
Protection Rating: IP65 (Excluding Shaft Opening)

ELECTRICAL CHARACTERISTICS
Input Voltage: 200-230V AC
Rated Current: 3.3A
Stall Current: 3.5A
Feedback Type: Absolute Encoder (αi AR128)
Encoder Resolution: 128,000 pulses per revolution

MECHANICAL SPECIFICATIONS
Shaft Type: Straight Shaft with Keyway
Brake Specification: 24V DC Electromagnetic Brake Integrated
Brake Holding Torque: 2.0 Nm
Mounting Type: Flange Mount (Square)
Weight: 4.3 kg
Cooling Method: Natural Convection (Totally Enclosed)

ENVIRONMENTAL AND COMPLIANCE
Operating Temperature: 0°C to +40°C
Storage Temperature: -20°C to +60°C
Humidity: 95% RH or less (Non-condensing)
Vibration Resistance: 5G
Certifications: CE, UL, CSA, RoHS Compliant

INDUSTRIAL APPLICATION AND COMPATIBILITY
This motor is designed for integration with FANUC R-30iB controllers and Alpha iSV series Servo Amplifiers. It is optimized for use in small-scale CNC milling centers, precision grinding machines, and high-speed pick-and-place robotics. The integrated 24V brake ensures vertical axis stability during power-loss scenarios, preventing tool damage or mechanical interference.

LOGISTICS AND QUALITY ASSURANCE
Condition: New Original Engineering
Technical Compatibility: Guaranteed for FANUC 0i, 16i, 18i, and 21i Control Systems
Lead Time: Standard global shipping available for immediate MRO requirements
Lifecycle Value: High MTBF (Mean Time Between Failure) due to brushless design and high-grade bearing selection.

Key Attributes
Place of Origin: Japan
Model Number: A06B-0116-B077#0076
Brand Name: FANUC
Product name: A06B-0116-B077#0076
Condition: Original new
Warranty: 12 Months
Stock: Available
Shipping terms: All terms are accepted
Payment terms: All terms are accepted
Lead Time: 1-2 Days
Delivery Time: 3-5 Days
Package: Carton packing
MOQ: 1 Piece

Packaging and Delivery
Selling Units: Single item
