MISOL 1080 Wireless Weather Station Wireless Transmission Data Storage Temperature Humidity Wind Speed Wind Direction Rainfall

Description

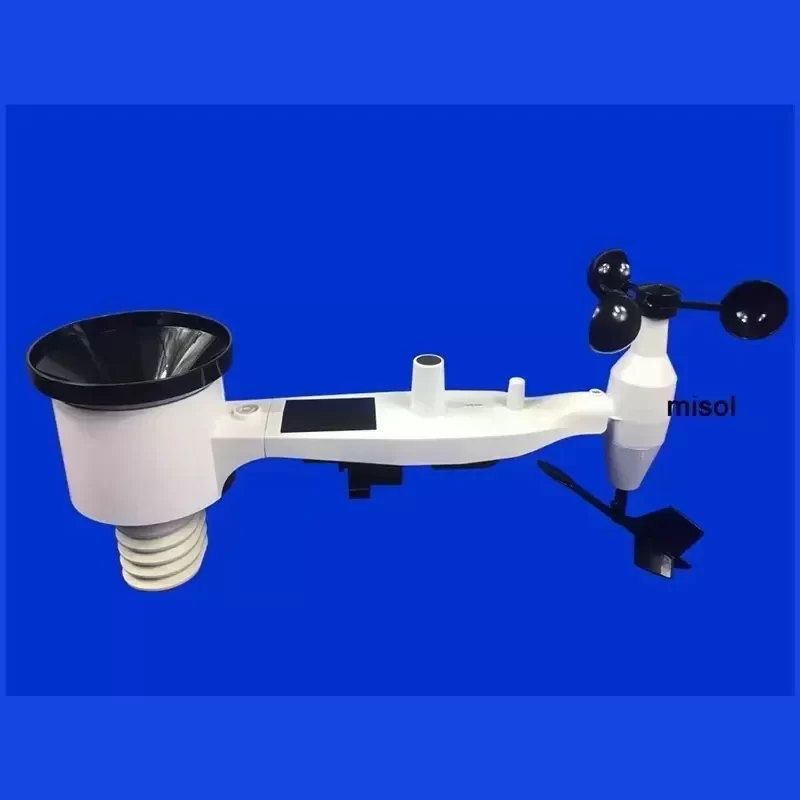

The MISOL 1080 is an industrial-grade telemetry weather monitoring system engineered for precise localized microclimate profiling, automated data acquisition, and multi-parameter atmospheric analysis. Built on proven Original Engineering architecture, the system combines an outdoor multi-sensor array with a high-resolution base station console and non-volatile datalogging hardware. It provides direct measurement of ambient temperature, relative humidity, wind velocity, wind vector, precipitation accumulation, and barometric pressure. The instrument delivers continuous telemetry across decentralized industrial sites, facilitating automated environmental compliance and meteorological trend forecasting.

TECHNICAL SPECIFICATIONS
Sensor Transmission Frequency: 433 MHz (Optional: 868 MHz)
Wireless Range: Up to 100 m line-of-sight
Data Update Interval: 48 seconds
Internal Data Storage: 4,080 complete records (non-volatile EEPROM)
PC Interface: USB 2.0
Indoor Temperature Range: 0 °C to +50 °C
Outdoor Temperature Range: -40 °C to +65 °C
Temperature Accuracy: ±1.0 °C
Temperature Resolution: 0.1 °C
Relative Humidity Range: 10% to 99% RH
Humidity Accuracy: ±5% RH
Humidity Resolution: 1% RH
Rainfall Volume Display: 0 to 9,999 mm
Rainfall Accuracy: ±10%
Rainfall Resolution: 0.3 mm (volume < 1,000 mm), 1.0 mm (volume ≥ 1,000 mm)
Wind Speed Range: 0 to 50.0 m/s (0 to 180 km/h)
Wind Speed Accuracy: ±1.0 m/s (speed < 10 m/s), ±10% (speed ≥ 10 m/s)
Wind Direction Resolution: 16 discrete compass points (22.5° increments)
Barometric Pressure Range: 300 hPa to 1,100 hPa
Barometric Pressure Accuracy: ±3 hPa
Barometric Pressure Resolution: 0.1 hPa
Receiver Operating Voltage: 3 x 1.5V AA alkaline/lithium cells or 5V DC via USB
Transmitter Operating Voltage: 2 x 1.5V AA lithium cells (recommended for sub-zero operation)
Ingress Protection: IPX3 for outdoor sensor housing
Construction Material: UV-stabilized industrial ABS polymer
Total Station Weight: 1.45 kg
Console Dimensions: 165 mm x 120 mm x 30 mm

SYSTEM INTEGRATION & TELEMETRY

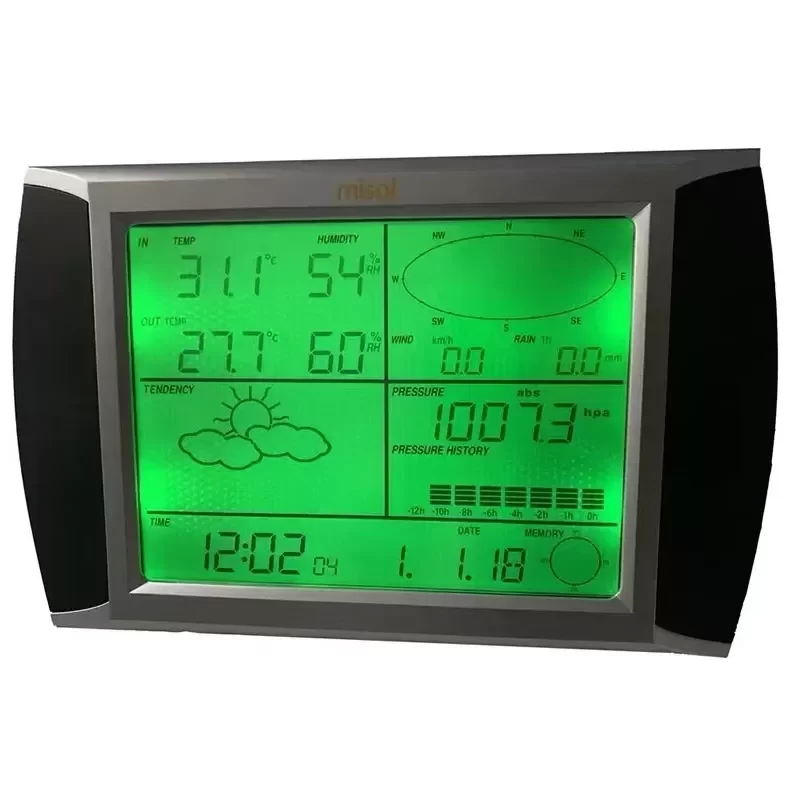

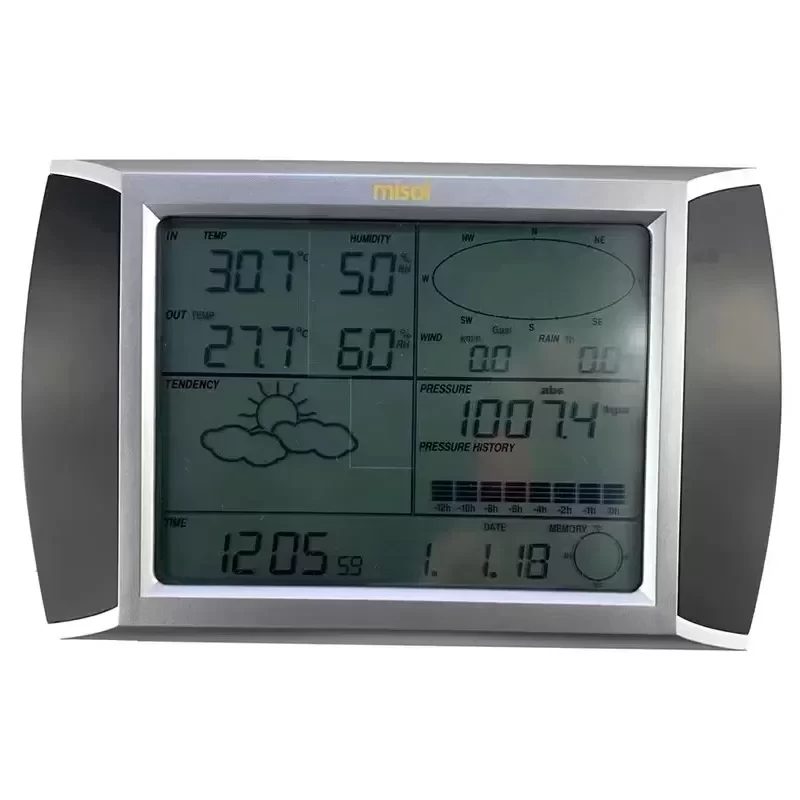

The MISOL 1080 utilizes an automated radiofrequency link between the integrated mast-mounted transmitter and the base station receiver. Raw meteorological inputs are processed at a consistent 48-second polling cycle, preventing aliasing during sudden barometric shifts or wind gusts. The internal datalogger operates autonomously without continuous host connection; once connected via USB, standard telemetry formats allow extraction into SCADA systems, proprietary analytics tools, or CSV-based enterprise platforms. The console features programmable alarm thresholds for high wind warnings, thermal extremes, and pressure drops indicative of storm fronts.

CRITICAL APPLICATION PROFILE
This instrumentation is specifically deployed in large-scale industrial operations requiring strict perimeter environmental oversight, such as open-pit mining operations, photovoltaic solar farm efficiency monitoring, structural crane safety management, and outdoor chemical containment facilities. In high-consequence environments, localized real-time wind speed and direction data prevent crane tip-over accidents and control dust emission compliance. The rugged UV-stabilized exterior ensures continuous operation through harsh thermal cycling and intense solar irradiation.

PROCUREMENT, COMPATIBILITY & LIFECYCLE

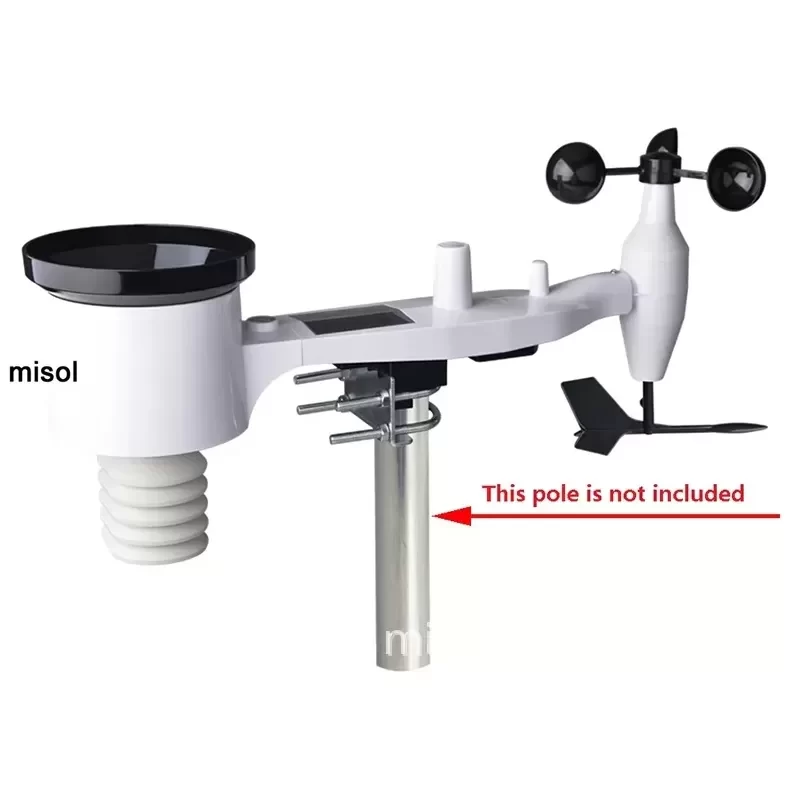

Technical Compatibility extends across standard 25 mm to 38 mm OD vertical mounting masts and standard weather station visualization suites via generic USB HID drivers. Interchangeable replacement assemblies for the anemometer, rain gauge tipping bucket, and thermo-hygro sensor module are maintained under standardized part catalogs, ensuring long lifecycle viability without total station replacement. Factory units undergo standardized calibration against reference barometric and thermal standards. Typical component fulfillment features an expedited Lead Time for standard configurations, supported by certified packaging for international transit.

Key Attributes
Type: Wireless weather station
Place of origin: China
Operating Temperature: -20°C To 50°C
Operating humidity: 10% to 99%
Protection grade: IP65
Model number: WS1080
Brand name: MISOL
Customized support: OEM, ODM
Material: Plastic
Warranty: 1 years
Radio frequency: 433MHz
Wind speed: 0- 50.0m/s
Rainfall data display: 0-9999mm
Humidity range: 10% to 99%
Air pressure: 300-1100hpa
Precipitation records: 1 hour, 24 hours, one week, one month
Wind direction: LCD screen displays wind direction
Wind speed unit: Mph, m/s, km/h, knots, Beaufort

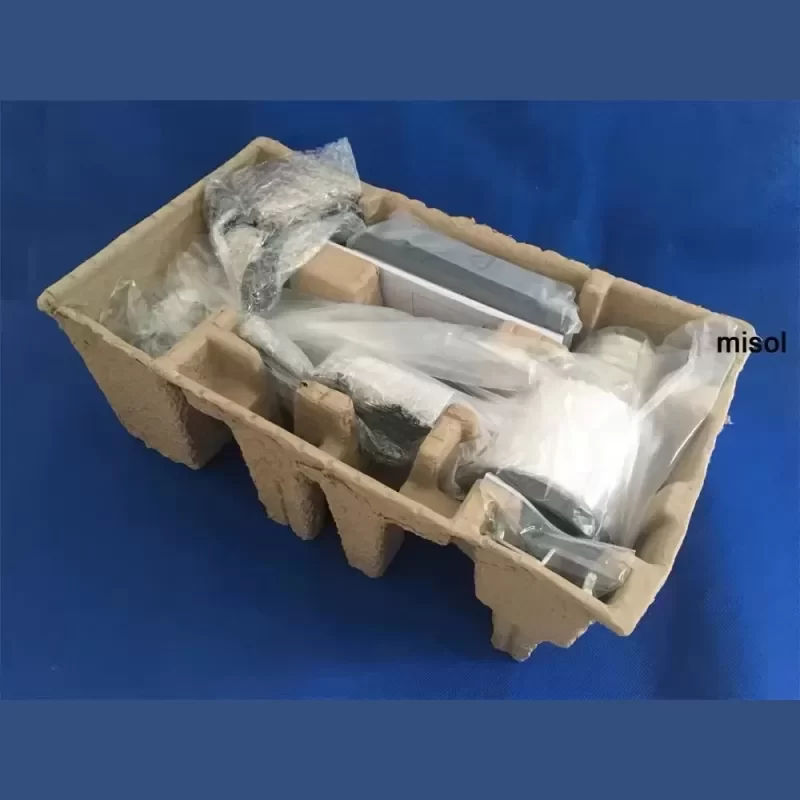

Packaging and Delivery
Selling Units: Single item
Single package size: 46X29X20 cm
Single gross weight: 2.500 kg
