FLIR C5 Compact Thermal Camera with Wi-Fi 160 X 120

Description

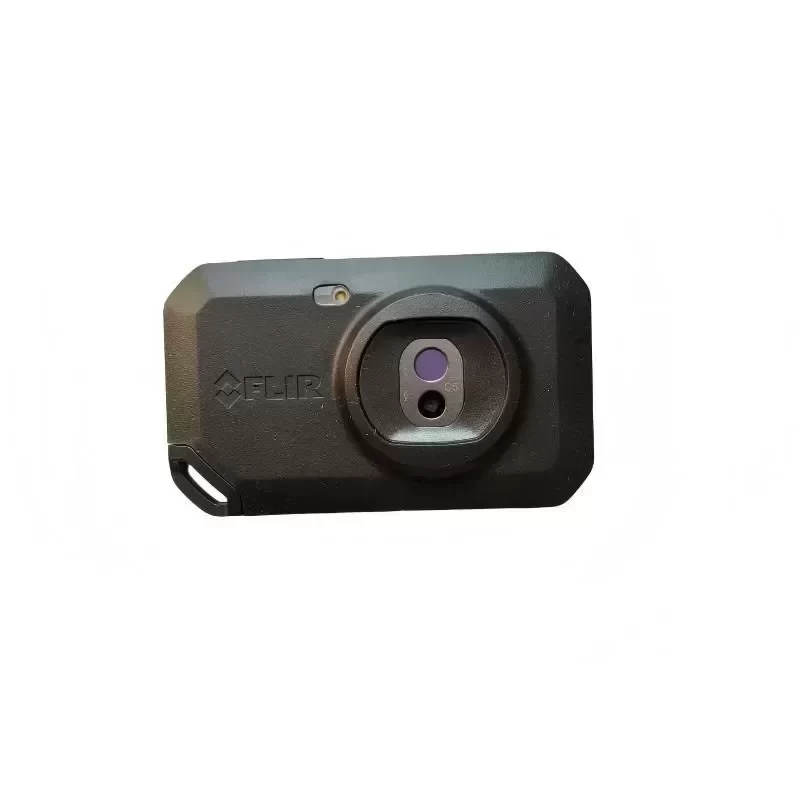

The FLIR C5 is a high-performance, pocket-portable thermal imaging camera designed for predictive maintenance, facility inspection, and electrical/mechanical fault diagnostics. Utilizing genuine FLIR Original Engineering, the device integrates a 160 x 120 true thermal sensor with FLIR patented Multi-Spectral Dynamic Imaging (MSX) technology, which embosses visual edge details onto thermal images for rapid spatial orientation.

TECHNICAL SPECIFICATIONS
Sensor Resolution: 160 x 120 pixels (19,200 measurement points)
Thermal Sensitivity (NETD): < 70 mK
Spectral Range: 7.5 to 14 µm
Field of View (FOV): 54° x 42°
Minimum Focus Distance: Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Image Frequency: 8.7 Hz
Focus Type: Fixed focus
Visual Camera: 5 Megapixels with integrated LED worklight
Display: 3.5 in color capacitive touchscreen (640 x 480)
Image Presentation Modes: Thermal, Visual, MSX, Picture-in-Picture
Object Temperature Range: -20 °C to 400 °C (-4 °F to 752 °F)
Measurement Accuracy: ±3 °C (±5.4 °F) or ±3% of reading (ambient 15 °C to 35 °C, object > 0 °C)
Measurement Functions: Center spot, Max/Min temperature box with 1 movable spot
Emissivity Correction: 4 presets plus custom adjustable (0.01 to 0.99)
Color Palettes: Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Storage Media: Internal memory (up to 5,000 images)
Image File Format: Standard JPEG with 14-bit radiometric measurement data
Connectivity: Wi-Fi (802.11 a/b/g/n, 2.4/5 GHz), Bluetooth, USB 2.0 Type-C
Cloud Integration: Native FLIR Ignite direct auto-upload support
Battery Type: Rechargeable internal Lithium-ion battery
Operating Time: Up to 4 hours
Charging System: USB-C (5 V / 2 A, approx. 2 hours to full charge)
Ingress Protection: IP54 (IEC 60529)
Drop Test Rating: Designed for 2 m (6.6 ft) impact
Operating Temperature Range: -10 °C to 50 °C (14 °F to 122 °F)
Storage Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)
Dimensions: 138 mm x 84 mm x 24 mm (5.4 in x 3.3 in x 0.94 in)
Weight: 0.19 kg (0.42 lbs)
Certifications: CE, FCC, RoHS, UL/EN 61010-1

INDUSTRIAL APPLICATION SCENARIO
The FLIR C5 is engineered for non-destructive thermal inspection in industrial automation, motor control centers (MCC), low-to-medium voltage switchgear, and process machinery. Its 54° wide field of view allows technicians to scan entire switchboards within tight enclosures where standoff distance is constrained. By pinpointing micro-ohmic contact resistance, phase imbalances, and bearing lubrication failure prior to functional breakdown, it prevents unscheduled line downtime in demanding manufacturing environments.

SYSTEM INTEGRATION AND AVAILABILITY
Technical Compatibility: Direct integration with FLIR Thermal Studio software suite, FLIR Tools, and FLIR Ignite cloud infrastructure for automated reporting and asset management.

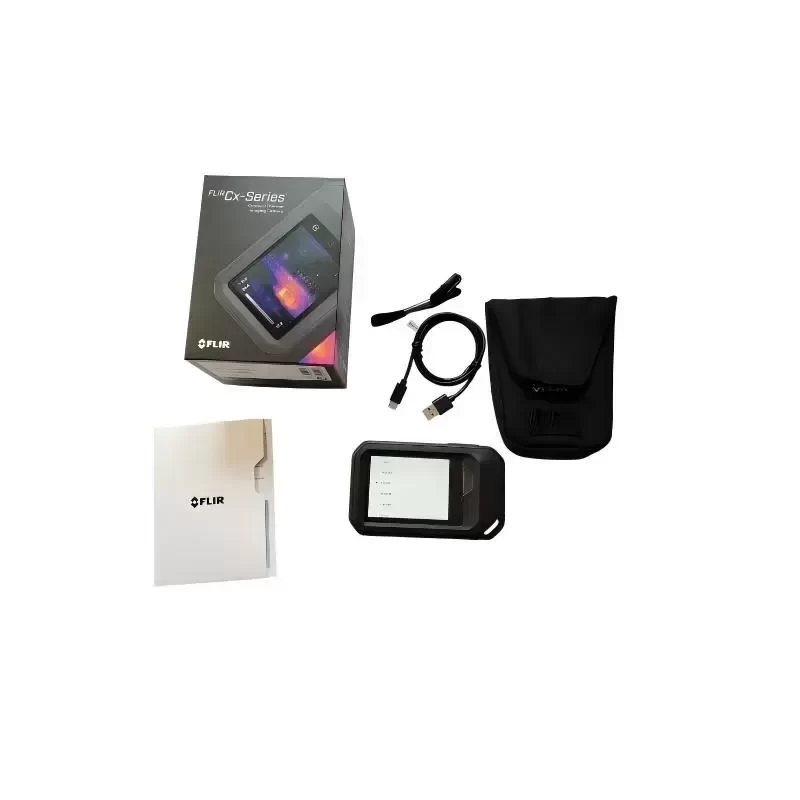

Package Contents: FLIR C5 thermal camera, USB-C interface cable, wrist strap lanyard, pouch, and official calibration documentation.
Availability: Maintained in factory-sealed condition with rapid lead time for time-sensitive operational deployments.

Key Attributes
Thermal color palettes: 4 Color Palettes
Thermal Image Pixel: 160 x 120
Thermal Sensitivity: <70 mk
Place of Origin: China
Display resolution: 160 x 120
Field of View: 54 x 42°
Image Frequency: 8.7 Hz
Model Number: C5
Brand Name: FLIR
IR Sensor: 160 x 120 (19,200 pixels)
Thermal Sensitivity/NETD: 5000 images
Battery Type: Rechargeable built-in Lithium ion battery
Dimensions: 5.4 x 3.3 x 0.94" (138 x 84 x 24 mm)

Packaging and Delivery
Selling Units: Single item
Single package size: 20X15X11 cm
Single gross weight: 0.600 kg
