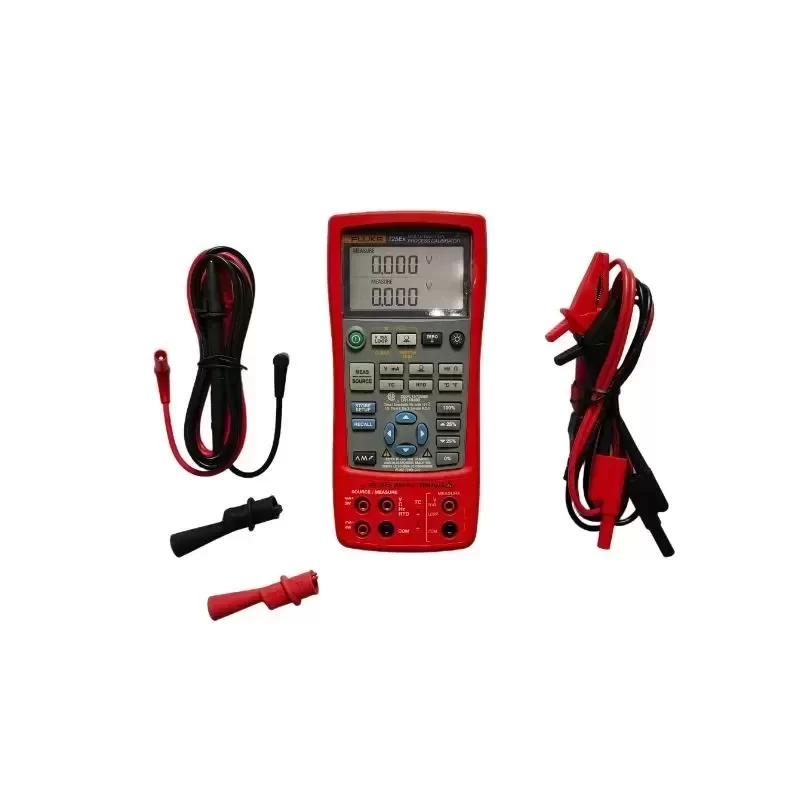

Fluke 725EX Intrinsically Safe Multifunction Process Calibrator Testing Equipment

$6,166.00

SKU: 1600984405576 Brand:

Description

The Fluke 725Ex is an intrinsically safe, high-precision multifunction process calibrator engineered specifically for verification, calibration, and troubleshooting in explosive and hazardous industrial environments. Built with robust Original Engineering compliance, the instrument allows process instrumentation engineers and technicians to source, simulate, and measure DC current, DC voltage, RTDs, thermocouples, frequency, resistance, and pressure within a single, highly durable handheld unit.

Technical Specifications:
Manufacturer: Fluke Corporation
Model: 725Ex
Equipment Type: Intrinsically Safe Multifunction Process Calibrator
Hazardous Location Ratings: ATEX II 1 G EEx ia IIC T4; CSA I.S. Class I, Division 1, Groups A-D
DC Voltage Measurement: 0.000 V to 30.000 V (Resolution: 0.001 V, Accuracy: ± 0.02% of reading ± 2 counts)
DC Voltage Source / Simulation: 0.000 V to 10.000 V / 0.000 mV to 100.000 mV
DC Current (mA) Measurement / Source: 0.000 mA to 24.000 mA (Resolution: 0.001 mA, Accuracy: ± 0.02% of reading ± 2 counts)
Resistance Measurement / Source: 0.00 Ω to 3200.0 Ω
Frequency Measurement / Source: 2.0 cpm to 10.0 kHz
Thermocouple Compatibility: J, K, T, E, R, S, B, L, U, N, XK, BP
RTD Compatibility: Pt100 (385/3926/3916), Pt200, Pt500, Pt1000, Ni120, Cu10
Pressure Measurement: Supported via Fluke 700PEx Series Intrinsically Safe Pressure Modules
Display Architecture: Dual-channel split LCD screen with backlight for concurrent input/output monitoring
Power Supply: 4 x 1.5 V AA Alkaline batteries (LR6)
Operating Temperature: -10 °C to 55 °C
Storage Temperature: -20 °C to 70 °C
Relative Humidity: 90% (10 °C to 30 °C), 75% (30 °C to 40 °C), 45% (40 °C to 50 °C)
Shock and Vibration: 1-meter drop tested, MIL-T-28800 Class 2 compliant
Dimensions: 200 mm x 96 mm x 47 mm
Weight: 650 g

Industrial Applications and Technical Compatibility:
The Fluke 725Ex is designed for operation in offshore drilling platforms, petrochemical refineries, chemical processing units, pharmaceutical synthesis zones, and natural gas pipelines where flammable gases or vapors are permanently or intermittently present. Its dual-display design enables real-time sensor testing by sourcing a signal (such as temperature or pressure) while simultaneously monitoring the resulting 4-20 mA loop return without breaking the circuit. Direct Technical Compatibility with the Fluke 700PEx intrinsically safe pressure module line allows comprehensive differential, gauge, and absolute pressure transmitter calibration without hot work permits. Standard procurement includes verified Lead Time metrics for supply chain predictability and facility uptime assurance.

Key Attributes
Type: Process Calibrator
Accuracy: 0.02%
Place of origin: China
Customized support: OEM, ODM
Power: 1.00 to 10.00 kHz
Protection Class: Ip54
Voltage: 30V
Brand name: FLUKE
Application: Process Calibrator
Warranty: 1 years
Voltage DC: 30.000 V
Current DC: 24.000 mA
Resistance: 0.0 to 3200 Ω
Dimensions: 130 x 236 x 61 mm
Weight: 0.9kg

Packaging and Delivery
Selling Units: Single item
Single package size: 30X26X15 cm
Single gross weight: 2.000 kg

Fluke 725EX Intrinsically Safe Multifunction Process Calibrator Testing Equipment

Fluke 725EX Intrinsically Safe Multifunction Process Calibrator Testing Equipment
