Description

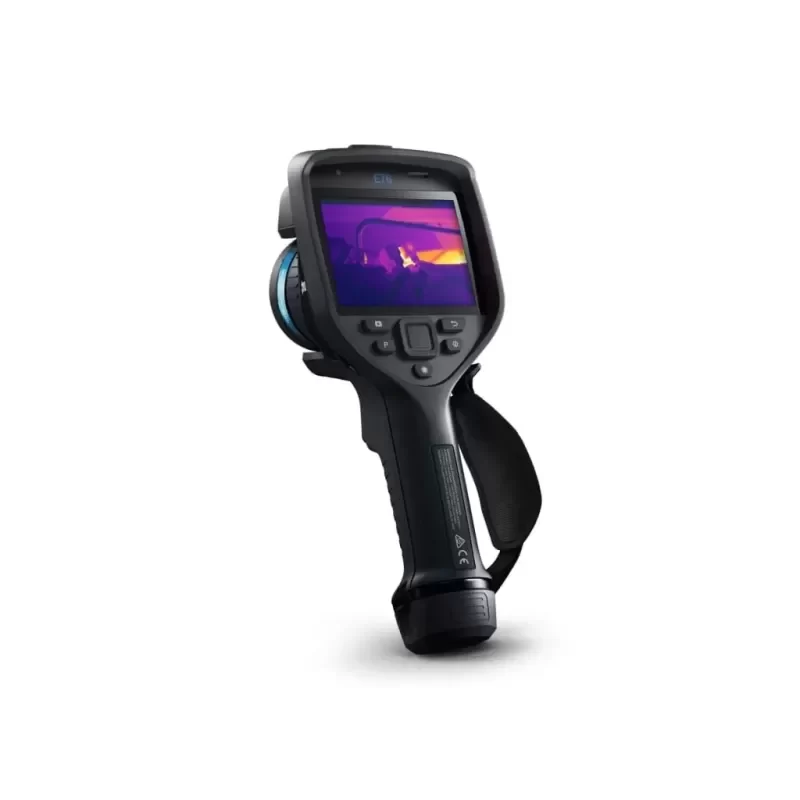

The Teledyne FLIR E76 is an advanced, high-performance infrared thermal imager engineered for rigorous predictive maintenance, electrical inspection, and mechanical troubleshooting in demanding B2B industrial environments. Utilizing Original Engineering from FLIR’s renowned Exx-Series, this diagnostic instrument delivers exceptional thermal clarity and measurement accuracy, enabling maintenance professionals to identify thermal anomalies before they escalate into catastrophic system failures. With standard Lead Time availability, the E76 integrates seamlessly into enterprise-level condition monitoring programs.
Technical Specifications:
Manufacturer: Teledyne FLIR
Model: E76
IR Resolution: 320 x 240 (76,800 measurement points)
Thermal Sensitivity (NETD): <30 mK (<0.03°C) at 30°C
Temperature Measurement Range: -20°C to 120°C; 0°C to 650°C (Optional calibration up to 1000°C)
Spectral Range: 7.5 to 14.0 µm
Image Frequency: 30 Hz
Detector Type: Uncooled Microbolometer
Field of View (FOV): Interchangeable AutoCal lenses (14°, 24°, or 42°)
Focus Mechanism: Continuous Laser Distance Meter (LDM), One-shot LDM, One-shot contrast, Manual
Display: 4-inch 640 x 480 optically bonded PCAP touchscreen
Image Modes: Infrared, Visual, MSX (Multi-Spectral Dynamic Imaging), Picture-in-Picture
Connectivity: Wi-Fi, Bluetooth, USB Type-C, DisplayPort
Storage Media: Removable SD card (8 GB)
Battery Type: Rechargeable Li-ion (approx. 2.5 hours continuous use)
Enclosure Rating: IP54 (dust and water splash protection)
Drop Resistance: 2 meters
Weight: 1.0 kg (including battery)
Operating Temperature Range: -15°C to 50°C
Industrial Application and Technical Compatibility:

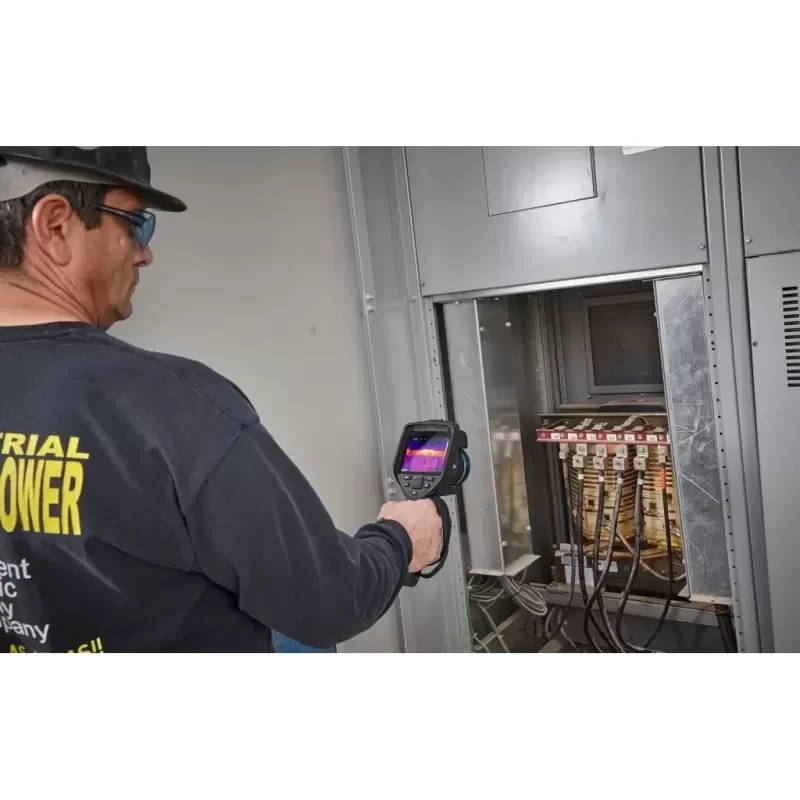

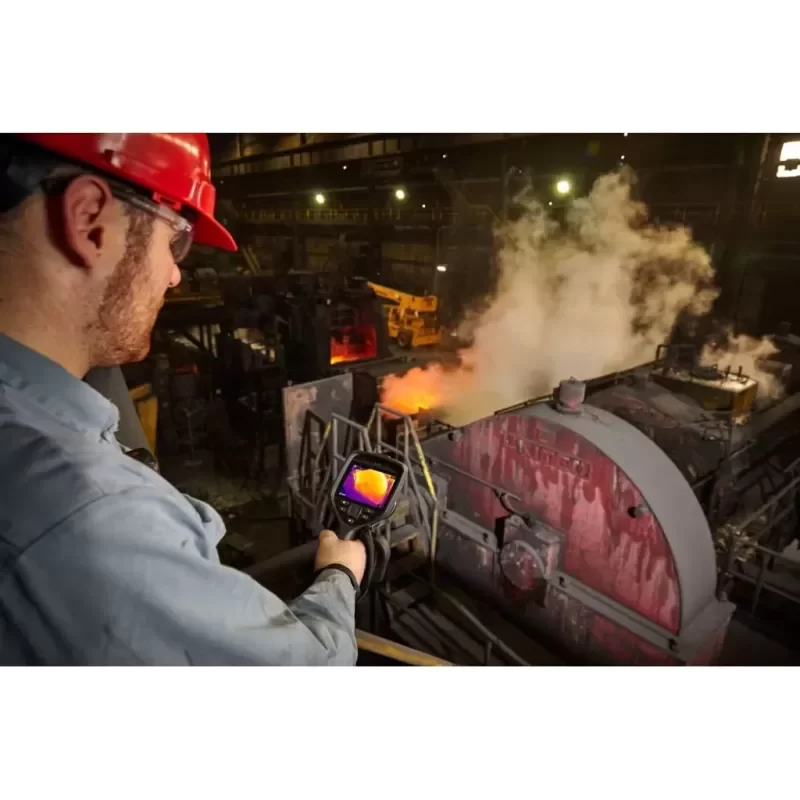

The FLIR E76 is specifically deployed in heavy industrial sectors for the inspection of high-voltage electrical switchgear, refractory linings, and rotating mechanical equipment. Its 320 x 240 resolution combined with MSX technology provides the critical detail required to detect micro-faults, such as phase imbalances or failing motor bearings, from a safe distance. The integrated laser distance meter ensures crisp autofocus for precise temperature readings, while its Technical Compatibility with FLIR Thermal Studio reporting software allows for automated data analysis and seamless integration into existing enterprise asset management (EAM) systems.
Key Attributes
Place of Origin: Estonia
Model Number: E76
Brand Name: FLIR
IR Resolution: 320 x 240 pixels
Built-in Visual Camera: 5 MP, fixed focus
Thermal Sensitivity: 2.5 hours, typical use
Weight: 2.2 lbs (0.99 kg)
Color: Black
Packaging and Delivery
Selling Units: Single item
Single package size: 45X31X26 cm
Single gross weight: 6.000 kg
