$61.00

SKU: 10000016865553 Brand:

Description

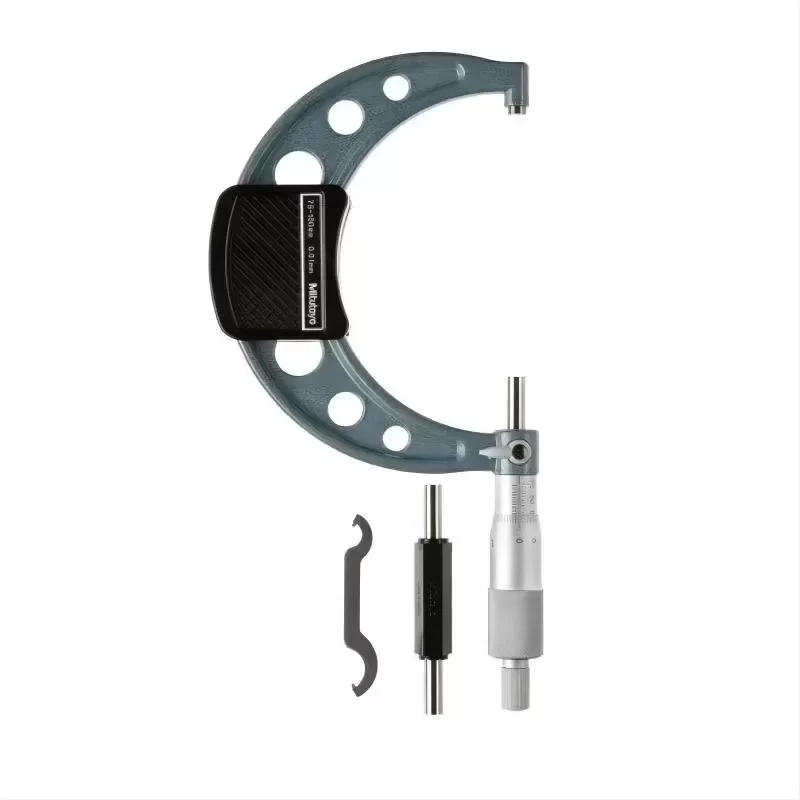

The Mitutoyo 103-140-10 is a high-precision metric outside micrometer from the renowned Series 103, engineered for rigorous dimensional inspection in industrial metrology. Featuring a measuring range of 75mm to 100mm, this mechanical micrometer delivers exceptional reliability and repeatability for critical quality control operations. Built with Original Engineering standards, it ensures seamless Technical Compatibility with existing calibration protocols and inspection workflows.

Technical Specifications:
Manufacturer: Mitutoyo
Series: 103
Model Number: 103-140-10
Measurement Range: 75mm – 100mm
Graduation: 0.01mm
Instrumental Error: ±3µm
Flatness: 0.6µm
Parallelism: 3µm
Measuring Faces: Carbide-tipped, micro-lap finish
Spindle Diameter: Ø 6.35mm
Spindle Pitch: 0.5mm
Measuring Force: 5 – 10 N
Force Mechanism: Ratchet Stop
Frame Finish: Hammertone-green baked enamel
Scale Finish: Satin chrome
Setting Standard: 75mm included
Weight: 375g

Industrial Application:
The 103-140-10 is specifically designed for machining centers, aerospace manufacturing, and automotive quality assurance where precise external diameter verification of turned parts, shafts, and cylindrical components is mandatory. The carbide-tipped measuring faces resist wear in harsh shop-floor environments, while the ratchet stop ensures constant measuring force for operator-independent repeatability.

Procurement and Lifecycle:
Integrating this authentic Mitutoyo measurement tool guarantees compliance with ISO/DIN metrology standards. Contact our procurement team to confirm current Lead Time and calibration certificate availability.

Key Attributes
Place of origin: Japan
Model number: 103-140-10
Brand name: Mitutoyo
Customized support: OEM, ODM
Warranty: 1 years
Product name: Mitutoyo
Model: 103-140-10
Digital/Analog: Analog
Inch-Metric: Metric
Range: 75-100 mm
Graduation: 0,01 mm
Measuring force: 5 - 10 N

Packaging and Delivery
Selling Units: Single item
Single package size: 39X22X14 cm
Single gross weight: 2.500 kg
