Description

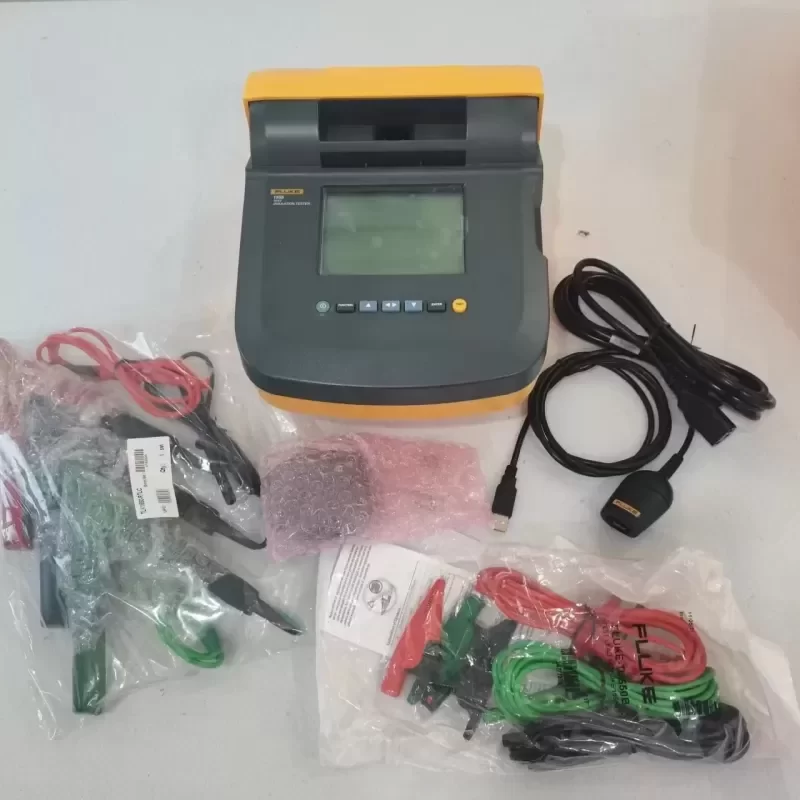

The Fluke 1555FC Insulation Resistance Tester Kit is a premier diagnostic instrument engineered for high-voltage testing up to 10kV. Designed for utility substations, industrial plants, and commercial environments, this device evaluates the integrity of high-voltage equipment including switchgear, motors, generators, and cables. Utilizing Original Engineering from Fluke, the 1555FC integrates seamlessly with the Fluke Connect wireless system, allowing technicians to transmit, record, and analyze test data remotely via smartphone, ensuring maximum safety and operational efficiency.
Technical Specifications:
Manufacturer: Fluke
Model: 1555FC / 1555-KIT
Maximum Test Voltage: 10,000 V (10 kV) DC
Preset Test Voltages: 250V, 500V, 1000V, 2500V, 5000V, 10000V
Voltage Step Adjustments: 50V steps (250V to 1000V), 100V steps (above 1000V)
Insulation Resistance Range: 0 to 2 TΩ
Diagnostic Functions: Polarization Index (PI), Dielectric Absorption Ratio (DAR), Capacitance, Leakage Current
Safety Rating: CAT III 1000 V, CAT IV 600 V
Warning Function: Alerts user if line voltage > 30V is present
Connectivity: Fluke Connect Wireless System
Display: Large LCD with digital and analog bar graph
Power Supply: 12V rechargeable lead-acid battery
Operating Temperature: -20°C to 50°C
Storage Temperature: -20°C to 65°C
Operating Altitude: 2000 m
Weight: 3.6 kg
Enclosure Rating: IP40 (instrument), IP67 (custom hard case)
Application & Integration:

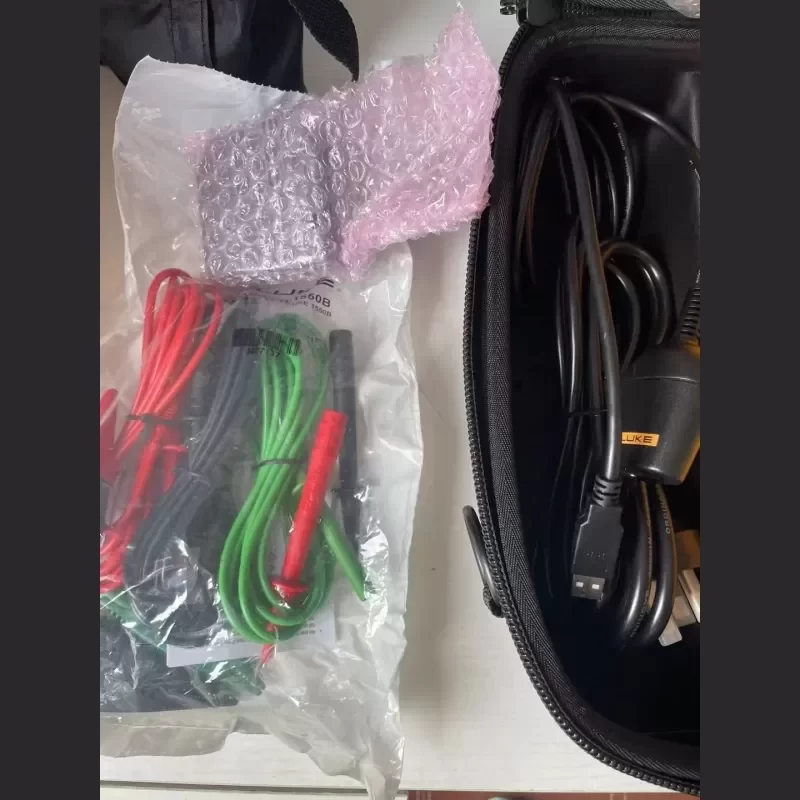

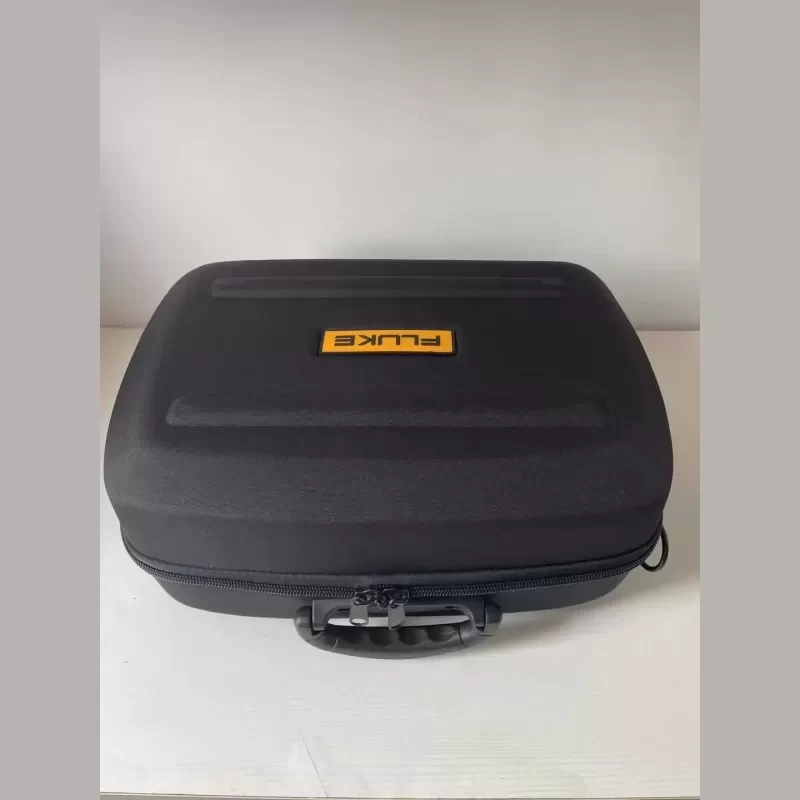

The Fluke 1555FC is indispensable for predictive maintenance programs in heavy industrial settings. By automatically calculating PI and DAR with no additional setup, it provides immediate insights into insulation degradation caused by moisture, contamination, or thermal aging. The kit configuration ensures Technical Compatibility with a wide array of high-voltage testing scenarios, providing heavy-duty test leads, alligator clips, and a rugged IP67 hard case for harsh environments.
Procurement & Lifecycle Value:
Investing in the Fluke 1555FC guarantees accurate baseline measurements for critical infrastructure. We optimize Lead Time for this essential diagnostic tool, ensuring your maintenance teams have immediate access to industry-leading testing capabilities. Its robust construction and advanced data-logging features significantly reduce equipment downtime and prevent catastrophic failures in high-voltage systems.
Key Attributes
Accuracy Class: 5%
Current Range: 1 nA to 2 mA
Insulation Resistance: To 2 TΩ
Measuring Range: 0-2 TΩ
Testing Voltage: 0-10 kV
Place of Origin: China
Model Number: 1555FC
Brand Name: Fluke
Current Resolution: 1 mA
Dimensions: 269 x 277 x 160 mm
Display Type: Digital Only
Operating Temperature: -4 to 122°F (-20 to 50°C)
Insulation Resistance Measurement Range: 5 to 2TΩ
Test voltage range: 10KV
Induced AC Mains Current Rejection: 2 mA maximum
Leakage Current Measurement Range: 1 nA to 2 mA
Capacitance Measurement Range: 0.01 to 15 uF
Input Overload Protection: 1000 V AC
Dimensions: 269 x 277 x 160 mm
Weight: 3.7 kg
Packaging and Delivery
Selling Units: Single item
Single package size: 45X36X30 cm
Single gross weight: 6.000 kg
