Description

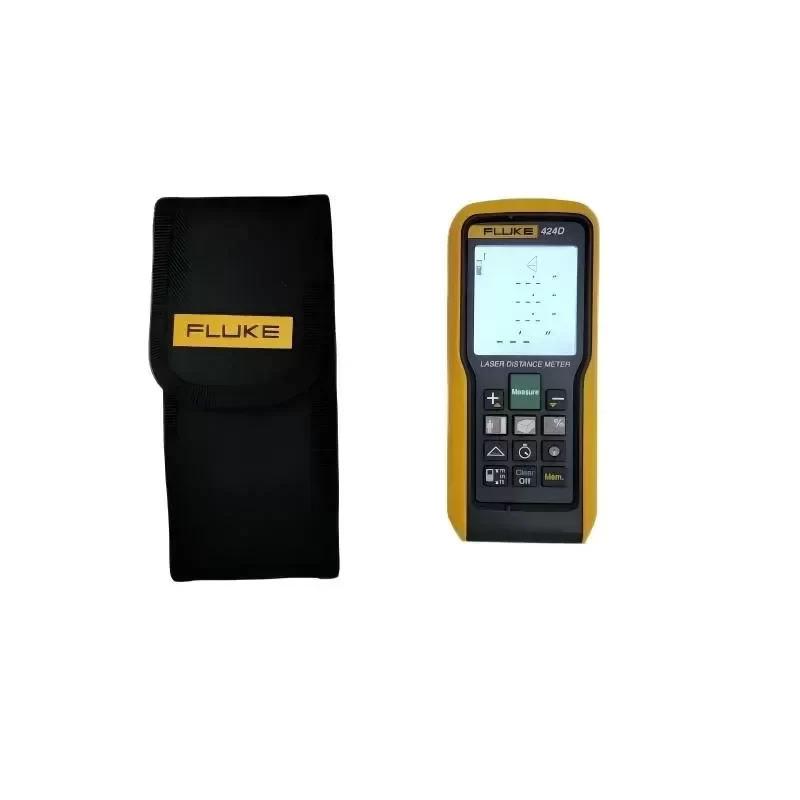

The Fluke 417D, 419D, and 424D series represent a tier of professional-grade laser distance meters designed for high-accuracy spatial measurement in demanding industrial environments. Built on Fluke’s Original Engineering standards, these rangefinders eliminate the inaccuracies of traditional tape measures, utilizing advanced laser technology to deliver instant distance, area, and volume calculations. The series scales in capability to meet specific site requirements, from basic indoor measurements to complex, long-range outdoor surveying with inclination tracking.
Technical Specifications
Brand: Fluke
Model Series: 417D, 419D, 424D
Measurement Range (417D): 0.2 m to 40 m
Measurement Range (419D): 0.2 m to 80 m
Measurement Range (424D): 0.2 m to 100 m
Measurement Accuracy: ±1.0 mm (419D, 424D) / ±2.0 mm (417D)

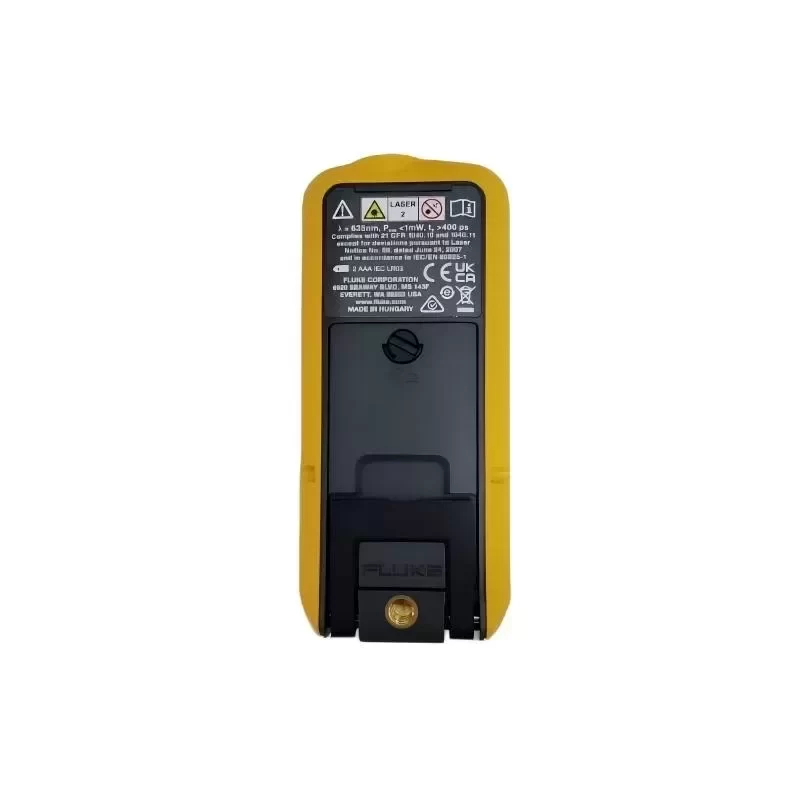

Laser Classification: Class 2, 635 nm, <1 mW
Beam Diameter: 6 mm at 10 m, 30 mm at 50 m
Environmental Rating: IP54 (Dust and water splash protection)
Operating Temperature: -10°C to +50°C
Storage Temperature: -25°C to +70°C
Power Supply: 2x AAA Alkaline batteries
Battery Life: Up to 5000 measurements (419D, 424D) / 3000 measurements (417D)
Display: Illuminated LCD (4-line on 424D, 3-line on 419D, 2-line on 417D)
Advanced Features (424D): 180° inclination sensor, built-in compass, corner angle feature
Data Memory: Stores up to 20 complete displays (419D, 424D)
Tripod Mount: 1/4-20 thread (419D, 424D)
Weight: 153 g (419D, 424D) / 130 g (417D)
Dimensions (424D): 127 mm x 56 mm x 33 mm
Industrial Application
These laser distance meters are critical for plant engineers, HVAC technicians, and electrical contractors. In a large-scale facility upgrade, the 424D allows technicians to calculate precise conduit routing lengths and HVAC duct volumes (m³) across high-bay ceilings without requiring a scissor lift. The integrated inclination sensor enables indirect height measurements for inaccessible structural beams or hazardous zones. The Technical Compatibility of the Fluke 400D series ensures that spatial data aligns with standard CAD and auditing workflows, reducing estimation errors and material waste.
Procurement and Lifecycle
Manufactured to withstand rigorous daily use, these units feature robust shock-resistant housings that protect internal optics. Please consult your industrial distributor for current Lead Time and availability to ensure uninterrupted project execution.
Key Attributes
Magnification: 10x
Type: Other
Place of origin: China
Ingress Protection: IP54
Material: Plastic
Size: 22x16x10 mm
Weight: 300G
Model number: 424D
Brand name: Fluke
Customized support: OEM, ODM
Warranty: 1 years
Distance Measurement: 100m
Typical measuring tolerance: ± 1.0 mm
Calibration Cycle: Tilt and compass
Protection class: IP54
EMC: EN 55022:2010
Power Battery type: 2 x AAA 1.5 V NEDA 24A/IEC LR03
Dimensions: 127 x 56 x 33 mm
Weight: 160g
Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X13 cm
Single gross weight: 1.500 kg
