Fluke 1555KIT Digital Insulation Resistance Tester Kit

Description

The Fluke 1555KIT is an industrial-grade, high-voltage insulation resistance diagnostic system engineered for preventative maintenance, commissioning, and troubleshooting of heavy electrical infrastructure. Designed to evaluate the integrity of windings in large generators, transformers, switchgear, and motors, this 10 kV digital insulation tester provides comprehensive diagnostic capabilities without compromising operator safety. The integrated system utilizes advanced Original Engineering to deliver precise, repeatable measurement performance under extreme electromagnetic interference and rugged field environments.

Industrial Application Scenario:
In electrical power generation and transmission, insulation breakdown represents the leading cause of catastrophic machine failures. The Fluke 1555KIT is deployed during scheduled turnarounds or predictive maintenance windows to conduct step-voltage, ramp-rate, and time-delayed insulation diagnostic tests (PI and DAR). By identifying micro-fractures, moisture ingress, and localized thermal degradation within the stator or winding insulation barriers, operators can schedule targeted stator rewinds before critical operational failures occur, mitigating multimillion-dollar downtime events.

Technical Specifications:
Nominal Test Voltages: 250 V, 500 V, 1000 V, 2500 V, 5000 V, 10000 V
Insulation Resistance Range: 200 kΩ to 2 TΩ
Measurement Accuracy (250 V to 1000 V): ± 5% of reading + 2% of range
Measurement Accuracy (2500 V to 10000 V): ± 5% of reading + 2% of range up to 1 TΩ / ± 20% above 1 TΩ
Short-Circuit Test Current: 1.4 mA nominal (2.3 mA maximum)
Guard Terminal Leakage Current Rejection: Eliminates surface leakage current on high-resistance measurements
Capacitance Measurement Range: 0.01 μF to 20.00 μF
Capacitive Load Charge Rate: 5 seconds per μF
Leakage Current Measurement: 1 nA to 2 mA
Timer Range: 0 to 99 minutes
Memory Capacity: 99 storage locations for data logging
Display Type: Custom LCD with analog bar graph
Power Supply: 12 V Lead-Acid Rechargeable Battery (12 V, 2.6 Ah)
Battery Charger Input: 85 V AC to 250 V AC, 50/60 Hz
Overvoltage Safety Rating: CAT III 1000 V, CAT IV 600 V
Ingress Protection Rating (Instrument): IP40
Ingress Protection Rating (Transit Case): IP67
Operating Temperature Range: -20 °C to +50 °C
Storage Temperature Range: -20 °C to +65 °C
Relative Humidity: 80% non-condensing at 31 °C
Dimensions (H x W x L): 170 mm x 242 mm x 330 mm
Weight: 3.7 kg

System Integration and Compatibility:
Technical Compatibility: Fully compatible with Fluke Connect desktop and mobile software platforms for seamless digital asset management, trend analysis, and test report generation.
Interface: Infrared (IR) port for secure wireless data transfer to external computers or mobile devices.
User Safety Architecture: Automatic discharge of capacitive voltage after completion of testing prevents post-test shock hazards.

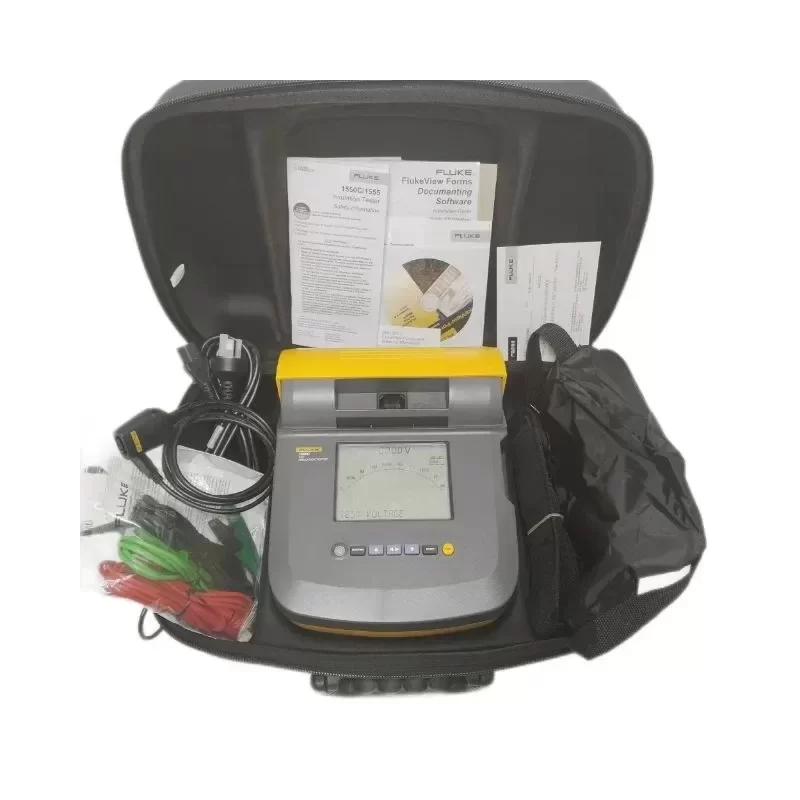

Kit Contents:
Fluke 1555 Digital Insulation Tester
Heavy-Duty Alligator Clips (Red, Black, Green)
Test Cables with Alligator Clips (3-meter lead length)
Infrared Connector with USB Cable
Rugged IP67 Hard Utility Transit Case
FlukeView Forms Basic Software CD-ROM
AC Power Cord
Quick Reference Guide and User Manual

Supply Chain and Delivery:
Product Status: Brand New, Original Equipment
Lead Time: Standard ex-stock availability. Please contact our distribution team for precise delivery schedules based on order volume.
Technical Support: Comprehensive manufacturer warranty and system integration support included.

Key Attributes
Accuracy Class: 5%
Current Range: 1 nA to 2 mA
Insulation Resistance: 2 TΩ
Measuring Range: 0-2 TΩ
Testing Voltage: 0-10 kV
Place of Origin: China
Model Number: 1555/KIT
Brand Name: Fluke
Current Resolution: 1 mA
Dimensions: 269 x 277 x 160 mm
Display Type: Digital Only
Operating Temperature: -4 to 122°F (-20 to 50°C)
Speed Range: 10 m/s
Time Resolution: 1 ms
Insulation Resistance Measurement Range: 5 to 2TΩ
Test voltage range: 10KV
Induced AC Mains Current Rejection: 2 mA maximum
Leakage Current Measurement Range: 1 nA to 2 mA
Capacitance Measurement Range: 0.01 to 15 uF
Input Overload Protection: 1000 V AC
Dimensions: 269 x 277 x 160 mm
Weight: 3.7 kg

Packaging and Delivery
Selling Units: Single item
Single package size: 48X32X25 cm
Single gross weight: 5.000 kg
