Description
The Fluke 325 True-RMS Clamp Meter represents the flagship diagnostic instrument within the Fluke 320 Series, engineered for commercial and industrial electrical troubleshooting. Combining True-RMS AC/DC voltage and current measurement capabilities with advanced parameters including capacitance, frequency, and contact temperature, the unit ensures accurate diagnostics in non-linear electrical environments.
TECHNICAL SPECIFICATIONS
Manufacturer: Fluke Corporation
Model: 325 (320 Series)
Measurement Type: True-RMS
AC Current Range: 40.00 A / 400.0 A
AC Current Accuracy: 2.0% ± 5 digits (45 Hz to 65 Hz), 2.5% ± 5 digits (65 Hz to 400 Hz)
DC Current Range: 40.00 A / 400.0 A
DC Current Accuracy: 2.0% ± 5 digits
AC Voltage Range: 600.0 V
AC Voltage Accuracy: 1.5% ± 5 digits
DC Voltage Range: 600.0 V
DC Voltage Accuracy: 1.0% ± 5 digits
Resistance Range: 400.0 Ω / 4000 Ω / 40.00 kΩ
Resistance Accuracy: 1.0% ± 5 digits
Capacitance Range: 100.0 µF to 1000 µF
Frequency Range: 5.0 Hz to 500.0 Hz
Temperature Measurement: -10.0 °C to 400.0 °C (Type-K Thermocouple)
Continuity Beeper: ≤ 30 Ω
Data Hold: Integrated
Backlight: Integrated White LED
Max Conductor Diameter: Ø 30 mm (600 MCM)
Dimensions: 207 mm x 75 mm x 34 mm
Weight: 283 g
Safety Rating: CAT III 600 V / CAT IV 300 V
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -30 °C to +60 °C
Operating Altitude: 2000 m
Battery Type: 2x AAA Alkaline
INDUSTRIAL APPLICATIONS & INTEGRATION
The Fluke 325 is designed for verification of load current, AC/DC voltage, and circuit continuity across industrial motor control centers, solar inverter DC feeder lines, and HVAC electrical subsystems. Its compact ergonomic form factor allows seamless navigation in densely packed junction boxes and cable trays where jaw access is constrained.
B2B PROCUREMENT & COMPLIANCE
Original Engineering: Manufactured to strict OEM standards ensuring measurement repeatability and long-term calibration stability.

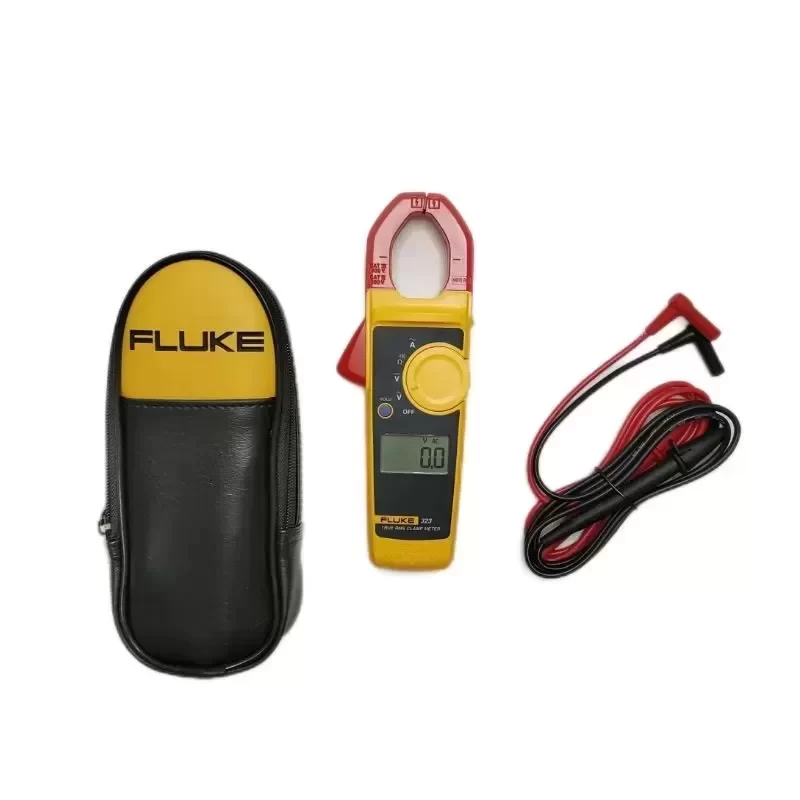

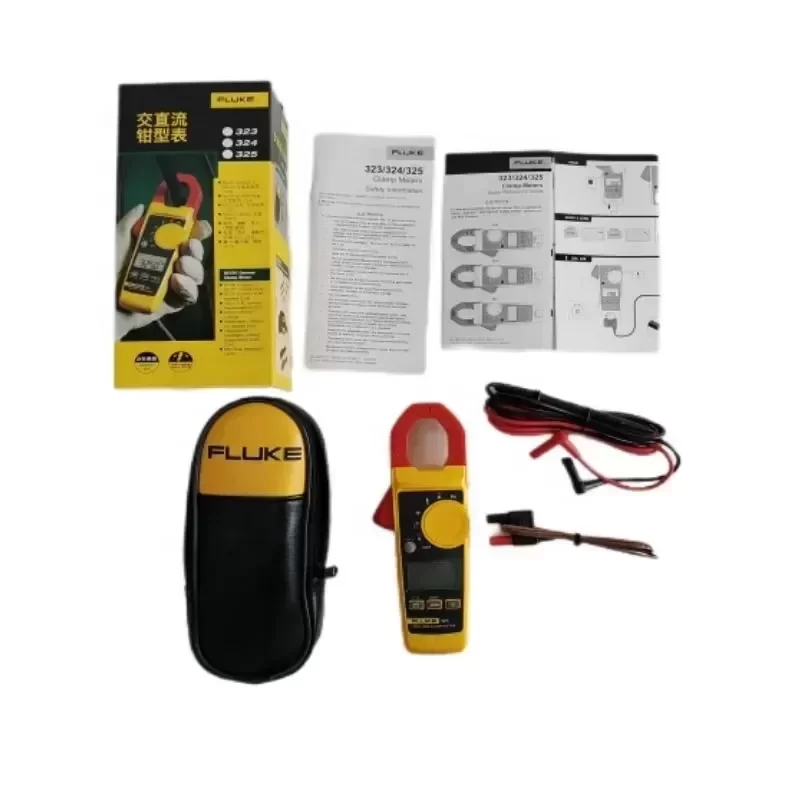

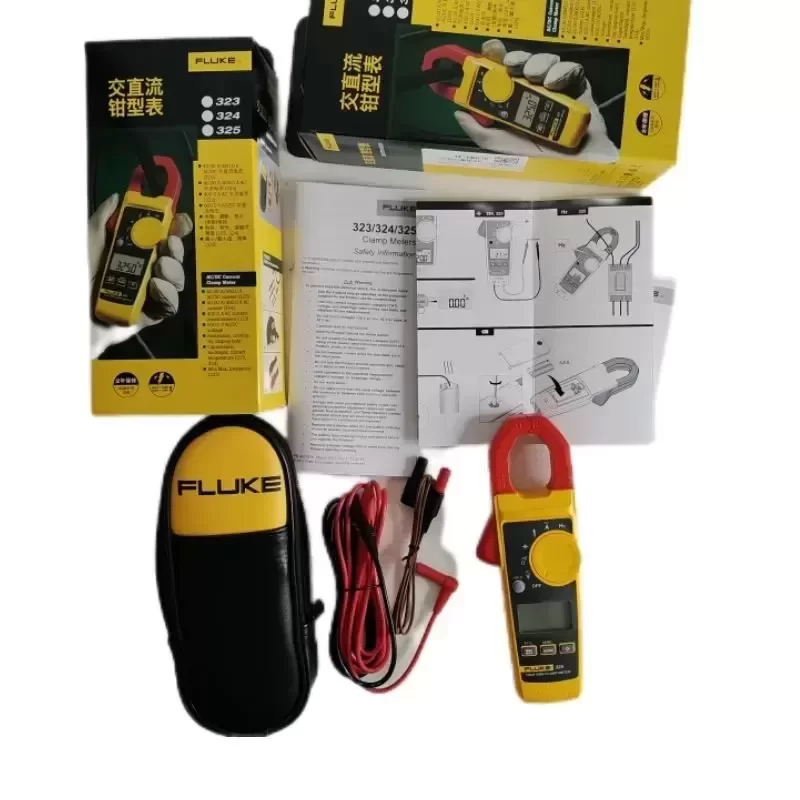

Technical Compatibility: Fully compatible with standard TL75 test leads, Type-K thermocouple probes, and soft carrying cases across the Fluke 323, 324, and 325 product family.
Lead Time: Inquire for real-time warehouse availability, bulk procurement terms, and standard dispatch schedules.
Key Attributes
Max. Ac Current: 40.00 A/400.0 A
Max. DC Current: 40.00 A/400.0 A
Measuring Voltage Range: 600.0 V
Place of Origin: China
Model Number: 325
Brand Name: FLUKE
Dimensions: 207 x 75 x 34 mm
Display Type: Digital Only
Max. Ac Voltage: 600V
Max. DC Voltage: 600V
Measuring Capacitance Range: 100.0 to 1000 uF
Measuring Current Range: 40.00 A/400.0 A
Measuring Inductance Range: ,
Measuring Resistance Range: 400.0 Ω/4000 Ω/40.00 kΩ
Operating Temperature: -10 to 400°C
Parameters Measured: AC Voltage, DC Current
Weight: 290g
AC Current Range: 40.00 A/400.0 A
DC Current Range: 40.00 A/400.0 A
AC/DC Voltage Range: 600V
Resistance Range: 400.0 Ω/4000 Ω/40.00 kΩ
Capacitance: 100.0 to 1000 uF
Frequency: 5.0 to 500.0 Hz
Contact Temperature: 14 to 752°F (-10 to 400°C)
Packaging and Delivery
Selling Units: Single item
Single package size: 26X15X12 cm
Single gross weight: 1.000 kg
