Fluke 700PTP-1 Pneumatic for Test Pump Essential Testing Equipment

Description

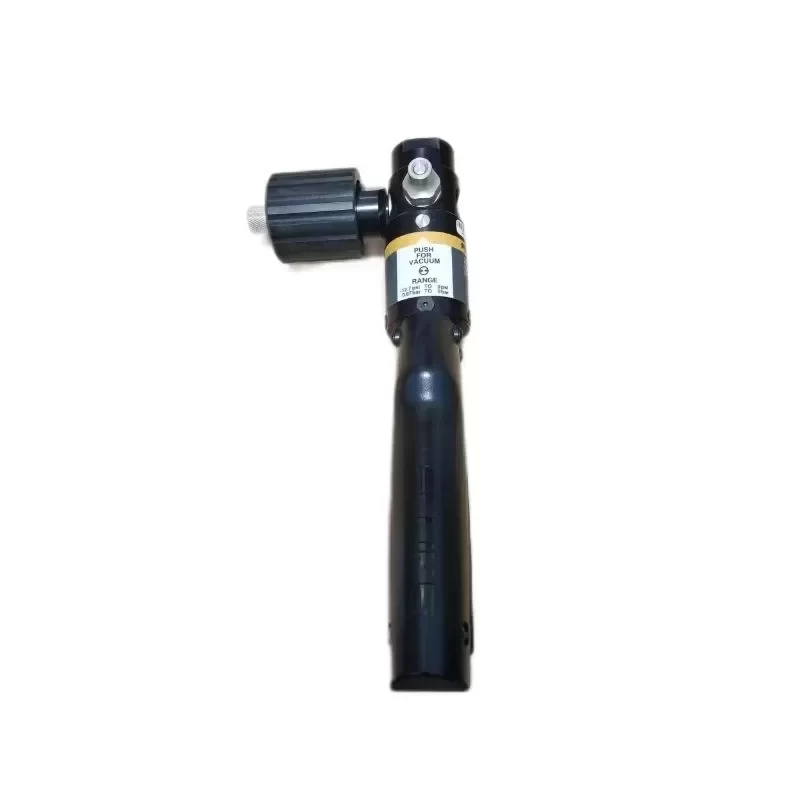

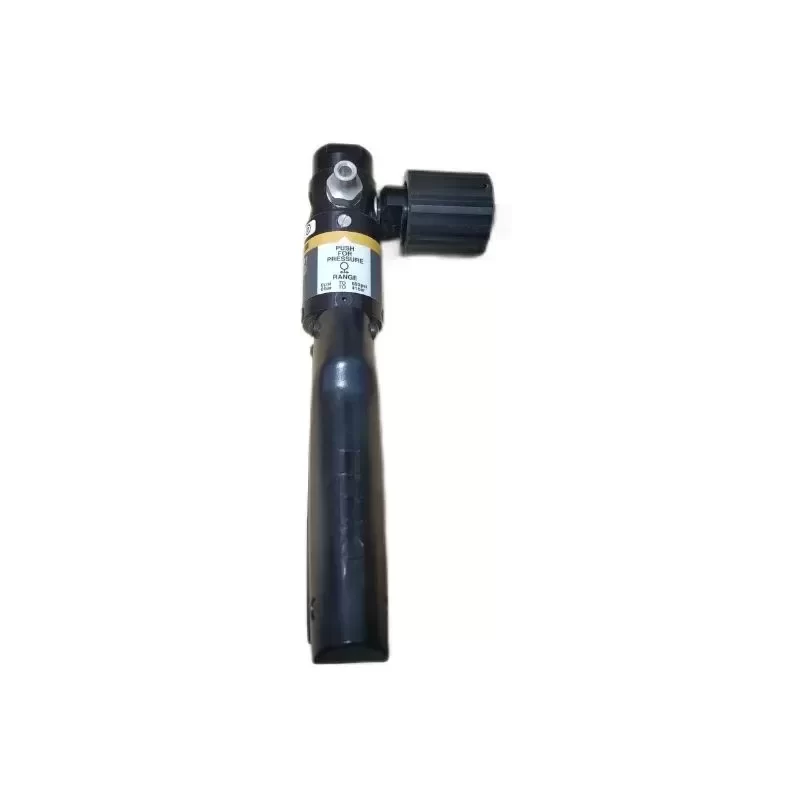

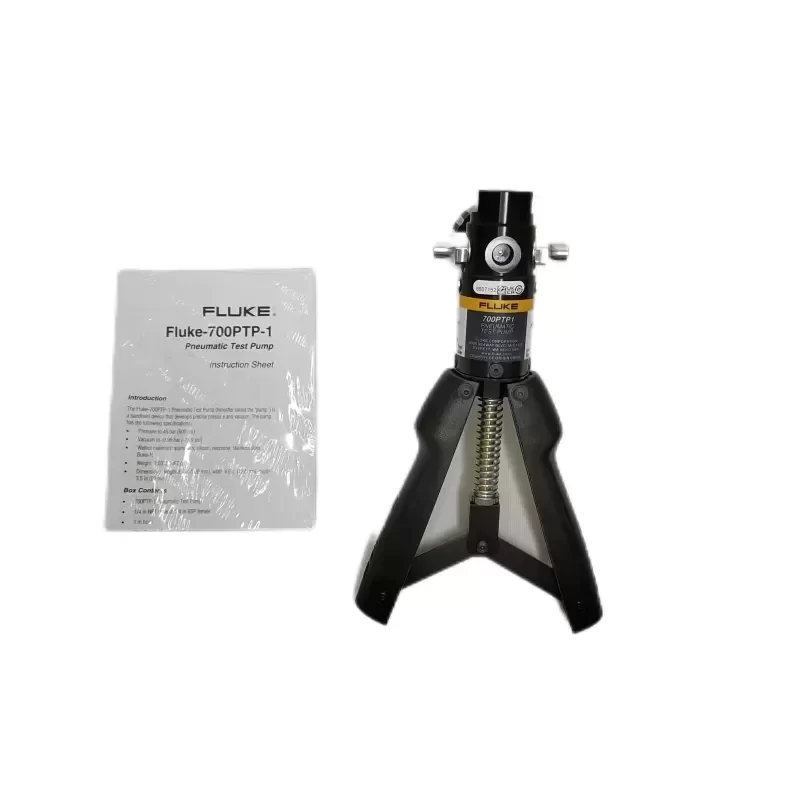

The Fluke 700PTP-1 is a highly precise, handheld pneumatic test pump engineered for the rigorous demands of industrial calibration and testing. Designed to generate both pressure and vacuum, this essential testing equipment provides instrumentation engineers with a reliable source for validating pressure transmitters, switches, and gauges in the field. The unit features an integrated fine adjustment vernier and a pressure relief valve, ensuring meticulous control over test parameters and safeguarding sensitive equipment against overpressure conditions.

Technical Specifications:
Manufacturer: Fluke
Model Number: 700PTP-1
Equipment Type: Pneumatic Test Pump
Maximum Pressure: 600 psi (40 bar)
Maximum Vacuum: -11.6 psi (-0.8 bar)
Operating Temperature: -10°C to +50°C
Port Configuration: Dual 1/4 in NPT female ports
Adjustment Mechanism: Multi-turn fine adjust vernier
Stroke Control: Adjustable stroke length for pressure limiting
Dimensions: 220 mm x 122 mm x 89 mm
Weight: 0.47 kg
Material Composition: Machined aluminum, brass, and high-impact polymer

Technical Compatibility and Integration:
The 700PTP-1 is designed for seamless Technical Compatibility with Fluke 700 series pressure modules and Fluke 700G precision pressure test gauges. The dual-port architecture allows simultaneous connection to a reference gauge and the unit under test, eliminating the need for complex manifold setups. Procuring components with Original Engineering guarantees calibration accuracy and long-term operational stability. Standard Lead Time for this diagnostic tool is optimized to minimize downtime in critical maintenance schedules.

Industrial Application Scenario:
In petrochemical processing facilities, accurate pressure measurement is critical for process safety and efficiency. The Fluke 700PTP-1 is deployed during routine turnaround maintenance to perform in-situ calibration of pneumatic control valves and pressure transmitters. Its ability to precisely generate up to 40 bar of pressure directly at the measurement point allows technicians to verify loop integrity and sensor accuracy without removing the instrumentation from the process line, thereby reducing maintenance hours and mitigating the risk of process fluid exposure.

Key Attributes
Type: Pneumatic Test Pump
Place of origin: China
Customized support: OEM, ODM
Power: Pneumatic Test Pump
Voltage: Other
Brand name: Fluke
Warranty: 1 years
Style (pumps): Pneumatic
Maximum Range Pressure (Gauges): 600 psi
Maximum Range Vacuum: -13.9
Fluid Compatability: Air
Adjustable Vent Release: Yes
Adjustable Vacuum Release: Yes

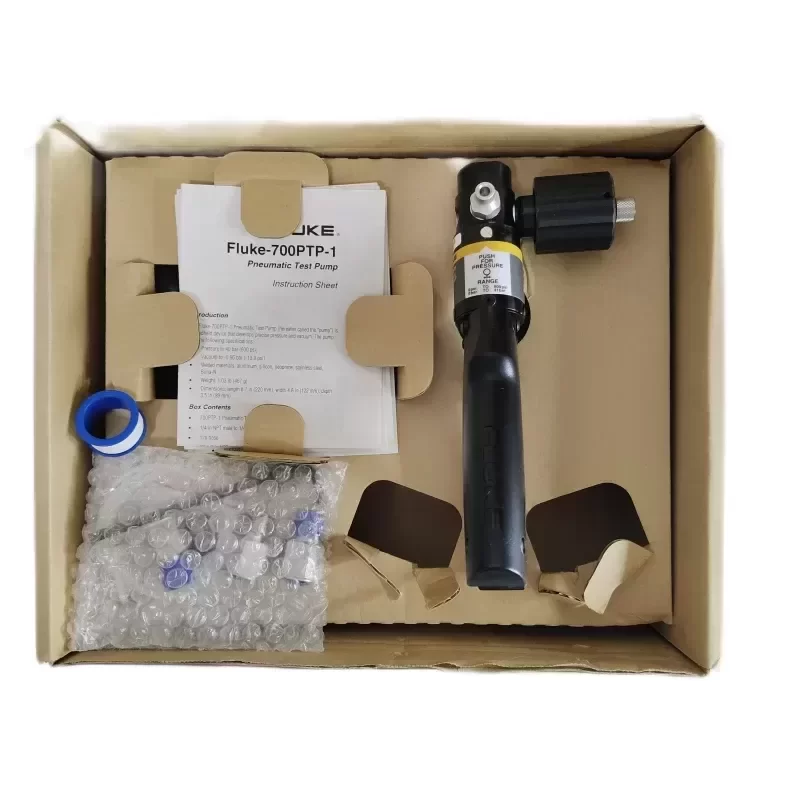

Packaging and Delivery
Selling Units: Single item
Single package size: 38X33X18 cm
Single gross weight: 2.000 kg
