Description

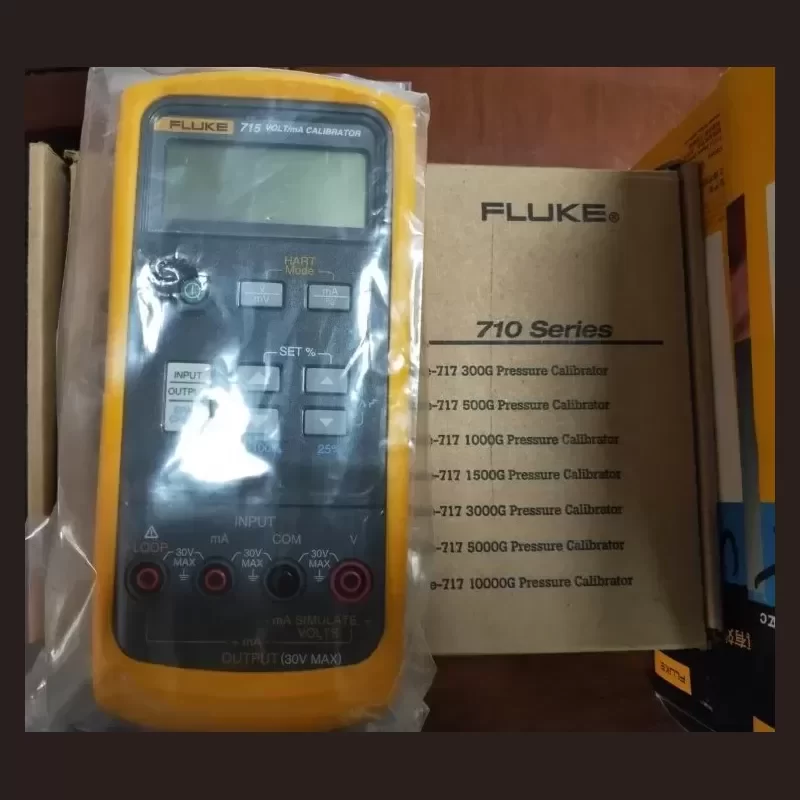

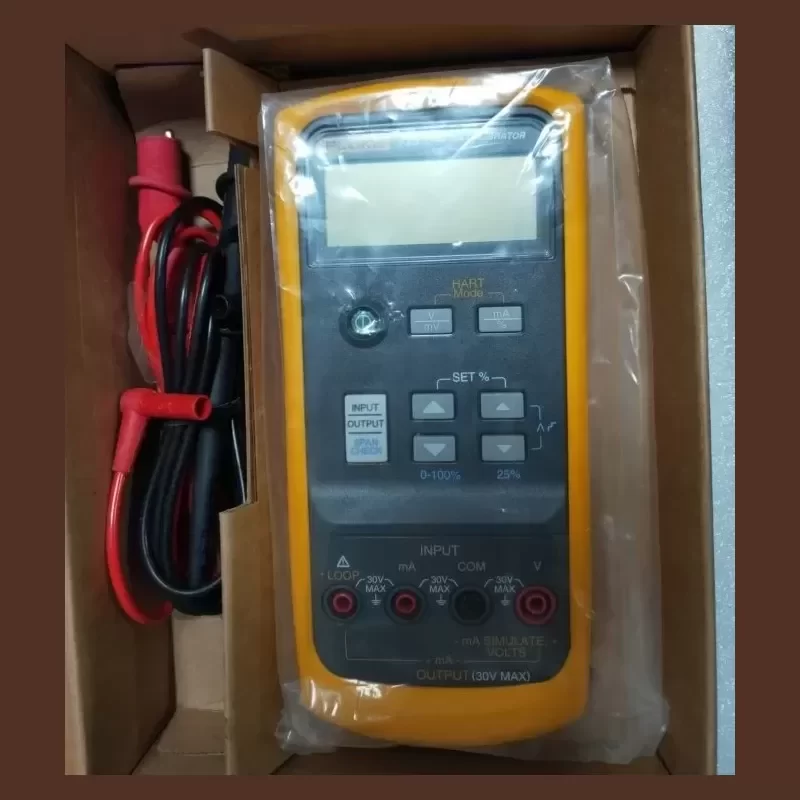

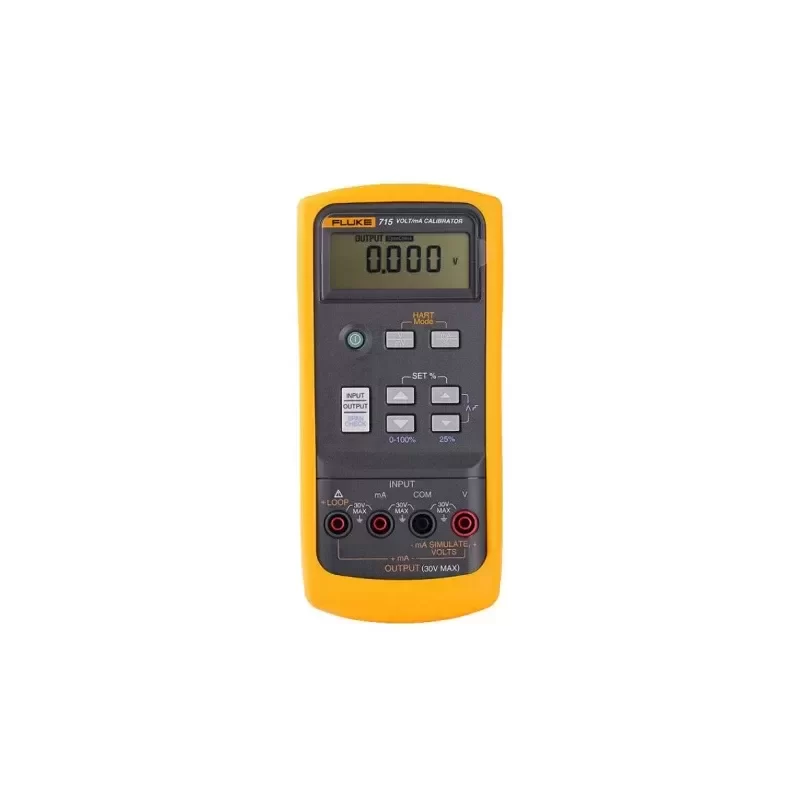

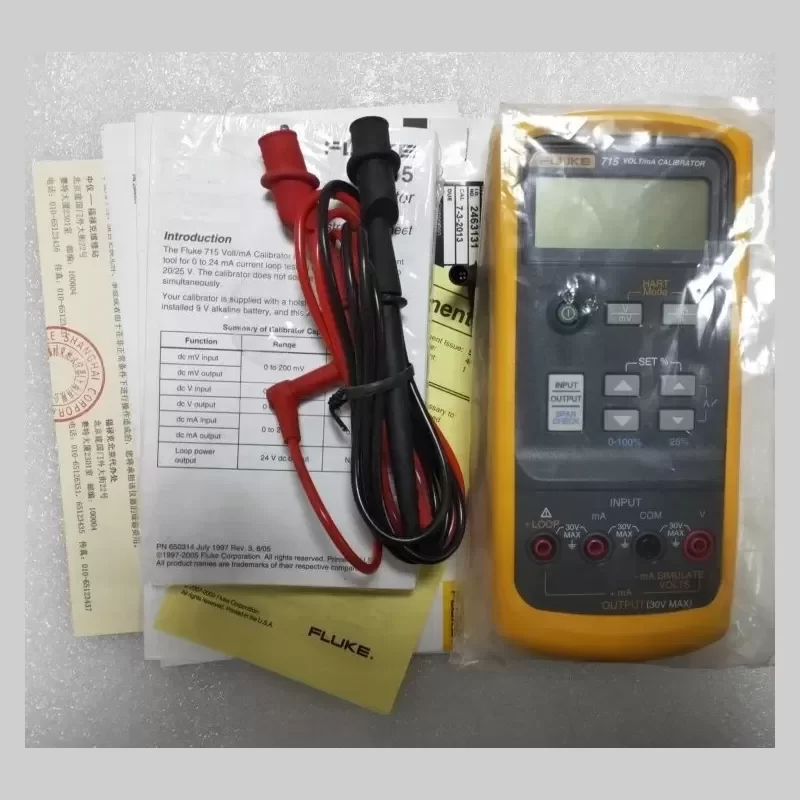

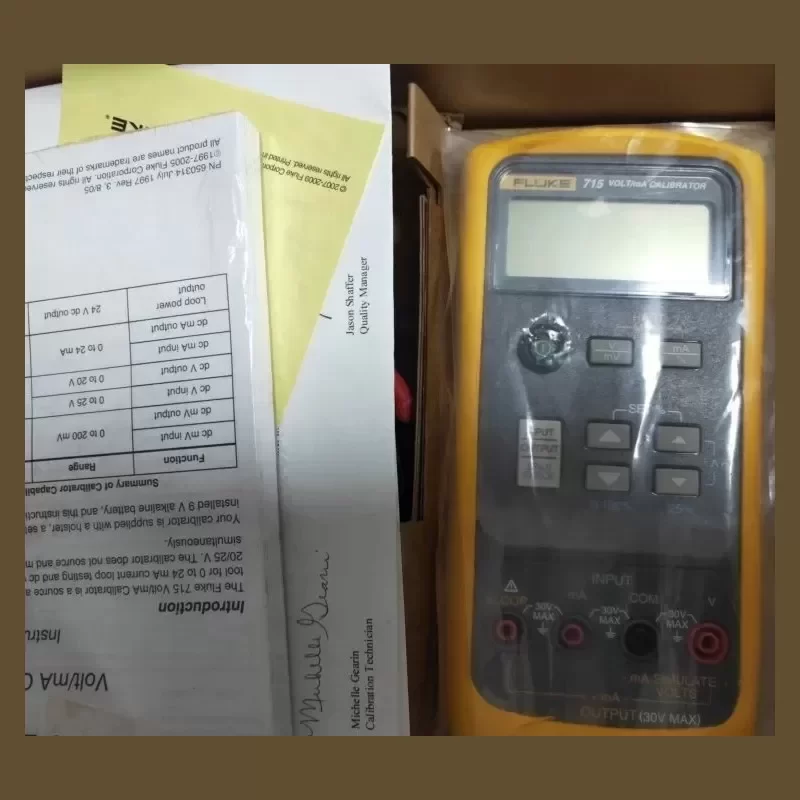

The Fluke 715 Volt/mA Calibrator is a precision diagnostic tool engineered for the rigorous demands of industrial automation and process control environments. Designed to measure and source loop current and voltage signals, this device provides critical diagnostic capabilities for PLC systems, DCS architectures, and field transmitters. Built with Fluke’s Original Engineering standards, the 715 ensures high-fidelity signal simulation and measurement, reducing downtime in complex manufacturing facilities.
Technical Specifications:
Brand: Fluke
Model: 715
Device Type: Electronic Volt/mA Calibrator
Current Measurement Range: 0 to 24 mA
Current Measurement Resolution: 0.001 mA
Current Measurement Accuracy: ±0.015% of reading + 2 counts
Voltage Measurement Range: 0 to 100 mV, 0 to 10 V
Voltage Measurement Resolution: 0.01 mV, 0.001 V
Voltage Measurement Accuracy: ±0.015% of reading + 2 counts
Loop Power Supply: 24 V DC
Operating Temperature: -10°C to +55°C
Storage Temperature: -40°C to +60°C
Humidity (Without Condensation): 0% to 95% (10°C to 30°C)
Dimensions: 187 mm x 87 mm x 32 mm
Weight: 0.35 kg
Shock and Vibration: Random, 2G, 5-500 Hz
Safety Certifications: CE, CSA
Application and Integration:
The Fluke 715 is specifically deployed in 4-20 mA loop troubleshooting and calibration scenarios. By providing simultaneous 24V loop power and current measurement, technicians can power and read a transmitter without requiring a separate digital multimeter or power supply. The device’s step and linear ramp output functions allow for automated linearity testing of valve positioners and I/P transducers.
Lifecycle and Procurement:
Maintaining Technical Compatibility with standard industrial process signals, the Fluke 715 integrates seamlessly into existing calibration protocols. It shares form-factor and interface logic with other 700 series tools, including the 712 RTD Calibrator, ensuring standardized training across maintenance teams. We optimize Lead Time for this essential diagnostic equipment to ensure your facility maintains continuous operational readiness and compliance with ISO 9001 calibration requirements.
Key Attributes
Type: Pressure Calibrators
Place of origin: China
Customized support: OEM, ODM
Power: 0 to 100 mV
Voltage: 24 V dc
Brand name: Fluke
Warranty: 1 years
Measure / Source mV Range: 0 to 100 mV
Resolution: 0.01 mV
Accuracy: 0.02% + 2 counts
Loop Power Range: 4 V dc
Display: Clear 5 digit LCD
Operating temperature: -10 to 55°C
Size: 187 mm L x 87mm W x 32 mm
Weight: 330 g
Power: Electronic
Packaging and Delivery
Selling Units: Single item
Single package size: 30X21X16 cm
Single gross weight: 2.000 kg
