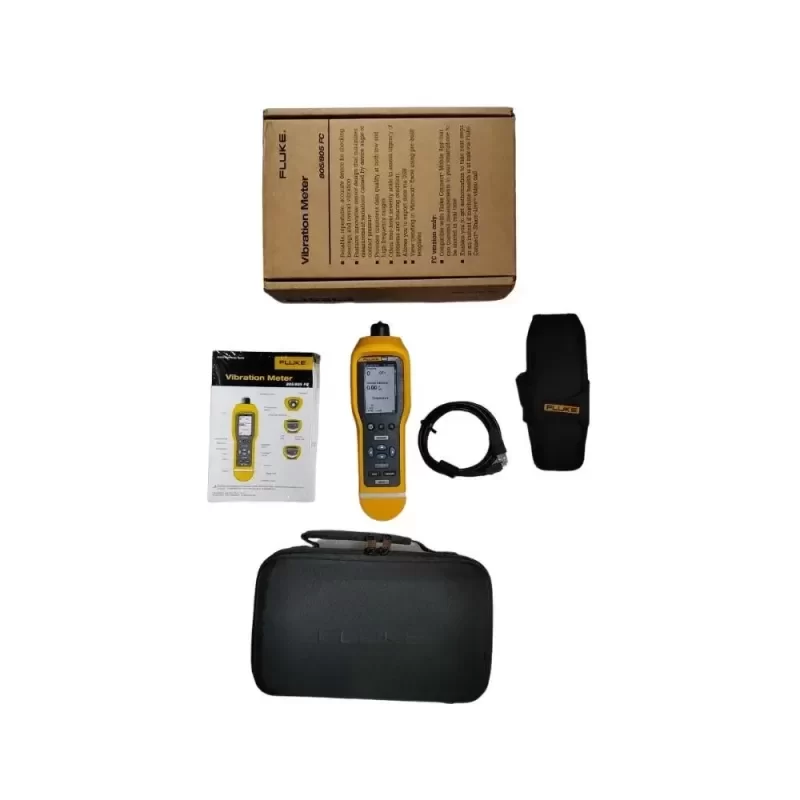

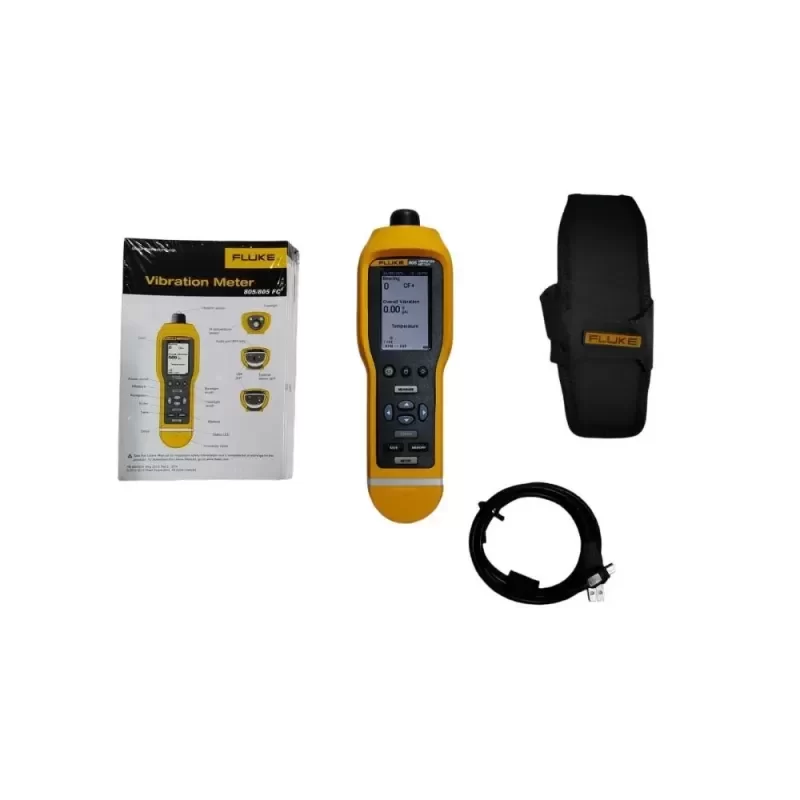

Fluke 805 Vibration Meter

Description

The Fluke 805 Vibration Meter is a highly reliable, precision-engineered diagnostic tool designed for frontline mechanical troubleshooting. Unlike standard vibration pens, the Fluke 805 provides quantifiable, repeatable bearing and overall vibration measurements, eliminating the ambiguity of subjective maintenance assessments. It utilizes a proprietary sensor tip design that mitigates measurement variations caused by user angle or contact pressure, ensuring consistent data acquisition across multiple shifts and operators.

Core Technology and Architecture
The device operates on a dual-frequency band system. It measures overall vibration in the low-frequency range to diagnose alignment, unbalance, and looseness, while simultaneously utilizing the Crest Factor+ algorithm in the high-frequency range to assess bearing condition. The integrated 16-bit A/D converter and high-speed sampling rate guarantee high-fidelity signal processing.

Technical Specifications
Manufacturer: Fluke
Model Number: 805
Low Frequency Range: 10 Hz to 1,000 Hz
High Frequency Range: 4,000 Hz to 20,000 Hz
Measurement Parameters: Acceleration, Velocity, Displacement
Sensor Type: Piezoelectric
A/D Conversion: 16-bit
Sampling Rate: 20,000 Hz
Signal to Noise Ratio: 80 dB
Severity Scale: 4-level
Memory Capacity: Up to 3,500 measurements
Data Interface: USB
Power Supply: 2x AA Batteries
Battery Life: 250 measurements
Operating Temperature: -20°C to 50°C
Storage Temperature: -30°C to 80°C
Operating Humidity: 10% to 95% RH
Ingress Protection: IP54
Drop Test: 1 meter
Dimensions: 24.1 cm x 7.1 cm x 5.8 cm
Weight: 0.40 kg

Industrial Application
The Fluke 805 is engineered for predictive maintenance programs in heavy manufacturing, petrochemical, and power generation facilities. It is specifically deployed to monitor critical rotating machinery, such as centrifugal pumps, industrial fans, compressors, and cooling tower gearboxes. By detecting early-stage bearing degradation and mechanical unbalance, it prevents catastrophic equipment failure and minimizes unplanned downtime.

Procurement and Lifecycle Value
Sourced through Original Engineering channels, this diagnostic instrument guarantees exact Technical Compatibility with existing Fluke Connect ecosystems and enterprise asset management software. Standard Lead Time protocols ensure rapid deployment for critical maintenance schedules, providing immediate ROI through optimized machinery lifecycle management and reduced spare parts consumption.

Key Attributes
Type: Vibration Meter
Accuracy: At 100 Hz ± 5% of measured value
Place of origin: China
Customized support: OEM, ODM
Power: 4000 to 20,000 Hz
Protection Class: IP54
Voltage: 20to 22 V DC
Brand name: Fluke
Warranty: 1 years
Low Frequency Range: 10 to 1000 Hz
High Frequency Range: 4000 to 20,000 Hz
A/D Converter: 16-bit
Signal to Noise Ratio: 80 dB
Accuracy: ±5%
IR Temperature Vibration Meter Range: -20 to 200°C (-4 to 392°F)
Accuracy.: ±2°C (4°F)

Packaging and Delivery
Selling Units: Single item
Single package size: 32X20X16 cm
Single gross weight: 1.500 kg
