Description

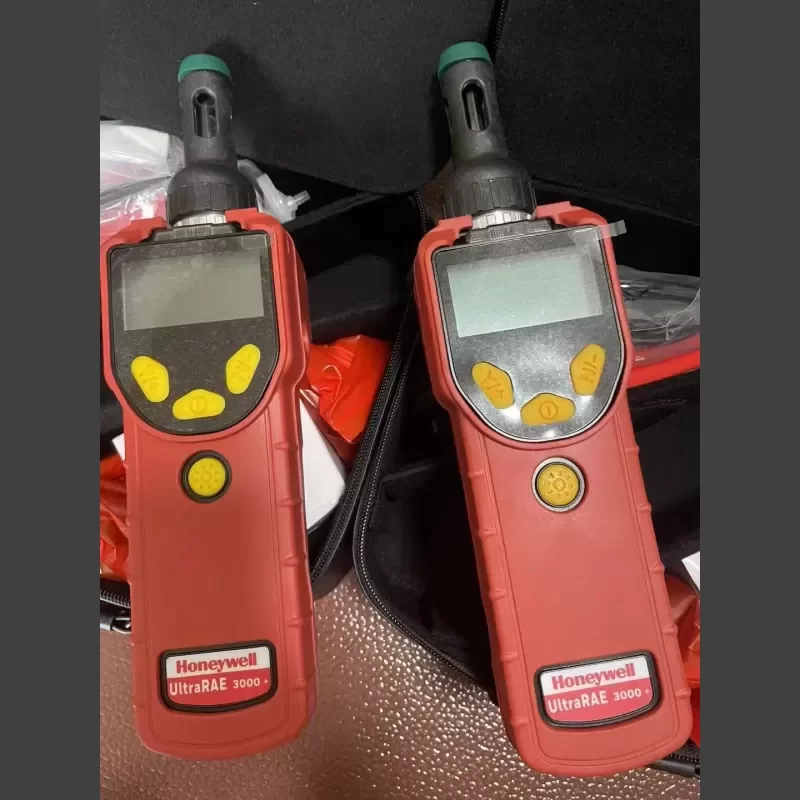

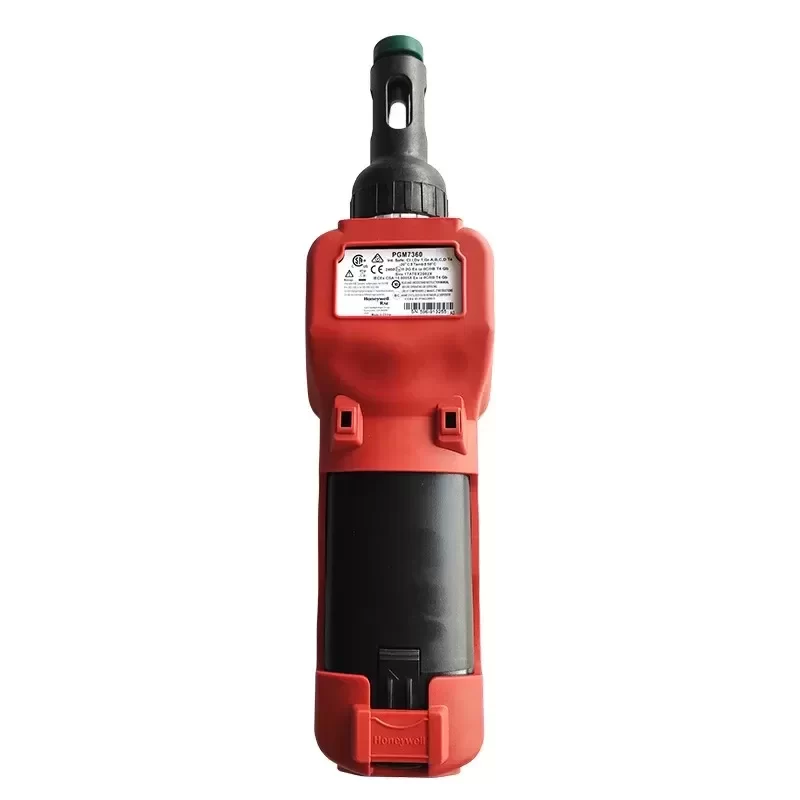

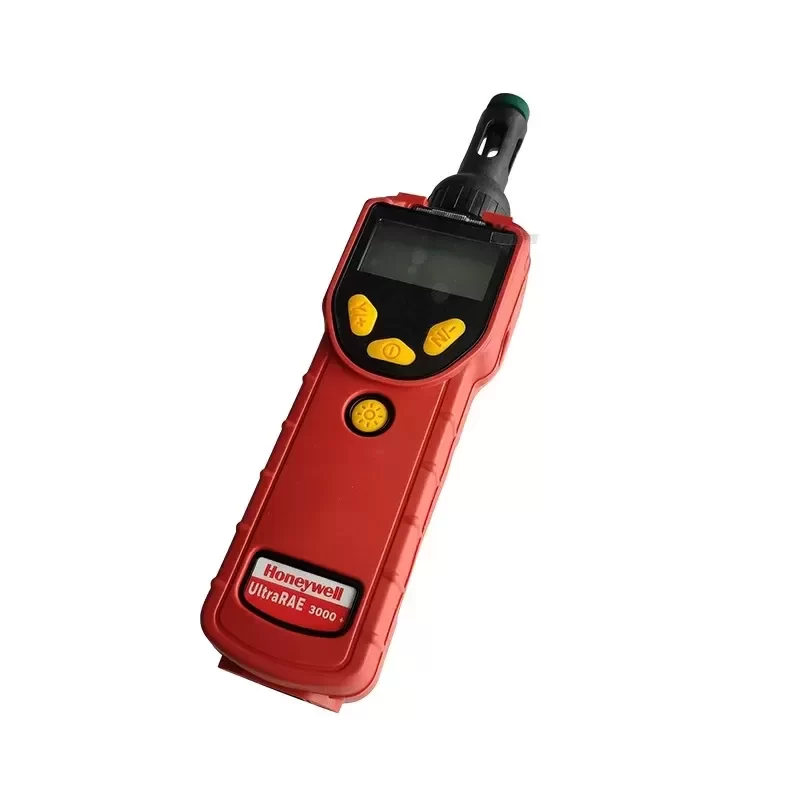

The Honeywell UltraRAE 3000 PGM-7360 is an advanced specific-compound volatile organic compound (VOC) monitor designed for high-precision gas analysis in complex industrial environments. Engineered for the rapid detection of benzene and butadiene, this unit integrates a highly sensitive photoionization detector (PID) with RAE-Sep tube technology to isolate target compounds from complex gas mixtures. This dual-mode operation allows for both broad-spectrum VOC screening and compound-specific measurement.
Technical Specifications:
Brand: Honeywell RAE Systems
Model Number: PGM-7360
Series: UltraRAE 3000
Detector Type: Photoionization Detector (PID)
Lamp Options: 9.8 eV and 10.6 eV UV lamps
Measurement Range (VOC Mode): 0.05 to 10000 ppm
Measurement Range (Benzene Mode): 0.01 to 200 ppm
Response Time (t90): < 3 seconds (VOC) / < 60 seconds (Benzene)
Accuracy: ± 10% or ± 2 ppm
Operating Temperature: -20°C to 50°C
Operating Humidity: 0% to 95% Relative Humidity (non-condensing)
Ingress Protection: IP-65
Power Supply: Rechargeable Lithium-ion battery
Operating Time: 16 hours continuous
Data Logging Capacity: 256000 points (6 months at 1-minute intervals)
Communication Interfaces: Bluetooth, optional Mesh Radio
Dimensions: 25.5 cm x 7.6 cm x 6.4 cm
Weight: 738 g
Certifications: ATEX, UL/cUL Class I Div 1 Group A/B/C/D
Application Scenario:
This analyzer is critical for petrochemical refineries, hazardous material response teams, and industrial hygiene applications where precise benzene-specific monitoring is required. The Original Engineering of the PGM-7360 ensures Technical Compatibility with existing Honeywell ProRAE Studio II software for seamless data integration and compliance reporting. By isolating benzene in the presence of other hydrocarbons, it prevents false positives and ensures worker safety during confined space entry or plant turnarounds. Available as a new stock special gas VOC detector with optimized Lead Time for immediate deployment in high-end gas analysis networks.
Key Attributes
Type: Gas detector
Place of origin: United States
Customized support: OEM, ODM
Model number: PGM-7360
Brand name: Honeywell
Warranty: 1 years
Product name: Honeywell UltraRAE 3000
Model: PGM-7360
Range VOCs: 0 to 9999 ppm
Benzene: 0 to 200 ppm
Butadiene: 0 to 200 ppm
Resolution VOCs: 0.05 ppm
Response Time: < 3 s (for VOCs)
Humidity: 0-95% RH
Temperature: -4° to 122°F (-20° to 50°C)
IP Rating: IP65 unit running
Packaging and Delivery
Selling Units: Single item
Single package size: 25X25X7 cm
Single gross weight: 1.000 kg
