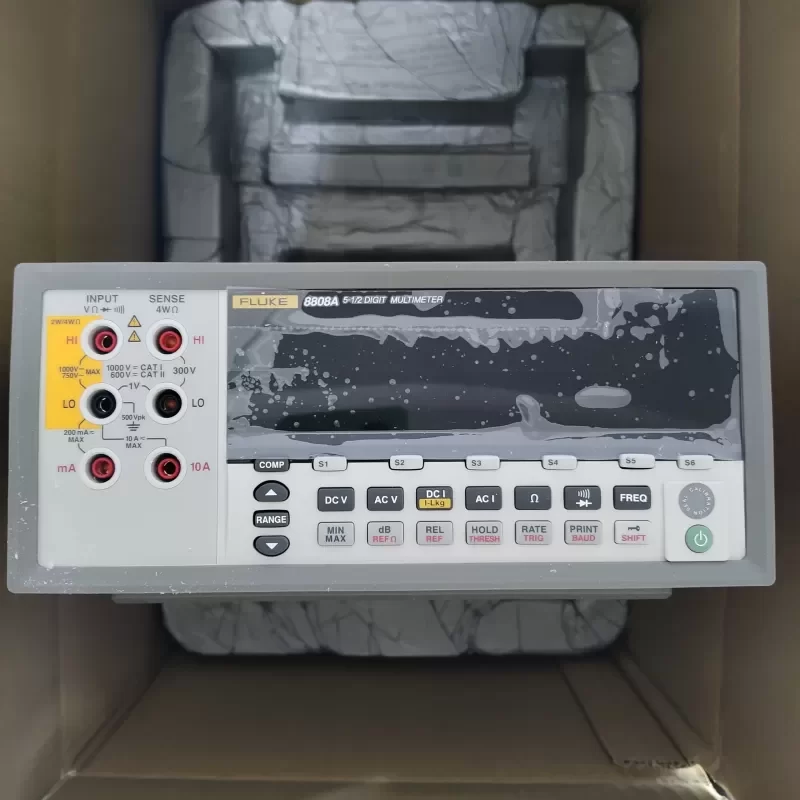

Fluke 8808A Digital Precision Multimeter

Description

The Fluke 8808A is a highly versatile 5.5 digit precision digital multimeter engineered for bench, field service, and automated manufacturing test applications. Featuring a dual-display architecture, it enables simultaneous measurement of two distinct parameters from a single signal source, optimizing test throughput and reducing setup complexity. The instrument integrates seamlessly into automated test systems (ATE) via standard remote interfaces, offering robust Fluke 45 emulation to ensure drop-in technical compatibility with legacy systems.

Technical Specifications:
Measurement Resolution: 5.5 Digits
DC Voltage Range: 200 mV to 1000 V
DC Voltage Accuracy: ±0.015% of reading + 0.003% of range
AC Voltage Range: 200 mV to 750 V (True-RMS, 20 Hz to 100 kHz)
Resistance Range: 200 Ohm to 100 MOhm
Resistance Measurement Technique: 2×4 Wire Ohms capability for precise low-resistance testing
DC Current Range: 200 µA to 10 A
DC Current Resolution: Up to 1 nA (on 200 µA range)
AC Current Range: 20 mA to 10 A (True-RMS)
Frequency Range: 20 Hz to 1 MHz
Display: Dual-line vacuum fluorescent display (VFD)
Interface: RS-232 standard, USB via optional adapter
Safety Rating: IEC 61010-1, CAT I 1000 V, CAT II 600 V
Power Supply: 100 V / 120 V / 220 V / 240 V ±10%, 47 Hz to 440 Hz
Dimensions: 88 mm x 217 mm x 297 mm
Weight: 2.1 kg
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -40 °C to 70 °C

Industrial Application and Problem Solving:
In precision electronics manufacturing, particularly in the production of low-power IoT sensors and medical instrumentation, monitoring micro-ampere leakage currents during active and standby states is critical. Standard multimeters introduce significant burden voltage, distorting the measurement. The Fluke 8808A addresses this critical challenge with its dedicated low-current operational amplifier circuit, delivering high-resolution leakage current measurements down to 1 nA without loading the circuit under test. Additionally, its proprietary 2×4 Ohms measurement technique allows technicians to perform highly accurate four-wire low-resistance measurements using only two specialized test leads, eliminating lead resistance errors and accelerating cycle times on high-throughput assembly lines.

Lifecycle and Procurement:
This unit represents the pinnacle of Original Engineering from Fluke, ensuring long-term calibration stability and minimal drift. Technical Compatibility with legacy automated test setups is guaranteed through built-in emulation modes, minimizing software redevelopment costs. Standard Lead Time for this item is subject to regional logistics, with expedited dispatch options available for critical line-down situations.

Key Attributes
Measuring Current Range: 10 A
Measuring Voltage Range: 200mV to 1000V
Parameters Measured: AC Voltage, DC Current
Place of Origin: China
Model Number: 8808A
Brand Name: Fluke
Dimensions: 88 x 217 x 297mm
Feature: Waterproof
Low Battery Indicator: Yes
Max. AC Current: 10A
Max. AC Voltage: 1000V
Max. DC Current: 20 mA to 10 A
Max. DC Voltage: 1000V
Measuring Capacitance Range: ,
Measuring Inductance Range: ,
Measuring Resistance Range: 200 Ω to 100 MΩ
Operating Temperature: -10 to 50
V DC Range: 200mV to 1000V
V AC Range: 200mV to 750V
Accuracy: 0.015 + 0.003
Frequency: 20Hz to 100KHz
Resistance: 200 Ω to 100 MΩ
A ac: 20 mA to 10 A
Interfaces: RS-232, USB with optional adapter
Size (HxWxD): 88 mm x 217 mm x 297 mm

Packaging and Delivery
Selling Units: Single item
Single package size: 48X38X28 cm
Single gross weight: 4.000 kg
