Description

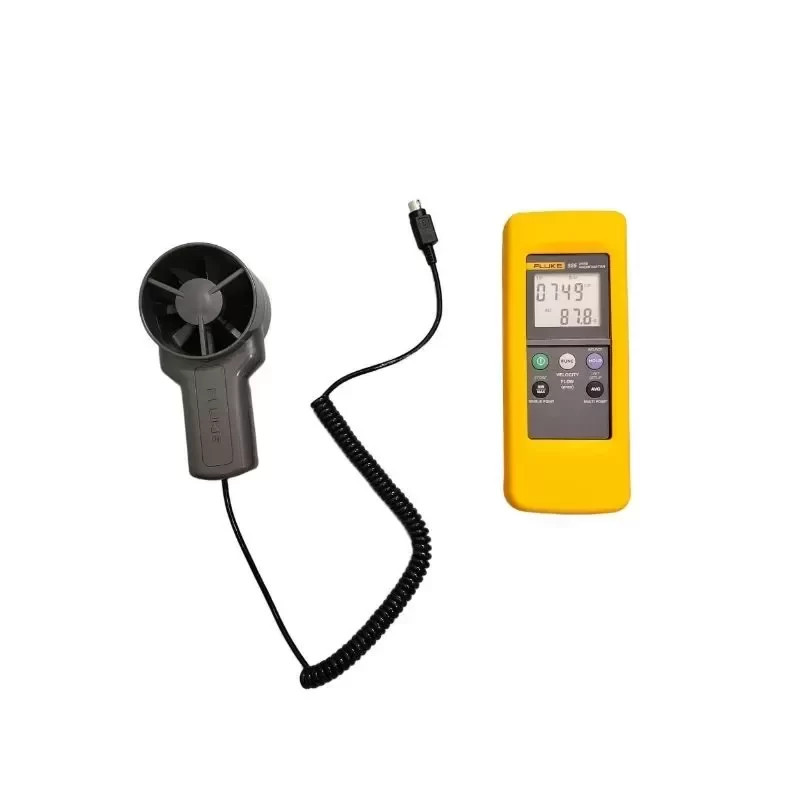

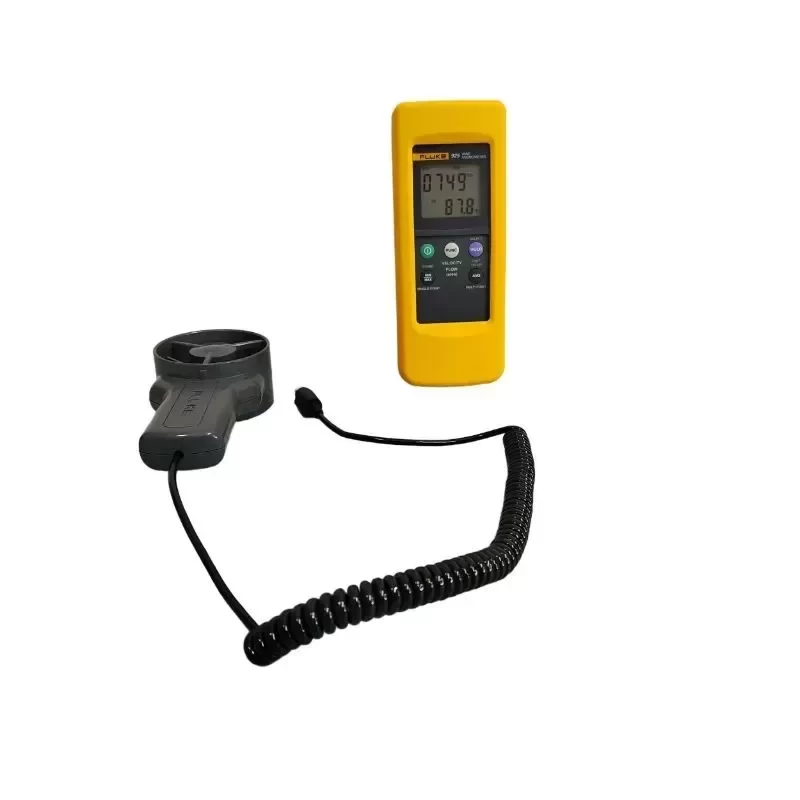

The Fluke 925 Vane Anemometer is an economical, industrial-grade air velocity measurement instrument engineered for HVAC balancing, process ventilation analysis, and environmental air velocity monitoring. Built with an external remote vane sensor on a flexible cable, this tool facilitates direct measurement inside industrial exhaust ducts, supply grilles, and containment hoods where line-of-sight display access is compromised.
TECHNICAL SPECIFICATIONS
Manufacturer: Fluke Corporation
Model: 925
Measurement Modes: Air Velocity, Air Flow Volume, Air Temperature
Air Velocity Range: 0.40 m/s to 25.00 m/s
Air Velocity Resolution: 0.01 m/s
Air Velocity Accuracy: ±2% of reading + 0.2 m/s
Air Flow Volume Range: 0 to 99,999 m³/min (CMM) / 0 to 99,999 CFM
Temperature Measurement Range: 0 °C to 50 °C (32 °F to 122 °F)
Temperature Accuracy: ±1.0 °C (±1.8 °F)
Temperature Resolution: 0.1 °C
Vane Sensor Diameter: Ø 70 mm
Sensor Cable Length: 1.0 m coiled cord
Display: Dual-line Multi-function Monochrome LCD with Backlight
Metric Units: m/s, km/h, m³/min, °C
Imperial Units: ft/min, MPH, knots, ft³/min, °F
Data Functions: Real-time Data Hold, Maximum/Minimum Capture, Average Measurement Mode
Power Supply: Single 9V Alkaline Battery (IEC 6LR61)
Operating Battery Life: Approximately 100 hours continuous operation
Operating Temperature: 0 °C to 50 °C
Operating Relative Humidity: Below 80% RH (non-condensing)
Storage Temperature: -20 °C to 60 °C
Ingress Protection: Industrial standard enclosure for indoor/controlled plant use
Dimensions: 168 mm x 73 mm x 36 mm
Weight: 320 g (including sensor and battery)
Certifications: CE, WEEE, RoHS Compliant
APPLICATION ENGINEERING & INDUSTRIAL UTILITY
In pharmaceutical cleanrooms, chemical processing facilities, and commercial HVAC ducting, uniform airflow volume is critical for regulatory compliance and contamination control. The Fluke 925 solves the operational challenge of accessing recessed ceiling supply diffusers and volatile fume hood sashes. By isolating the Ø 70 mm aerodynamic impeller from the primary digital controller, field engineers can position the probe directly within turbulent discharge vectors while monitoring stabilization values outside the flow path. The automated cross-sectional area configuration function allows instantaneous CFM and CMM calculation without external processing units, eliminating transcription error during industrial balancing procedures.
PROCUREMENT, COMPATIBILITY & LIFECYCLE
Original Engineering: Manufactured to authentic Fluke factory tolerances ensuring instrument interchangeability across enterprise equipment fleets.
Technical Compatibility: Directly integrates into ISO 9001, OSHA ventilation auditing, and ASHRAE duct traverse workflows using factory-traceable calibration standards.
Lead Time: In-stock configurations standard 24-48 hour fulfillment; non-stock order lead time typically 5-10 business days depending on calibration certification requirements.
Key Attributes
Resolution: 0.01m/s
Temperature Range: -10℃~50℃
Type: Vane Anemometer
Place of Origin: China
Material: Aluminum Alloy
Starting Wind Speed: 0.1 m/s
Wind Speed Unit Selection: OBM
Packaging: Plastic Box
Model Number: 925
Brand Name: Fluke
Wind speed measurement Range: 0.40 to 25.00 m/s
Air flow measurement Range: 0.01 to 99.99 m3/s
Display: Dual-screen 4-digit (9999 points) LCD screen
Wind speed: Ft/m; m/s
Dimensions: 181 x 71 x 38 mm
Weight: 400g
Battery: AA batteries
Packaging and Delivery
Selling Units: Single item
Single package size: 33X22X13 cm
Single gross weight: 1.263 kg
