Description

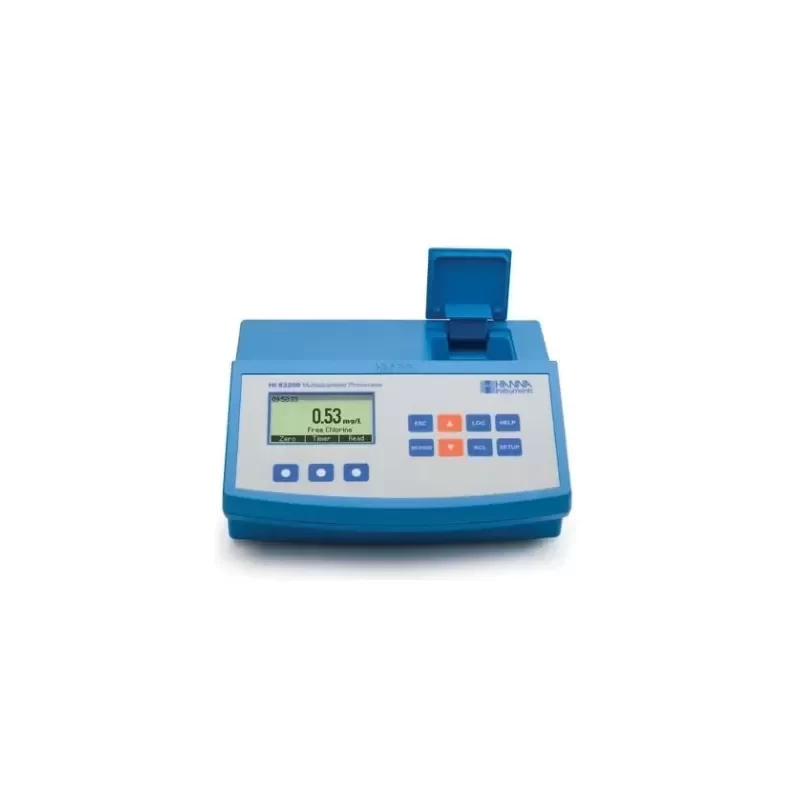

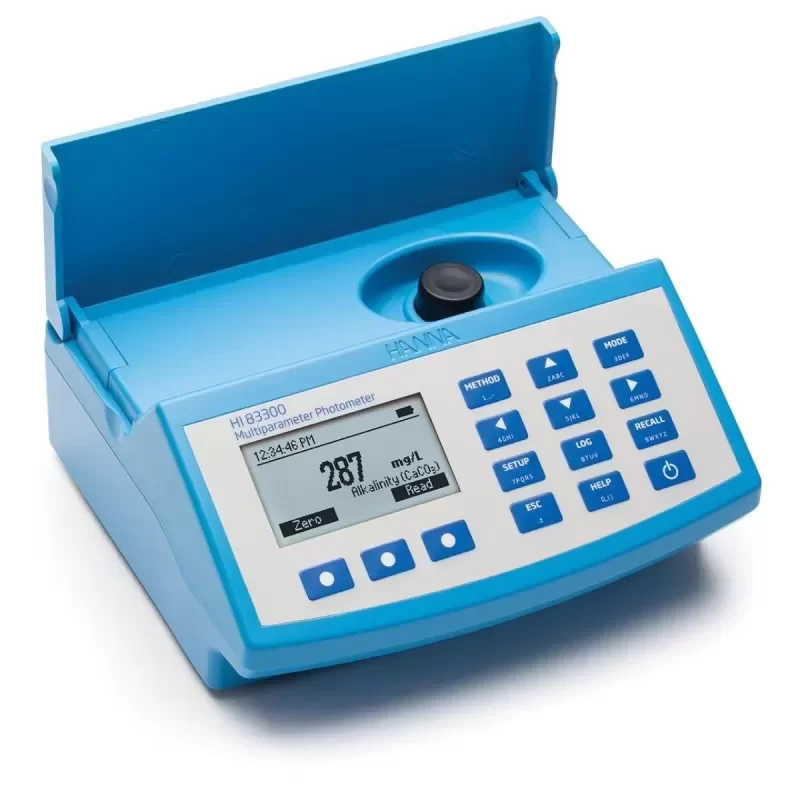

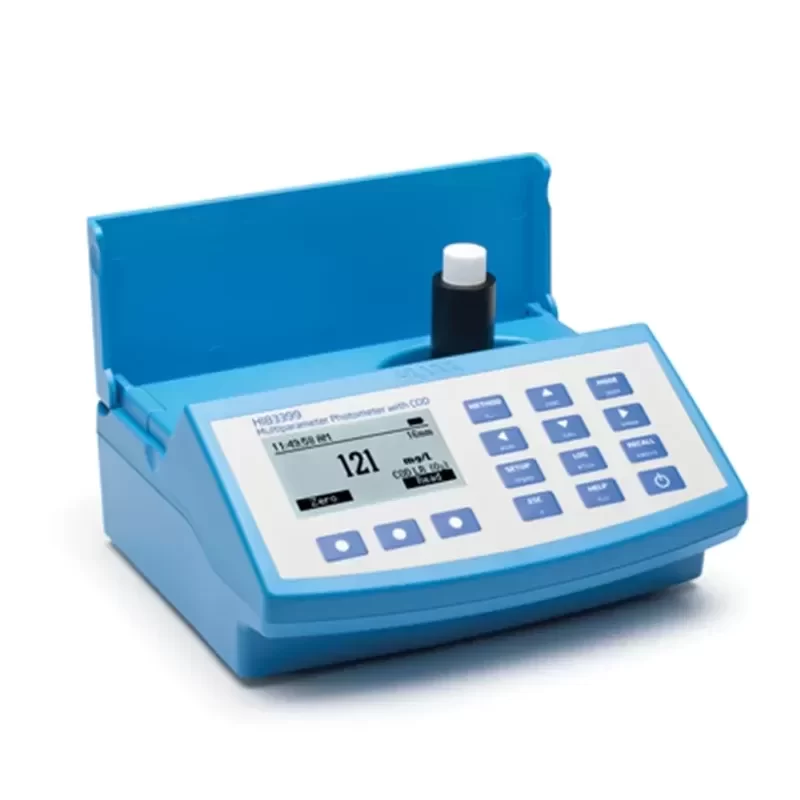

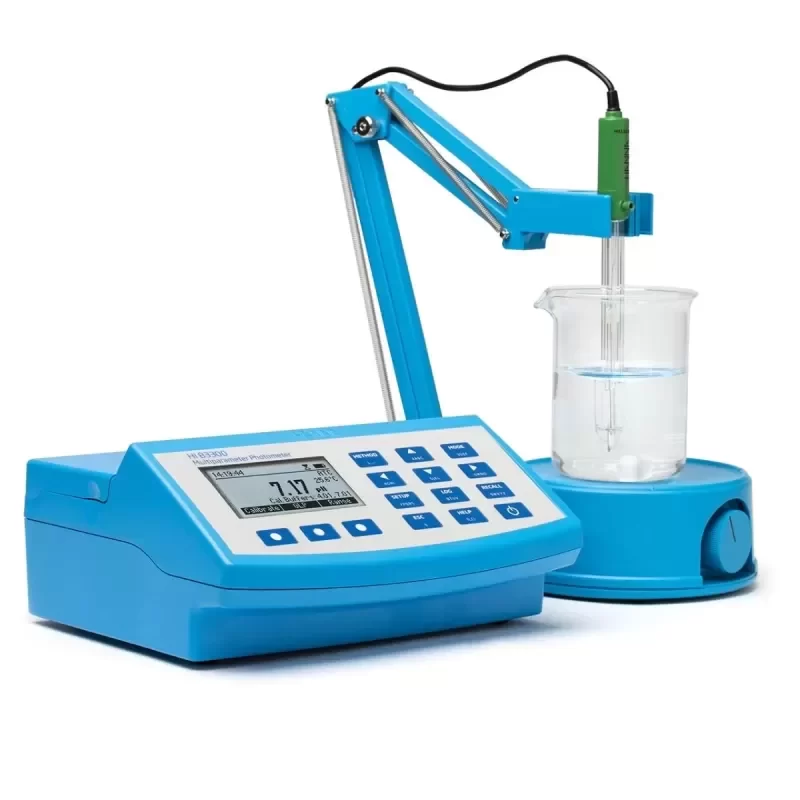

The Hanna Instruments HI83300 is an advanced multiparameter benchtop photometer and industrial pH meter designed for rigorous water quality analysis. Utilizing Original Engineering, this hybrid diagnostic instrument integrates a highly precise optical system with a digital pH electrode input, eliminating the need for multiple single-parameter devices. The robust plastic housing is OEM customizable, ensuring seamless Technical Compatibility with proprietary industrial monitoring stations and mobile laboratories.
Technical Specifications:
Brand: Hanna Instruments
Model: HI83300
Instrument Type: Multiparameter Photometer and pH Meter
Optical System: 5 LEDs with narrow band interference filters
Wavelengths: 420 nm, 466 nm, 525 nm, 575 nm, 610 nm
Wavelength Accuracy: ± 1 nm
Light Detector: Silicon photodetector
Cuvette Compatibility: Ø 22 mm round
pH Measurement Range: -2.00 to 16.00 pH
pH Resolution: 0.01 pH
Temperature Range: -20.0 to 120.0 °C
Temperature Accuracy: ± 0.5 °C

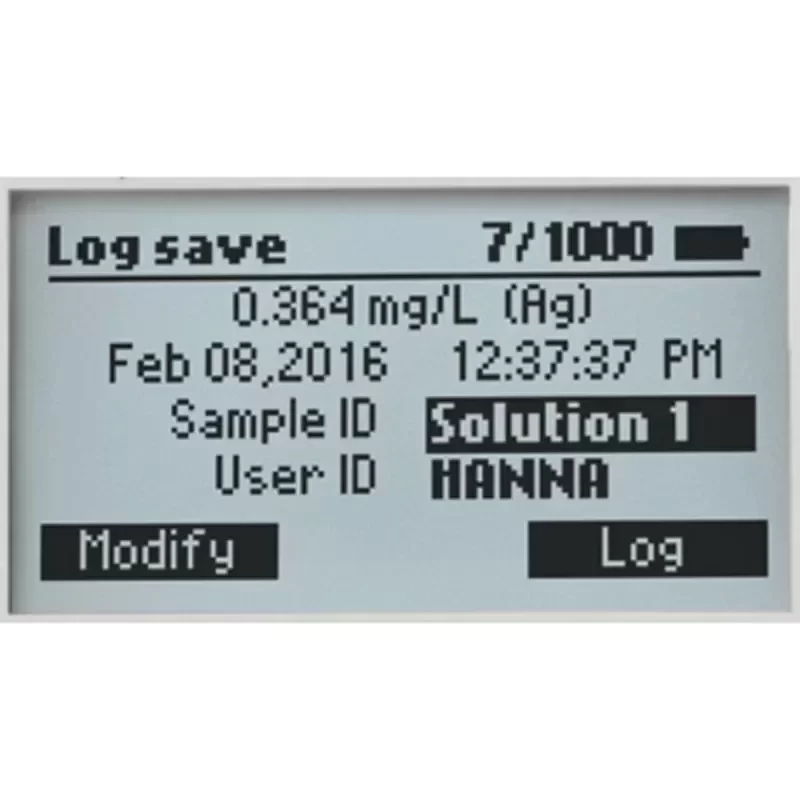

Data Logging Capacity: 1000 readings
Connectivity: 1 USB-A, 1 Micro-USB
Power Supply: 5 VDC USB adapter / 3.7 VDC Li-polymer rechargeable battery
Housing Material: High-impact OEM Customizable Plastic
Dimensions: 206 x 177 x 97 mm
Weight: 1.0 kg
Operating Environment: 0 to 50 °C
Humidity Tolerance: 0 to 95% RH, non-condensing
Industrial Application:
The HI83300 is engineered for critical water quality control in wastewater treatment facilities, boiler feedwater systems, and cooling tower maintenance. In these environments, operators require immediate, lab-grade validation of chemical oxygen demand (COD), free chlorine, and pH levels to prevent scaling, corrosion, and biological fouling. The integration of a digital pH probe with photometric analysis allows for rapid cross-parameter correlation, optimizing chemical dosing rates and ensuring regulatory compliance.
Procurement and Lifecycle:
Designed for continuous industrial deployment, this unit features a long-lasting lithium-polymer battery and extensive data logging capabilities for audit trails. Standard Lead Time for OEM customized configurations is optimized for rapid deployment. The instrument guarantees strict Technical Compatibility with standard Hanna digital pH electrodes and photometric reagents, ensuring a low total cost of ownership and reliable lifecycle value.
Key Attributes
Accuracy: 0.01 pH
Type: Portable pH Meter, Laboratory pH Meter, Industrial Ph Meter
Place of origin: China
Brand name: HANNA
Battery Type: AA Battery
Customized support: OEM, ODM
Display Type: LCD
Material: Plastic
Warranty: 1 years
Model number: HI83300
PH mV Range: ±1000 mV
Dissolved Oxygen Resolution: 0.1 mg/L
Dissolved Oxygen Accuracy: ±0.4 mg/L ±3% of reading
Absorbance Range: 0.000 to 4.000 Abs
Ammonia Resolution: 0.01 mg/L; 0.1 mg/L
Anionic Surfactants Range: 0.00 to 3.50 mg/L (as SDBS)
Chloride Range: 0.0 to 20.0 mg/L (as Cl-)
Chromium, Hexavalent Range: Low Range
Packaging and Delivery
Selling Units: Single item
Single package size: 47X28X16 cm
Single gross weight: 3.000 kg
