Description

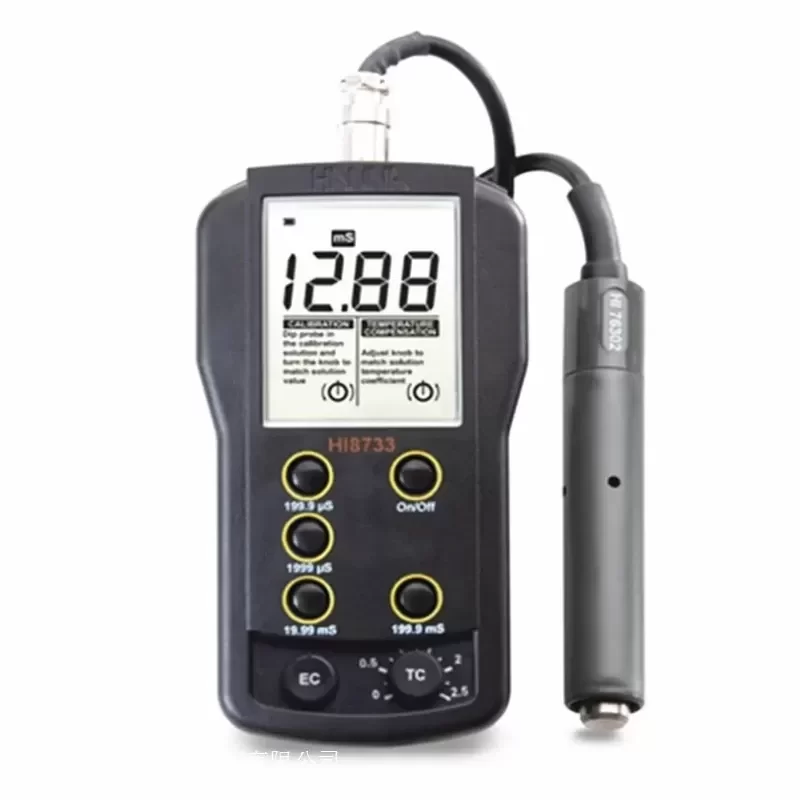

The HANNA Instruments HI8733 is a rugged, multi-range portable conductivity (EC) meter engineered for versatile industrial and field applications. Utilizing Original Engineering principles, this device integrates a four-ring potentiometric probe to deliver high-accuracy readings across four distinct measurement ranges. The unit is designed to mitigate polarization effects and eliminate the need for frequent recalibration or probe replacement when shifting between low and high conductivity samples.
Technical Specifications:
Manufacturer: HANNA Instruments
Model Number: HI8733
Measurement Range 1: 0.0 to 199.9 µS/cm
Measurement Range 2: 0 to 1999 µS/cm
Measurement Range 3: 0.00 to 19.99 mS/cm
Measurement Range 4: 0.0 to 199.9 mS/cm
Resolution: 0.1 µS/cm / 1 µS/cm / 0.01 mS/cm / 0.1 mS/cm
Accuracy: ±1% Full Scale
Calibration: Manual, 1 point via trimmer
Temperature Compensation: Automatic, 0 to 50 °C with adjustable coefficient (0.0 to 2.5%/°C)
Probe Type: HI76302W four-ring potentiometric conductivity probe with internal temperature sensor
Connector Type: DIN
Cable Length: 1 meter
Battery Type: 9V alkaline
Battery Life: Approximately 100 hours of continuous use
Operating Environment: 0 to 50 °C, RH max 100%
Dimensions: 145 x 80 x 36 mm
Weight: 230 g
Application Scenario:
The HI8733 provides critical analytical data in industrial wastewater treatment, reverse osmosis (RO) system monitoring, and cooling tower water management. The four-ring probe design ensures Technical Compatibility with varying ionic concentrations, allowing operators to measure both high-purity boiler feed water and highly concentrated chemical effluent without changing sensors. This reduces operational downtime and ensures strict adherence to environmental discharge regulations.
Procurement and OEM Support:
Designed with OEM support capabilities, this unit can be customized for specific industrial integration requirements. Standard procurement ensures a minimized Lead Time for rapid deployment in critical process control environments, maintaining continuous operational efficiency.
Key Attributes
Accuracy: Other
Type: Other
Place of origin: China
Brand name: HANNA
Customized support: OEM, ODM
Warranty: 1 years
Model number: HI8733
Product name: HANNA
Model: HI8733
EC Range: 0.0 to 199.9 μS/cm; 0 to 1999 μS/cm
EC Resolution: 0.1 μS/cm; 1 μS/cm; 0.01 mS/cm; 0.1 mS/cm
EC Accuracy: ±1% FS (excluding probe error)
EC Calibration: Manual, one-point through EC knob
Environment: 0 to 50°C (32 to 122°F)
Dimensions: 145 x 80 x 36 mm
Type: Multi-range EC Meter
Packaging and Delivery
Selling Units: Single item
