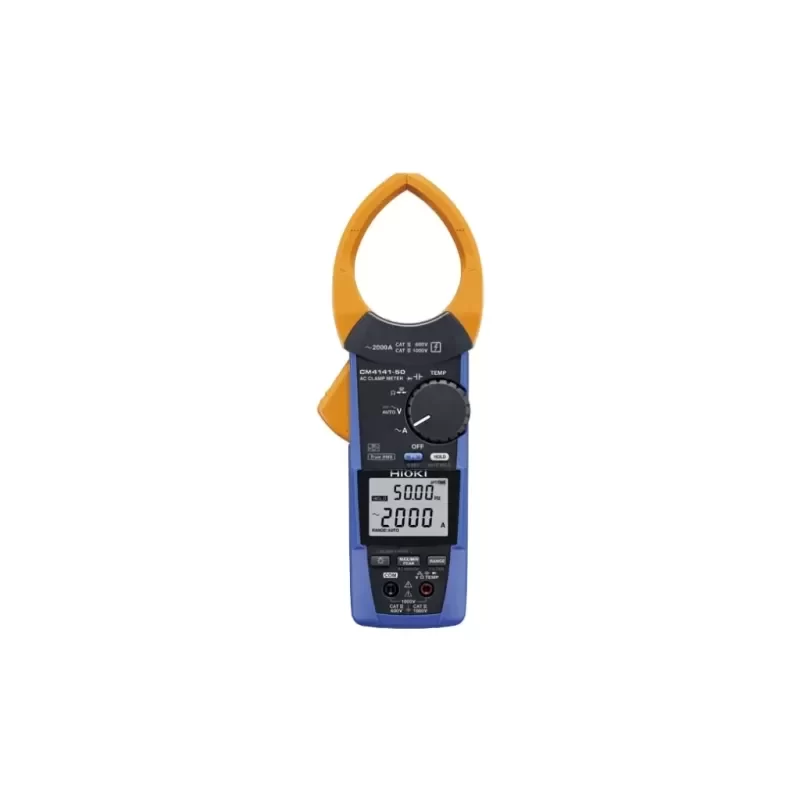

Hioki CM4141-90 TRMS AC Clamp Meter (2000 A) with Z3210 Wireless Adapter

Description

Product Overview

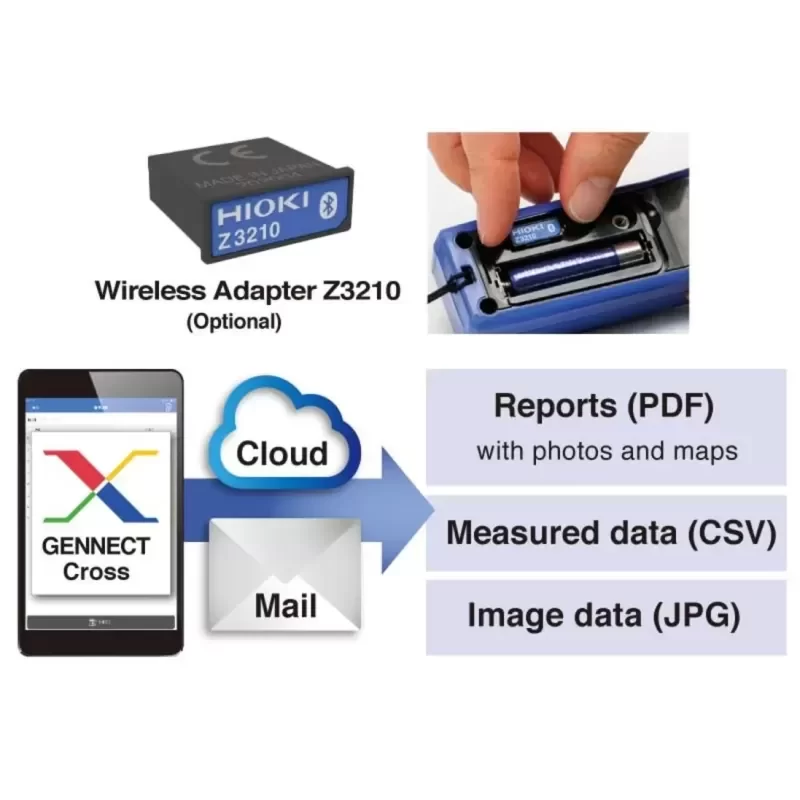

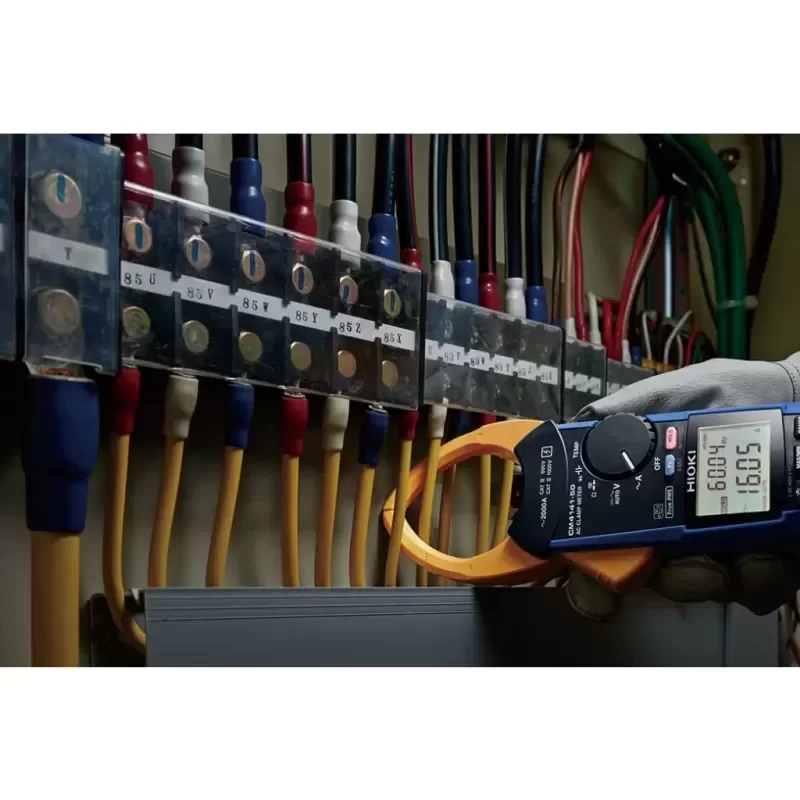

The Hioki CM4141-90 is a high-precision True RMS AC Clamp Meter engineered for rigorous industrial electrical diagnostics. Bundled with the Z3210 Wireless Adapter, this instrument facilitates seamless Bluetooth data transmission to smart devices, enabling real-time waveform monitoring, data logging, and report generation via the GENNECT Cross application. Designed with a uniquely thin sensor profile, it easily navigates congested distribution panels and complex wiring configurations without compromising measurement integrity.

Technical Specifications
Brand: Hioki
Model: CM4141-90
Measurement Method: True RMS
AC Current Range: 60.00 A / 600.0 A / 2000 A
AC Voltage Range: 6.000 V to 1000 V
DC Voltage Range: 600.0 mV to 1000 V
Frequency Range: 9.999 Hz to 999.9 Hz
Resistance Range: 600.0 ohms to 600.0 k-ohms
Capacitance Range: 1.000 uF to 1000 uF
Temperature Range: -40.0 °C to 400.0 °C
Core Jaw Diameter: Ø 55 mm
Safety Category: CAT IV 600 V, CAT III 1000 V
Operating Temperature: -25 °C to 65 °C
Dust and Water Resistance: IP50
Power Supply: LR03 Alkaline battery x 2
Weight: 300 g
Dimensions: 65 mm W x 247 mm H x 35 mm D
Included Accessory: Z3210 Wireless Adapter

Industrial Application
The CM4141-90 is critical for predictive maintenance and load testing in high-density commercial power distribution centers, HVAC systems, and heavy manufacturing plants. Its 2000 A capacity and Ø 55 mm jaw accommodate thick industrial cables, while the TRMS capability ensures accurate readings of distorted waveforms generated by variable frequency drives and switching power supplies. The integrated Z3210 adapter allows technicians to safely monitor live parameters from outside the arc flash boundary, significantly enhancing operational safety.

Procurement and Lifecycle
Maintaining Original Engineering standards, this Hioki diagnostic tool guarantees exact Technical Compatibility with existing GENNECT Cross ecosystems. We optimize Lead Time for global B2B procurement, ensuring rapid deployment of critical testing infrastructure to minimize facility downtime and maintain regulatory compliance.

Key Attributes
Measuring Voltage Range: 1000V 1700V
Place of Origin: Japan
Model Number: CM4141-90
Brand Name: Hioki
Dimensions: 210 x 75.6 x 30mm
Display Type: Digital Only
Measuring Capacitance Range: 1.000 to 1000 μF
Measuring Current Range: 2000 A
Measuring Inductance Range: None
Measuring Resistance Range: 600.0 Ω to 600.0 kΩ
Operating Temperature: 10 ~ 45 deg C
Weight: 200 g
Product name: Hioki
Model: CM4141-90
Current Measurement: 2000 A AC maximum
AC Current Range: 60.00 to 2000 A
DC Voltage Range: 600.0 mV to 1700 V
Resistance Range: 600.0 Ω to 600.0 kΩ
Electrostatic Capacity Range: 1.000 to 1000 μF
IP Rating: IP50
Power Supply Voltage: Battery Powered

Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
