INSIZE 1136-601 Digital Vernier Caliper to 600mm Measurement Scale

$296.00

SKU: 10000017317586

Description

The INSIZE 1136-601 is a heavy-duty precision digital caliper engineered for dimensional verification of large-scale workpieces. Manufactured in accordance with rigorous industrial metrology standards, this instrument integrates high-accuracy capacitive measurement technology with a hardened stainless steel structure. It delivers high repeatability across external, internal, and step measurement routines in production and quality control environments.

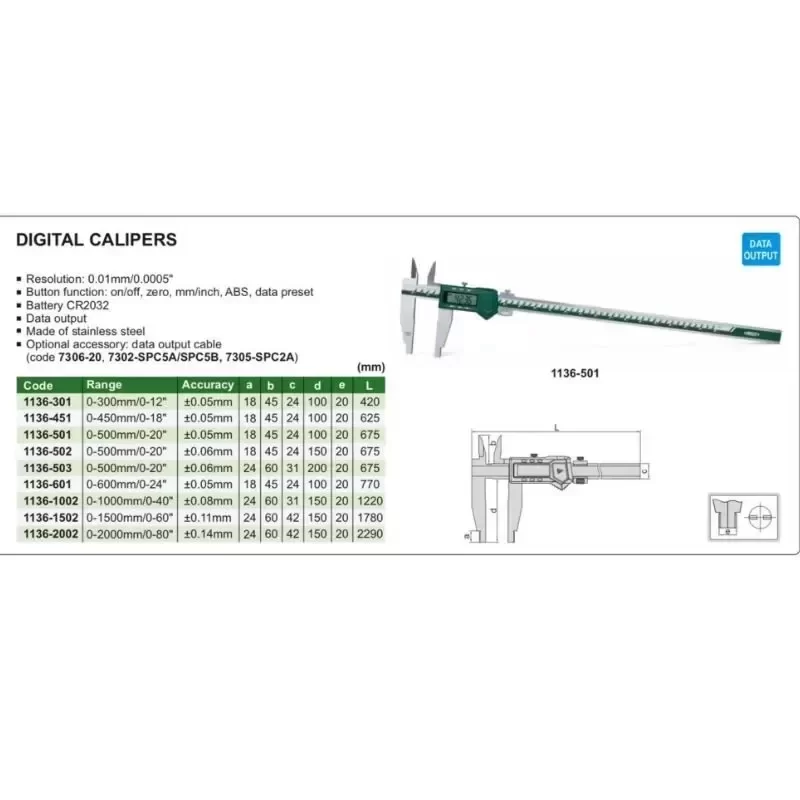

TECHNICAL SPECIFICATIONS
Brand: INSIZE
Model Number: 1136-601
Measuring Range: 0 – 600 mm / 0 – 24 inch
Resolution: 0.01 mm / 0.0005 inch
Accuracy: ±0.05 mm
Repeatability: 0.01 mm
Display Type: High-contrast LCD
Scale Type: Capacitive grid sensor
Material: Hardened Stainless Steel
Jaw Depth (External): 100 mm
Internal Measuring Jaws: Integrated top jaws
Fine Adjustment: Carriage with thumb drive mechanism
Locking Mechanism: Upper locking thumb screw
Data Output: SPC Data Output interface (cable connection compatible)
Control Functions: On/Off, Zero-set at any position, Inch/Metric conversion, Data preset, Hold
Power Source: 3V CR2032 Lithium Battery
Operating Temperature: 0 °C to +40 °C
Storage Temperature: -20 °C to +70 °C
Environmental Protection: Moisture and dust resistant measuring assembly
Standard Compliance: Factory standard calibration traceable to national standards

ENGINEERING & PERFORMANCE ATTRIBUTES
– Original Engineering: Precision ground and lapped measuring faces prevent parallax and reduce mechanical wear over high duty cycles.
– Rigid Beam Construction: Optimized cross-sectional beam profile prevents deflection across the extended 600 mm stroke, maintaining measurement parallelism.
– Zero Drift Elimination: Built-in origin memory retains reference datum during rapid jaw transit.
– Data Integration: Designed for automated SPC data capture, interfacing directly with shop-floor metrology networks for continuous digital logging.

INDUSTRIAL APPLICATION & TECHNICAL COMPATIBILITY
The INSIZE 1136-601 is designed for high-tolerance CNC machining, aerospace structural component validation, heavy mechanical fabrication, and mold manufacturing. Technical Compatibility extends to full integration with INSIZE data cable systems (such as 7315 series) and wireless data transmitters for direct export into statistical quality control software. It resolves measurement uncertainty in large-diameter shaft turning, flange bore verification, and structural casting inspection where standard 150 mm or 300 mm calipers cannot reach.

PROCUREMENT & LOGISTICS
Condition: 100% Factory New with Manufacturer Calibration Certificate
Standard Lead Time: Typically dispatch-ready within 24 to 48 hours for stocked inventory; back-to-back supply available with verified lead time confirmation
Packaging: Fitted heavy-duty protective wooden/composite storage case with battery and operational documentation

Key Attributes
Accuracy: 0.01 mm / 0.0005 inch
Caliper Type: Dial Caliper
Resolution: 0.05 mm
Place of origin: China
Material: Stainless steel
Model number: 1136-601
Brand name: INSIZE
Customized support: OEM, ODM
Warranty: 1 years
Range: 0-600mm
Accuracy: +/-0.05mm
A: 18mm
B: 45mm
C: 24mm
D: 100mm
E: 20mm

Packaging and Delivery
Selling Units: Single item
Single package size: 84X34X12 cm
Single gross weight: 4.300 kg
