Description

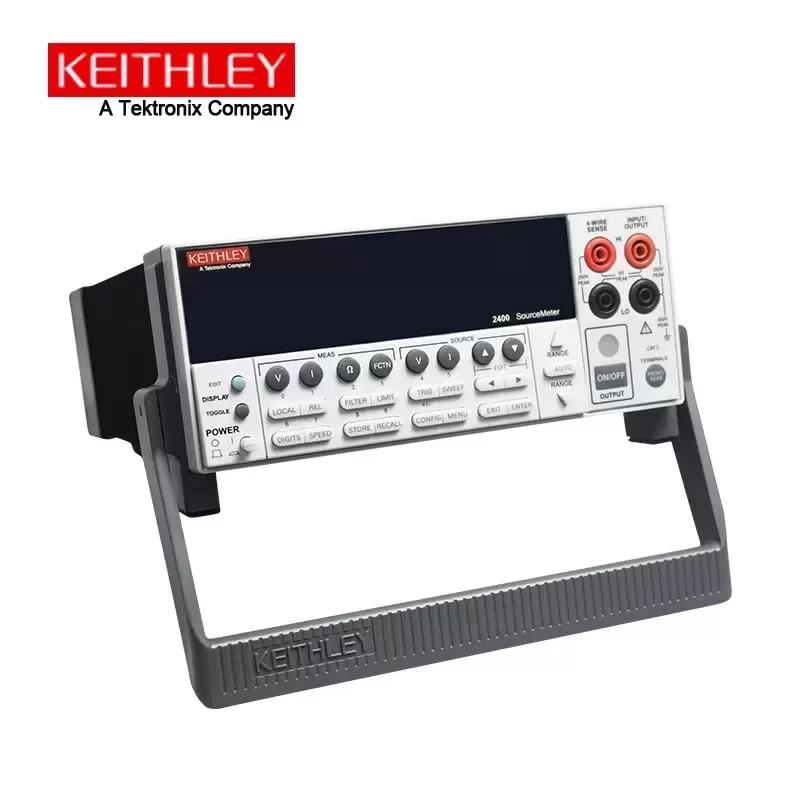

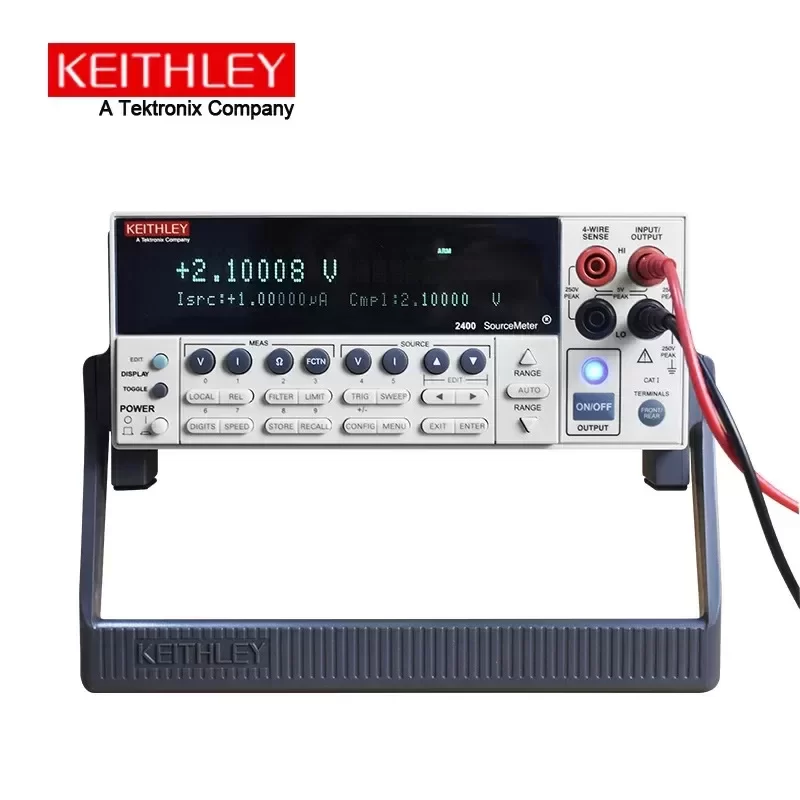

The Keithley 2401 SourceMeter SMU Instrument is a high-precision 20W unit engineered for low-voltage sourcing and measurement applications requiring tightly coupled functional integration. This instrument functions as a high-stability DC power source and a 6.5-digit multimeter, enabling 4-quadrant operation as a precision source, sink, V-meter, I-meter, and ohmmeter. It is specifically designed for high-speed automated testing where precision and repeatability are critical.
Technical Specifications:
Manufacturer: Keithley Instruments
Model Number: 2401
Instrument Classification: SourceMeter Unit (SMU)
Voltage Source Range: ±1µV to ±20.2V
Current Source Range: ±10pA to ±1.05A
Power Output: 20W Max
Measurement Resolution: 6.5 Digits
Basic Voltage Accuracy: 0.012%
Basic Current Accuracy: 0.035%
Source/Sink Capability: 4-Quadrant
Resistance Range: <0.2 Ohms to >200 MOhms

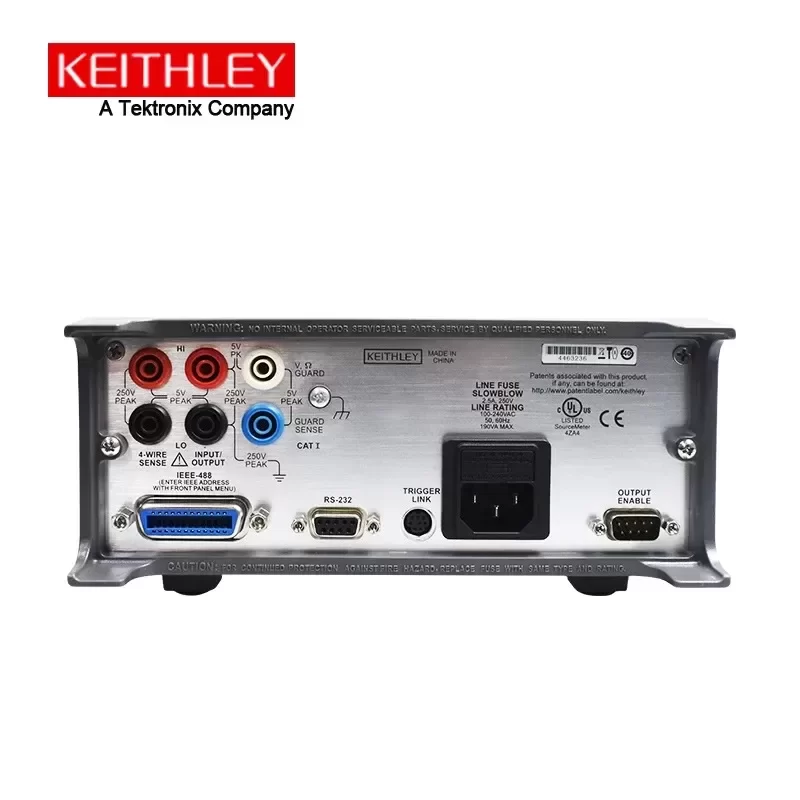

Interface: IEEE-488 (GPIB), RS-232, Digital I/O
Programming Language: Standard SCPI, Keithley Model 2400 Emulation
Display: Dual-line vacuum fluorescent
Dimensions: 89mm Height x 213mm Width x 370mm Depth
Weight: 3.21 kg
Operating Temperature: 0°C to 50°C
Environmental Rating: 70% relative humidity up to 35°C
Certifications: CE, UL, CSA Compliant
Industrial Application:
The Keithley 2401 is the industry standard for characterization of low-voltage semiconductor devices, high-brightness LEDs (HBLEDs), and photovoltaic cells. Its Original Engineering ensures seamless Technical Compatibility with existing automated test equipment (ATE) architectures. By consolidating a source and a meter into a single synchronized instrument, it eliminates the latency and cabling errors associated with discrete components, effectively reducing Lead Time for complex device validation and high-volume production cycles.
Key Attributes
Place of origin: China
Customized support: OEM, ODM
Power: Electronic
Brand name: Keithley
Warranty: 1 years
Model number: 2400
Product name: Keithley
Model: 2400
Load Impedance: Stable into 20,000pF typical
Common Mode Voltage: 250V DC (40V DC for Model 2440)
Common Mode Isolation: >10 9 Ω, 10 Ω
Source Memory List: 100 points max
Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
