Description

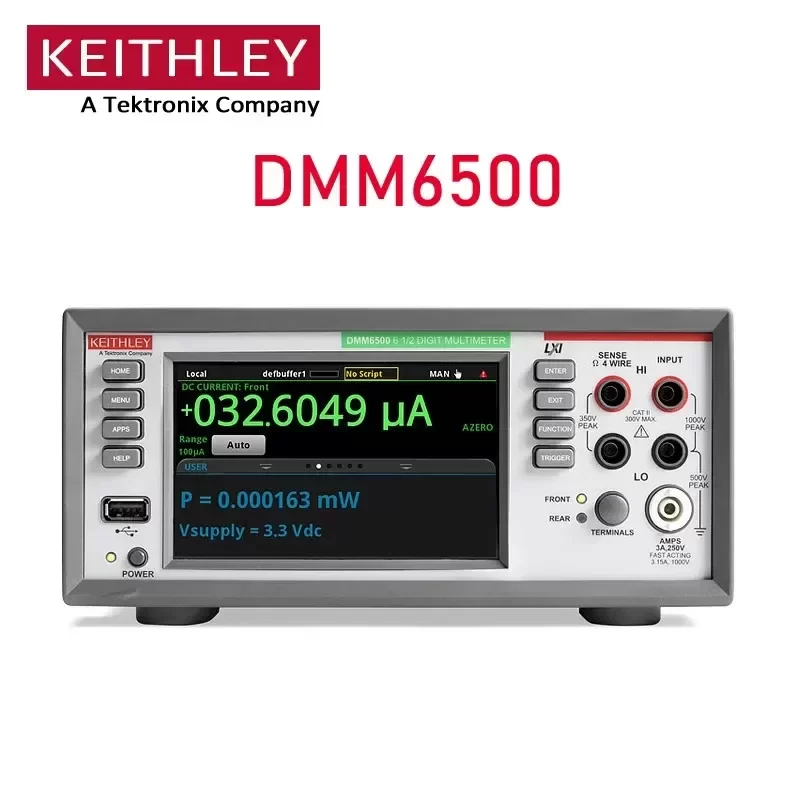

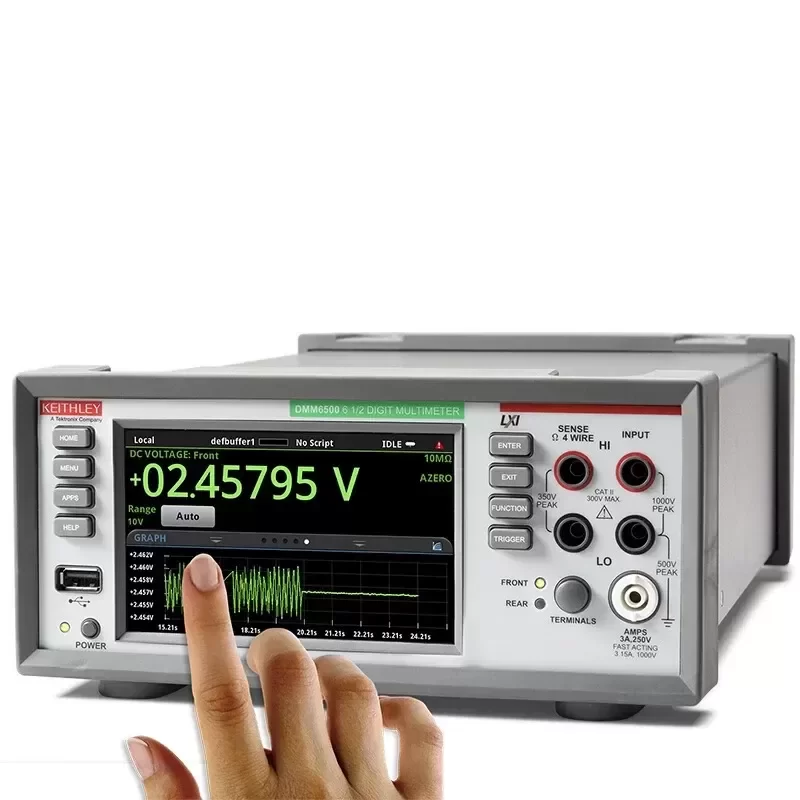

The Keithley DMM6500 is a high-performance 6.5-digit benchtop digital multimeter designed for advanced test and measurement architectures. Featuring a 5-inch capacitive touchscreen display, this instrument provides intuitive graphical analysis, including transient capture and trend plotting directly on the front panel. Built on Original Engineering principles by Keithley, the DMM6500 integrates a 1 MS/s 16-bit digitizer, enabling engineers to capture complex waveforms and fast transient signals without requiring a separate oscilloscope.
Technical Specifications:
Resolution: 6.5 Digits

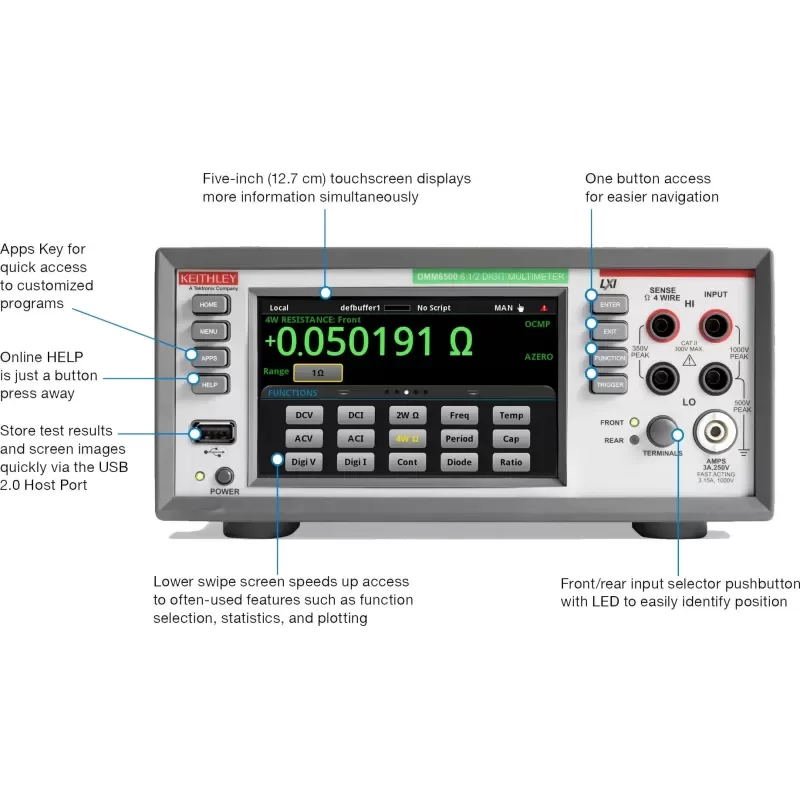

Display: 5-inch Capacitive Touchscreen
Measurement Functions: 15 (DCV, ACV, DCI, ACI, 2-wire/4-wire Resistance, Temperature, Capacitance, Digitizing)
DC Voltage Range: 100 nV to 1000 V
DC Current Range: 10 pA to 10 A
Resistance Range: 1 µΩ to 100 MΩ
Basic 1-Year DCV Accuracy: ±0.0025%
Digitizing Speed: 1 MS/s (16-bit)
Internal Memory: 7 million readings

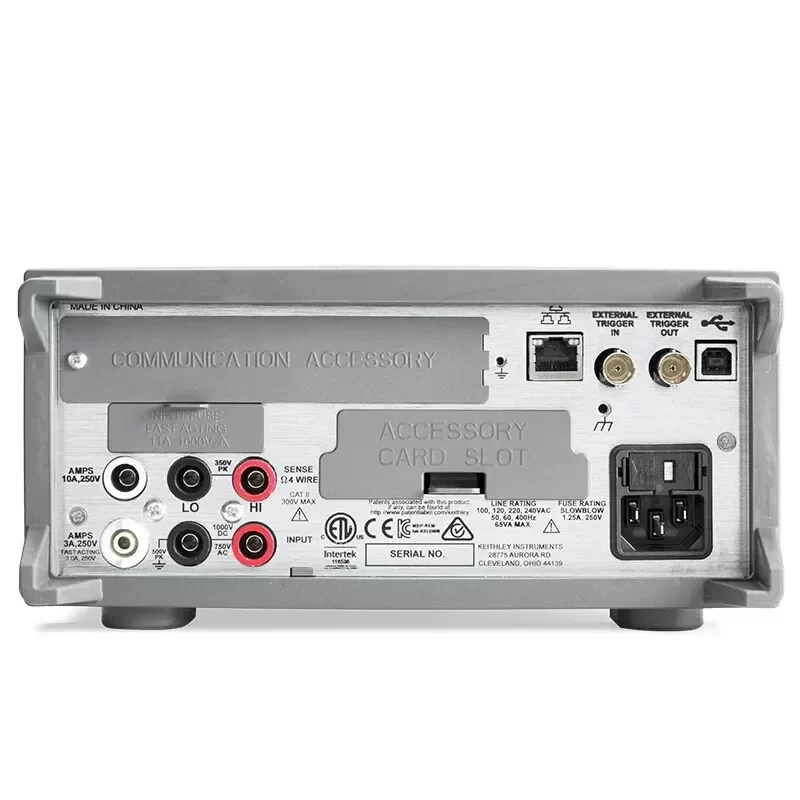

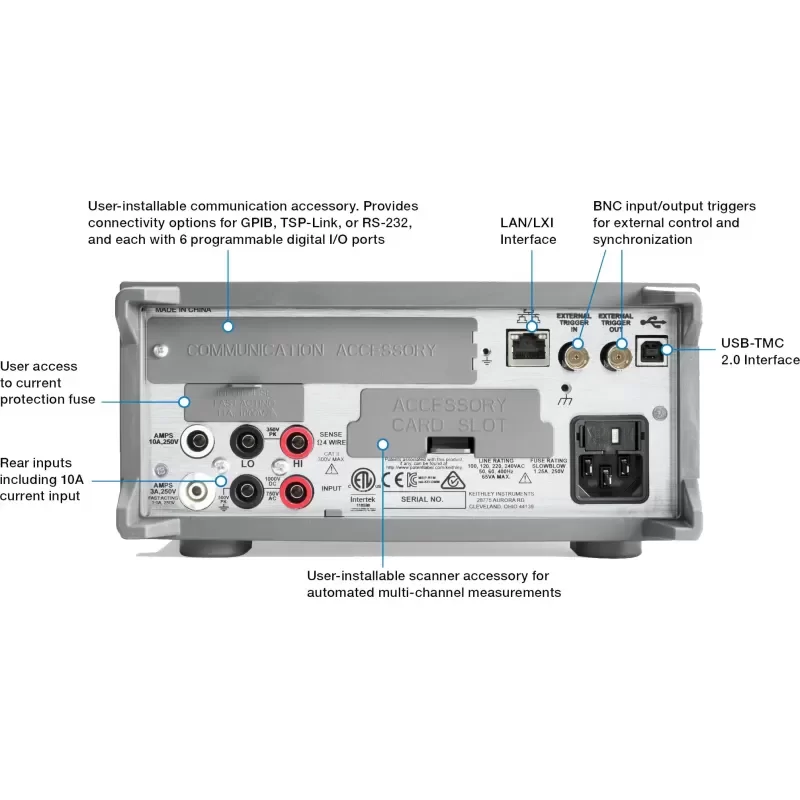

Standard Interfaces: LAN (LXI), USB-TMC
Emulation Modes: Keithley 2000, Keysight 34401A
Operating Temperature: 0°C to 50°C
Weight: 4.54 kg
Industrial Application:
The DMM6500 is engineered for automated production testing, low-power IoT device profiling, and precision component characterization. Its high-speed digitizing capability is critical for capturing ultra-low sleep mode currents and fast load current bursts in battery-powered electronics. By utilizing its built-in Test Script Processor (TSP), the instrument executes test sequences internally, significantly reducing PC communication overhead and accelerating production throughput.
Technical Compatibility is maximized through advanced SCPI emulation modes, allowing seamless drop-in replacement for legacy 6.5-digit multimeters in existing automated test equipment (ATE) racks. Standard Lead Time for calibration and deployment is optimized by its plug-and-play communication interfaces and comprehensive backward compatibility.
Key Attributes
Measuring Current Range: 10A
Measuring Voltage Range: 1000V
Parameters Measured: DC Current, AC Voltage, DC Voltage, AC Current
Place of Origin: China
Model Number: DMM6500
Brand Name: Keithley
Dimensions: 88 mm high X 213 mm wide X 410 mm
Feature: Dustproof, waterproof
Low Battery Indicator: Yes
Max. AC Current: 10A
Max. AC Voltage: 1000 V
Max. DC Current: 10A
Max. DC Voltage: 1000 V
Measuring Capacitance Range: ,,
Measuring Inductance Range: ,,
Measuring Resistance Range: 10kΩ 10 GΩ
Operating Temperature: -10° to 50°C
Product Name: Keithley Digital Multimeter
Model: DMM6500
Input Bias Current: <50 pA at 23°C
Common Mode Current: 70 dB, for 1 kΩ unbalance in LO lead
Maximum Resolution: 16 bits
Sampling Rate: Programmable 1 k through 1 MS/s
Packaging and Delivery
Selling Units: Single item
Single package size: 55X37X30 cm
Single gross weight: 7.500 kg
