Description

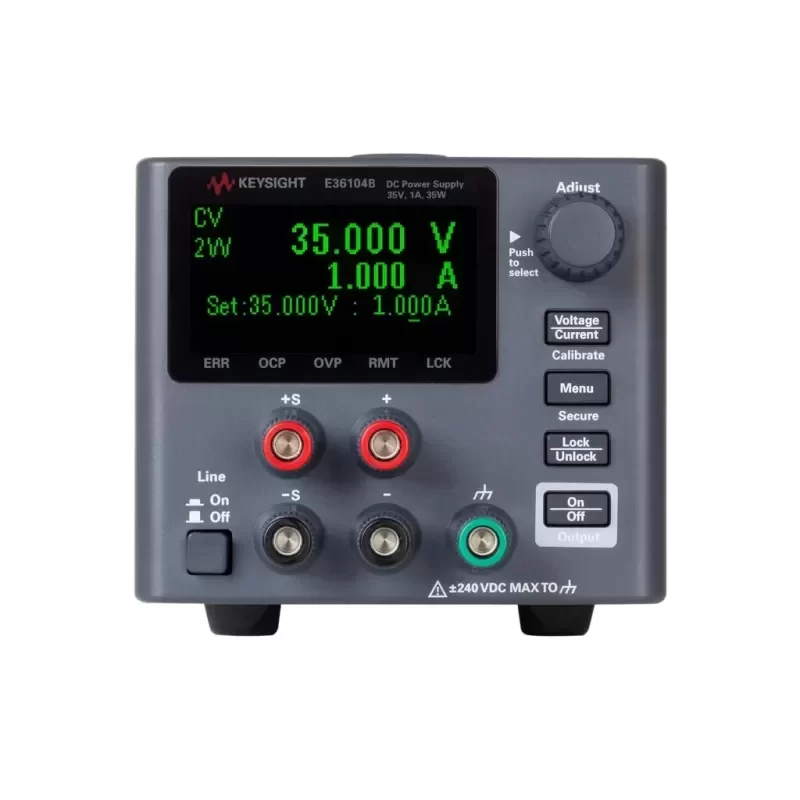

The Keysight E36104B is a highly reliable, programmable single-output DC power supply engineered for precision benchtop and automated test applications. Delivering up to 35W of clean power with a maximum output of 35V and 1A, this unit ensures exceptional Technical Compatibility with modern ATE systems.
Technical Specifications:
Output Power: 35W
Output Voltage: 0 to 35V DC
Output Current: 0 to 1A
Ripple and Noise (20 Hz to 20 MHz): < 350 μVrms / 2 mVpp
Programming Accuracy: Voltage 0.05% + 12 mV, Current 0.05% + 1 mA
Readback Accuracy: Voltage 0.05% + 5 mV, Current 0.05% + 1 mA
Load Regulation: ± 0.01% + 2 mV / 0.01% + 250 μA
Line Regulation: ± 0.01% + 2 mV / 0.01% + 250 μA

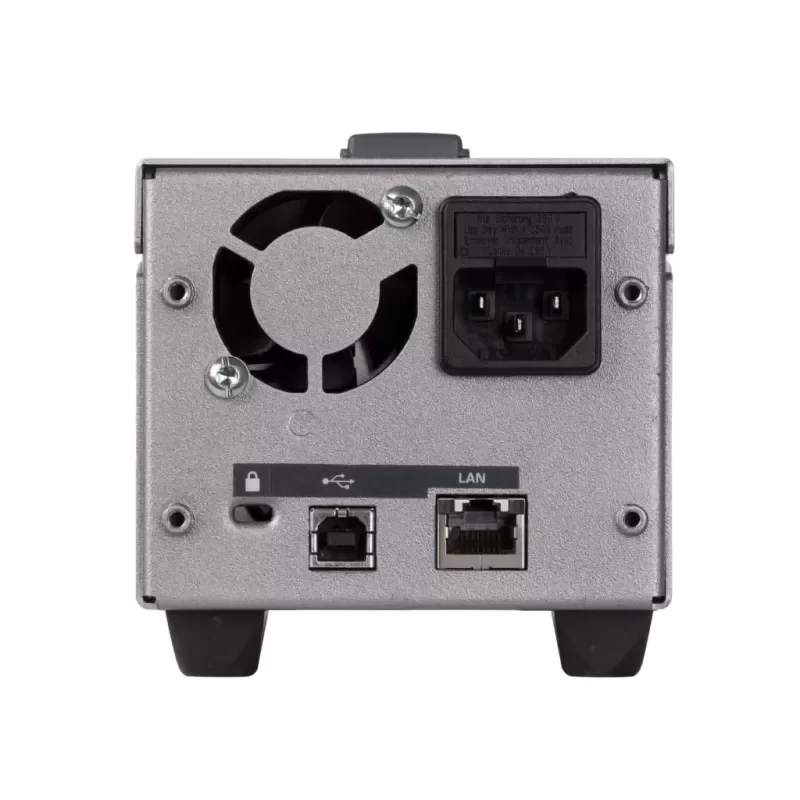

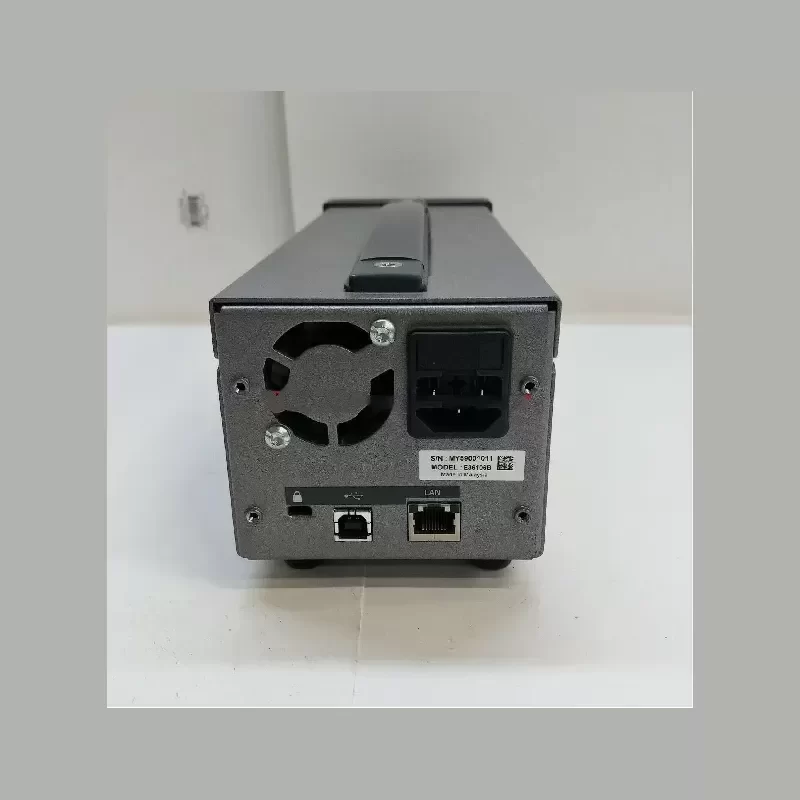

Interfaces: USB, LAN (LXI Core)
Display: High-contrast OLED
Protection: Overvoltage (OVP), Overcurrent (OCP), Overtemperature (OTP)

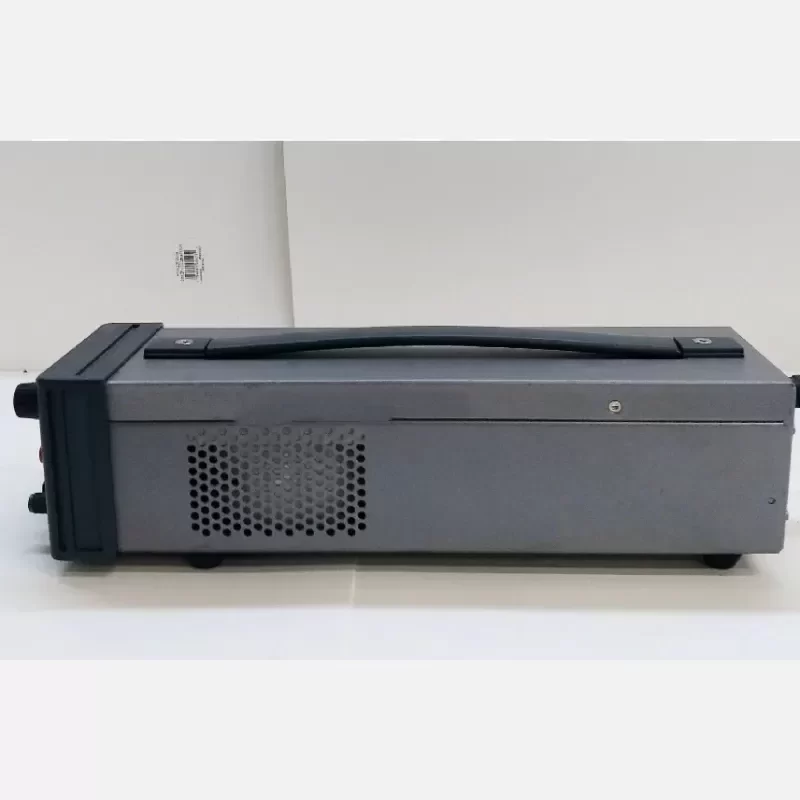

Dimensions: 99 mm (H) x 133 mm (W) x 354 mm (D)
Weight: 3.7 kg
Operating Temperature: 0°C to 40°C
Application & Integration:
Designed with Original Engineering standards, the E36104B is critical for low-power device testing, semiconductor characterization, and IoT sensor validation. Its low acoustic noise and precise 4-wire remote sensing capabilities solve the critical problem of voltage drops in long test leads, ensuring accurate power delivery directly to the device under test (DUT) in complex industrial environments.
Lifecycle & Availability:
Built for continuous industrial operation, this unit offers long-term stability and minimal calibration drift. Contact us to confirm current Lead Time and secure this essential test instrument for your laboratory or production facility.
Key Attributes
Input Voltage: AC 220V or 110V
Output Current: 1A
Output Voltage: 35V
Place of Origin: United States
Model Number: E36104B
Brand Name: Keysight
Output Frequency: Low Ripple DC
Output Power: 400W
Voltage Output 1: Variable
Max Voltage Output 1: 35 V
Programmable: Yes
Current Output 1: Variable
Max Display Resolution Current: 1 mA
Max Display Resolution Voltage: 1 mV
Meter Type: Digital
Product Weight: 3.6 KILOS (7.94 LBS)
Packaging and Delivery
Selling Units: Single item
Single package size: 45X32X22 cm
Single gross weight: 5.000 kg
