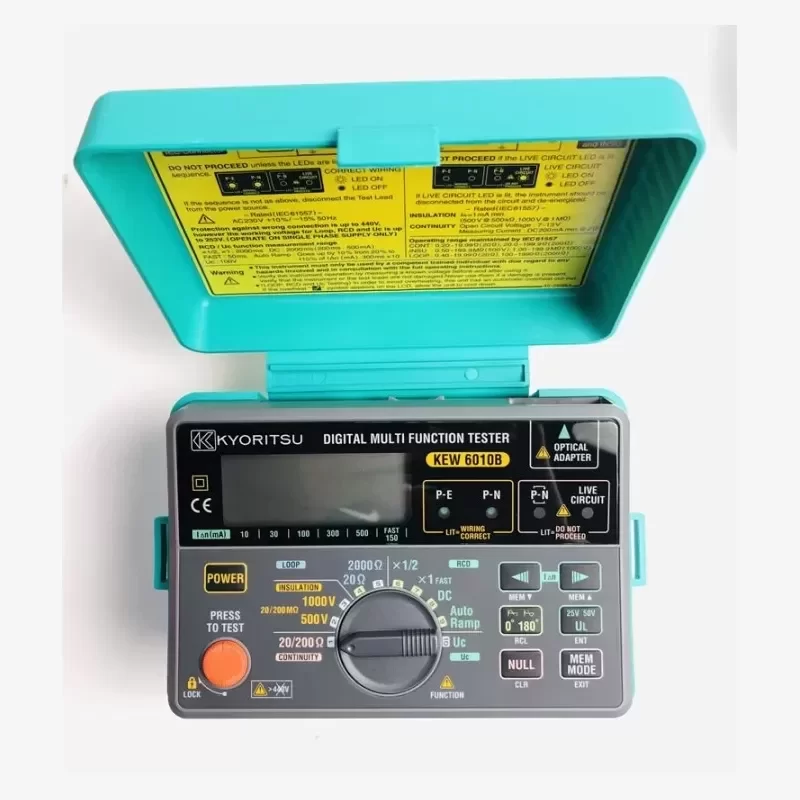

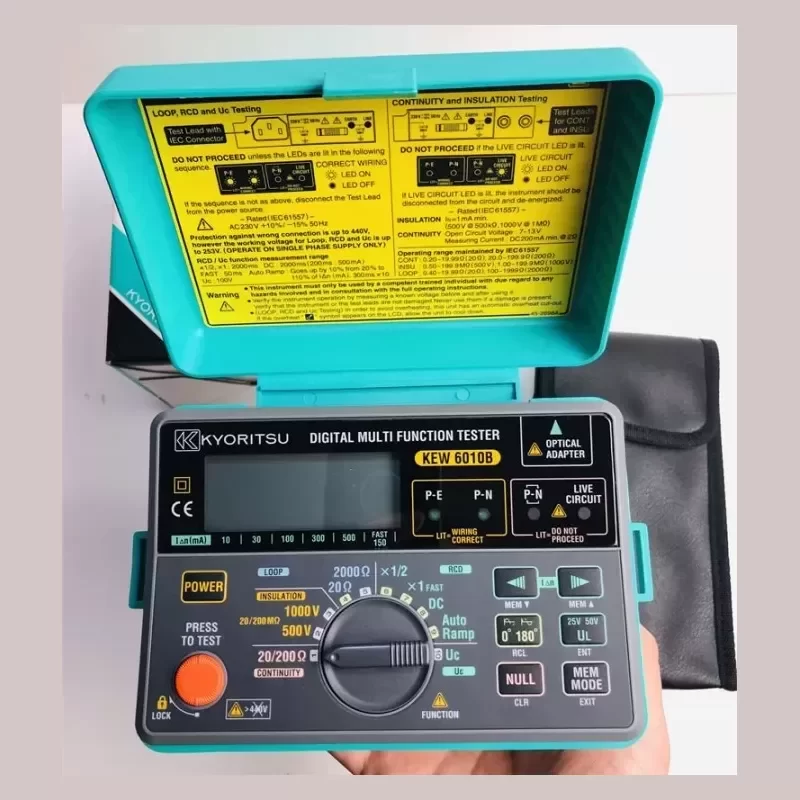

Kyoritsu 6010B Digital Display 6-in-1 Testers Continuity Insulation Loop RCD Contact Voltage Mains Voltage

Description

The Kyoritsu 6010B is an advanced digital 6-in-1 multifunction tester engineered for comprehensive electrical safety verification. Designed to meet IEC 61557 standards, this diagnostic instrument integrates continuity, insulation, loop impedance, RCD testing, contact voltage, and mains voltage measurement into a single compact architecture. It provides precise fault diagnostics for low-voltage distribution systems.

Technical Specifications
Manufacturer: Kyoritsu
Model Number: 6010B
Instrument Type: 6-in-1 Multifunction Tester
Continuity Testing: 20/200 Ω (Test Current: >200mA)
Insulation Resistance: 500V / 1000V (Measuring Ranges: 20/200 MΩ)
Loop Impedance: 20/2000 Ω (15mA test current at 2000 Ω prevents RCD tripping)
RCD Testing: 10/30/100/300/500mA (Multipliers: x1/2, x1, Fast Trip)
Contact Voltage (Uc): 100V
Mains Voltage Measurement: 115V to 253V AC (50Hz)
Safety Category: IEC 61010-1 CAT III 300V, IEC 61557-1,2,3,4,6
Power Supply: 8 x 1.5V AA (R6P) batteries
Dimensions: 175(L) x 115(W) x 86(D) mm
Weight: 840g (including batteries)
Operating Temperature: 0°C to +40°C
Storage Temperature: -20°C to +60°C

System Architecture and Integration
The 6010B features a microprocessor-controlled logic board that ensures high-fidelity data acquisition across all six testing parameters. The integration of a 15mA loop measurement protocol guarantees that in-line Residual Current Devices (RCDs) remain untripped during impedance diagnostics. The digital display provides clear, high-contrast readouts, minimizing operator error during critical safety audits. Built-in memory functions and auto-discharge capabilities enhance both operational safety and data retention.

Industrial Application
This multifunction tester is specifically deployed in industrial facility commissioning, preventive maintenance of low-voltage switchgear, and compliance auditing for commercial electrical grids. Its ability to perform non-trip loop impedance testing makes it indispensable for continuous process plants where power interruption is unacceptable.

Procurement and Lifecycle Value
Original Engineering: Manufactured by Kyoritsu, ensuring absolute adherence to global electrical safety tolerances.
Technical Compatibility: Fully compatible with standard low-voltage distribution networks and standard test lead sets.
Lead Time: Optimized supply chain protocols ensure rapid deployment for time-sensitive maintenance schedules.

Key Attributes
Accuracy Class: ±3%
Measuring Range: 20/2000 Ω
Testing Voltage: 500 V/1000 V
Place of Origin: Japan
Model Number: 6010B
Brand Name: Kyoritsu
Dimensions: 18 *12 * 9cm
Display Type: Digital Only
Operating Temperature: -20 °C to 50 °C
Product name: Kyoritsu
Model: 6010B
Continuity Testing Measuring Ranges: 20/200 Ω Autoranging
Loop Impedance Testing Impedance Ranges: 20/2000 Ω
Accuracy: ±(3%rdg + 8dgt)
RCD Testing Rated Voltage: 230 V + 10% to 15% 50 Hz
Uc Testing Measuring Range: 100 V

Packaging and Delivery
Selling Units: Single item
Single package size: 34X29X14 cm
Single gross weight: 2.000 kg
