Description

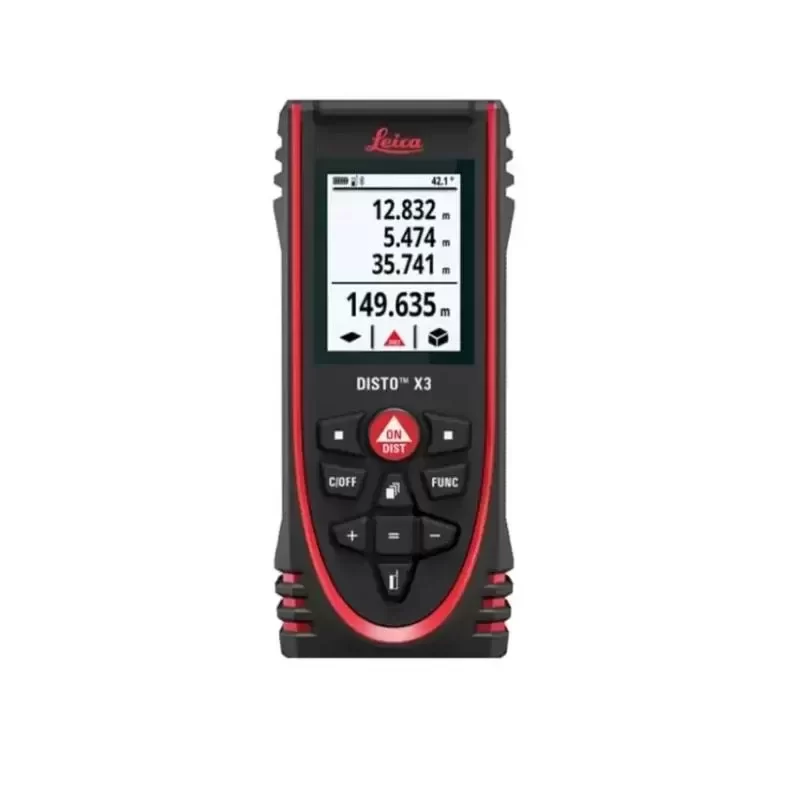

The Leica DISTO X3 is a professional-grade laser distance meter engineered for extreme durability and precision in demanding industrial and construction environments. Utilizing Original Engineering from Leica Geosystems, this rugged infrared laser rangefinder integrates X-Range Power Technology to deliver reliable measurements up to 150 meters, even under bright conditions. The device is specifically designed to withstand harsh job site conditions, featuring a solid rubber housing that passes stringent 2-meter drop tests.
Technical Specifications:
Brand: Leica Geosystems
Model Number: DISTO X3
Measuring Range: 0.05 to 150 m
Typical Measuring Accuracy: ± 1.0 mm
Protection Class: IP65 (Dust-tight and water jet protected)
Drop Resistance: 2 m
Data Interface: Bluetooth Smart (v4.0)
Display: High-contrast rotating color display
Power Supply: 2x AA Alkaline batteries
Measurements per set of batteries: Up to 4000
Operating Temperature: -10°C to 50°C
Storage Temperature: -25°C to 70°C
Dimensions: 132 x 56 x 29 mm
Weight (with batteries): 184 g
Laser Class: Class 2 (IEC 60825-1)
Laser Type: 635 nm, < 1 mW
Supported Apps: Leica DISTO Plan app
Industrial Application:
The DISTO X3 is indispensable for structural engineering, facility management, and large-scale architectural surveying. In complex indoor environments or active construction sites where dust and moisture are prevalent, its IP65 rating ensures uninterrupted operation. When paired with the DST 360 adapter, it transforms into a 3D measurement station, allowing Point-to-Point (P2P) distance calculations from a single location. This Technical Compatibility with advanced BIM software streamlines workflow and reduces measurement errors.
Procurement and Lifecycle Value:
Designed for seamless integration into professional tool fleets, the DISTO X3 minimizes downtime through its robust construction and intuitive interface. We ensure optimal Lead Time for bulk industrial procurement, providing certified calibration and full manufacturer warranty support for all units.
Key Attributes
Type: Rugged case
Place of origin: Hungary
Material: Sturdy plastic housing
Size: 132 x 56 x 29m
Weight: 0.5kg
Model number: DISTO X3
Brand name: Leica
Customized support: OEM, ODM
Warranty: 1 years
Product name: Leica
Model: DISTO X3
Range: 0.05 to 150m
X-Range Power Technology: Yes
Laser Class: 2
Tilt Measuring Range: 360°
Protection Class: IP 65
Dimensions: 132 x 56 x 29m
Packaging and Delivery
Selling Units: Single item
Single package size: 28X19X12 cm
Single gross weight: 1.500 kg
