Description

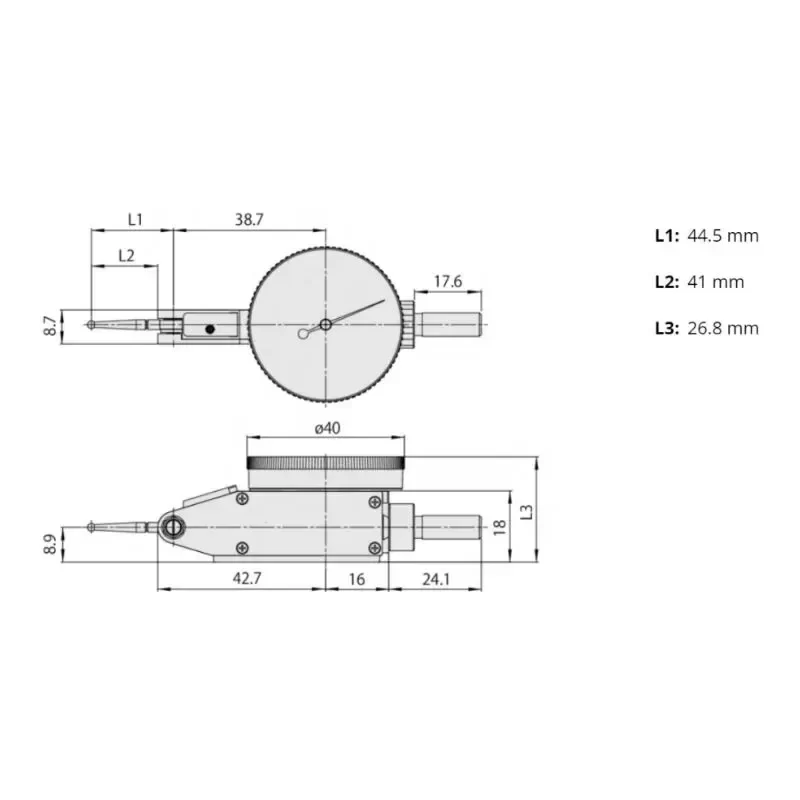

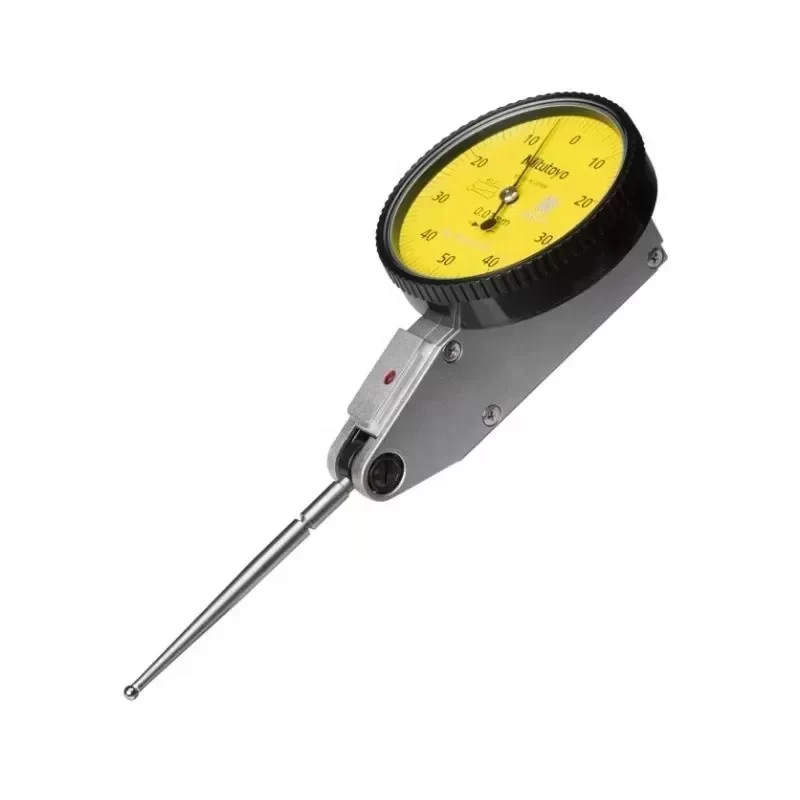

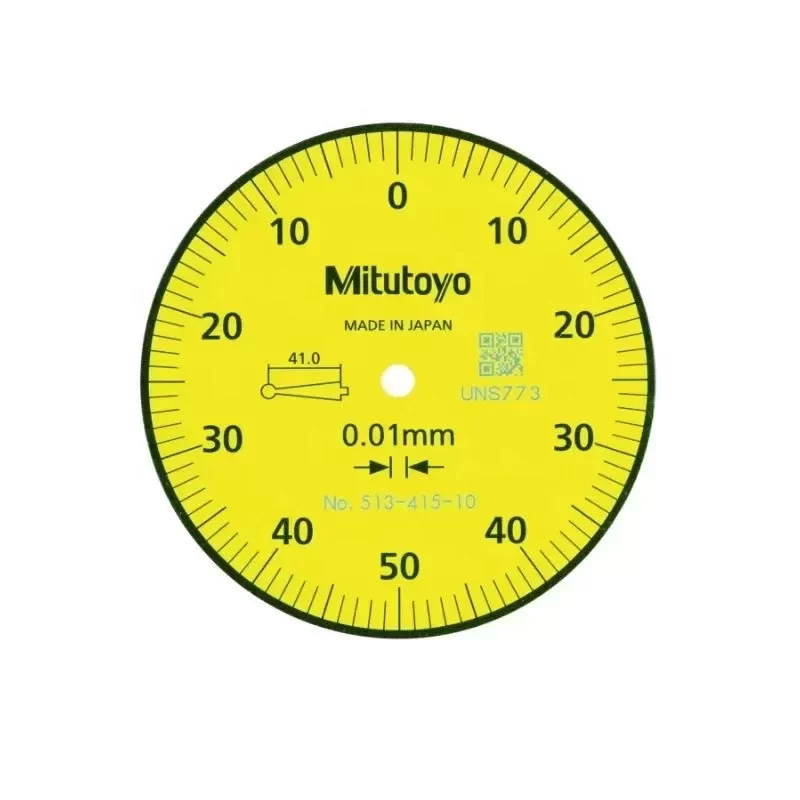

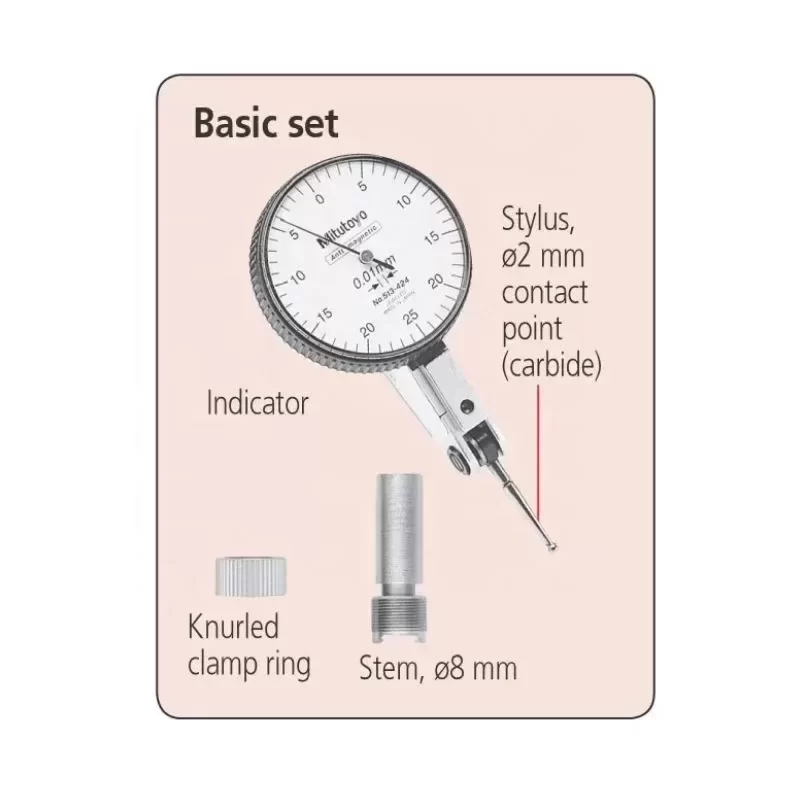

The Mitutoyo 513-415-10E is a high-precision horizontal dial test indicator designed for rigorous metrology and machining environments. Engineered to deliver exceptional repeatability and accuracy, this basic standard set is an essential instrument for alignment, calibration, and comparative measurement tasks in precision manufacturing.
Technical Specifications:
Brand: Mitutoyo
Model Number: 513-415-10E
Instrument Type: Horizontal Dial Test Indicator
Graduation: 0.01 mm
Measuring Range: 1.0 mm
Dial Reading: 0-50-0
Accuracy: ±10 µm
Measuring Force: 0.2 N or less
Contact Point: Ø2 mm Carbide Stylus
Thread Size: M1.7 x 0.35
Stem Diameter: Ø8 mm
Bearing Type: Jeweled
Weight: 45 g
Engineering Features:
This instrument integrates a jeweled bearing mechanism to ensure ultra-smooth movement and minimal friction during operation. The anti-magnetic design prevents interference in environments with high magnetic fields, such as near EDM machines or magnetic chucks. An O-ring seal on the bezel provides robust protection against dust and cutting fluids, extending the operational lifespan. The glare-free, scratch-resistant crystal face ensures clear readability under harsh industrial lighting.
Industrial Application:
The 513-415-10E is specifically optimized for tramming milling machine heads, aligning lathe tailstocks, and inspecting runout on cylindrical components. Its horizontal orientation and reversible measuring direction allow operators to access deep bores and narrow grooves, solving critical alignment challenges in aerospace component fabrication and automotive powertrain inspection.
Procurement and Integration:
Sourced through Original Engineering channels, this Mitutoyo indicator guarantees Technical Compatibility with standard dovetail mounts and articulating magnetic bases. We maintain an optimized Lead Time for this metrology standard, ensuring your quality control and production lines experience zero downtime during equipment replacement or facility expansion.
Key Attributes
Accuracy: 0.01 mm
Material: Plastic+Iron
Place of origin: Japan
Model number: 513-415-10E
Brand name: Mitutoyo
Customized support: OEM, ODM
Warranty: 1 years
Range: 1.0 mm
Graduation: 0.01 mm
Dial Reading: 0-50-0
Measuring Force: 0.2N or less
Carbide Contact Point (Anti-Magnet): Yes
Packaging and Delivery
Selling Units: Single item
Single package size: 30X20X15 cm
Single gross weight: 1.500 kg
