Description

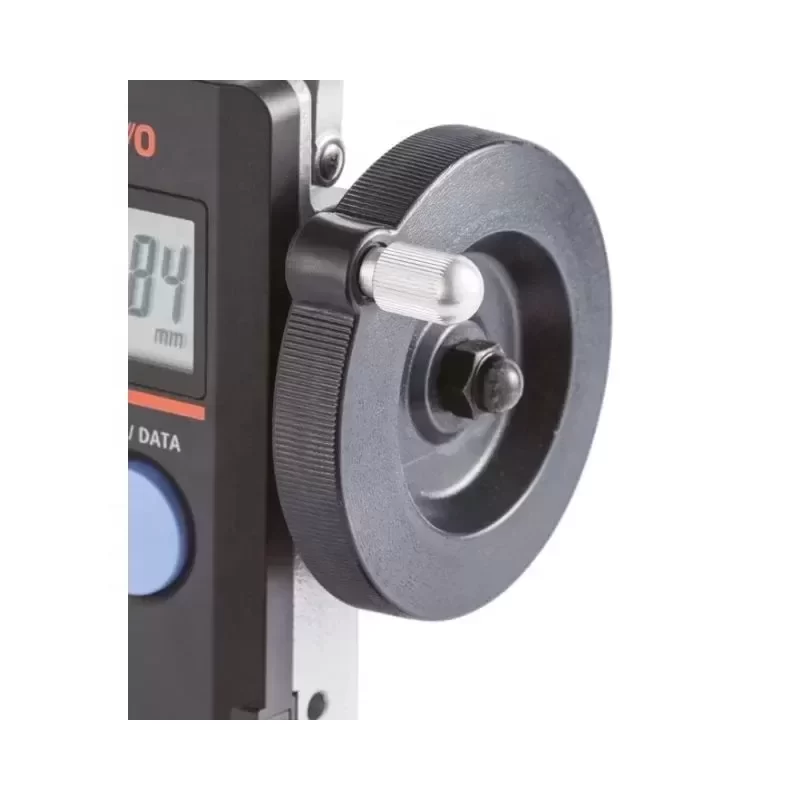

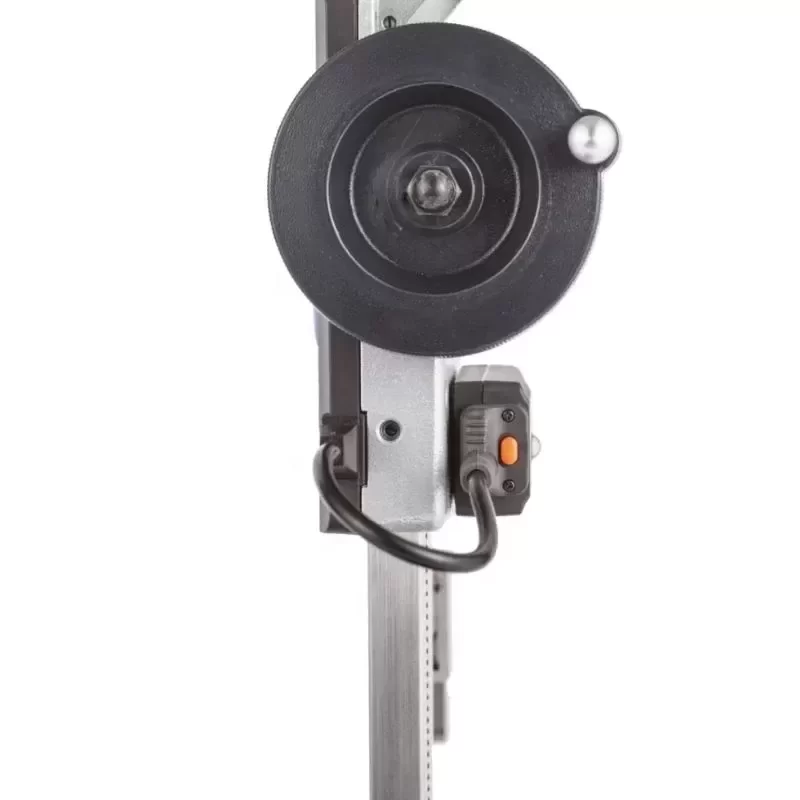

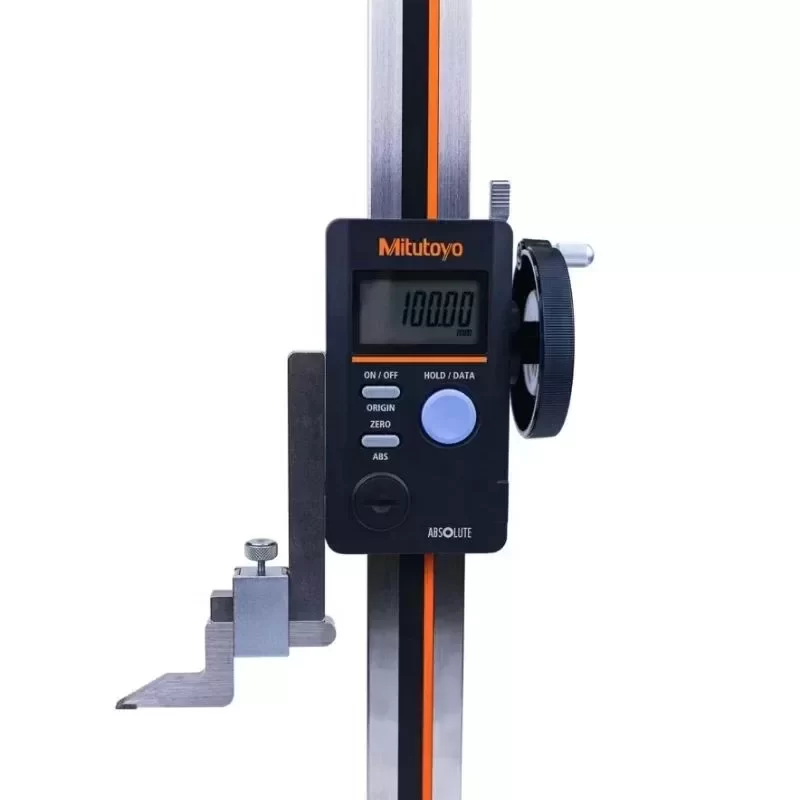

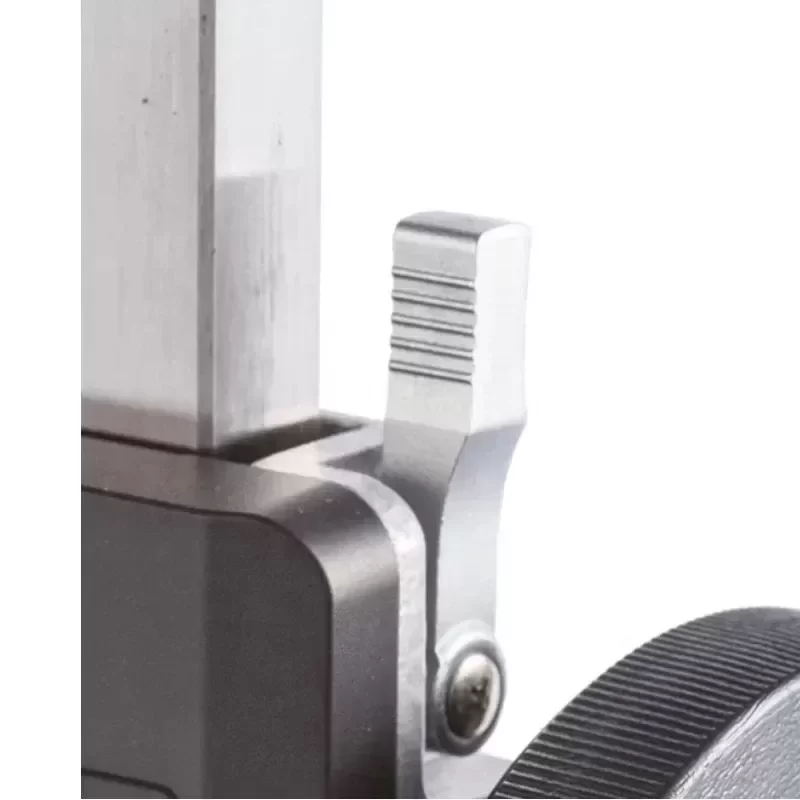

The Mitutoyo 570-414 Series 570 Digimatic Height Gauge is a precision dimensional measurement instrument engineered for high-accuracy vertical profiling and scribing. Utilizing Mitutoyo’s proprietary ABSOLUTE electrostatic capacitance linear encoder technology, this unit eliminates the necessity for origin restoration upon power-on, significantly reducing setup time and the potential for over-speed errors. The integration of a highly responsive slider feed wheel ensures smooth, micro-fine adjustments, critical for exacting tolerances in advanced manufacturing environments.
Technical Specifications:
Manufacturer: Mitutoyo
Series: 570
Model Number: 570-414
Measurement Range: 0 – 600 mm
Resolution: 0.01 mm
Accuracy: ±0.05 mm
Repeatability: 0.01 mm
Display: 6-digit LCD
Encoder Type: ABSOLUTE Electrostatic Capacitance Linear
Max Response Speed: Unlimited

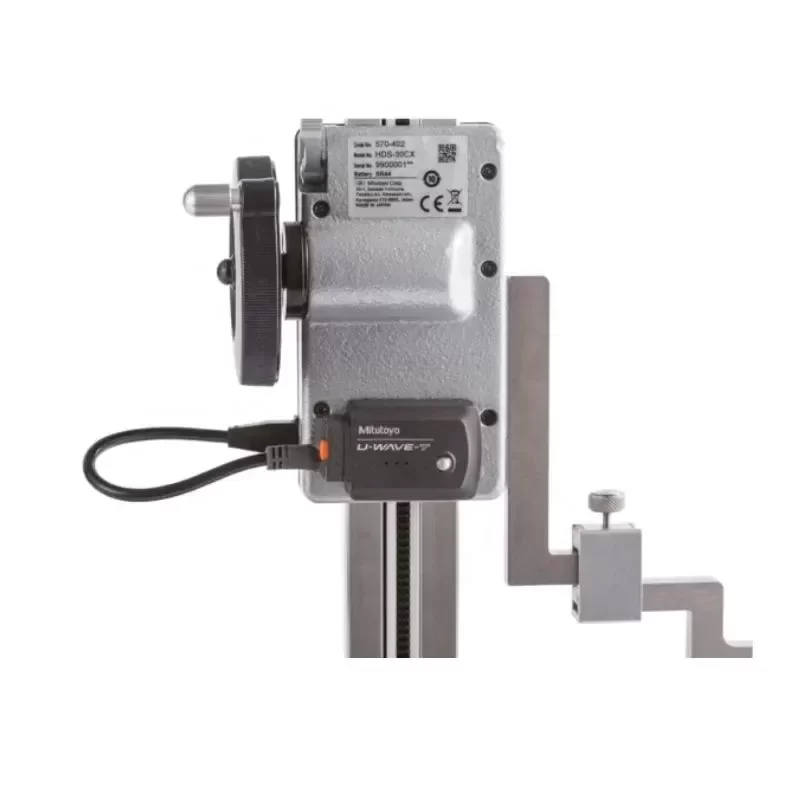

Data Output: SPC (Statistical Process Control) Port Integrated
Power Supply: 1x SR44 Silver Oxide Cell
Battery Life: Approx. 20,000 hours under normal use
Operating Temperature: 0°C to 40°C
Base Material: Hardened Cast Iron with precision lapped reference surface
Weight: 6.4 kg
Industrial Application:
This height gauge is purpose-built for stringent quality control laboratories, aerospace component inspection, and precision machining floors. The 570-414 excels in scenarios requiring rapid, repeatable vertical dimensioning, step measurement, and precise scribing on surface plates. The slider feed wheel mechanism provides operators with tactile feedback, enabling exact positioning when measuring complex geometries or verifying first-article inspection parts.
Lifecycle and Integration:
Maintaining Original Engineering standards, the Mitutoyo 570-414 guarantees seamless Technical Compatibility with enterprise-level SPC data collection systems via its dedicated output port, facilitating automated quality documentation. Our streamlined supply chain ensures an optimized Lead Time, minimizing operational downtime and ensuring your metrology department remains fully equipped for critical inspection workflows.
Key Attributes
Accuracy: 0.01 mm
Place of origin: Japan
Material: Iron
Model number: 570-414
Brand name: Mitutoyo
Customized support: OEM, ODM
Warranty: 1 years
Measuring Range: 0 to 24"/0 to 600 mm
Resolution: 0.0005"/0.01 mm
Digital/Analog: Digital
Display: LCD
Drive Method: Slider-feed wheel (manual)
Maximum Response Speed: Unlimited
Packaging and Delivery
Selling Units: Single item
Single package size: 120X45X35 cm
Single gross weight: 9.000 kg
