New AFB0612VH 6025/12V 0.30A
New AFB0612VH 6025/12V 0.30A
New AFB0612VH 6025/12V 0.30A
New AFB0612VH 6025/12V 0.30A

New AFB0612VH 6025/12V 0.30A

$3.57

SKU: 706585291829 Brand:

Description

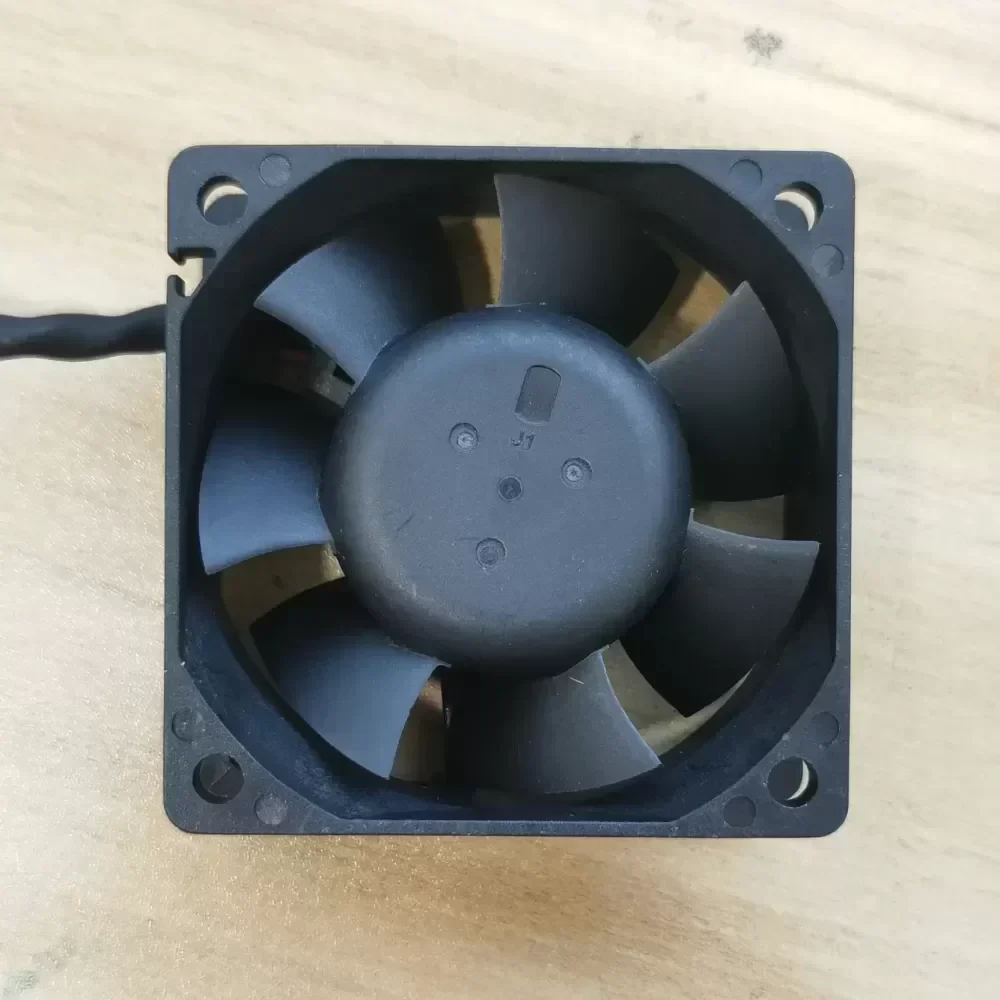

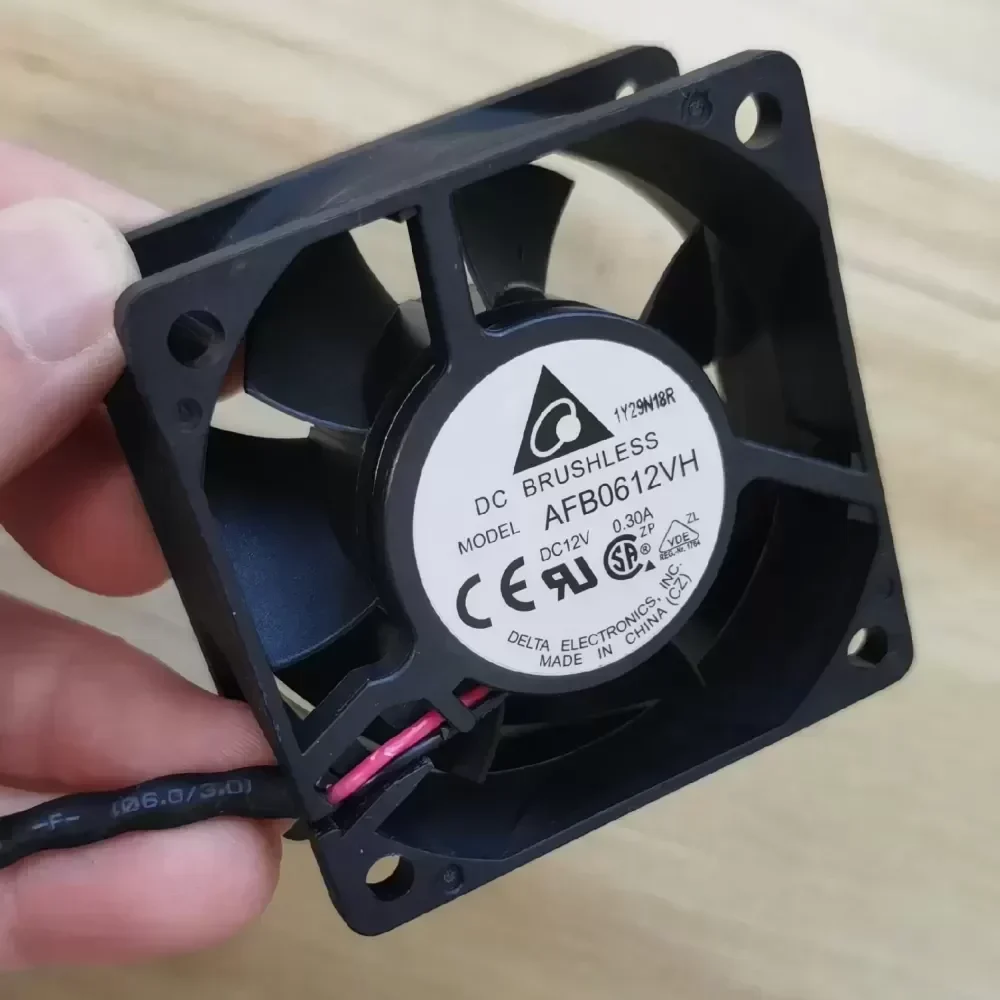

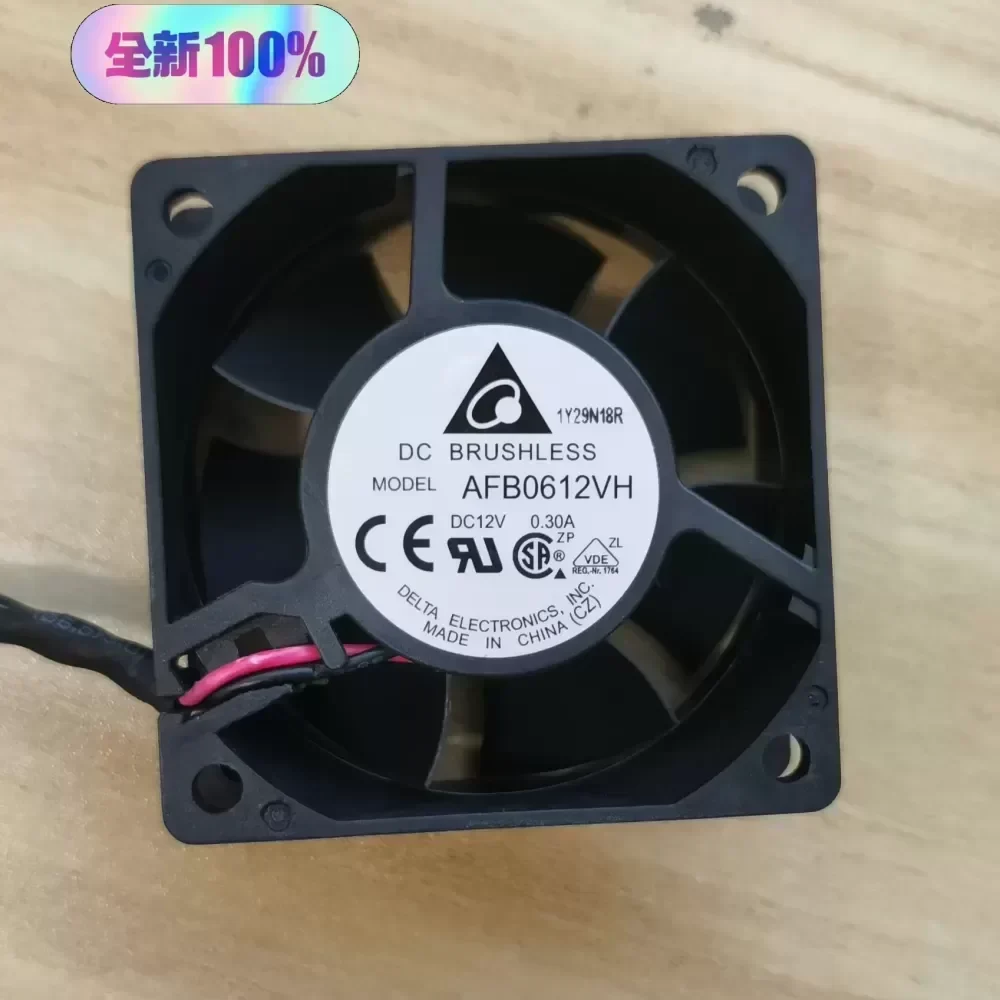

The Delta Electronics AFB0612VH is a high-performance DC axial cooling fan engineered for continuous operation in demanding industrial environments. Utilizing Original Engineering principles, this 60x60x25mm component delivers optimized thermal management for frequency inverters, chassis enclosures, and automated control cabinets. The advanced aerodynamic impeller design ensures maximum static pressure and volumetric airflow, preventing thermal throttling in critical electronic assemblies.

Technical Specifications

Manufacturer: Delta Electronics
Model Series: AFB
Part Number: AFB0612VH
Rated Voltage: 12V DC
Operating Voltage Range: 7.0V to 13.8V DC
Input Current: 0.30A
Input Power: 3.60W
Dimensions: 60mm x 60mm x 25mm
Speed: 5000 RPM ± 10%
Maximum Airflow: 0.78 m³/min
Maximum Static Pressure: 7.40 mmH2O
Acoustical Noise: 38.0 dB(A)
Bearing System: High-Precision Dual Ball Bearing
Frame Material: Polybutylene Terephthalate (PBT) UL94V-0
Impeller Material: Polybutylene Terephthalate (PBT) UL94V-0
Operating Temperature: -10°C to +60°C
Life Expectancy: 70,000 hours at 40°C
Weight: 80.0 g
Termination: AWG 24 Wire Leads
Certifications: CE, CSA, UL, RoHS Compliant

Industrial Application & Technical Compatibility

This cooling fan is specifically designed for integration into variable frequency drives (VFDs), telecommunication chassis, and industrial power supplies. In high-density control cabinets where localized heat generation can degrade semiconductor lifespan, the AFB0612VH provides targeted forced-air convection. Its Technical Compatibility extends to direct replacement in legacy Delta inverter systems, ensuring seamless integration and restored thermal equilibrium. The dual ball bearing architecture guarantees reliable operation in orientations where sleeve bearings would fail, making it critical for 24/7 automated manufacturing facilities.

Procurement & Lifecycle Value

We maintain strict supply chain protocols to ensure optimal Lead Time for critical maintenance operations. Each unit represents genuine manufacturer quality, maximizing mean time between failures (MTBF) and reducing overall maintenance expenditures.

New AFB0612VH 6025/12V 0.30A

New AFB0612VH 6025/12V 0.30A

New AFB0612VH 6025/12V 0.30A

New AFB0612VH 6025/12V 0.30A

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
