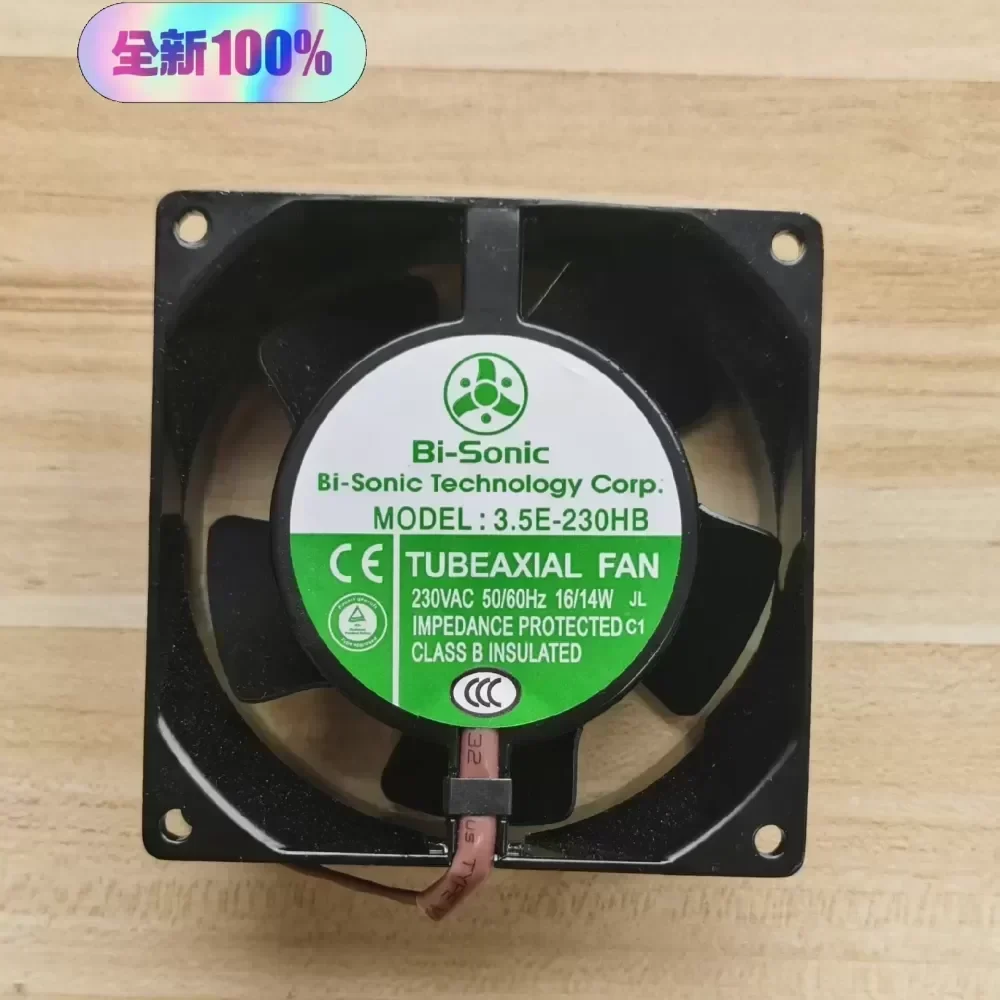

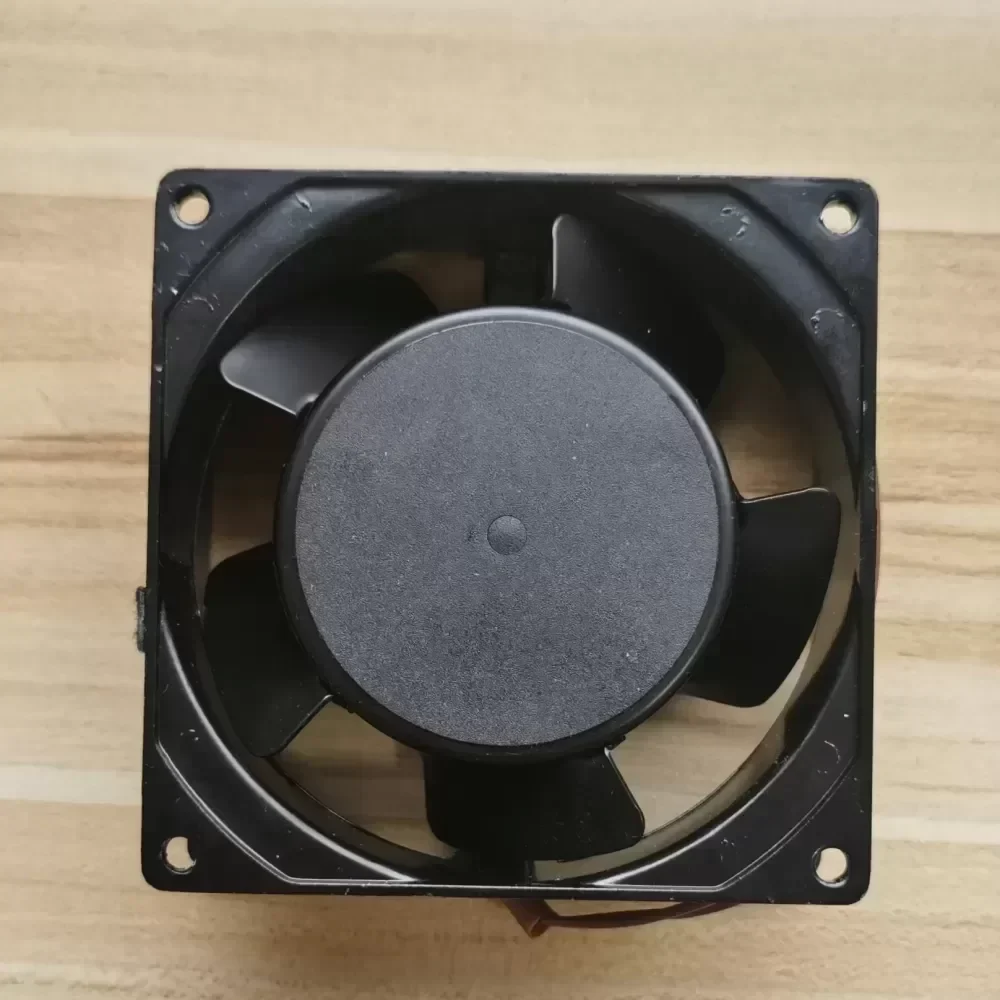

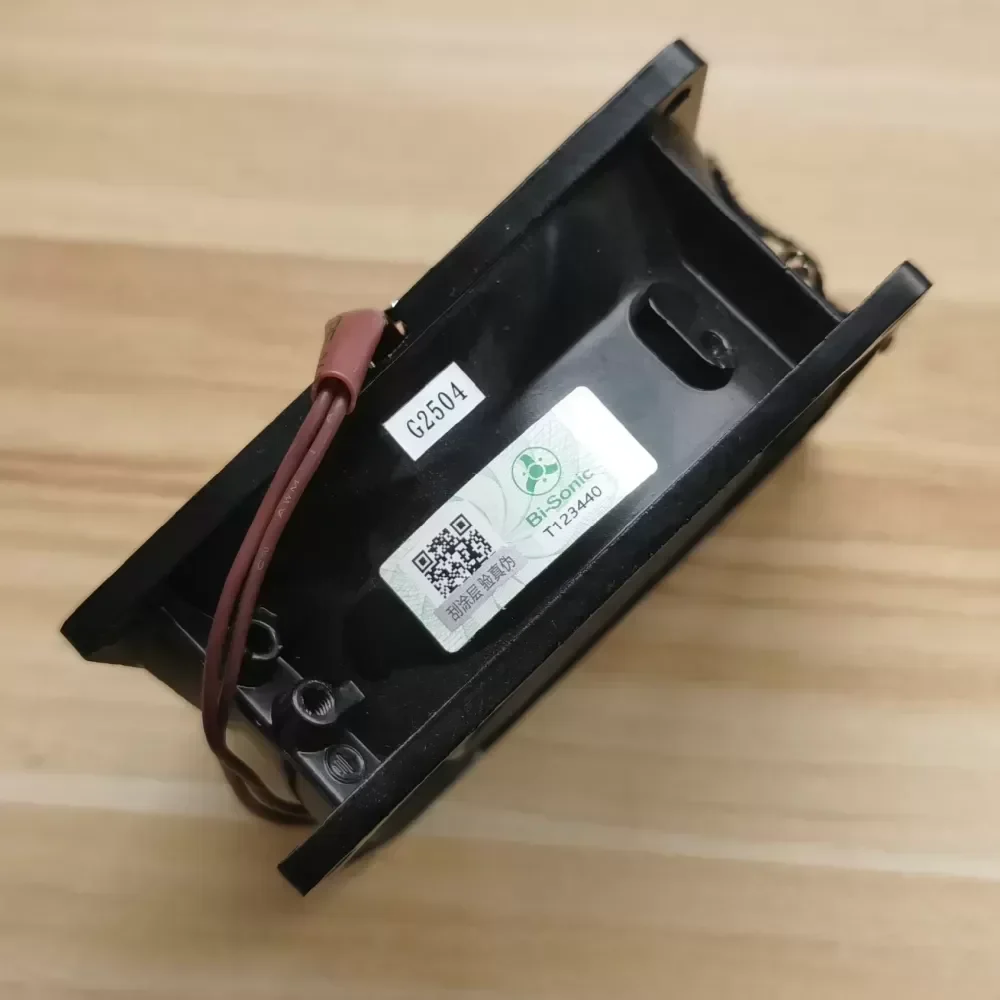

Manufacturer: Taiwan Bairui (Bi-Sonic)
Model: 3.5E-230HB
Product Category: High-Temperature Industrial Axial Fan
Frame Size: 92 x 92 x 38 mm

Technical Specifications:
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Input Power: 14.0 / 12.0 W
Rated Current: 0.07 / 0.06 A
Speed: 2700 / 3000 RPM
Airflow: 45 / 50 CFM
Static Pressure: 0.20 / 0.25 Inch-H2O
Noise Level: 35 / 38 dB(A)
Bearing Type: Dual High-Precision Ball Bearings

Material and Construction:
Frame Material: Die-Cast Aluminum Alloy (All-Metal)
Impeller Material: Steel / Zinc-Plated Metal
Insulation Class: Class B / Class F Options
Termination: Lead Wires or Terminal Lug Configuration
Protection Rating: IP44 / IP54 Equivalent
Operating Temperature Range: -20°C to +80°C

Industrial Application and Engineering Value:
The Taiwan Bairui 3.5E-230HB is engineered for extreme thermal environments where standard plastic-composite fans fail due to structural deformation. The all-metal construction ensures dimensional stability under high-temperature cycles, making it critical for heat dissipation in industrial control cabinets, welding equipment, and commercial ovens. The dual ball bearing system is optimized for continuous 24/7 operation, providing a high MTBF (Mean Time Between Failures) in vertical or horizontal mounting orientations.

Technical Compatibility and Installation:
This 9238 series fan is a direct drop-in replacement for standard 92mm cooling units requiring high-voltage AC input. It features Original Engineering tolerances to ensure seamless integration with existing ventilation shrouds. The high-density metal impeller provides the necessary torque to maintain airflow against high static pressure in densely packed electronic enclosures.

Logistics and Compliance:
Condition: Original Authentic New
Lead Time: Immediate stock availability for critical maintenance
Certifications: UL, CE, TUV, RoHS Compliant
Weight: 440g

Original 3.5E-230HB Bi-Sonic all-metal resistance heat dissipation wind

Original 3.5E-230HB Bi-Sonic all-metal resistance heat dissipation wind

Original 3.5E-230HB Bi-Sonic all-metal resistance heat dissipation wind

Original 3.5E-230HB Bi-Sonic all-metal resistance heat dissipation wind

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
