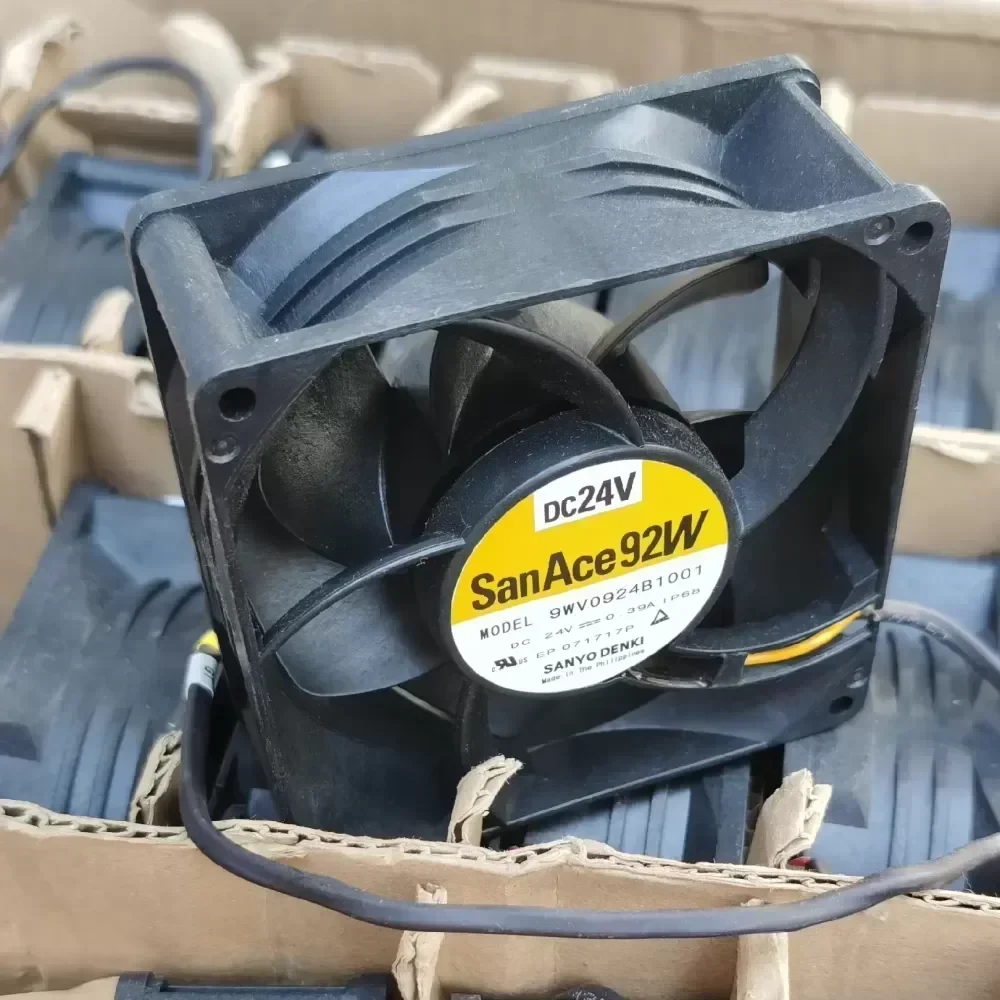

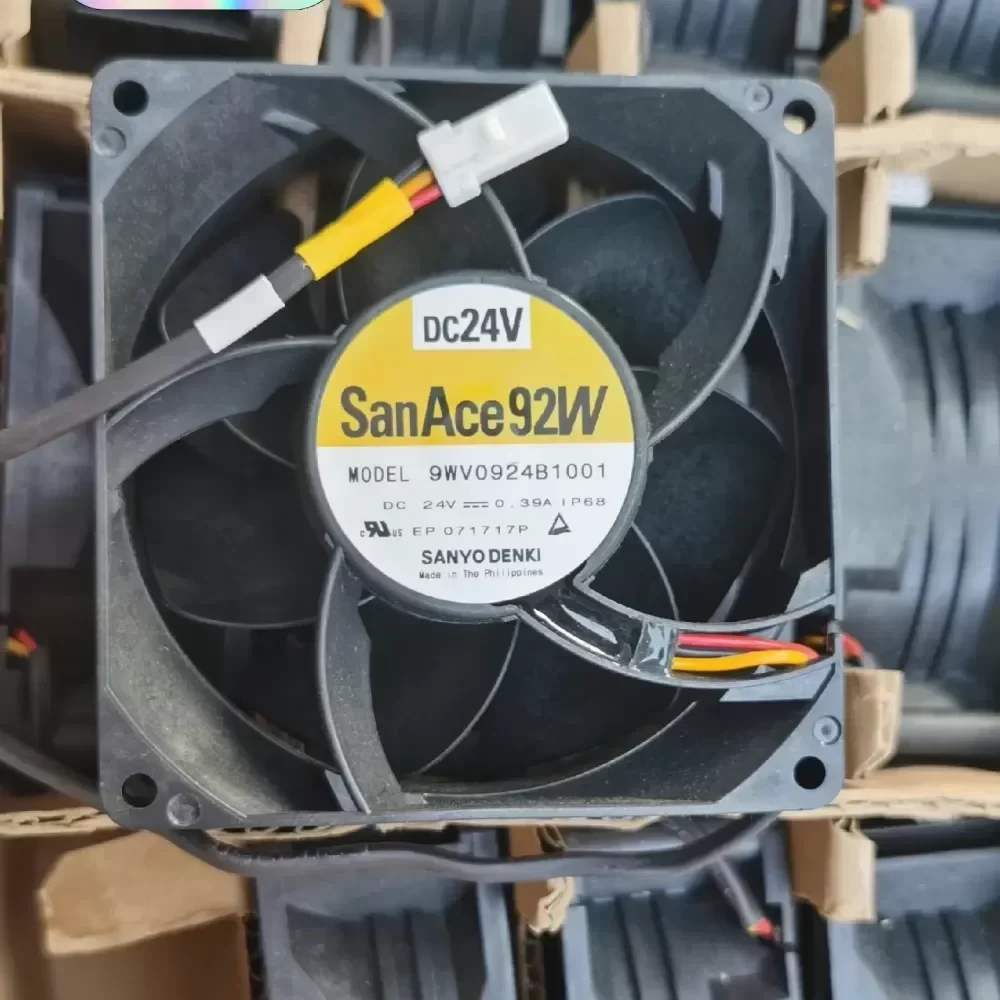

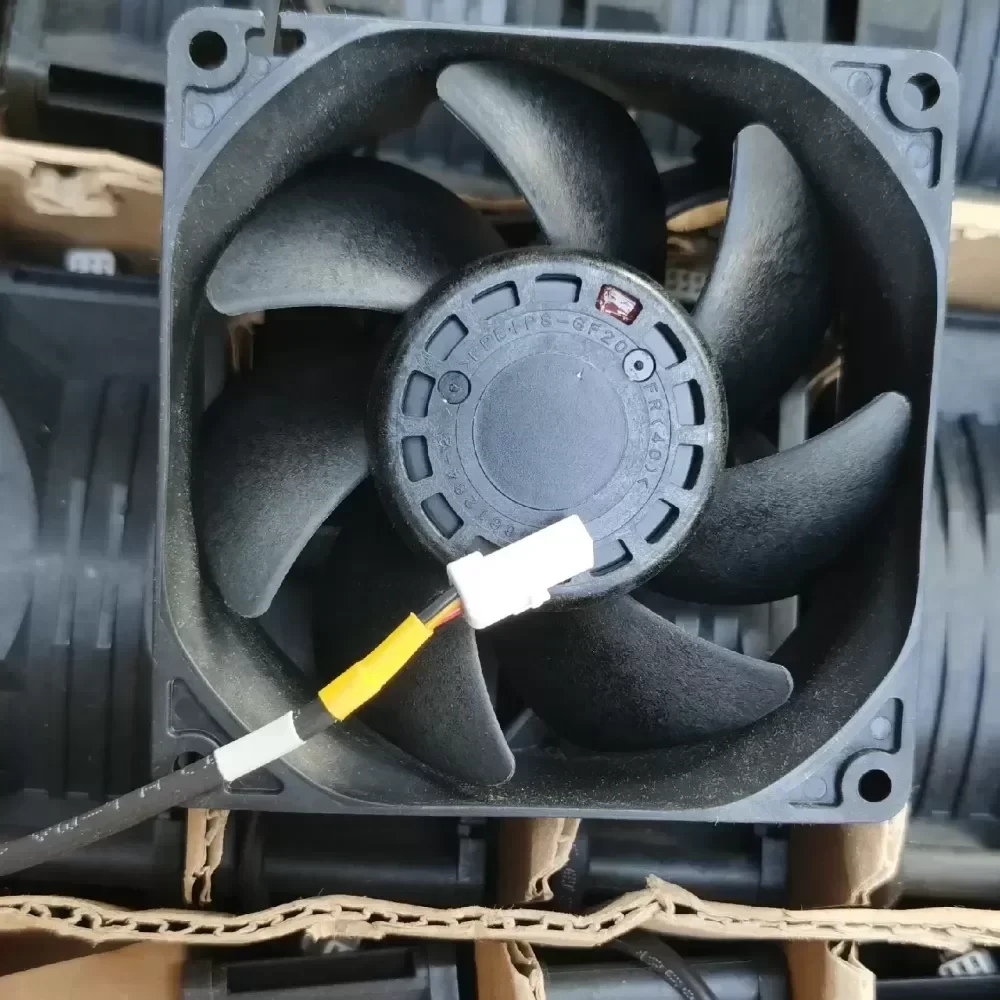

Sanyo 9WV0924B1001 9238/24V three-wire fan
Sanyo 9WV0924B1001 9238/24V three-wire fan
Sanyo 9WV0924B1001 9238/24V three-wire fan
Sanyo 9WV0924B1001 9238/24V three-wire fan

Sanyo 9WV0924B1001 9238/24V three-wire fan

$21.43

SKU: 706577047133 Brand:

Description

The Sanyo Denki 9WV0924B1001 is a severe-environment, IP68-rated axial cooling fan engineered for high-reliability thermal management. Belonging to the San Ace 92W series, this component utilizes a fully encapsulated motor and PCB to prevent the ingress of water, oil, and micro-particulates. The integrated 3-wire pulse sensor provides precise rotational speed feedback, enabling closed-loop thermal control and predictive maintenance diagnostics.

Technical Specifications:
Manufacturer: Sanyo Denki
Model Number: 9WV0924B1001
Series: San Ace 92W (Splash Proof)
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 24V DC
Operating Voltage Range: 14.0V to 27.6V DC
Rated Current: 0.38 A
Rated Power Input: 9.12 W
Rated Speed: 4500 RPM
Maximum Airflow: 2.25 m³/min
Maximum Static Pressure: 130 Pa
Acoustic Noise Level: 46 dB(A)
Ingress Protection Rating: IP68
Operating Temperature Range: -20°C to +70°C
Bearing Type: Precision Dual Ball Bearing
Frame Material: Aluminum
Impeller Material: Flame-retardant Plastic (UL94V-0)
Termination: 3-Wire Lead AWG24 (Power, Ground, Tachometer)
Weight: 170 g

Original Engineering and Technical Compatibility:
This unit guarantees Original Engineering standards, ensuring direct Technical Compatibility as a drop-in replacement for legacy 24V DC cooling systems. The standardized 9238 form factor and tachometer output ensure seamless integration with industrial PLCs and variable speed drives. We maintain strategic inventory to provide a highly competitive Lead Time, minimizing critical system downtime.

Industrial Application:
The IP68 waterproof rating makes the 9WV0924B1001 indispensable for CNC machining centers and outdoor telecommunication enclosures. In CNC environments, the fan provides continuous heat dissipation for servo drives and spindle controllers while remaining completely impervious to atomized coolant, cutting oils, and conductive metallic dust, thereby eliminating the risk of premature electrical shorting or bearing failure.

Sanyo 9WV0924B1001 9238/24V three-wire fan

Sanyo 9WV0924B1001 9238/24V three-wire fan

Sanyo 9WV0924B1001 9238/24V three-wire fan

Sanyo 9WV0924B1001 9238/24V three-wire fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
