SKF TKST 11 Electronic Stethoscope Easily Pinpoints Bearing and Machine Noise for Testing Equipment

Description

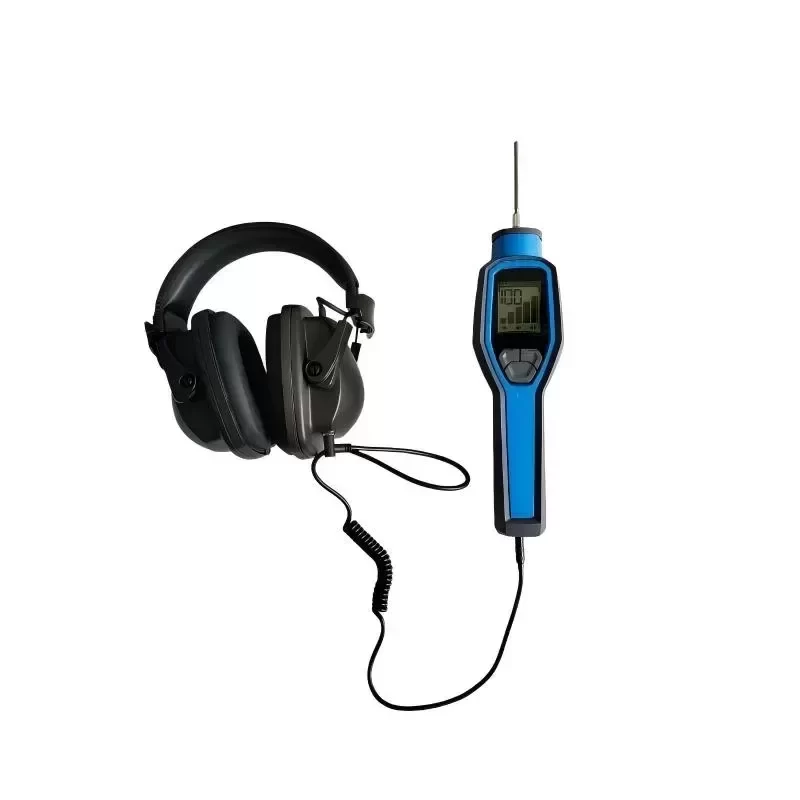

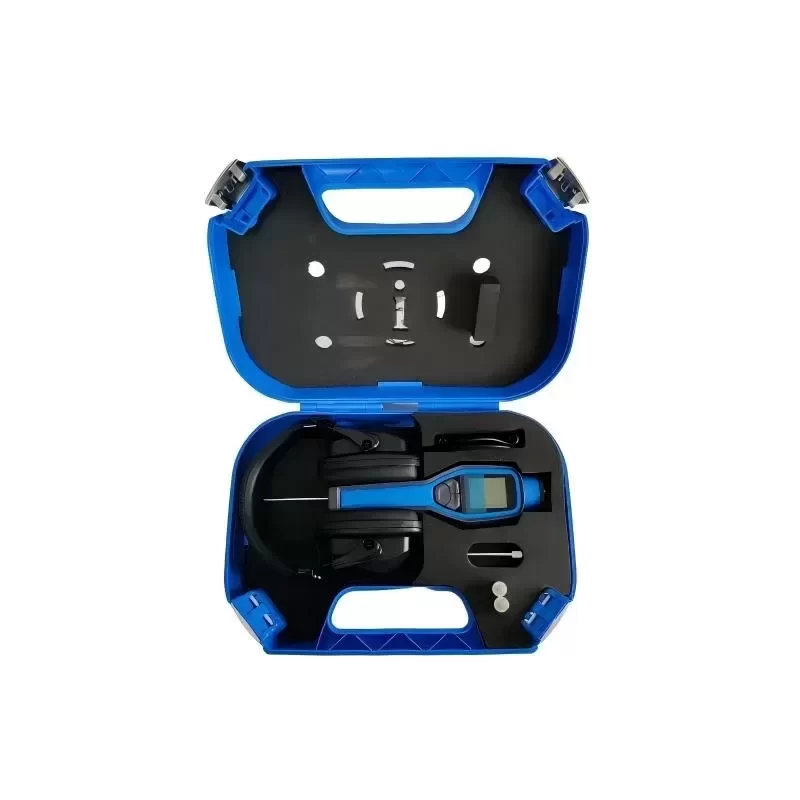

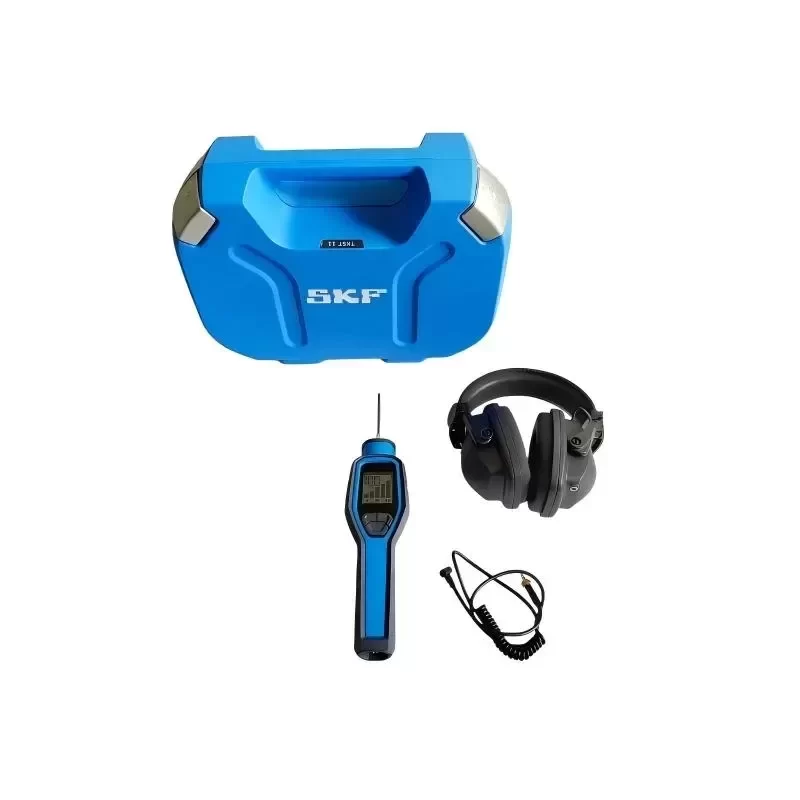

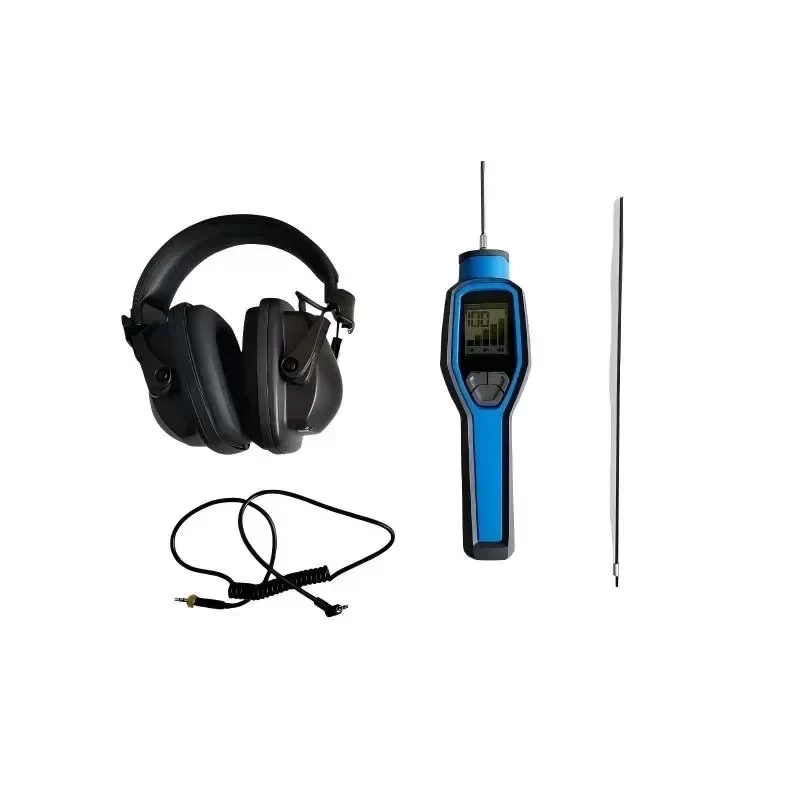

The SKF TKST 11 is a professional-grade electronic stethoscope engineered for the precise acoustic detection of mechanical anomalies in rotating machinery. Manufactured under SKF Original Engineering standards, this diagnostic instrument allows maintenance technicians to easily pinpoint bearing and machine noise, facilitating early detection of component degradation. The system includes a high-sensitivity piezoelectric sensor, an advanced noise-canceling headset, and pre-recorded audio samples to assist in accurate fault identification.

Designed for seamless Technical Compatibility across diverse industrial environments, the TKST 11 is critical for predictive maintenance programs in pulp and paper mills, power generation plants, and high-speed machining centers. By isolating specific acoustic frequencies associated with inner race spalling, outer race defects, or gear mesh friction, operators can accurately diagnose mechanical faults before catastrophic failure occurs, thereby minimizing unplanned downtime.

Technical Specifications:
Model Number: TKST 11
Manufacturer: SKF
Frequency Range: 30 Hz to 15 kHz
Operating Temperature: -10 °C to +45 °C
Output Volume: Adjustable in 32 discrete levels
Indicator: LED visual acoustic level display
Power Supply: 2 x AA Alkaline batteries
Battery Life: Approximately 30 hours of continuous operation
Probe Lengths: 70 mm and 300 mm
Auto Power Off: Integrated energy-saving function
Instrument Dimensions: 160 x 62 x 30 mm
Instrument Weight: 162 g
Total Kit Weight: 1.6 kg
Carrying Case Dimensions: 260 x 85 x 180 mm

Procurement of this diagnostic tool ensures enhanced reliability for your testing equipment fleet. Standard Lead Time applies for global distribution, ensuring rapid integration into your condition monitoring protocols.

Key Attributes
Type: Electronic stethoscope
Accuracy: 1%
Place of origin: Germany
Customized support: Software Reengineering
Power: 30 to 15000 Hz
Protection Class: IP65
Voltage: Other
Brand name: SKF
Application: Noise or vibration detection
Warranty: 1 years
Frequency range: 30 Hz -- 15 kHz
Operating temperature: -10 to +45 °C (14 to 113 °F)
Output volume: Adjustable in 15 levels
LCD: Black and white display
Maximum recorder output: 250 mV
Headset: 32 ohm (with ear defender)
Battery: 2 x AA Alkaline (included)
Battery lifetime: 30 hours minimum

Packaging and Delivery
Selling Units: Single item
Single package size: 40X30X15 cm
Single gross weight: 2.000 kg
