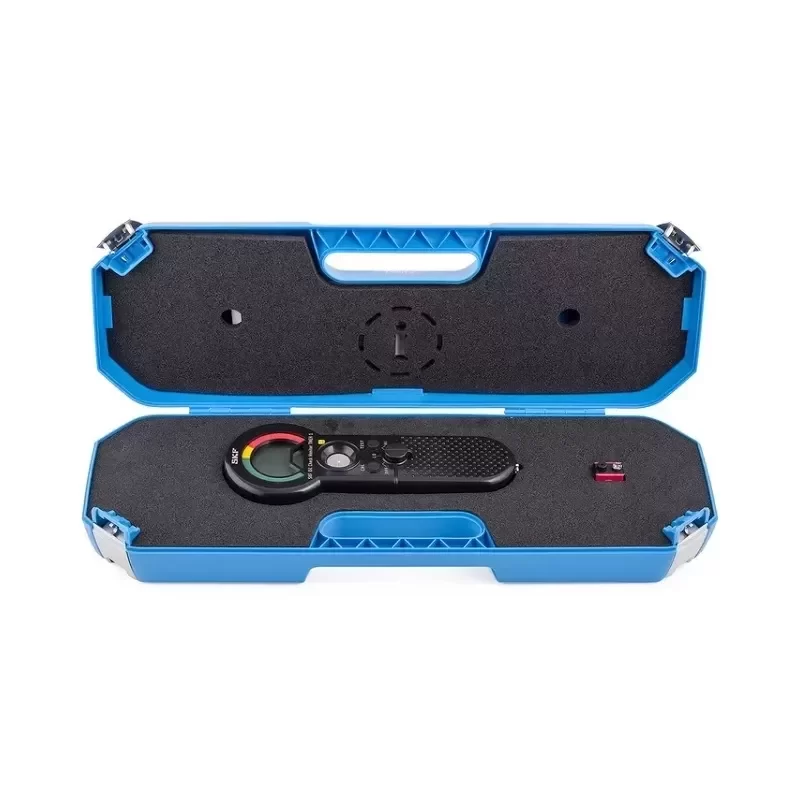

SKF TMEH 1 Oil Check Monitor

Description

The SKF TMEH 1 Oil Check Monitor is a precision diagnostic instrument designed to evaluate the condition of lubricating oils in demanding industrial environments. Built to SKF Original Engineering standards, this portable device measures changes in the dielectric constant of an oil, allowing maintenance professionals to detect degradation caused by water ingress, oxidation, or metallic wear particles. By comparing used oil against a clean baseline, the TMEH 1 facilitates predictive maintenance strategies and extends machinery lifecycle value.

Technical Specifications:
Brand: SKF
Model: TMEH 1
Product Type: Portable Oil Check Monitor
Measurement Principle: Dielectric constant variation
Technical Compatibility: Mineral and synthetic lubricating oils
Repeatability: ± 5%
Readout Display: Numerical scale (0 to 100) with Green/Red condition grading
Operating Temperature Range: -20 °C to +50 °C
Power Supply: 9V alkaline battery (IEC 6LR61)
Battery Life: Greater than 150 hours (approx. 3000 tests)
Housing Material: Impact-resistant ABS plastic
Dimensions: 250 x 32 x 95 mm
Weight: 250 g

Industrial Application:
The TMEH 1 is critical for condition monitoring in heavy-duty gearboxes, large-scale hydraulic systems, and industrial compressors. In scenarios where oil contamination can lead to catastrophic bearing failure, this monitor provides immediate, on-site diagnostics. This eliminates the standard Lead Time associated with external laboratory testing, enabling rapid decision-making for oil changes and preventing unplanned downtime in continuous production facilities.

Key Attributes
Place of origin: United Kingdom
Customized support: OEM, ODM
Power: Electronic
Brand name: SKF
Warranty: 1 years
Model number: TMEH 1
Product name: SKF
Model: TMEH 1
Use: Suitable oil types mineral and synthetic oils
Repeatability: Better than 95%
Read-out: Green/red grading + numerical value (-999 to 999)
Battery: 9V Alkaline IEC 6LR61
Dimensions Instrument: 250 x 95 x 32 mm (9.8 x 3.7 x 1.3 in.)
Weight: 385 g

Packaging and Delivery
Packaging Details: Cardboard box
Port of dispatch: Shenzhen, China
Selling Units: Single item
