$31.43

SKU: 776859711456 Brand:

Description

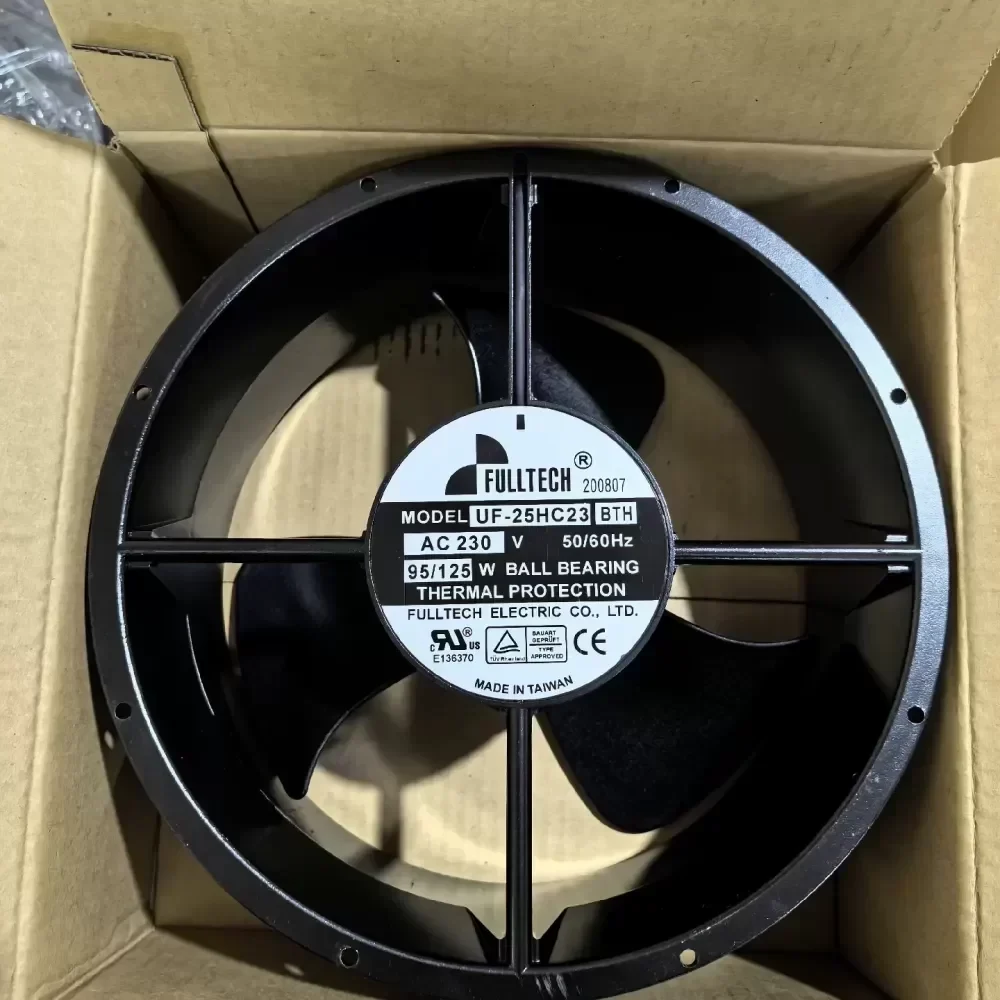

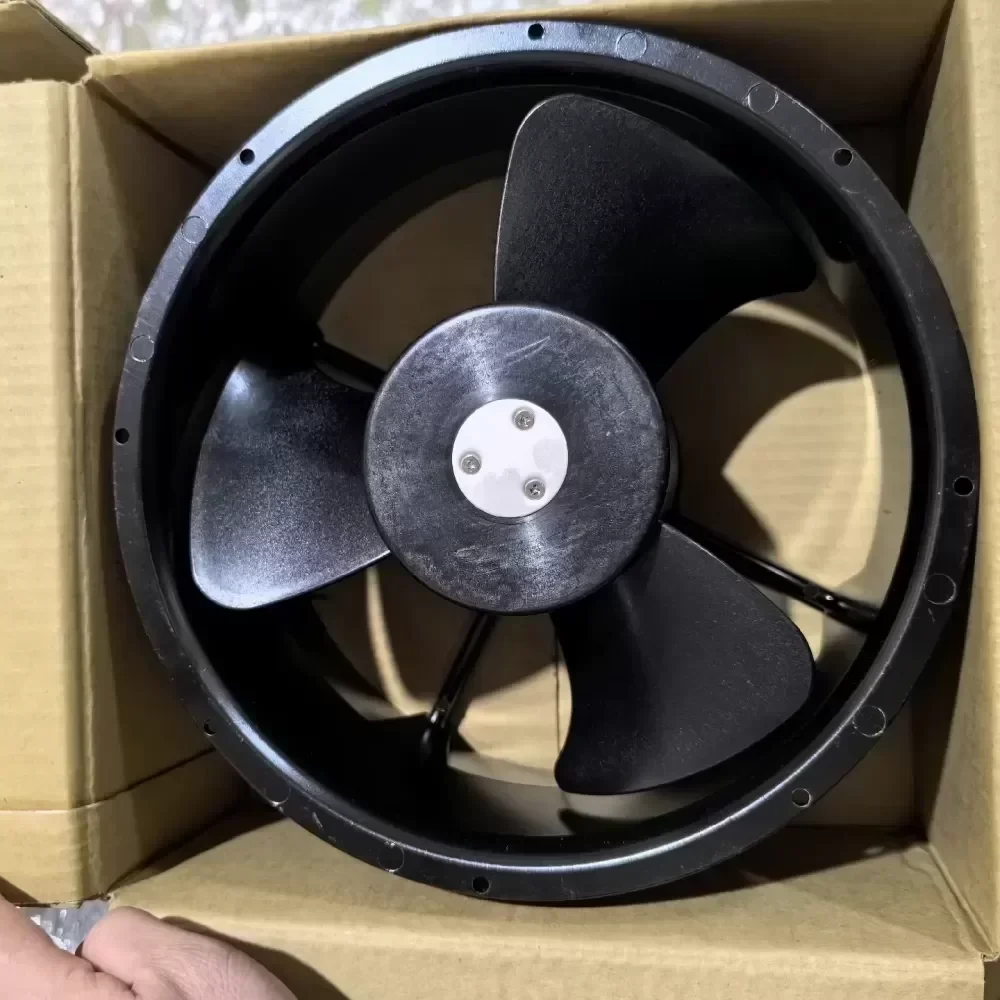

The FULLTECH UF-25HC23BTH is a high-performance AC axial cooling fan engineered for heavy-duty industrial thermal management. Manufactured in Taiwan, this 254x89mm exhaust fan is designed to deliver exceptional airflow in densely packed chassis and control cabinets. Leveraging Original Engineering standards, it ensures optimal heat dissipation for mission-critical electronics, preventing thermal throttling and extending equipment lifecycle.

Technical Specifications
Brand: FULLTECH
Model Number: UF-25HC23BTH
Fan Type: AC Axial Exhaust Fan
Dimensions: Ø 254 mm x 89 mm
Rated Voltage: 230V AC (220V-240V range)
Frequency: 50/60 Hz
Power Consumption: 60W / 80W
Speed: 2100 RPM / 2300 RPM ± 10%
Maximum Airflow: 1019 m³/h / 1155 m³/h
Static Pressure: 13.9 mmH2O / 16.5 mmH2O
Noise Level: 58 dB(A) / 60 dB(A)
Bearing System: Dual Ball Bearing
Termination: Terminal Type
Frame Material: Die-cast Aluminum Alloy
Impeller Material: Thermoplastic PBT (UL94V-0)
Operating Temperature: -40°C to +70°C
Weight: 1.95 kg
Certifications: CE, UL, TUV, RoHS

Model Decoding
UF: FULLTECH AC Axial Fan Series
25: 254mm Frame Size
HC: High Capacity Airflow Design
23: 230V AC Voltage Rating
B: Dual Ball Bearing
T: Terminal Connection
H: High-Speed Motor Configuration

Industrial Application & Technical Compatibility
The UF-25HC23BTH is specifically engineered for large-scale automation control cabinets, telecommunication base stations, and industrial CNC machinery enclosures. In environments where variable frequency drives and PLCs generate substantial heat, this fan’s high static pressure and 1155 m³/h airflow capacity rapidly evacuate stagnant hot air. Its robust die-cast aluminum frame and dual ball bearing system ensure Technical Compatibility with high-vibration environments, guaranteeing continuous operation in 24/7 manufacturing facilities.

Procurement & Lifecycle Value
Sourcing this component guarantees adherence to factory-grade thermal specifications. We provide accurate Lead Time estimates and global logistics support to minimize facility downtime. The dual ball bearing design offers an MTBF of over 50,000 hours at 40°C, drastically reducing maintenance intervals and replacement costs for industrial operators.

UF-25HC23BTH FULLTECH 25489/220V fan

UF-25HC23BTH FULLTECH 25489/220V fan

UF-25HC23BTH FULLTECH 25489/220V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
