Description

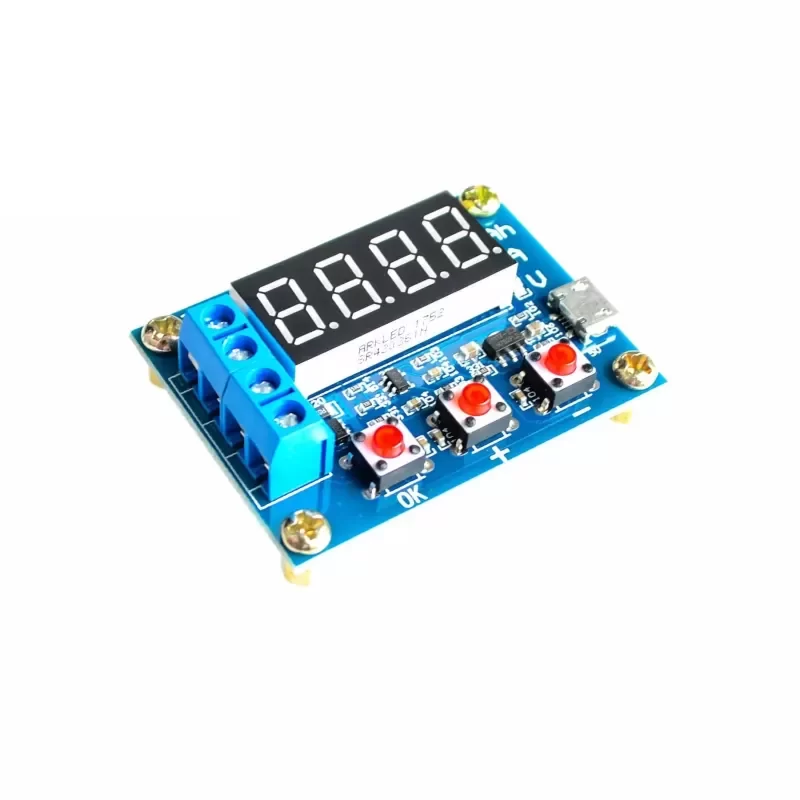

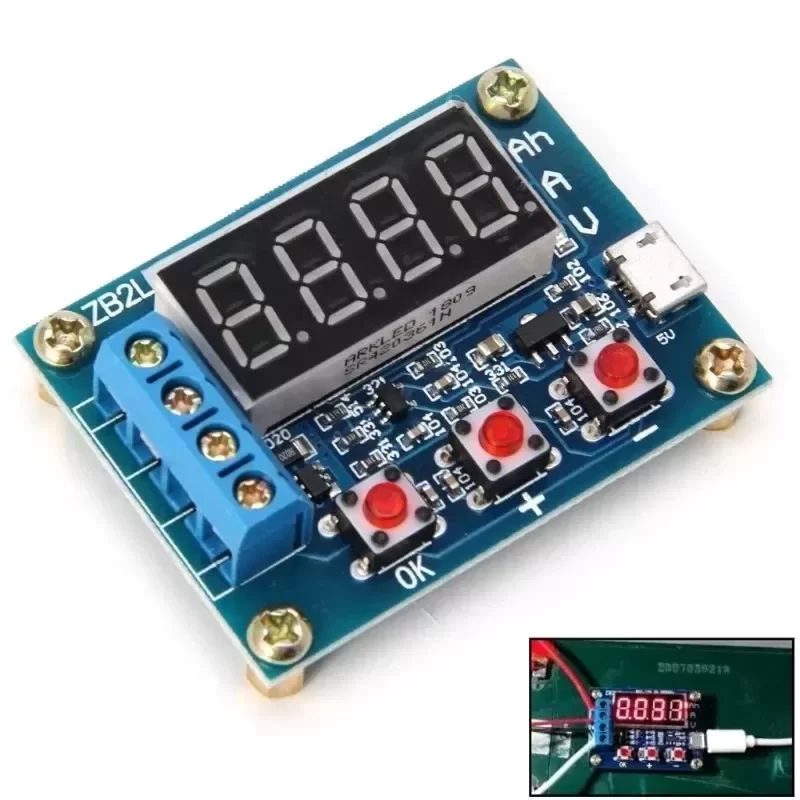

The ZB2L3 is a highly accurate, external load discharge type battery capacity tester designed for precise performance evaluation of 18650 lithium-ion, lead-acid, and NiMH cells. Engineered for rigorous quality control and lifecycle analysis, this module ensures Original Engineering standards are maintained across battery pack assembly and diagnostic workflows. With exceptional Technical Compatibility across various cell chemistries up to 15V, it provides reliable capacity metrics to optimize production Lead Time and minimize deployment failures.
Technical Specifications
Model: ZB2L3
Power Supply Voltage: DC 4.5V – 6.0V (Micro USB)
Operating Current: < 70mA
Discharge Voltage Range: 1.00V – 15.00V
Voltage Resolution: 0.01V
Termination Voltage Range: 0.5V – 11.0V
Maximum Discharge Current: 3.000A
Current Resolution: 0.001A
Voltage Measurement Accuracy: ± 1% + 0.02V
Current Measurement Accuracy: ± 1.5% ± 0.008A
Maximum Capacity Measurement: 9999Ah (9999000mAh)
Dimensions: 50mm x 37mm x 17mm
Weight: 28g
Operating Temperature: -10°C to +60°C
System Architecture & Logic

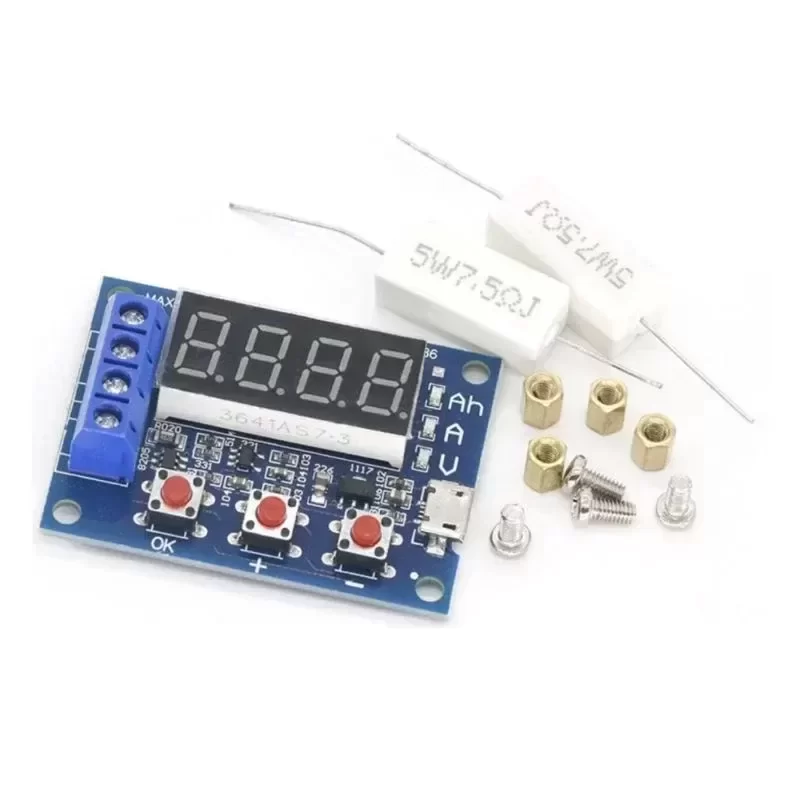

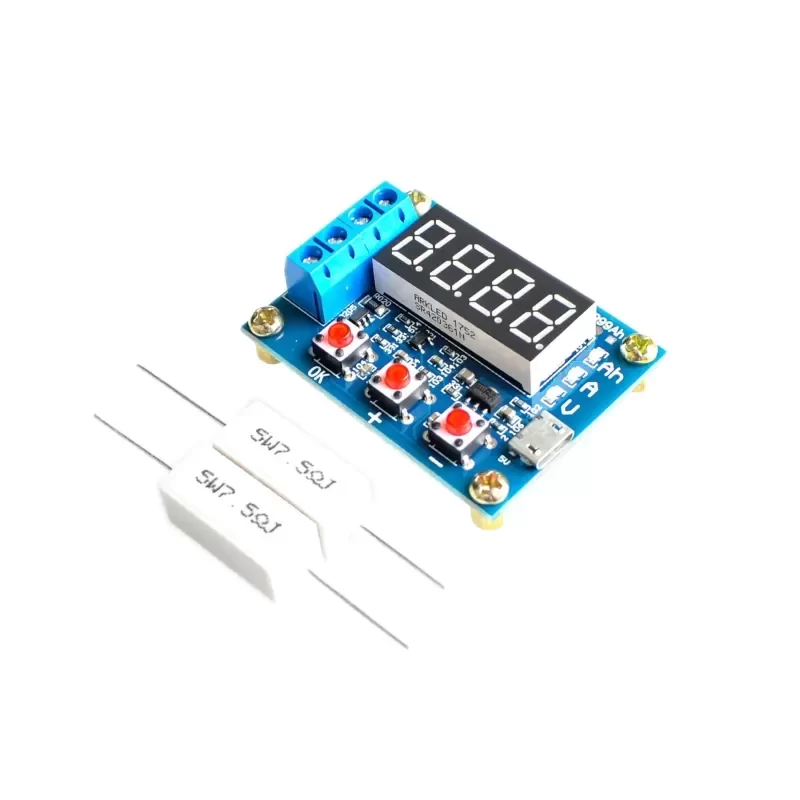

The ZB2L3 utilizes an external resistor load to dissipate energy, calculating total capacity by integrating current over time. The onboard microprocessor automatically identifies appropriate termination voltages based on the initial battery state, while allowing manual override via tactile push-buttons. Integrated diagnostic codes (Err1: Battery voltage > 15V, Err2: Battery voltage < termination voltage, Err3: Battery cannot sustain load current) ensure immediate fault isolation during automated testing sequences.
Industrial Application
In high-volume battery pack manufacturing and refurbishment facilities, the ZB2L3 serves as a critical diagnostic node. When grading salvaged 18650 cells for secondary-life energy storage systems (ESS), technicians rely on the ZB2L3 to execute standardized discharge profiles. This isolates degraded cells with high internal resistance or diminished capacity, ensuring that only cells meeting strict operational tolerances are integrated into multi-cell arrays, thereby preventing thermal runaway and premature system degradation.
Key Attributes
Place of Origin: China
Model Number: ZB2L3 18650
Brand Name: ZB2L3
Power supply voltage: DC4.5-6V (micro USB interface)
Working current: No more than 70mA
Discharge voltage: 1.00V-15.00V resolution 0.01V
Termination voltage range: 0.5-11.0V
Support current: No more than 3.000A, resolution 0.001A
Voltage measurement error: Less than 1%+0.02V
Current measurement error: Less than 1.2%+-0.002A
Battery capacity range: 9999Ah (1Ah=1000mAh)
Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X11 cm
Single gross weight: 1.500 kg
