$25.71

SKU: 907583315643 Brand:

Description

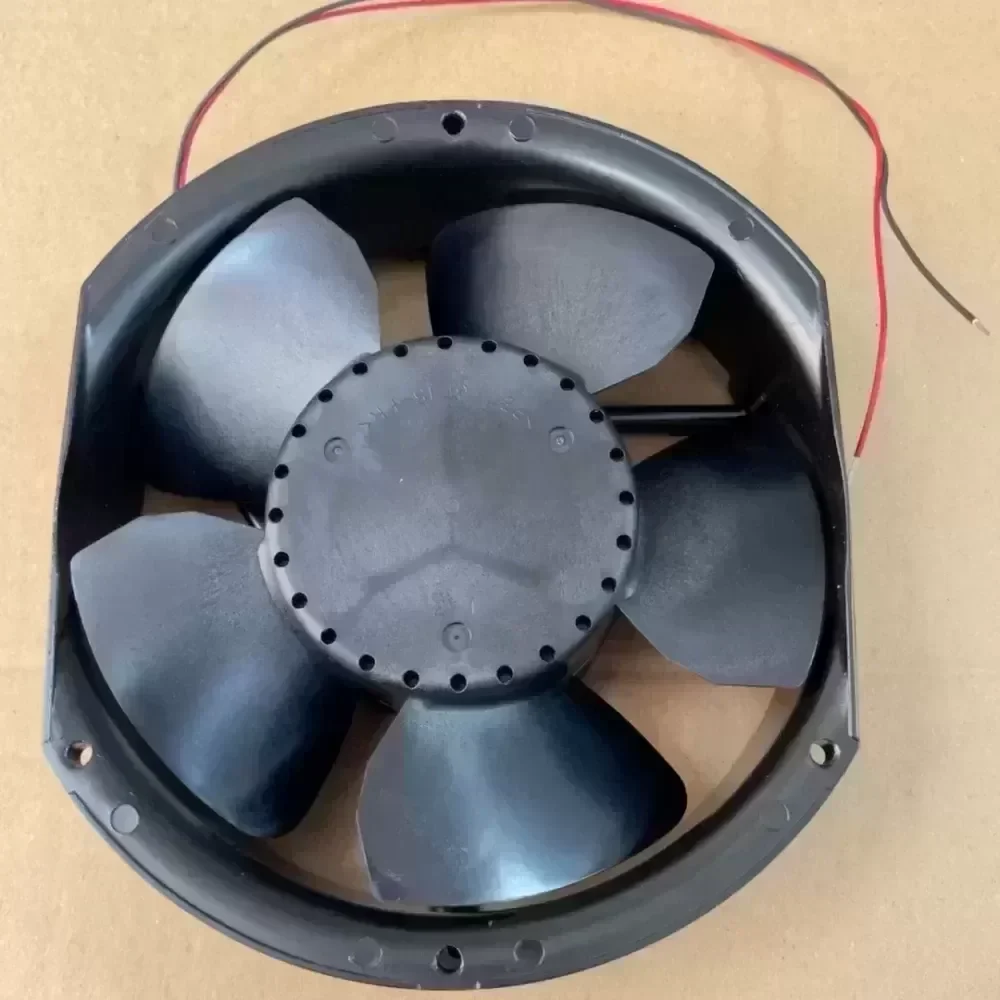

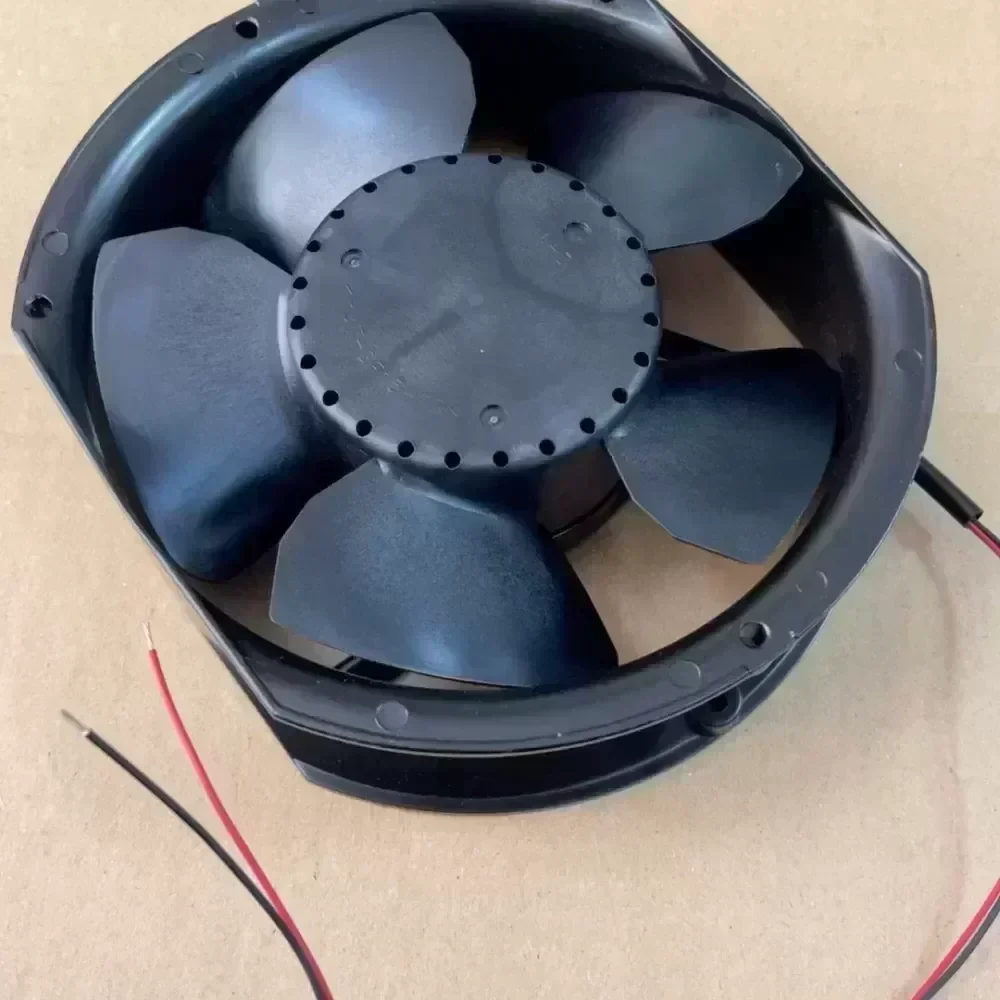

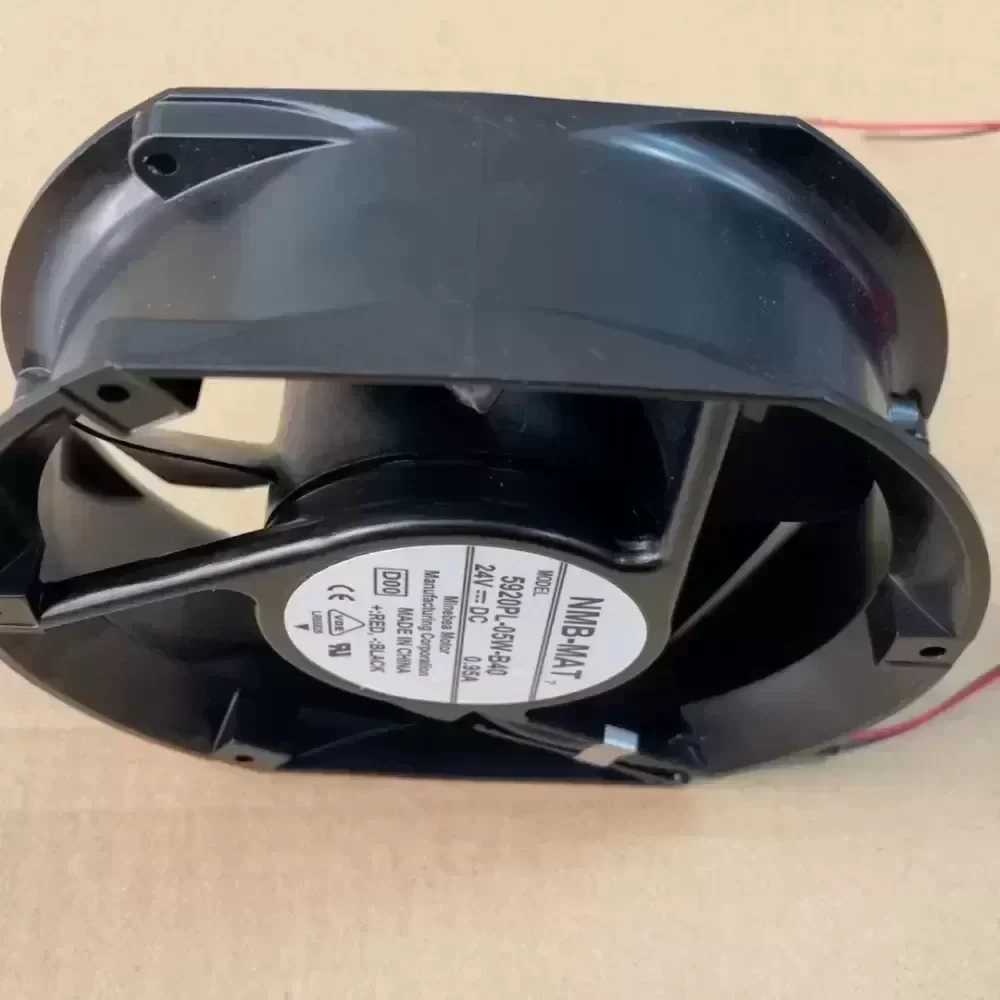

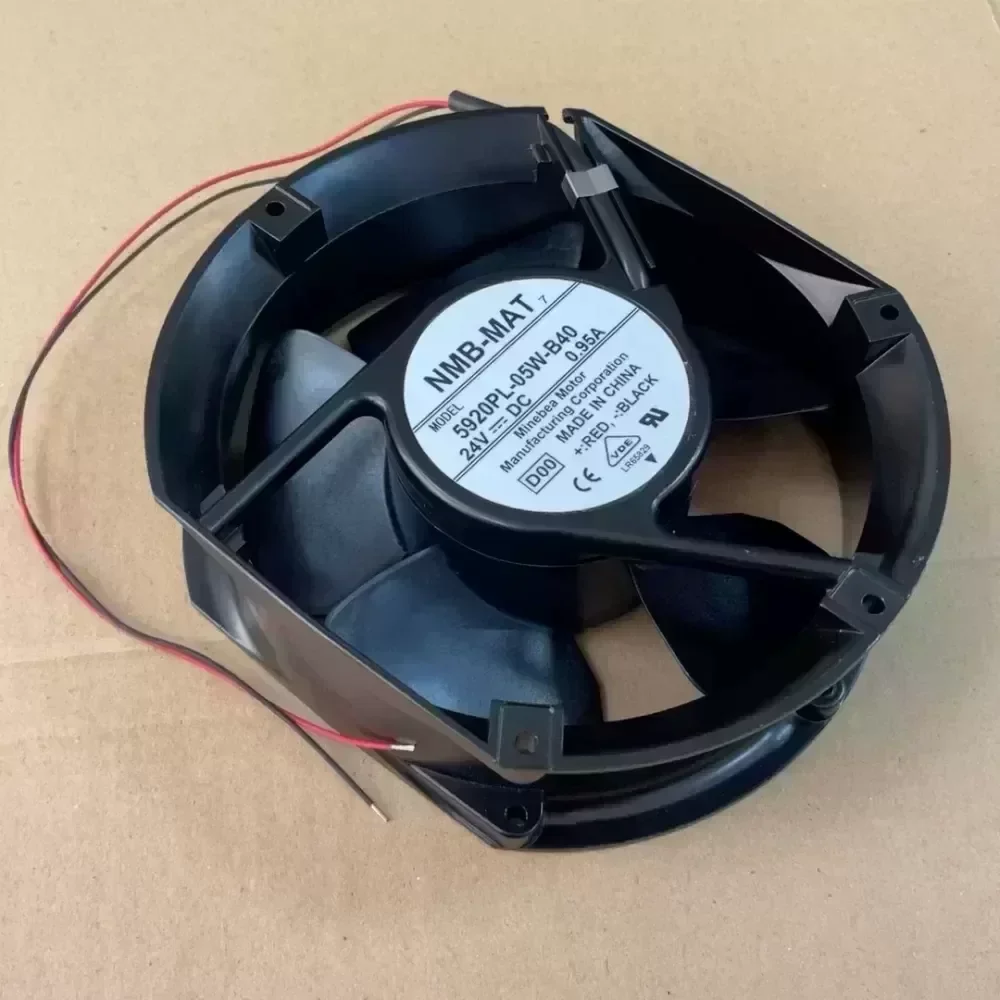

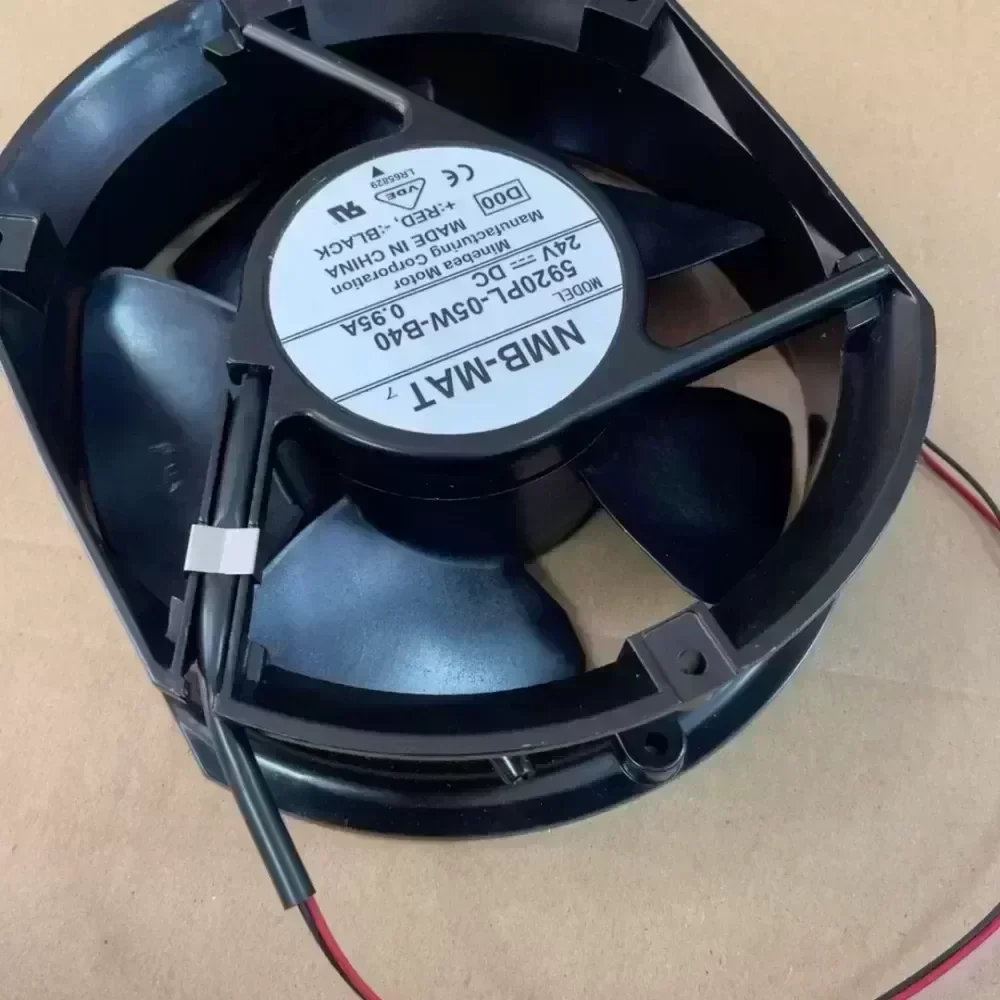

The NMB-MAT 5920PL-05W-B40 is a heavy-duty industrial DC axial fan engineered for high-demand thermal management systems. Built according to strict Original Engineering standards by MinebeaMitsumi, this unit features a rugged die-cast aluminum frame and dual precision ball bearings to deliver continuous, high-volume airflow under elevated back-pressure conditions.

Technical Specifications:
Manufacturer: NMB-MAT / MinebeaMitsumi
Model Code: 5920PL-05W-B40
Rated Voltage: 24V DC
Operating Voltage Range: 12.0V to 27.6V DC
Rated Current: 0.95A
Input Power: 22.8W
Rotational Speed: 3500 RPM
Maximum Airflow: 240 CFM (6.80 m³/min)
Maximum Static Pressure: 210 Pa (0.84 in H2O)
Acoustic Noise Level: 56.0 dBA
Bearing Architecture: Dual Precision Steel Ball Bearings
Frame Construction: Die-Cast Aluminum Housing (Black Coating)
Impeller Construction: Reinforced PBT Thermoplastic (UL94V-0 Rated)
Form Factor: 172mm x 150mm x 51mm (Side-Cut / Oval Flange)
Mounting Hole Pitch: Standard 162mm diagonal
Termination: Multi-Conductor UL Lead Wires
Operating Temperature Range: -10°C to +70°C
Storage Temperature Range: -40°C to +70°C
Expected Service Life (L10): 100,000 Hours at 25°C
Motor Protection: Reverse Polarity Protection, Auto-Restart Thermal Lockout
Weight: 830g

Application and Technical Compatibility:
The 5920PL-05W-B40 is designed for applications requiring aggressive forced-air cooling through tightly packed heat sink fins. Technical Compatibility includes medium-to-high voltage industrial variable frequency drives (VFDs), power inverters, large uninterruptible power supply (UPS) units, automation servo drive cabinets, and telecommunications power rectifiers. The side-cut profile allows optimized ducting within standard 172mm cutouts while maximizing cross-sectional air delivery.

Supply Chain and Quality Assurance:
Units undergo electrical verification to ensure OEM-level current draw, rotational balance, and acoustic compliance. Standard lead time for batch fulfillment and export dispatch is expedited via dedicated B2B logistics channels.

5920PL-05W-B40 NMB-MAT fan

5920PL-05W-B40 NMB-MAT fan

5920PL-05W-B40 NMB-MAT fan

5920PL-05W-B40 NMB-MAT fan

5920PL-05W-B40 NMB-MAT fan

5920PL-05W-B40 NMB-MAT fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
