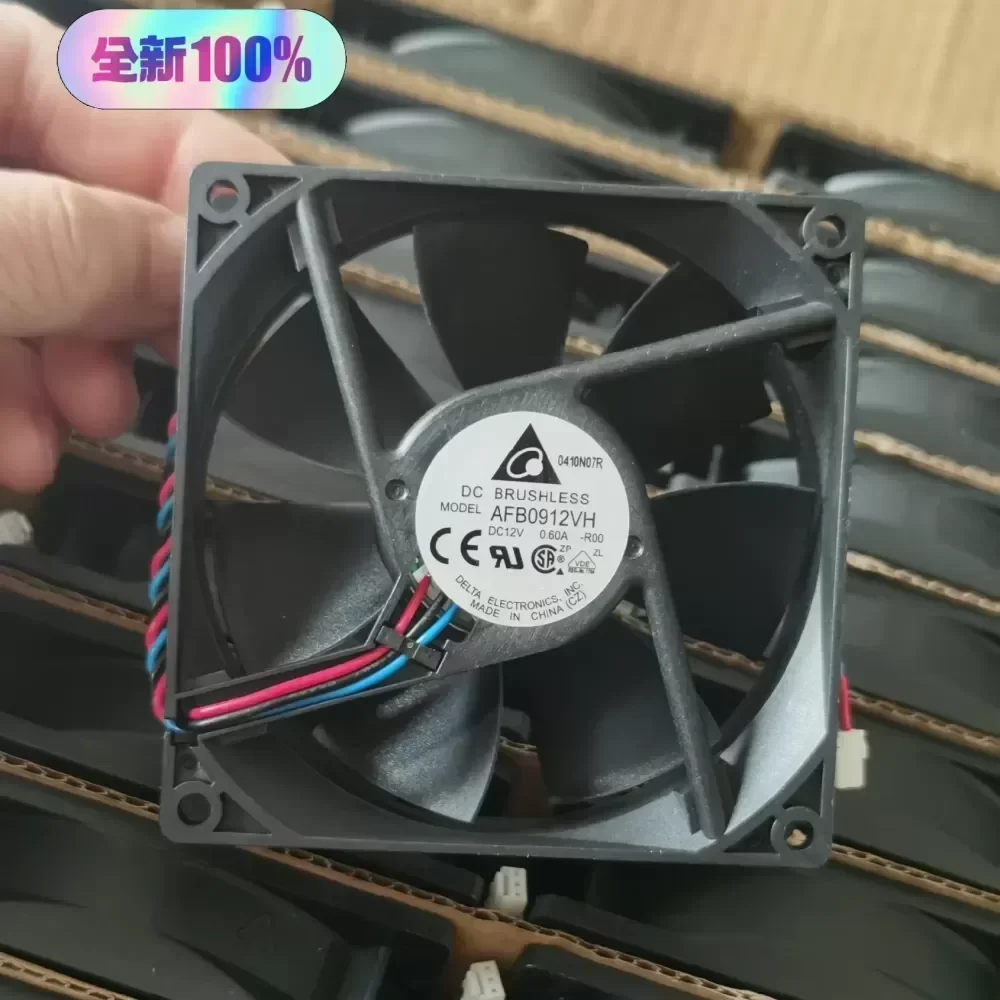

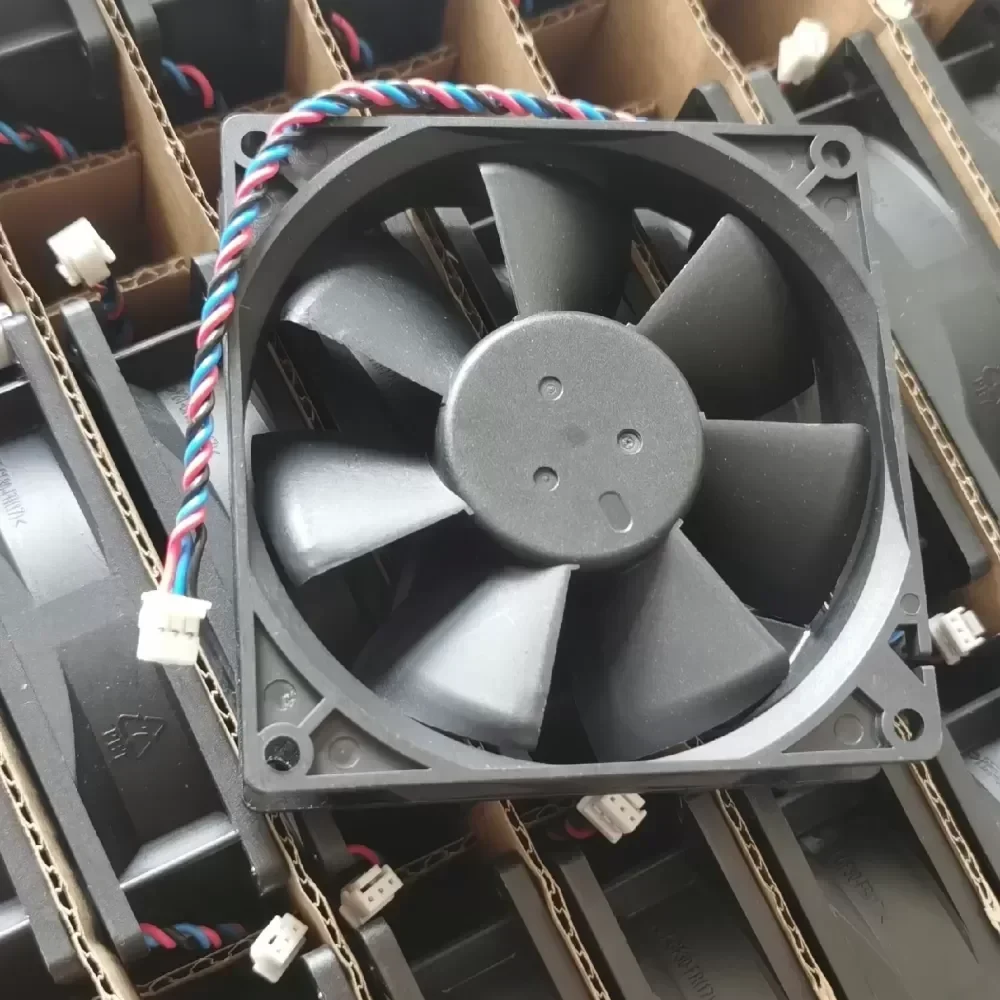

AFB0912VH-R00 Delta 9225/12V fan
AFB0912VH-R00 Delta 9225/12V fan
AFB0912VH-R00 Delta 9225/12V fan

AFB0912VH-R00 Delta 9225/12V fan

$4.00

SKU: 704468398504 Brand:

Description

Manufacturer: Delta Electronics
Model: AFB0912VH-R00
Product Category: DC Axial Cooling Fan

Technical Specifications:
Frame Size: 92 x 92 x 25.4 mm (3.62 x 3.62 x 1.00 inches)
Rated Voltage: 12 VDC
Operating Voltage Range: 7.0 to 13.8 VDC
Rated Current: 0.40 A (0.60 A Maximum)
Input Power: 4.80 W
Rated Speed: 3800 RPM
Maximum Airflow: 67.80 CFM (1.920 m³/min)
Maximum Static Pressure: 7.67 mmH2O (0.302 inH2O)
Noise Level: 45.0 dB(A)
Bearing Type: Dual Ball Bearing
Termination: 3-Wire Lead (Red/Black/White)
Signal Output: R00 (Locked Rotor Alarm Signal / Failure Detection)
Weight: 120 g

Material and Environmental Ratings:
Impeller Material: Plastic (UL 94V-0)
Frame Material: Plastic (UL 94V-0)
Operating Temperature: -10 °C to +70 °C
Storage Temperature: -40 °C to +75 °C
Life Expectancy: 70,000 Hours at 40 °C (L10)
Protection: Polarity Protection, Locked Rotor Protection
Certifications: UL, CUL, TUV, CE

Industrial Application and System Integration:
The Delta AFB0912VH-R00 is a high-performance thermal management solution engineered for mission-critical industrial electronics. This specific model features the R00 alarm signal logic, which provides a continuous low-level output during normal operation and switches to a high-level signal upon rotor stall. This functionality is essential for automated monitoring systems in variable frequency drives (VFDs), telecommunication racks, and server power supplies where cooling failure can lead to immediate thermal runaway and hardware damage.

Procurement and Technical Compatibility:
This unit is a brand new, original engineering component ensuring 100% technical compatibility with systems requiring high-static pressure 9225 form factor fans. Utilizing dual ball bearing architecture, it offers superior longevity in continuous 24/7 duty cycles compared to sleeve bearing alternatives. Global lead time is optimized for maintenance, repair, and operations (MRO) requirements to minimize downtime in industrial control cabinets.

AFB0912VH-R00 Delta 9225/12V fan

AFB0912VH-R00 Delta 9225/12V fan

AFB0912VH-R00 Delta 9225/12V fan

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Fans Maintenance and upkeep

1. The use environment should always be kept clean and tidy, the surface of the fan should be kept clean, there should be no sundries in the inlet and outlet air outlets, and the dust and other sundries in the fan and pipes should be cleaned regularly;

2. The fan can only operate under the condition that it is completely normal, and at the same time, it is necessary to ensure that the capacity of the power supply facilities is sufficient and the voltage is stable.

3. During the operation of the fan, if it is found that the fan has abnormal sound, the motor is seriously heated, the shell is live, the switch trips, and cannot be started, it should be stopped immediately for inspection. In order to ensure safety, maintenance is not allowed during the operation of the fan, and a test run should be carried out for about five minutes after the overhaul to confirm that there is no abnormal phenomenon before starting the operation;

4. The fan should be stored in a dry environment to avoid moisture on the motor. When the fan is stored in the open air, there should be defensive measures. In the process of storage and handling, the fan should be prevented from bumping to avoid damage to the fan.
