Description

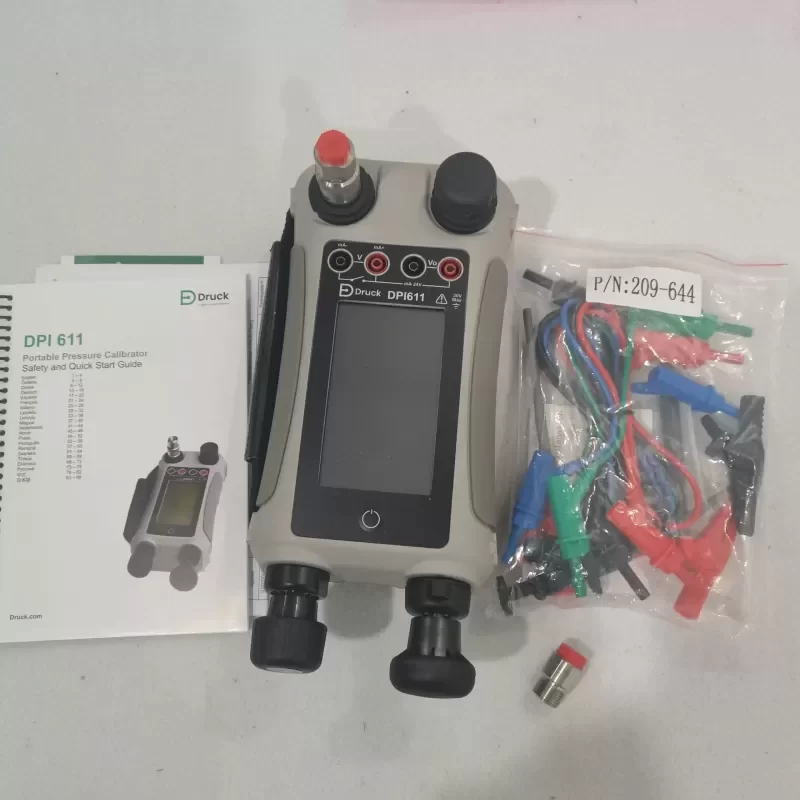

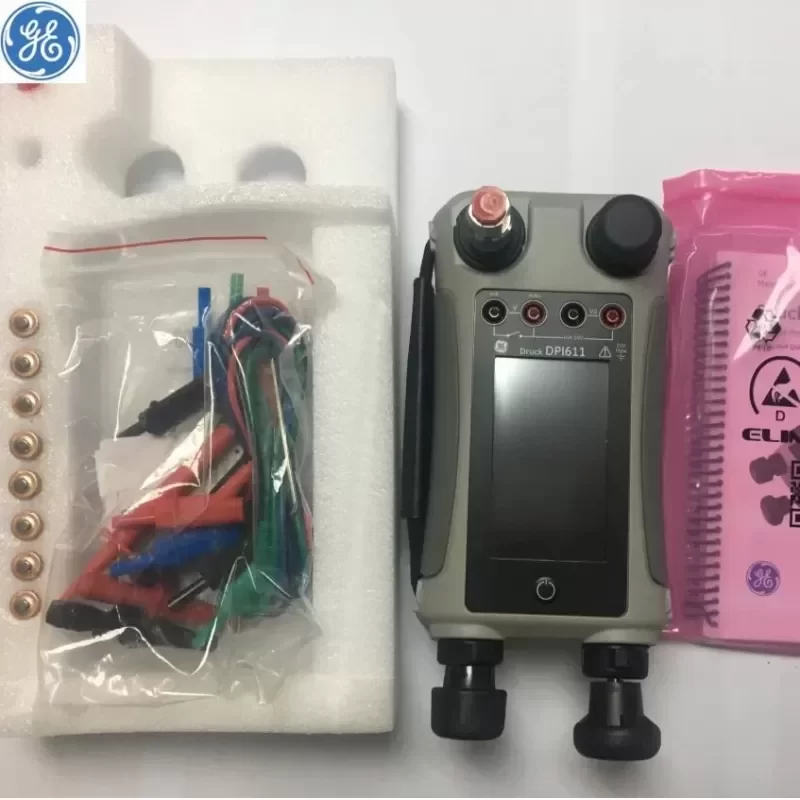

The Druck DPI611-13G is a fully self-contained, hand-held pressure calibrator engineered for high-precision field calibration and maintenance of pressure measurement devices. Manufactured under Original Engineering standards, this unit integrates a high-performance pneumatic pressure generator, advanced signal measurement capabilities, and an intuitive touchscreen interface into a compact, robust enclosure. Designed to streamline calibration workflows, the DPI611-13G eliminates the need for external hand pumps or gas cylinders, generating pneumatic pressure from 95% vacuum up to 20 bar (300 psi) in seconds.
Technical Specifications:
Manufacturer: Druck (Baker Hughes)
Model Number: DPI611-13G
Pressure Range: -1 to 20 bar (-14.5 to 300 psi)
Pressure Type: Gauge (G)
Pressure Generation: Integrated pneumatic pump with volume adjuster and fine control vent valve
Accuracy: ±0.0185% Full Scale (FS)
Electrical Measurement: mA, V, mV, ohms, frequency
Electrical Source: mA, V, 24V loop power
Display: 4.3-inch high-resolution color touchscreen
Operating Temperature: -10°C to 50°C
Storage Temperature: -20°C to 70°C
Ingress Protection: IP54
Weight: 1.7 kg
Dimensions: 270 mm x 130 mm x 120 mm

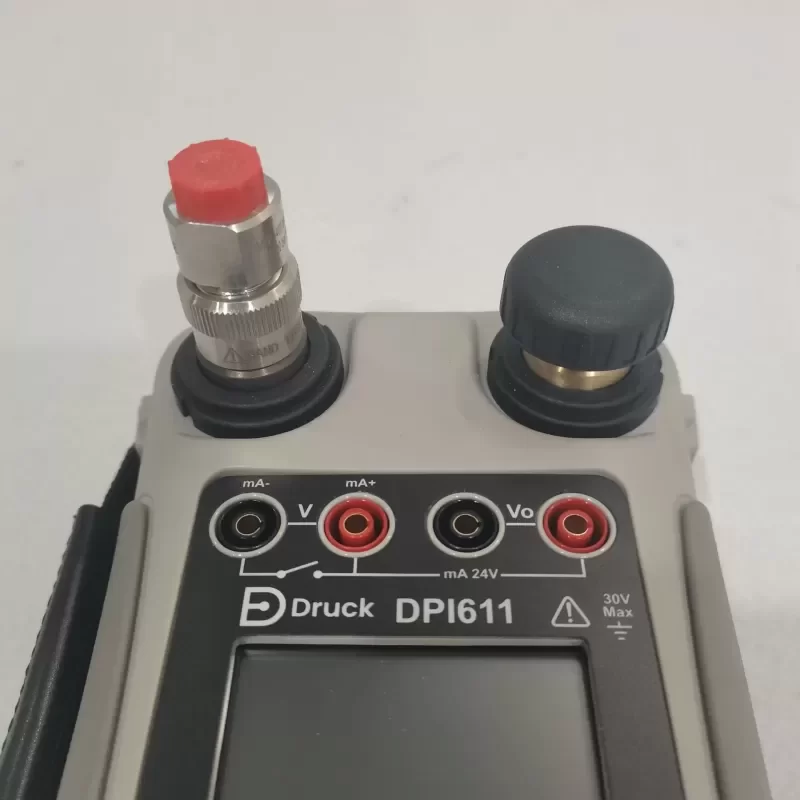

Pressure Connection: G 1/8 female and 1/8 NPT female adaptors
Battery Life: 18 to 26 hours
Certifications: CE, RoHS
Industrial Application and Technical Compatibility:
The DPI611-13G is purpose-built for instrumentation technicians operating in demanding process environments such as petrochemical refining, power generation, and pharmaceutical manufacturing. Its Technical Compatibility extends seamlessly to the calibration of 4-20 mA loop transmitters, pressure switches, and analog gauges. By providing both the physical pressure stimulus and the electrical measurement required to verify transmitter outputs, this calibrator ensures optimal process control and safety compliance. The device shares data logging and procedural architectures with the broader DPI612 and DPI620 series, allowing for standardized fleet management. With optimized Lead Time and robust construction, this calibrator represents a critical investment for minimizing plant downtime and maintaining rigorous quality assurance protocols.
Key Attributes
Place of origin: China
Model number: DPI611-13G
Brand name: Druck
Customized support: OEM, ODM
Warranty: 1 years
Product name: Druck Pressure Calibrator
Model: DPI611-13G
Max Pressure: 300 psi (300 hPa)
Battery Run Time: 26 HR
Pressure Measurement: Single Pressure Sensor
Voltage Measurement Max: 30 V
Current Measurement Max: 55 mA
IP Rating: IP54
Calibration Included: Factory Calibration
HTS/Schedule B Number: 9026.20.4000

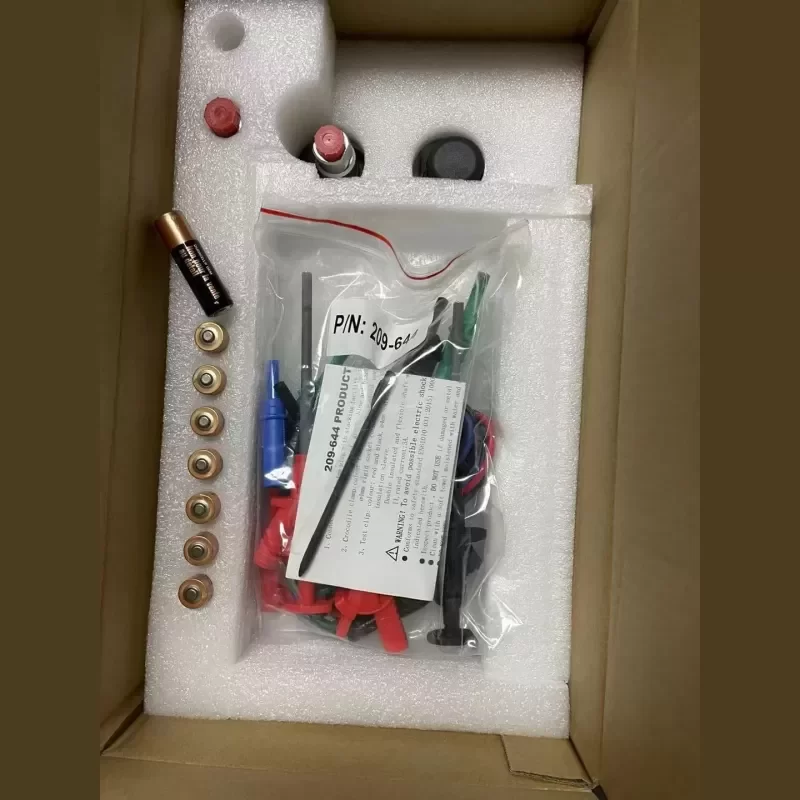

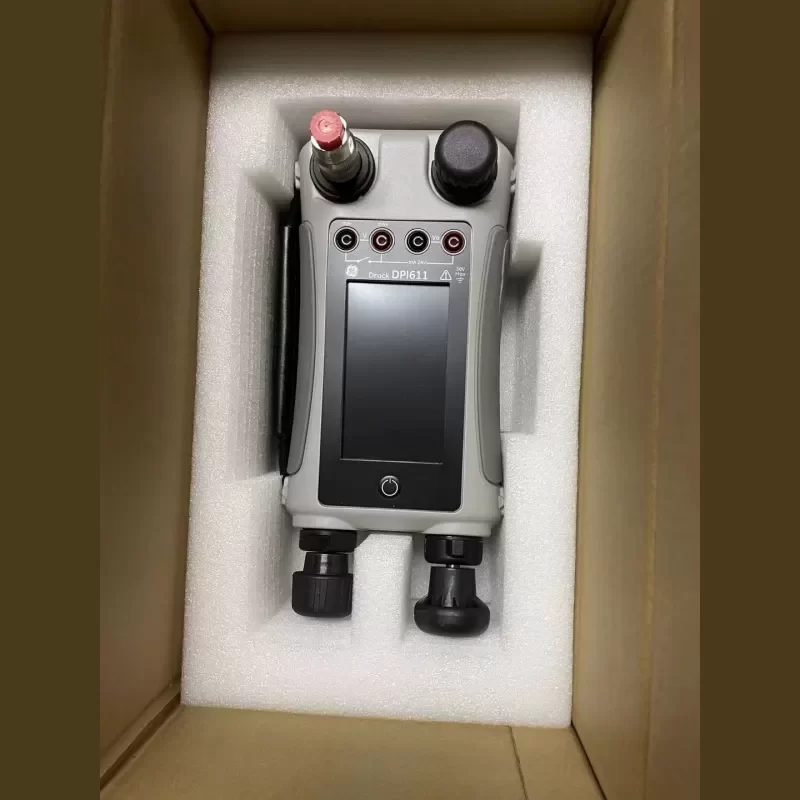

Packaging and Delivery
Selling Units: Single item
