Fluke 707 High Permance Loop Calibrator Testing Equipment Calibration Repair and Maintenance

$1,239.00

SKU: 1600957572577 Brand:

Description

The Fluke 707 is an industrial-grade precision tool engineered for calibration, maintenance, troubleshooting, and validation of 4-20 mA current loops in automated process control environments. Designed with Original Engineering standards, it integrates a high-resolution measurement engine with a specialized quick-click interface, allowing single-handed adjustment of span, step, and ramp sequences. The instrument serves as a combined loop calibrator, mA source, mA simulator, and 24 V loop power supply, making it an indispensable asset for field service engineers and instrumentation technicians.

Technical Specifications:
Manufacturer: Fluke Corporation
Model: 707
Device Type: High-Performance mA Loop Calibrator
Current Measurement Range: 0 to 24 mA
Current Measurement Resolution: 0.001 mA
Current Measurement Accuracy: 0.015% of reading ± 2 counts
Current Source Range: 0 to 20 mA or 4 to 20 mA
Current Source Drive Capability: 1200 Ω at 24 mA
Current Simulation Range: 0 to 20 mA or 4 to 20 mA
External Voltage Source (Simulation): 12 to 40 V DC
Loop Power Supply: 24 V DC nominal (includes integrated 250 Ω resistor for HART communications)
Voltage Measurement Range: 0 to 28 V DC
Voltage Measurement Resolution: 1 mV
Voltage Measurement Accuracy: 0.015% of reading ± 2 counts

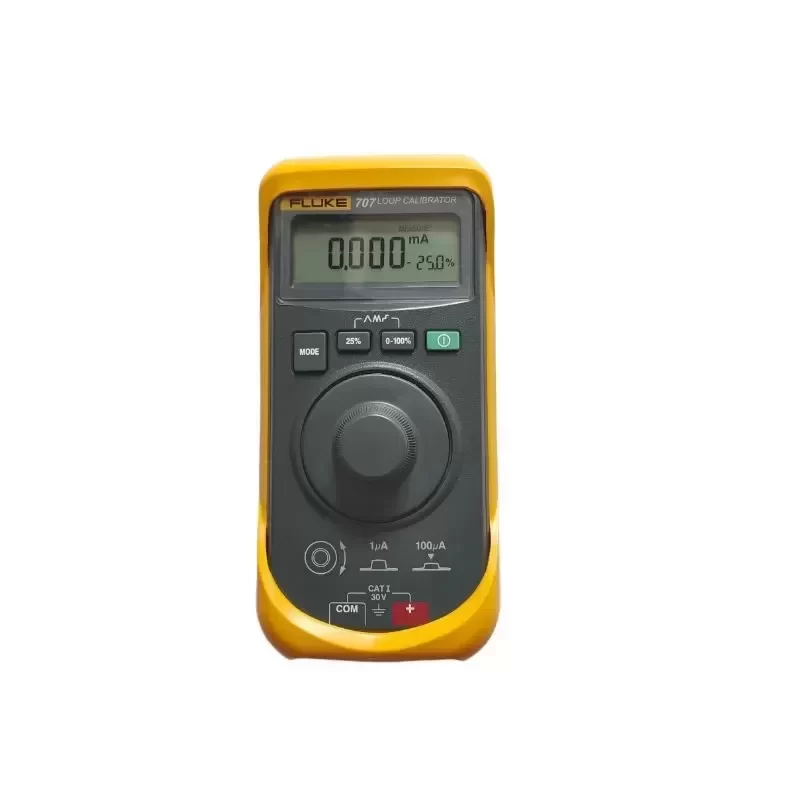

Display: High-contrast LCD with simultaneous mA and % of span readouts
Step and Ramp Functions: 0% and 100% toggle, 25% incremental stepping, auto-step, fast ramp, slow ramp
Operating Temperature: -10 °C to 55 °C
Storage Temperature: -40 °C to 60 °C
Relative Humidity: 95% (up to 30 °C), 75% (up to 40 °C), 45% (up to 50 °C)
Safety Standards: IEC 61010-1, CAT I 30 V
Power Source: 9 V Alkaline Battery (ANSI/NEDA 1604A or IEC 6LR61)
Battery Operating Life: Approximately 18 hours typical at 12 mA output
Dimensions: 152 mm x 70 mm x 41 mm
Weight: 0.34 kg

Industrial Application and System Integration:
The Fluke 707 delivers critical functionality in continuous process plants, including petrochemical facilities, pharmaceutical production, power utilities, and water treatment infrastructure. During system commissioning and routine turnarounds, the unit addresses transmitter drift, loop continuity faults, and DCS/PLC analog input card verification. Its integrated 250 Ω resistor establishes seamless Technical Compatibility with HART communicators across digital-analog hybrid architectures without requiring external shunt hardware, resolving impedance mismatch problems during valve positioner diagnostics and transmitter loop testing.

Supply Chain and Lifecycle Support:
Manufactured to rigorous industrial reliability criteria to guarantee repeatable metrological traceability. Routine distribution configurations support low factory Lead Time for emergency outage procurement, scheduled maintenance programs, and MRO lifecycle replenishment.

Key Attributes
Type: Loop Calibrator
Place of origin: China
Customized support: OEM, ODM
Power: 30V
Voltage: 12-30 V
Brand name: Fluke
Application: Auto Testing, Universal Testing
Warranty: 1 years
Current Measurement Range: 0 to 24 mA
Resolution: 0.001 mA
Accuracy: 0.015% Rdg + 2 LSD
Loop Power: While measuring mA, 24 V
Voltage measurement Range: 0 to 28 V DC
Operating Temperature: -10 to 55°C
Size: 152 x 70 x 41 mm
Weight: 340g

Packaging and Delivery
Selling Units: Single item
Single package size: 30X20X16 cm
Single gross weight: 1.500 kg
