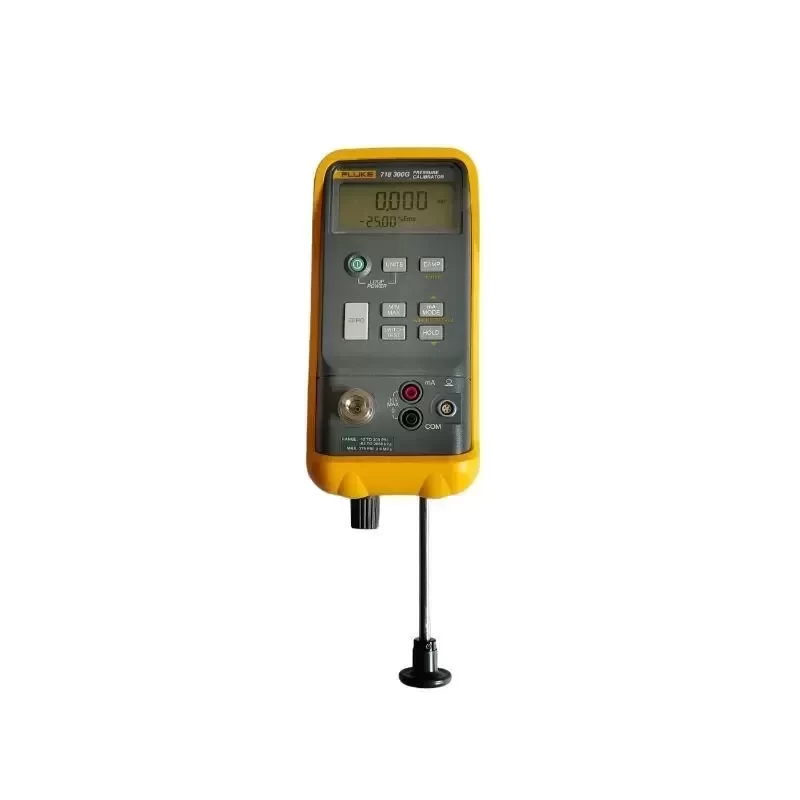

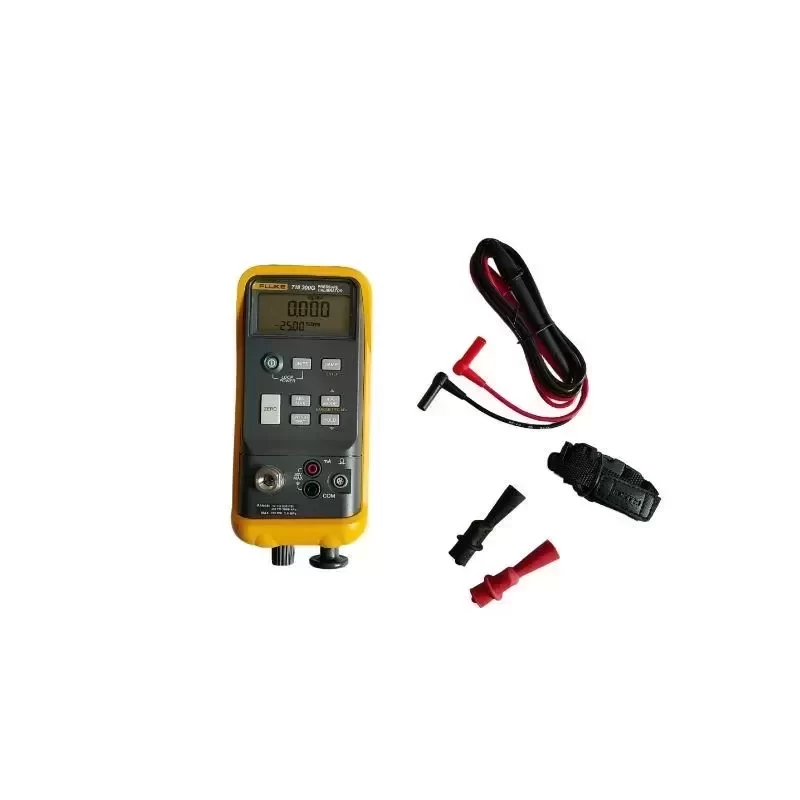

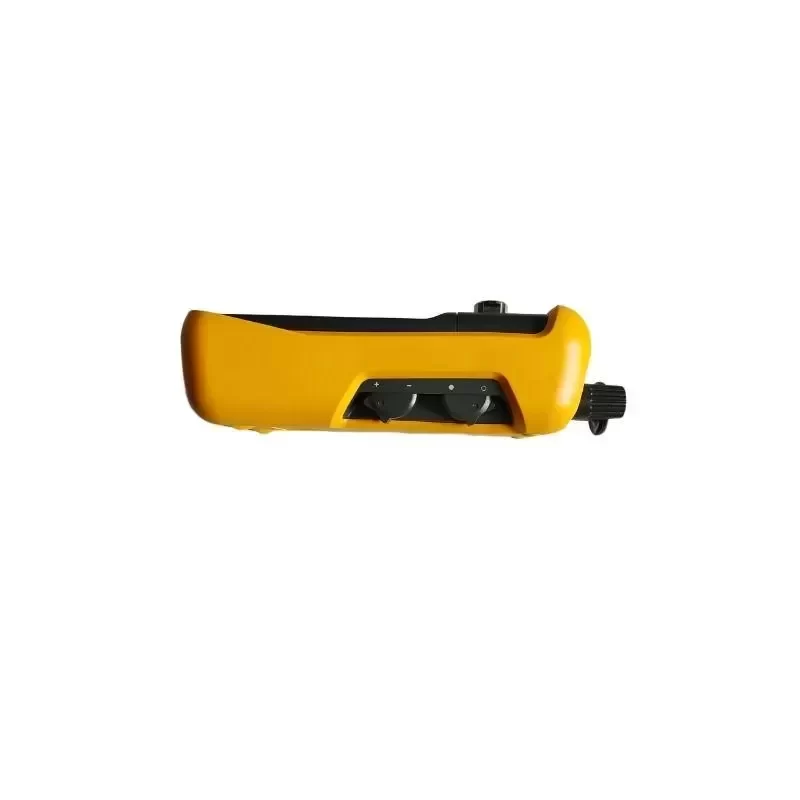

Fluke 718 Series 718EX 30G Intrinsically Safe Pressure Calibrator Testing Equipment

$5,266.00

SKU: 1600989577781 Brand:

Description

The Fluke 718Ex 30G is an intrinsically safe, self-contained handheld pressure calibrator engineered specifically for explosive atmospheres and hazardous operational zones. Designed with integrated pneumatic pressure generation and precision measurement electronics, the unit combines a manual pressure/vacuum pump, vernier micro-adjuster, pressure release bleed valve, and internal pressure sensor into a compact field tool. It allows instrument technicians to calibrate transmitters, switches, and gauges without transporting heavy external nitrogen cylinders or supplementary hand pumps into classified operating areas.

TECHNICAL SPECIFICATIONS
Pressure Range: -83 kPa to 207 kPa (-12 psi to 30 psi / -0.83 bar to 2.07 bar)
Pressure Resolution: 0.001 psi / 0.01 kPa / 0.0001 bar
Pressure Accuracy: ±0.05% of full scale
Current Measurement Range: 0 mA to 24 mA DC
Current Measurement Resolution: 0.001 mA
Current Measurement Accuracy: ±0.02% of reading ± 2 counts
Built-in Pump Media: Clean dry air and non-corrosive gases only
Pressure Connection: 1/8 in NPT internal thread
Display: Dual LCD readout showing pressure and current simultaneously
Operating Temperature: -10 °C to 55 °C
Storage Temperature: -40 °C to 60 °C
Relative Humidity: 95% (-10 °C to 30 °C), 75% (30 °C to 40 °C), 45% (40 °C to 50 °C), 35% (50 °C to 55 °C)
Shock and Vibration: 1 m drop test rated; Random 2 g, 5 Hz to 500 Hz
Ingress Protection: IP40 rated enclosure
Power Supply: Single 9 V alkaline battery (ANSI/NEDA 1604A or IEC 6LR61)
Battery Life: 4 to 20 hours continuous operation depending on functions used
Dimensions: 216 mm x 94 mm x 66 mm
Weight: 992 g

HAZARDOUS AREA COMPLIANCE
ATEX Rating: II 1G Ex ia IIC T4 Ga
CSA Certification: Class I, Division 1, Groups A-D, T4
IECEx Certification: Ex ia IIC T4

INDUSTRIAL APPLICATION SCENARIO
In offshore oil extraction platforms, chemical distillation columns, and natural gas metering skids, calibration of low-pressure safety transmitters typically requires establishing a hot work permit or shutting down unit operations. The Fluke 718Ex 30G addresses this bottleneck by providing direct Zone 0 and Division 1 entry. Technicians can isolate pressure transmitters, apply test pressures up to 30 psi using the internal manual pump, trim zero/span values via the fine vernier, and measure the 4-20 mA output loop concurrently, eliminating plant downtime and safety declassification protocols.

ENGINEERING INTEGRATION AND PROCUREMENT
Original Engineering standards are maintained through certified factory calibration routines and strict adherence to intrinsically safe component isolation schematics.
Technical Compatibility: Directly compatible with Fluke 700PEx intrinsically safe pressure modules for extending ranges up to 3000 psi, as well as standard instrumentation test leads and standard 1/8 in NPT process connections.
Lead Time: Typical dispatch lead time ranges from standard stock availability to 14 business days subject to regional hazardous equipment export validation and calibration verification.

Key Attributes
Type: Pressure Calibrators
Place of origin: China
Customized support: OEM, ODM
Power: -830 mbar to 2 bar
Protection Class: IP67
Voltage: Other
Brand name: Fluke
Warranty: 1 years
Range: -830 mbar to 2 bar
Resolution: 0.0001 bar
Accuracy: 0.05% FS
Operating Temperature: -10℃ to 55℃
Operating Altitude: 3,000 m max
Vibration: Random, 2 G, 5-500 Hz

Packaging and Delivery
Selling Units: Single item
Single package size: 28X16X14 cm
Single gross weight: 2.000 kg
