Description

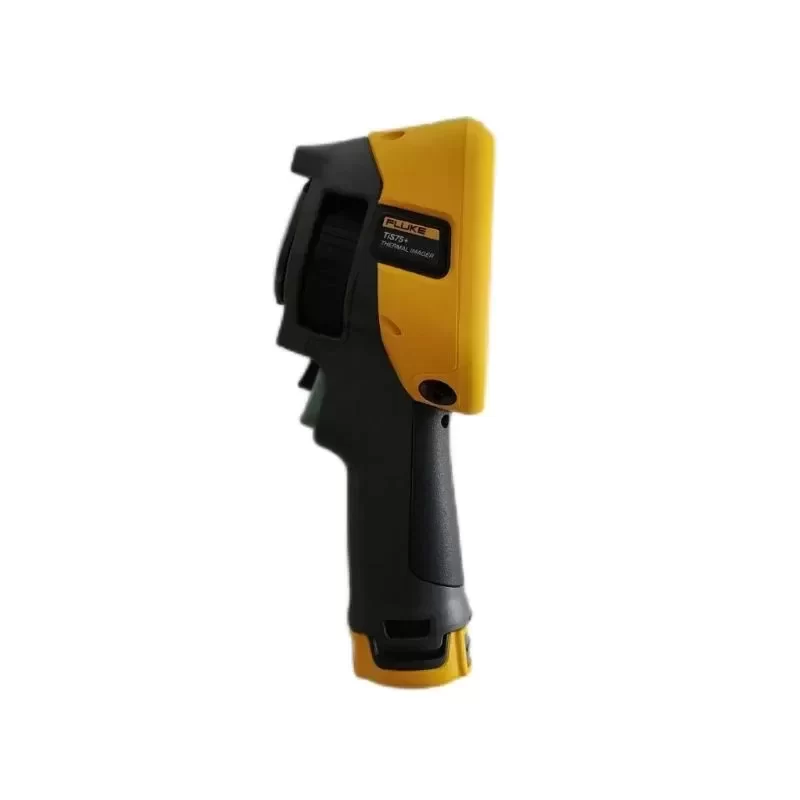

The Fluke TiS75+ Thermal Imager is a professional-grade diagnostic instrument engineered for high-resolution infrared inspections in demanding industrial, electrical, and building maintenance environments. Utilizing Fluke’s Original Engineering, this thermal camera bridges the gap between frontline troubleshooting and comprehensive predictive maintenance programs. The integration of dew point calculation and radiometric video recording allows technicians to capture dynamic thermal events and identify moisture intrusion risks with absolute precision.
Technical Specifications:
Manufacturer: Fluke Corporation
Model: TiS75+
Infrared Resolution: 384 x 288 (110,592 pixels)
Thermal Sensitivity (NETD): <= 40 mK (0.04 °C) at 30 °C
Temperature Measurement Range: -20 °C to 550 °C
Accuracy: ± 2 °C or ± 2% (whichever is greater)
Field of View (FOV): 42° x 30°
Spatial Resolution (IFOV): 1.91 mRad
Distance to Spot Ratio: 524:1
Focus Mechanism: Manual focus and 1-meter focus-free

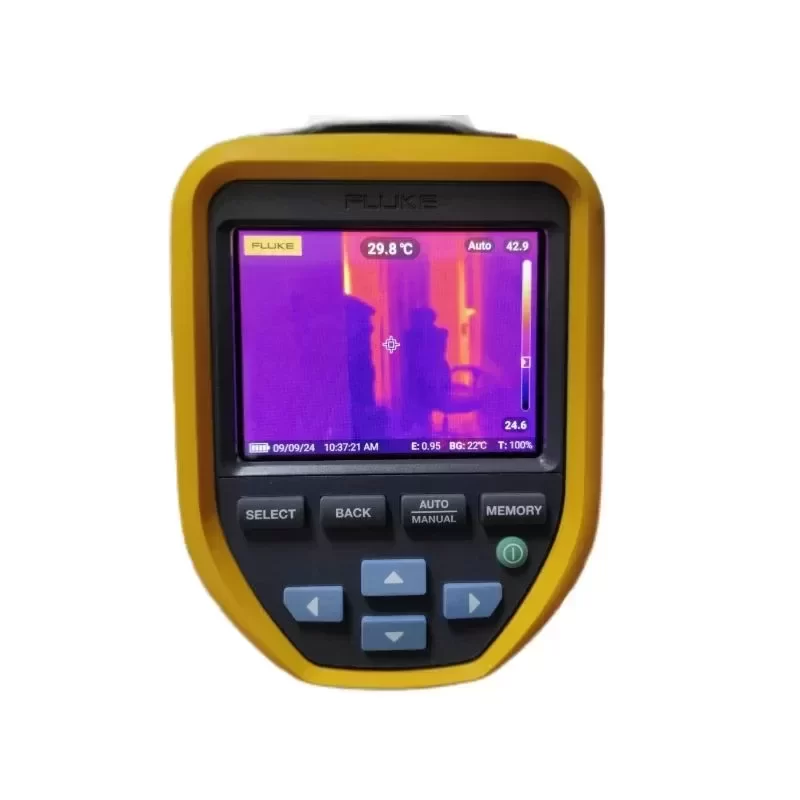

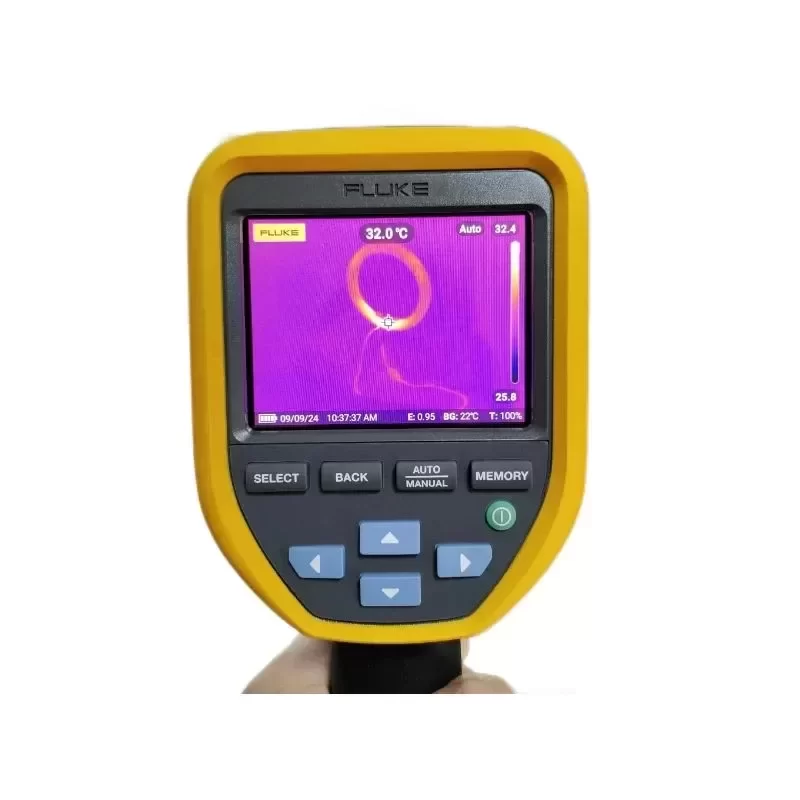

Display: 3.5-inch VGA (640 x 480) LCD Touchscreen
Image Blending: IR-Fusion technology (continuous 0% to 100%)
Video Recording: Standard (AVI) and Radiometric (IS3)
Special Diagnostics: Dew point calculation with color alarms
Wireless Connectivity: Fluke Connect app compatible, WiFi LAN
Enclosure Protection: IP54 (dust and water spray resistant)
Drop Tolerance: Engineered to withstand a 2-meter drop
Weight: 1.04 kg
Battery Life: > 3.5 hours continuous operation
System Architecture and Integration:
The TiS75+ operates on an advanced microbolometer array that delivers exceptional thermal clarity. The inclusion of IR-Fusion technology allows users to overlay visible light images with infrared data, pinpointing the exact location of thermal anomalies. The onboard dew point calculation utilizes ambient temperature and humidity inputs to display a color alarm where condensation is likely to occur, making it an indispensable tool for building envelope diagnostics. Furthermore, the radiometric video recording capability captures continuous thermal data over time, which is critical for analyzing intermittent electrical faults or mechanical friction cycles.
Industrial Application Scenarios:
This thermal imager provides unparalleled Technical Compatibility across multiple sectors. In electrical maintenance, it is deployed to scan switchgear, transformers, and motor control centers to detect high-resistance connections and phase imbalances before catastrophic failure. In mechanical systems, it identifies bearing wear and misalignment in rotating machinery. For building diagnostics, the dew point feature isolates areas vulnerable to mold growth and structural moisture damage.
Procurement and Lifecycle Value:
Designed for rigorous daily use, the Fluke TiS75+ minimizes downtime through rapid diagnostic capabilities. We ensure optimized Lead Time for this critical diagnostic equipment, delivering a fully calibrated, deployment-ready unit that integrates seamlessly into your existing asset management software.
Key Attributes
Thermal color palettes: Other
Place of Origin: United States
Model Number: TIS75+
Brand Name: Fluke
Infrared Resolution: 384 x 288 (110,592 pixels)
IFOV: 1.91 mRad
Frame Rate: 9 Hz
Thermal Sensitivity: 40 mk
Temperature Range: -4 to 1022°F (-20 to 550°C)
Accuracy: ±2°C or 2%
Relative Humidity: 10 to 95% non-condensing
Enclosure Rating: IP54
Theory: Infrared Thermometer
Temperature Control Accuracy: ±2°C or 2%

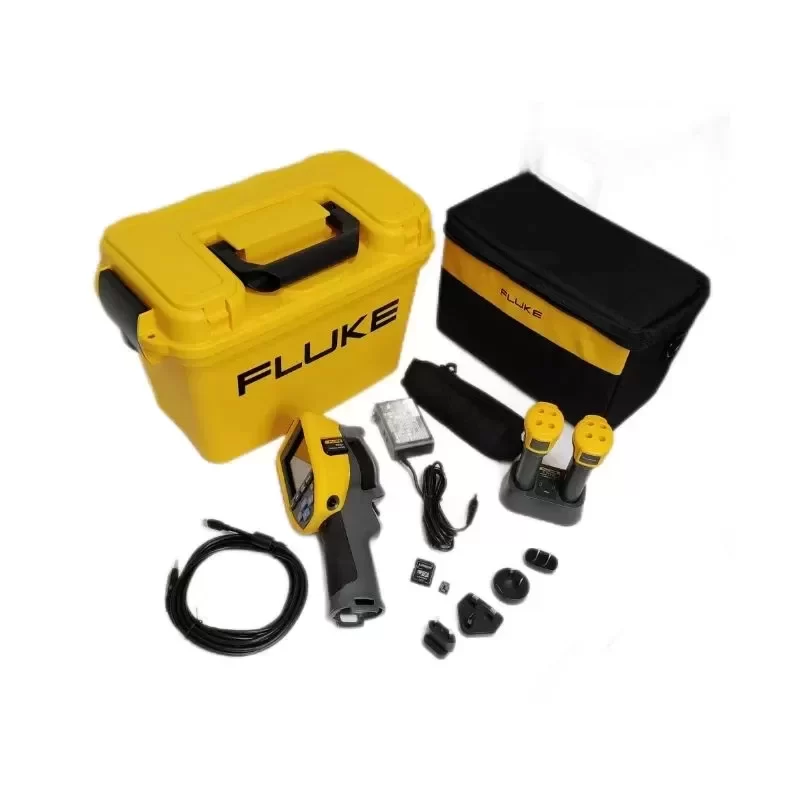

Packaging and Delivery
Selling Units: Single item
Single package size: 48X36X31 cm
Single gross weight: 4.200 kg
